Introducció
Gràcies per la compraasing the JOYACCESS Wireless Keyboard and Mouse Combo. This manual provides detailed instructions on how to set up, operate, and maintain your new device. Please read this manual carefully before use to ensure optimal performance and longevity of the product.
This combo features a full-size, slim, and ergonomic keyboard paired with a silent, adjustable DPI mouse, both rechargeable via built-in 500mAh lithium-ion batteries. It utilizes reliable 2.4GHz wireless connectivity for a stable connection up to 10 meters.
Contingut del paquet
- JOYACCESS Wireless Keyboard
- JOYACCESS Wireless Mouse
- USB Nano Receiver (stored inside the mouse battery compartment)
- Cable de càrrega USB
- Manual d'usuari
Producte acabatview
Figura 1: Acabatview of the JOYACCESS Wireless Keyboard and Mouse Combo with USB receiver.
Figura 2: Close-up of the JOYACCESS Wireless Mouse showing the USB Nano Receiver port and quiet click zones. The mouse features adjustable DPI settings from 800 to 2400.

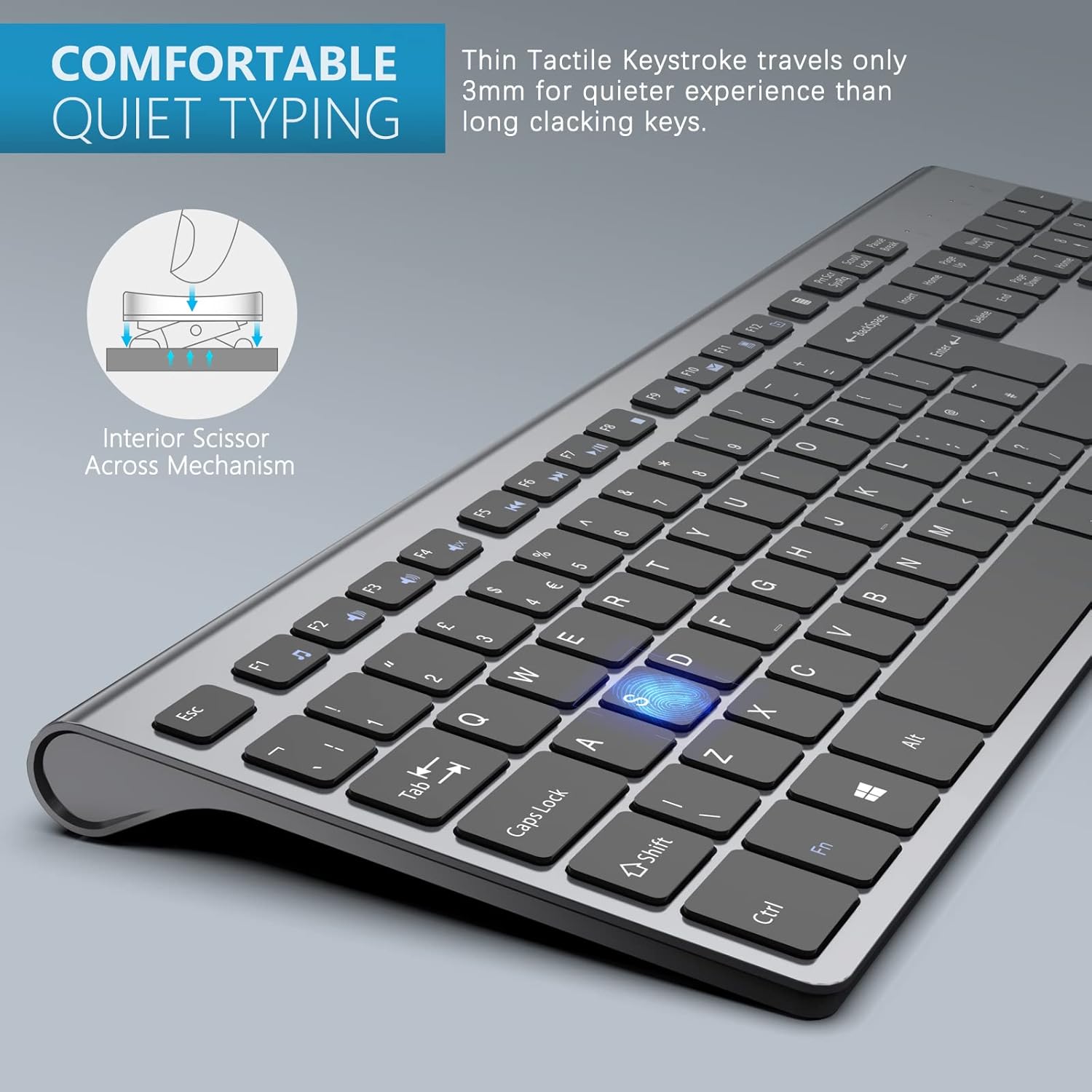

Figura 3: Illustration of the interior scissor mechanism of the keyboard keys, designed for comfortable and quiet typing with a short 3mm keystroke travel.
Figura 4: Detail of the keyboard's indicator lights for Num Lock, Caps Lock, Power, and Charging, along with the Micro USB charging port.
Guia de configuració
- Carregueu els dispositius: Before first use, fully charge both the keyboard and the mouse using the provided USB charging cable. Connect the cable to the Micro USB port on each device and a USB power source (e.g., computer USB port, USB wall adapter). The charging indicator light will show charging status. A full charge provides approximately 4 months of use for the keyboard and 90 days for the mouse.
- Localitza el nanoreceptor USB: The USB Nano Receiver is typically stored in the battery compartment of the mouse for safe keeping during transport. Open the battery cover on the underside of the mouse to retrieve it.
- Connecteu el receptor: Insert the USB Nano Receiver into an available USB port on your computer, laptop, or compatible device.
- Encès: Turn on the keyboard and mouse. There is usually a power switch on the underside of both devices. The devices should automatically connect to the receiver.
- Instal·lació del controlador (Plug and Play): No additional drivers are typically required. Your operating system (Windows, macOS, iOS) should automatically recognize and install the necessary drivers.
Figura 5: Diagram illustrating the simple plug-and-play setup process for the JOYACCESS wireless keyboard and mouse combo.
Instruccions de funcionament
Ús del teclat
- Mecanografia: The full-size keyboard provides a comfortable typing experience with well-spaced keys and a standard layout, including a numeric keypad.
- Tecles multimèdia: Access multimedia functions (e.g., volume control, play/pause, next/previous track) using the dedicated function keys (F1-F12) in combination with the Fn key, if applicable. Refer to the key legends for specific functions.
- Llums indicadores: Observe the indicator lights for Num Lock, Caps Lock, and Power status.
Ús del ratolí
- Fent clic: The mouse features quiet click buttons for a less disruptive experience.
- Ajust de DPI: The mouse supports adjustable DPI settings up to 2400 DPI. This allows you to change the cursor speed and sensitivity. Typically, there is a DPI button near the scroll wheel to cycle through different DPI levels (e.g., 800/1200/1600/2000/2400).
- Disseny ergonòmic: The slim and ergonomic design ensures comfortable use for extended periods.

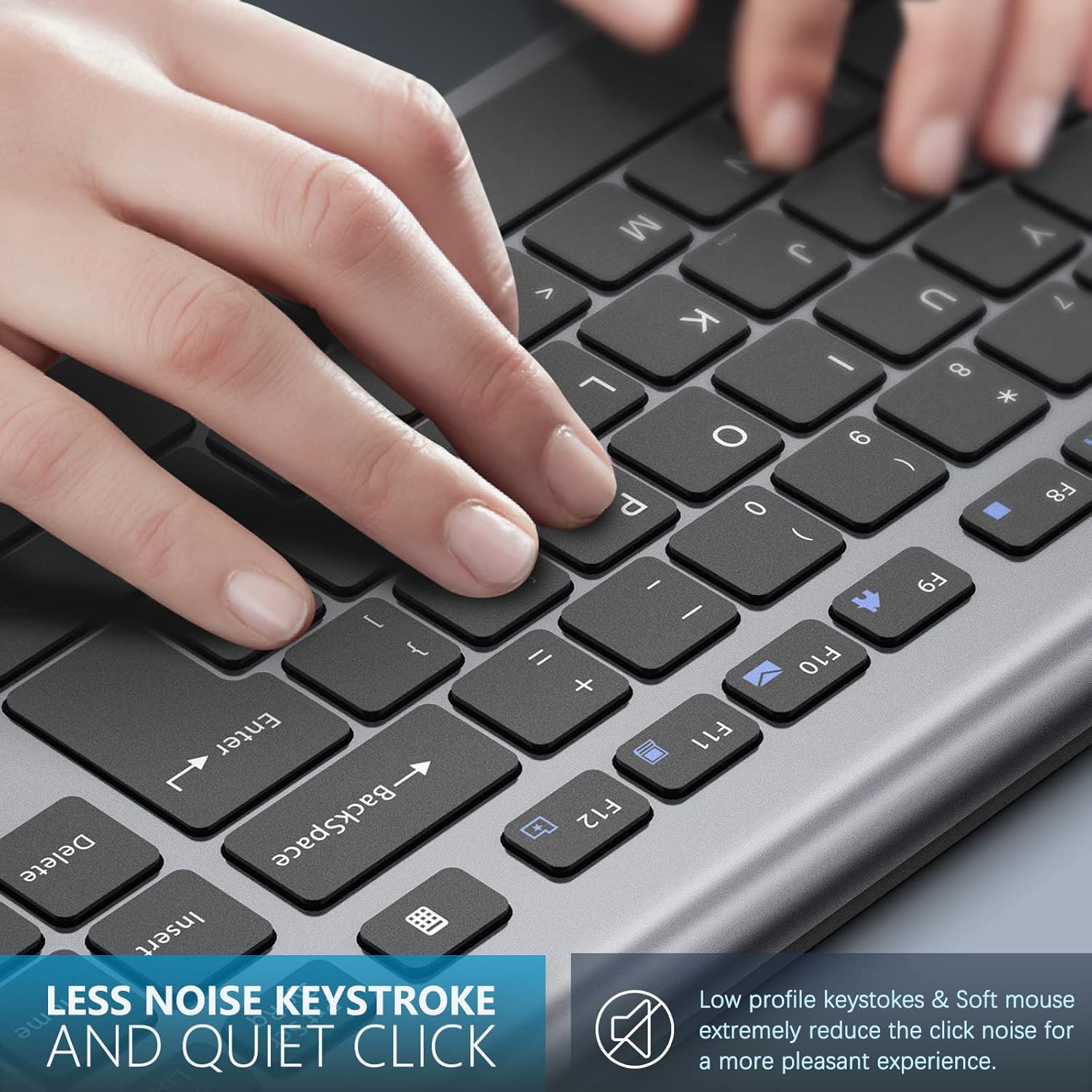

Figura 6: Demonstrates hands typing on the JOYACCESS wireless keyboard, highlighting the low-profile keystrokes and quiet click design for reduced noise.
Càrrega i durada de la bateria
Both the keyboard and mouse are equipped with built-in 500mAh rechargeable lithium-ion batteries. They are designed for long battery life and automatic sleep mode to conserve power.
- Temps de càrrega: Aproximadament 2-3 hores per a una càrrega completa.
- Durada de la bateria: Up to 4 months for the keyboard and 90 days for the mouse on a single charge, depending on usage.
- Indicador de bateria baixa: The power indicator light on the keyboard will flash or change color to indicate low battery. For the mouse, performance may degrade when the battery is low.
- Mode de repòs automàtic: To save power, the devices will enter sleep mode after a period of inactivity. Press any key or click the mouse to wake them up.
Figura 7: Illustration showing the charging process for both the keyboard and mouse, emphasizing their rechargeable nature and long battery life of over 90 days on a single charge.
Manteniment i cura
- Neteja: Feu servir un drap suau i sec per netejar les superfícies del teclat i el ratolí. Per a la brutícia persistent, netegeu lleugerament.amp Es pot fer servir un drap, però assegureu-vos que no entri humitat a l'aparell.
- Emmagatzematge: Quan no els feu servir durant períodes prolongats, apagueu els dispositius per estalviar bateria. Guardeu-los en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Eviteu líquids: Do not expose the devices to water or other liquids.
- Manejar amb cura: Eviteu deixar caure els dispositius ni sotmetre'ls a impactes forts.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El teclat/ratolí no respon | Low battery; Receiver not connected; Devices not powered on; Interference. | Charge the devices. Ensure the USB receiver is securely plugged into a working USB port. Turn on both the keyboard and mouse. Move closer to the receiver or try a different USB port. |
| Retard o resposta retardada | Distance from receiver; Interference from other wireless devices; Low battery. | Reduce the distance between the devices and the receiver (within 10m). Minimize interference from other 2.4GHz devices. Recharge the batteries. |
| El cursor del ratolí és erràtic o no es mou suaument | Sensor òptic brut; Superfície inadequada; Bateria baixa. | Clean the optical sensor on the underside of the mouse. Use the mouse on a clean, non-reflective, opaque surface or a mouse pad. Recharge the battery. |
| Les tecles del teclat no funcionen | Low battery; Device in sleep mode; Physical damage. | Recharge the keyboard. Press any key to wake it from sleep mode. Inspect for physical damage. |
Especificacions
- Model: X-JK6BUK
- Connectivitat: Sense fil de 2.4 GHz (nanoreceptor USB)
- Interval de funcionament: Fins a 10 metres (33 peus)
- Tipus de teclat: Full-size, Slim, Ergonomic, Multimedia Keys
- DPI del ratolí: Adjustable (800/1200/1600/2000/2400 DPI)
- Tipus de bateria: Built-in 500mAh Lithium-ion (rechargeable)
- Port de càrrega: Micro USB
- Sistemes operatius compatibles: Windows 10, Windows Vista, iOS (and generally compatible with PC, Laptop, Smart TV)
- Color: Negre/Gris
Garantia i Suport
JOYACCESS products come with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included in your package or visit the official JOYACCESS website. If you encounter any issues or have questions not covered in this manual, please contact JOYACCESS customer support through their official channels.
Per obtenir suport, visiteu: www.joyaccess.com (Nota: Això és un marcador de posició URL, please refer to actual product documentation for correct support contact.)
