Introducció
This manual provides essential information for the safe and effective use of your Oxelo Scooter SC MID 9 RED. Please read it thoroughly before assembly and operation. The scooter is designed for easy control and balance through physical inclination.
Característiques principals:
- Adjustable handlebar for comfortable riding.
- Designed for easy and intuitive riding.
- Intelligent turning mechanism for enhanced maneuverability.
Muntatge i muntatge
Your Oxelo Scooter SC MID 9 RED comes partially assembled. Follow these steps to complete the setup:
- Desembalatge: Carefully remove all components from the packaging. Ensure all parts are present: main scooter frame, handlebar, and any included tools.
- Instal·lació del manillar: Insert the handlebar stem into the main steering tube. Align the holes and secure it using the quick-release clamp or bolts provided. Ensure it is firmly seated and does not wobble.
- Ajust de l'alçada del manillar: Loosen the quick-release lever on the handlebar stem. Adjust the handlebar to a comfortable height, typically around hip level when standing on the scooter. Securely tighten the quick-release lever.
- Comprovació de frens: Verify that the rear brake lever on the handlebar operates smoothly and effectively engages the rear wheel brake. Adjust cable tension if necessary.
- Mecanisme de plegat: Familiarize yourself with the folding mechanism. Ensure it locks securely in both the open (riding) and folded (storage) positions.
Figure 1: Fully assembled Oxelo Scooter SC MID 9 RED, showcasing its red frame and white wheels.
Instruccions de funcionament
Per garantir una experiència segura i agradable, seguiu aquestes pautes operatives:
- Inici: Place one foot firmly on the scooter deck. Use the other foot to push off the ground to gain momentum.
- Equitació: Once moving, place both feet on the deck, one behind the other. Maintain balance by slightly bending your knees and leaning your body. The scooter's intelligent turning allows for easy steering by leaning.
- Frenatge: To slow down or stop, gently squeeze the brake lever on the handlebar. Apply pressure gradually to avoid sudden stops. The scooter features rear braking.
- Ajust del manillar: The handlebar height can be adjusted for different riders. Ensure the quick-release clamp is securely fastened after adjustment.
Figure 2: Detail of the adjustable handlebar and ergonomic grip with the brake lever.

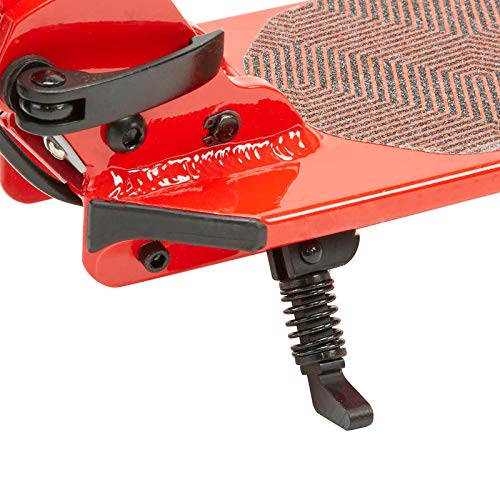

Figura 3: View of the scooter's deck and integrated kickstand for convenient parking.
Manteniment
Regular maintenance will prolong the life of your scooter and ensure safe operation:
- Neteja: Netegeu el patinet amb anunciamp cloth after use. Avoid using harsh chemicals.
- Inspecció de rodes: Regularly check the wheels for wear and tear. Ensure they spin freely and are not obstructed.
- Sistema de fre: Inspect the brake cable and lever for proper function. Ensure the brake pads are not excessively worn.
- Elements de fixació: Reviseu periòdicament tots els cargols i perns per assegurar-vos que estiguin ben ajustats. Torneu a apretar-los si cal.
- Emmagatzematge: Store the scooter in a dry place, away from direct sunlight and extreme temperatures. The scooter can be folded for compact storage.
Resolució de problemes
Aquests són alguns problemes comuns i les seves solucions:
| Problema | Causa possible | Solució |
|---|---|---|
| Handlebar wobbles | Alliberament ràpid clamp està solt. | Apretar el cl de llançament ràpidamp de forma segura. |
| El fre no és eficaç | Brake cable too loose or pads worn. | Adjust brake cable tension or replace brake pads. |
| Les rodes no giren lliurement | Debris in bearings or tight axle nuts. | Clean bearings or slightly loosen axle nuts (do not overtighten). |
Especificacions
| Atribut | Valor |
|---|---|
| Marca | Decatló |
| Número de model | 2765005 |
| Color | Vermell |
| Interval d'edat (descripció) | Adult |
| Característica especial | Ajustable |
| Nombre de rodes | 2 |
| Material de la roda | Poliuretà |
| Material del marc | Alumini |
| Pes de l'article | 3.35 quilograms (3 kg 350 g) |
| Tipus de manillar | Ajustable |
| Mida de la roda | 175 Mil·límetres |
| Tipus de roda | Sòlid |
| Tipus de suspensió | Suspensió davantera |
| Tipus de grip | Ergonòmic |
| Estil de fre | Frenada posterior |
| Usos recomanats | Recreational riding, Urban commuting |
| Dimensions de l'article (LxWxH) | 73 x 18 x 30 centímetres |
Figure 4: Dimensional diagram illustrating the scooter's height, length, and weight specifications.
Garantia i Suport
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Decathlon weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
For further assistance, you may contact Decathlon customer service through their official channels.
