Puig License Plate Holder 3527N

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of the Puig License Plate Holder, model 3527N. This product is designed to replace the original license plate holder on compatible motorcycles, offering a more streamlined and racing-inspired aesthetic while maintaining functionality.

2. Compatibilitat

The Puig License Plate Holder 3527N is specifically designed for the following motorcycle models:

• Honda CB650R Neo Sports Cafe (2019 model year)
• Honda CBR650R (2019 model year)

3. Característiques

Key features of the Puig License Plate Holder 3527N include:

• Estètica millorada: Replaces the original license plate holder with a design that confers a racing character to your motorcycle.
• Construcció lleugera: Combines steel components with an epoxy finish and polyamide parts, resulting in significant weight reduction compared to the original support.
• Turn Signal Integration: Includes dedicated space for aftermarket turn signals. Please note, original turn signals are not compatible, and new turn signals must be purchased separately.
• Ajustabilitat: The support is adjustable by up to 3 cm, allowing for customization of the license plate position. Some versions may offer fixed or adjustable options depending on the specific motorcycle model.

4. Contingut del paquet

The package for the Puig License Plate Holder 3527N typically includes:

• Puig License Plate Holder (Model 3527N)
• Ferramenteria de muntatge (cargols, femelles, volanderes)
• Instruccions d'instal·lació

Nota: Turn signals and license plate light are no inclòs i s'ha de comprar per separat.

5. Configuració i instal·lació

The installation of the Puig License Plate Holder is designed to be straightforward. However, if you are not confident in your mechanical abilities, professional installation by a qualified motorcycle technician is recommended.

1. Preparació: Ensure the motorcycle is stable on a stand. Disconnect the battery if working with electrical components. Gather all necessary tools (e.g., wrenches, screwdrivers).
2. Remove Original Holder: Carefully unmount the original license plate holder. This typically involves removing bolts securing it to the subframe and disconnecting any wiring for the license plate light and turn signals. Retain original hardware if needed for other components.
3. Mount Puig Holder: Position the Puig 3527N License Plate Holder onto the motorcycle's mounting points. Secure it using the provided hardware. Ensure all bolts are tightened to the manufacturer's specified torque settings.
4. Instal·leu els intermitents: If using aftermarket turn signals, mount them into the designated slots on the Puig holder. Connect their wiring according to the turn signal manufacturer's instructions and the motorcycle's wiring diagram.
5. Install License Plate: Attach your license plate to the holder using appropriate fasteners.
6. Comprovacions finals: Reconnect the battery. Test all lights (brake, turn signals, license plate light if installed). Ensure the holder is securely fastened and does not interfere with any moving parts of the motorcycle.

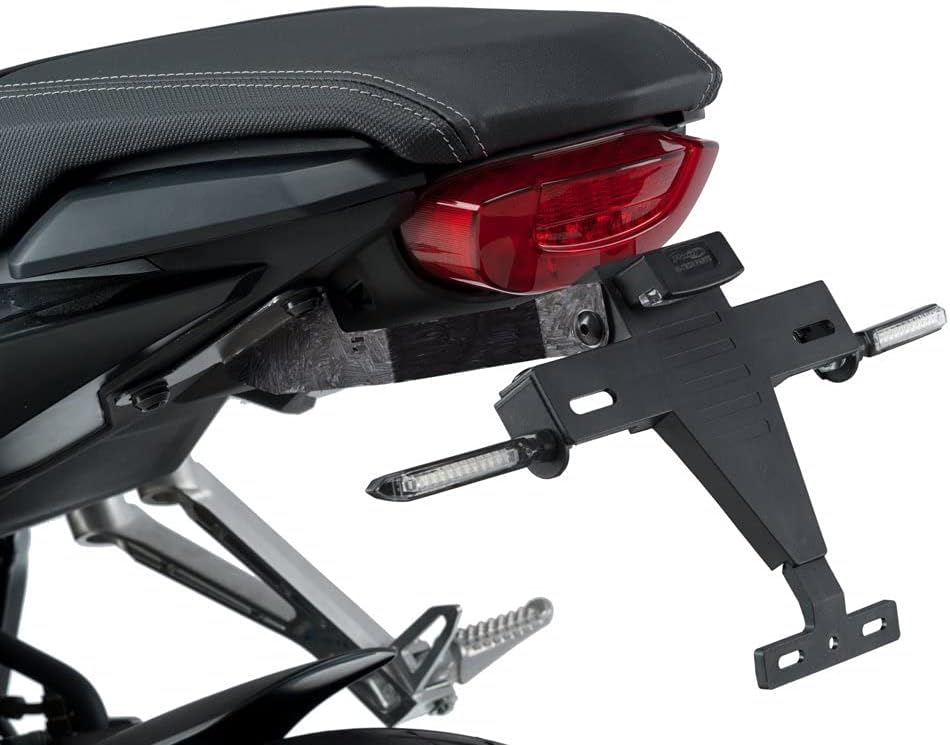

Image 1: The Puig License Plate Holder 3527N shown installed on the rear of a Honda CB650R motorcycle, featuring its sleek design and integrated turn signal mounts.

Imatge 2: Una imatge detallada view of the Puig License Plate Holder 3527N, highlighting its construction from steel and polyamide parts, and the mounting points for the license plate and turn signals.

6. Funcionament

The Puig License Plate Holder 3527N is a static component designed to securely hold your motorcycle's license plate and aftermarket turn signals. Once installed, its primary function is to provide a stable and aesthetically pleasing mounting solution.

Ajustabilitat: The holder offers up to 3 cm of adjustment. To adjust the angle or position, loosen the relevant mounting bolts (refer to the specific installation instructions provided with the product for exact points), reposition the holder as desired, and then securely re-tighten the bolts. Ensure the license plate remains clearly visible and compliant with local regulations after adjustment.

7. Manteniment

To ensure the longevity and proper function of your Puig License Plate Holder, follow these maintenance guidelines:

• Neteja regular: Clean the holder periodically with a mild soap and water solution. Avoid abrasive cleaners or solvents that could damage the finish.
• Inspeccionar els elements de fixació: Regularly check all mounting bolts and screws for tightness. Vibrations from motorcycle operation can cause fasteners to loosen over time.
• Comproveu si hi ha danys: Inspect the holder for any signs of cracks, bends, or corrosion, especially after impacts or prolonged exposure to harsh weather conditions.
• Inspecció del cablejat: If you have installed aftermarket turn signals or a license plate light, periodically check their wiring for fraying, loose connections, or damage.

8. Solució De Problemes

If you encounter issues with your Puig License Plate Holder, consider the following:

• Loose Holder: If the holder feels loose, check all mounting bolts and ensure they are securely tightened. Refer to the installation instructions for torque specifications.
• Vibration/Rattling: Ensure all components, including the license plate and any installed lights, are firmly attached. Check for any contact points with other motorcycle parts that could cause rattling.
• Els llums no funcionen: If aftermarket turn signals or license plate lights are not functioning, check their wiring connections, fuses, and the bulbs/LEDs themselves. Ensure proper grounding.
• Ajust incorrecte: Double-check that the product model 3527N is indeed compatible with your specific motorcycle model and year (Honda CB650R Neo Sports Cafe 2019 or Honda CBR650R 2019).

If problems persist, contact Puig customer support or consult a professional motorcycle mechanic.

9. Especificacions

10. Garantia i Suport

Puig products are manufactured to high-quality standards. For information regarding product warranty, please refer to the documentation included with your purchase or visit the official Puig website. For technical support, installation assistance, or warranty claims, please contact Puig customer service directly through their official channels.
