1. Instruccions de seguretat importants
Please read this instruction manual carefully before using the appliance and save it for future reference. Incorrect use may lead to injury or damage to the appliance.
- Col·loqueu sempre l'aparell sobre una superfície estable i resistent a la calor.
- No submergiu l'aparell, el cable o l'endoll en aigua o cap altre líquid.
- Mantenir l'aparell fora de l'abast dels nens.
- Assegureu-vos que el voltagEl volum indicat a l'aparell coincideix amb la xarxa elèctrica localtage abans de connectar.
- No feu funcionar l'aparell si l'endoll, el cable principal o l'aparell en si estan danyats.
- Unplug the appliance from the mains socket when not in use and before cleaning.
- No utilitzeu accessoris no recomanats pel fabricant.
- No col·loqueu l'aparell contra una paret ni contra altres aparells. Deixeu almenys 10 cm d'espai lliure a la part posterior i als costats i 10 cm d'espai lliure per sobre de l'aparell.
- Hot air is released through the air outlet openings during hot air frying. Keep your hands and face at a safe distance from the air outlet openings.
2. Producte acabatview
The Princess Airfryer XXL is designed for healthy frying, grilling, roasting, and baking with minimal oil. It features a digital touch panel and a large capacity suitable for family meals.
Figura 2.1: Frontal view of the Princess Airfryer XXL 5.2L Digital.
Figure 2.2: Dimensions and key components of the Princess Airfryer XXL, showing its 5.2L capacity and overall size.

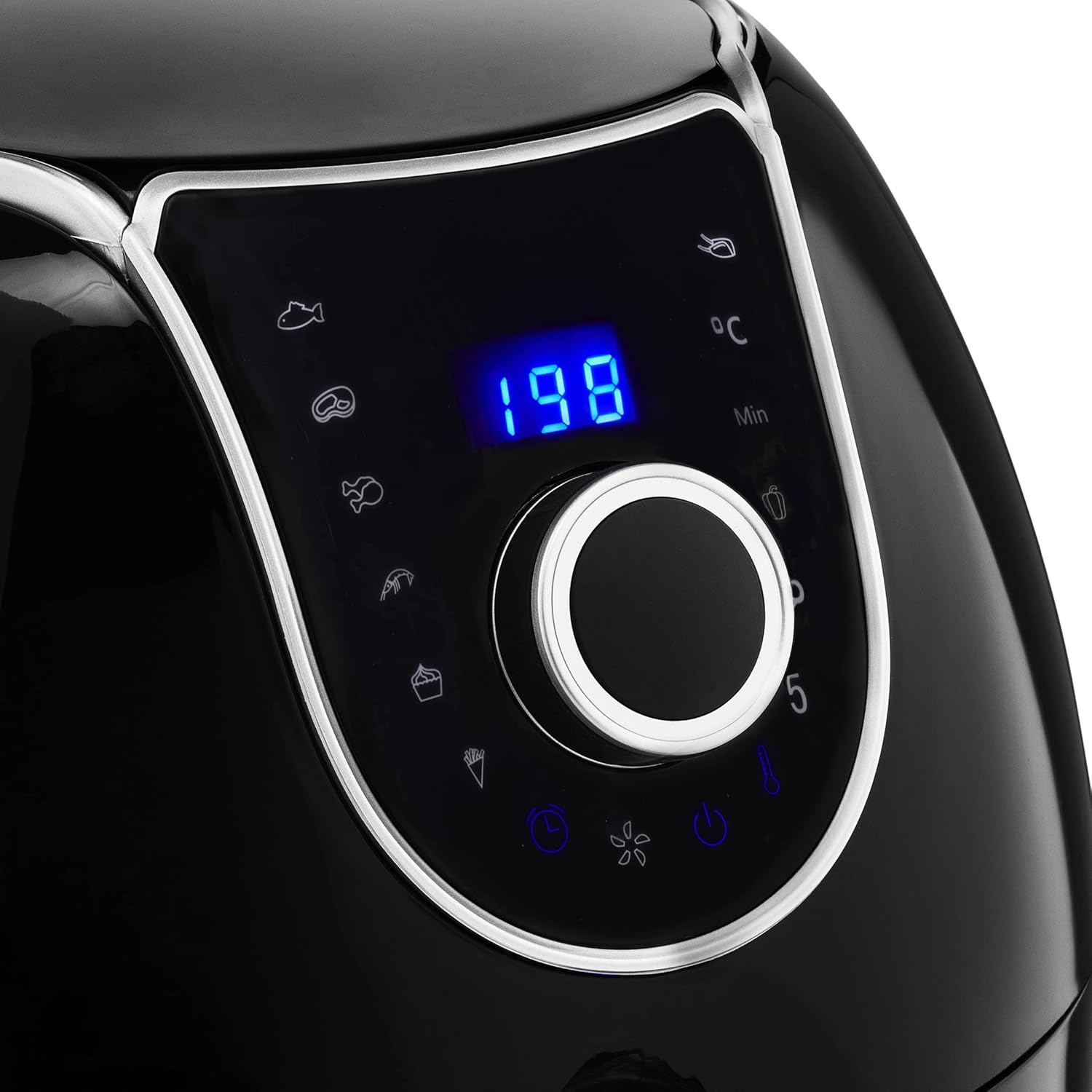

Figure 2.3: Close-up of the digital touch control panel with various preset icons and temperature/timer display.
3. Configuració
- Desembalatge: Traieu amb cura l'aparell del seu embalatge. Traieu tots els materials d'embalatge, adhesius i etiquetes.
- Neteja inicial: Clean the basket and the pan thoroughly with hot water, some washing-up liquid, and a non-abrasive sponge. Wipe the inside and outside of the appliance with a moist cloth.
- Col·locació: Col·loqueu l'aparell sobre una superfície estable, horitzontal i anivellada. No col·loqueu l'aparell sobre superfícies que no siguin resistents a la calor.
- Circulació d'aire: Ensure there is sufficient free space (at least 10 cm) around the appliance for proper air circulation.
- Connexió d'alimentació: Insert the power plug into a grounded wall socket.
4. Instruccions de funcionament
The Princess Airfryer XXL features a digital touch screen with 8 pre-programmed settings and manual control for temperature and time.
Video 4.1: Demonstration of the Princess Digital Airfryer (Model 182254 8L, similar to this model) showing basic operation and basket handling.
4.1 Primer ús
Before first use, it is recommended to run the airfryer empty for about 10 minutes at 180°C to burn off any manufacturing residues. This may produce a slight odor, which is normal.
4.2 Funcionament general
- Encès: Plug in the appliance. The power button will light up. Press the power button to turn on the display.
- Preparar menjar: Place the ingredients into the basket. Do not overfill the basket.
- Inserir cistella: Slide the pan with the basket back into the airfryer.
- Seleccioneu el programa:
- Configuració preprogramada: Choose one of the 8 pre-programmed cooking settings (e.g., fries, chicken, fish, meat, cake, pizza, shrimp, bread) by tapping the corresponding icon. The appliance will automatically set the optimal time and temperature.
- Configuració manual: Alternatively, manually set the temperature (80°C to 200°C) and time (up to 60 minutes) using the '+' and '-' buttons for temperature and time.
- Comença a cuinar: Premeu el botó d'inici/pausa per iniciar el procés de cocció.
- Sacsejar/girar aliments: For some recipes, it is necessary to shake or turn the ingredients halfway through the cooking time. The appliance may beep to remind you. Pull out the pan, shake/turn the food, and then slide the pan back in. The cooking will resume automatically.
- Finalització: When the set cooking time has elapsed, the appliance will beep. Carefully pull out the pan and empty the contents.
Figure 4.1: Airfryer basket pulled out with food inside, demonstrating ease of access during cooking.

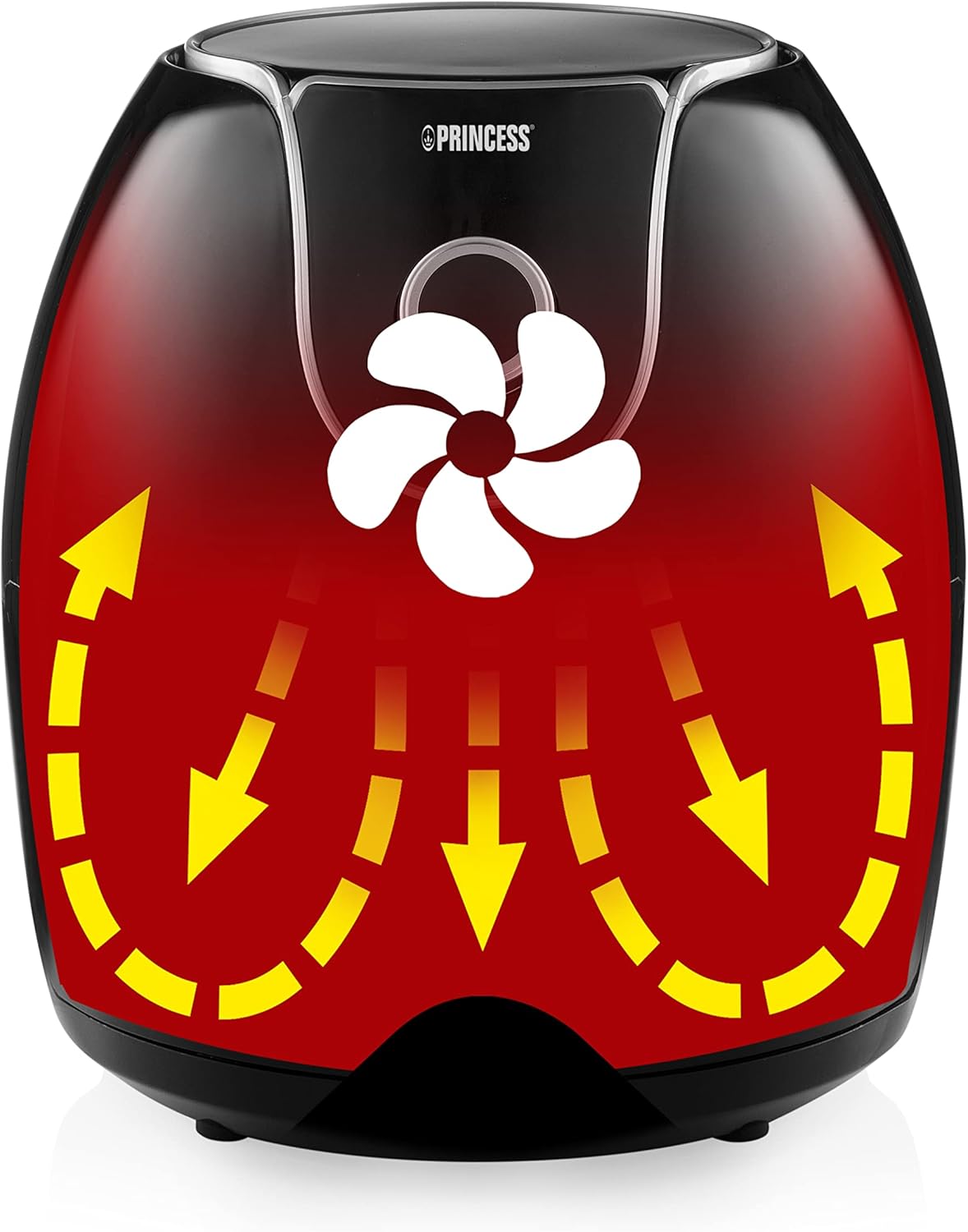

Figure 4.2: Diagram illustrating the 360° hot air circulation technology for even cooking.
Figura 4.3: Examples of various dishes that can be prepared using the Princess Airfryer XXL, including fries, meat, chicken, fish, cakes, pizza, shrimp, and bread.
5. Manteniment i Neteja
Regular cleaning ensures optimal performance and extends the lifespan of your Princess Airfryer XXL.
- Abans de la neteja: Desendolleu sempre l'aparell i deixeu-lo refredar completament abans de netejar-lo.
- Cistella i paella: The non-stick basket and pan are dishwasher-safe. Alternatively, they can be cleaned with hot water, washing-up liquid, and a non-abrasive sponge. Ensure no food residues are left.
- Interior: Wipe the interior of the appliance with a non-abrasive sponge and hot water. For stubborn food residues, use a mild detergent.
- Exterior: Clean the exterior of the appliance with a moist cloth. Do not use abrasive cleaning agents or scouring pads.
- Element de calefacció: Netegeu l'element de calefacció amb un raspall de neteja per eliminar qualsevol residu d'aliment.

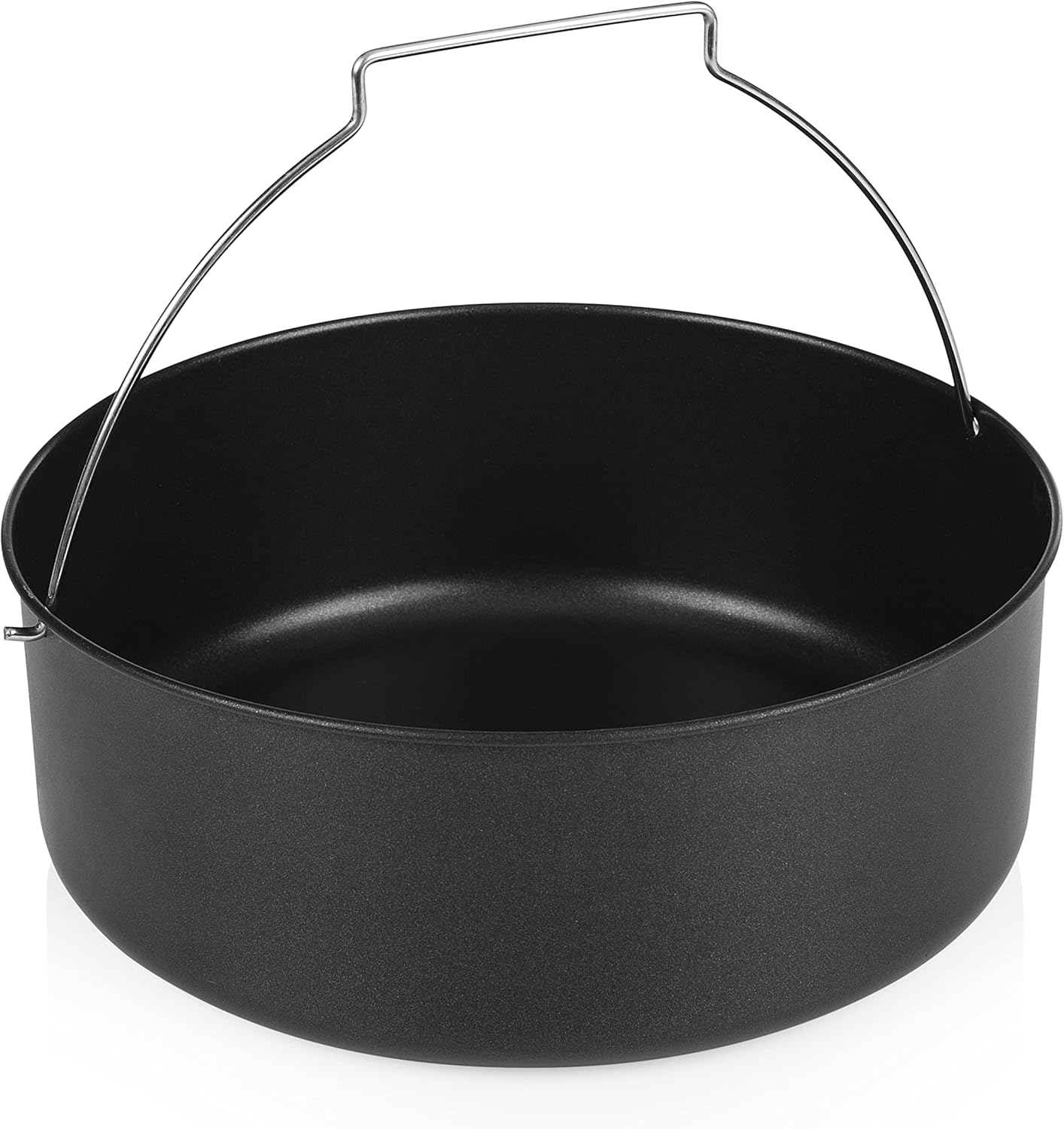

Figure 5.1: The removable non-stick inner basket, designed for easy cleaning.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| L'aparell no funciona. | L'aparell no està endollat. | Introduïu l'endoll a una presa de terra amb connexió a terra. |
| El menjar no es cuina de manera uniforme. | La cistella està sobrecarregada. | Reduce the amount of ingredients in the basket. |
| El menjar no és cruixent. | No hi ha prou oli (per a certs aliments) o temperatura/temps incorrectes. | Add a small amount of oil, adjust temperature and time as per recipe. Shake the basket halfway through cooking. |
| Surt fum blanc de l'aparell. | Residus de greix d'un ús previ. | Clean the pan and basket thoroughly after each use. |
| Appliance turns off automatically. | Protecció contra sobreescalfament activada. | Unplug, let cool down for 30 minutes, then plug back in. |
7. Especificacions
| Característica | Detall |
|---|---|
| Marca | Princesa |
| Model | 01.182055.01.001 |
| Color | Negre |
| Dimensions del producte | 42.8 x 33 x 36 cm |
| Capacitat | 5.2 litres |
| Wattage | 1700 watts |
| Voltage | 240 Volts |
| Material | Stainless steel, Plastic |
| Classe d'eficiència energètica | A++ a E |
| Característiques especials | 8 cooking programs, Non-stick basket, Dishwasher-safe components, LED lights, Removable parts, Touch screen, Thermostat, Timer |
| Pes de l'article | 4.5 Kg (approx.) |
8. Garantia i Suport
This Princess Airfryer XXL comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.
8.1 Reclamacions de garantia
In case of a defect covered by the warranty, please contact your retailer or the Princess customer service. You may be required to provide proof of purchase.
8.2 Atenció al client
For technical assistance, spare parts, or general inquiries, please visit the official Princess website or contact their customer support line. Contact details can typically be found in the product packaging or on the brand's official weblloc.
Per a més informació, visiteu el Princess Store on Amazon.
