JOYACCESS Rechargeable Wireless Keyboard and Mouse User Manual

1. Introducció

This manual provides comprehensive instructions for the JOYACCESS Rechargeable Wireless Keyboard and Mouse combo. It covers essential information regarding setup, operation, maintenance, and troubleshooting to ensure you get the most out of your device. Please read this manual carefully before use.

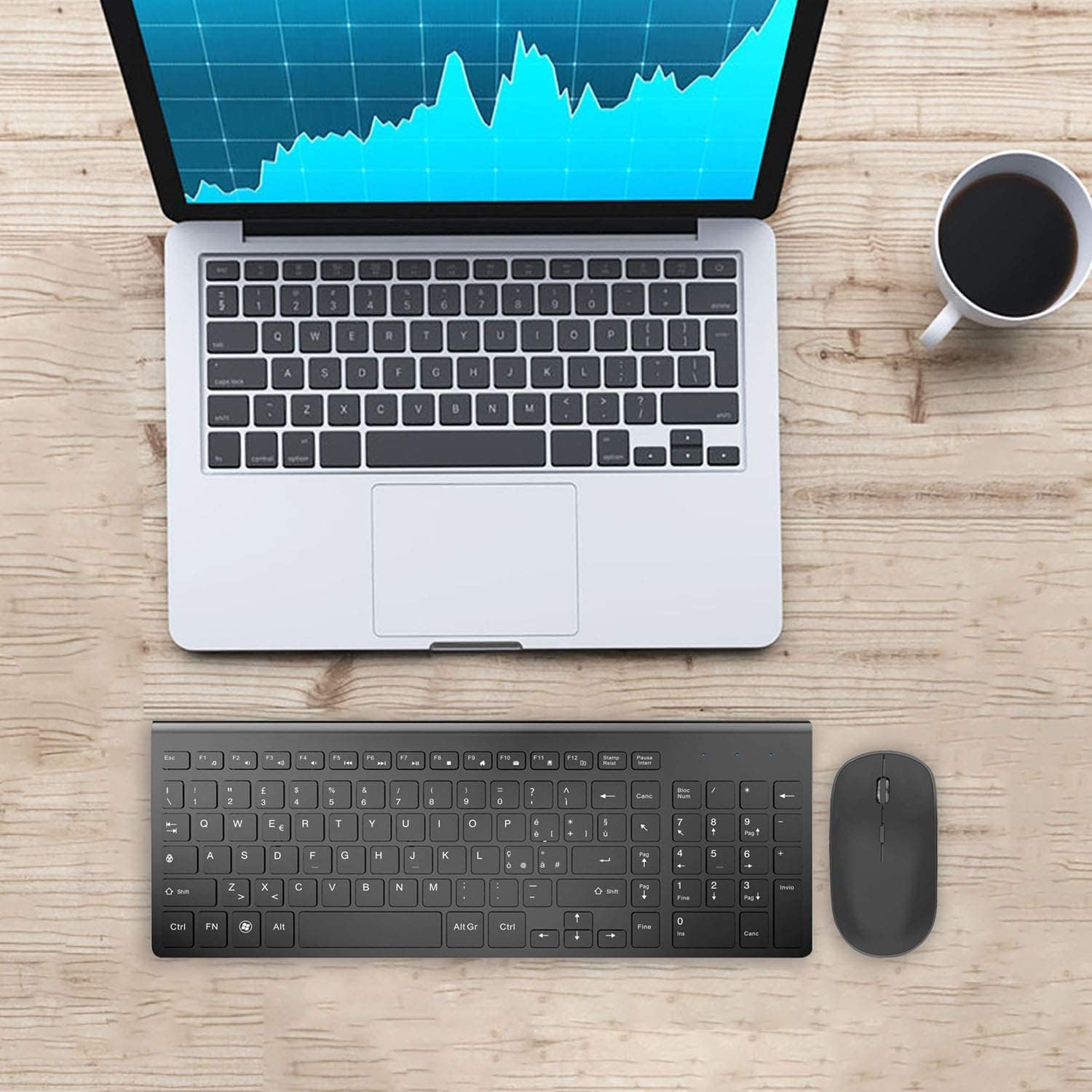

Image: The JOYACCESS wireless keyboard and mouse in a typical desktop setup, demonstrating their compact and ergonomic design alongside a laptop.

2. Contingut del paquet

Si us plau, comproveu el contingut del paquet en desembalar-lo per assegurar-vos que hi hagi tots els elements:

• 1 x JOYACCESS Wireless Keyboard
• 1 x JOYACCESS Wireless Mouse
• 1 x 2.4 GHz USB Nano Receiver (stored in the mouse battery compartment)
• 1 x cable de càrrega micro USB
• 1 x Manual d'usuari
• 1 x Targeta de garantia

3. Guia de configuració

3.1 Càrrega dels dispositius

Both the keyboard and mouse are equipped with built-in 500 mAh lithium-ion rechargeable batteries. Before first use, or when the battery indicator light flashes, charge the devices using the provided Micro USB charging cable.

• Connect the Micro USB cable to the charging port on the keyboard (located on the right side) and the mouse.
• Connecteu l'altre extrem del cable a una font d'alimentació USB (per exemple, un port USB de l'ordinador o un adaptador de paret USB).
• A full charge takes approximately 1.5 hours. Once fully charged, the indicator light will change or turn off.

A full charge provides up to 60 days of working time for the mouse and 90 days for the keyboard, depending on usage.

Image: Illustration highlighting the rechargeable nature of the keyboard and mouse, indicating charging via USB cable.

3.2 Connexió a l'ordinador

The JOYACCESS keyboard and mouse utilize a single 2.4 GHz USB Nano receiver for connection.

• Locate the tiny USB Nano receiver, which is conveniently stored in the battery compartment of the mouse.
• Insert the USB Nano receiver into an available USB port on your computer.
• Turn on the power switch on both the keyboard and the mouse. The devices are plug-and-play and should automatically connect to your computer within a few seconds.

Image: Visual representation of the 2.4 GHz wireless connection process, showing the USB receiver connecting the keyboard and mouse to a laptop.

4. Instruccions de funcionament

4.1 Funcions del teclat

The keyboard features a compact, standard 102-key Italian QWERTY layout, including a numeric keypad for efficient data entry.

• Tecles d'accés directe multimèdia: Utilitza el FN key in combination with the function keys (F1-F12) to access various multimedia shortcuts, such as volume control, media playback, and quick access to email or internet browser.

Imatge: Detallada view of the keyboard's function row, illustrating the 17 convenient multimedia hotkeys accessible via the FN key. Note: Multimedia functions may not be fully compatible with Mac OS.

4.2 Funcions del ratolí

The mouse is designed for high precision and silent operation.

• Ajust de DPI: The mouse offers 5 adjustable DPI levels (1000-1200-1600-2000-2400) to suit your activity and preference. Press the Botó DPI (located behind the scroll wheel) to cycle through the sensitivity settings.
• Clics silenciosos: The mouse buttons are designed to be silent, minimizing disturbance in quiet environments.

Image: Focus on the mouse, illustrating its silent click capability and the adjustable DPI button for high-precision control.

4.3 Mode d'estalvi d'energia

To conserve battery life, both the keyboard and mouse will automatically enter sleep mode after approximately 20 seconds of inactivity. To wake them up, simply move the mouse or press any key on the keyboard.

5. Característiques del producte

The JOYACCESS Wireless Keyboard and Mouse combo offers several key features designed for comfort and efficiency:

• Disseny elegant i elegant: The keyboard features a high-quality pure black finish, complemented by an advanced matte finish on the mouse, creating a modern and sophisticated aesthetic.
• Rechargeable and Automatic Power Saving: Both devices are equipped with built-in rechargeable batteries and feature an automatic sleep mode to maximize battery life.
• Funcionament silenciós: Pro baixfile keys on the keyboard and silent click buttons on the mouse ensure a quiet working environment, ideal for home and office use.
• Ergonomic and Convenient: The keyboard has an ergonomic tilt angle, and the mouse is shaped to fit comfortably in both right and left hands, providing a comfortable typing and navigation experience.
• Reliable 2.4G Wireless Connection: A single 2-in-1 USB Nano receiver provides a stable and effective wireless connection up to 10 meters (33 feet).

Imatge: Detallada view of the keyboard's design, highlighting its cross-scissor structure, anti-fingerprint surface, and tactile feedback for a comfortable typing experience.

6. Manteniment

To ensure the longevity and optimal performance of your JOYACCESS keyboard and mouse, follow these maintenance guidelines:

• Neteja: Feu servir un drap suau i sec per netejar les superfícies del teclat i el ratolí. Per a la brutícia persistent, netegeu lleugerament.amp cloth with mild soap can be used, but ensure no liquid enters the devices. Avoid abrasive cleaners or solvents.
• Càrrega: Recharge the devices regularly as needed. Avoid completely draining the battery frequently, as this can reduce its overall lifespan.
• Emmagatzematge: When not in use for extended periods, turn off the devices to conserve battery. Store them in a cool, dry place away from direct sunlight and extreme temperatures.

7. Solució De Problemes

If you encounter any issues with your JOYACCESS keyboard and mouse, please refer to the following common solutions:

If the problem persists after trying these solutions, please contact JOYACCESS customer support for further assistance.

8. Especificacions

9. Garantia i Suport

JOYACCESS products are designed and manufactured to the highest quality standards. This product is covered by a limited warranty. Please refer to the included Warranty Card for detailed terms and conditions.

For technical support, warranty claims, or any other inquiries, please contact JOYACCESS customer service through the contact information provided on the warranty card or the official JOYACCESS weblloc.
