Introducció
The PDP Gaming Faceoff Deluxe+ Audio Wired Controller is designed for use with the Nintendo Switch. It features a 3.5mm audio jack for in-game audio and USB chat, customizable programmable back buttons, and interchangeable faceplates. This manual provides instructions for setting up, operating, and maintaining your controller.

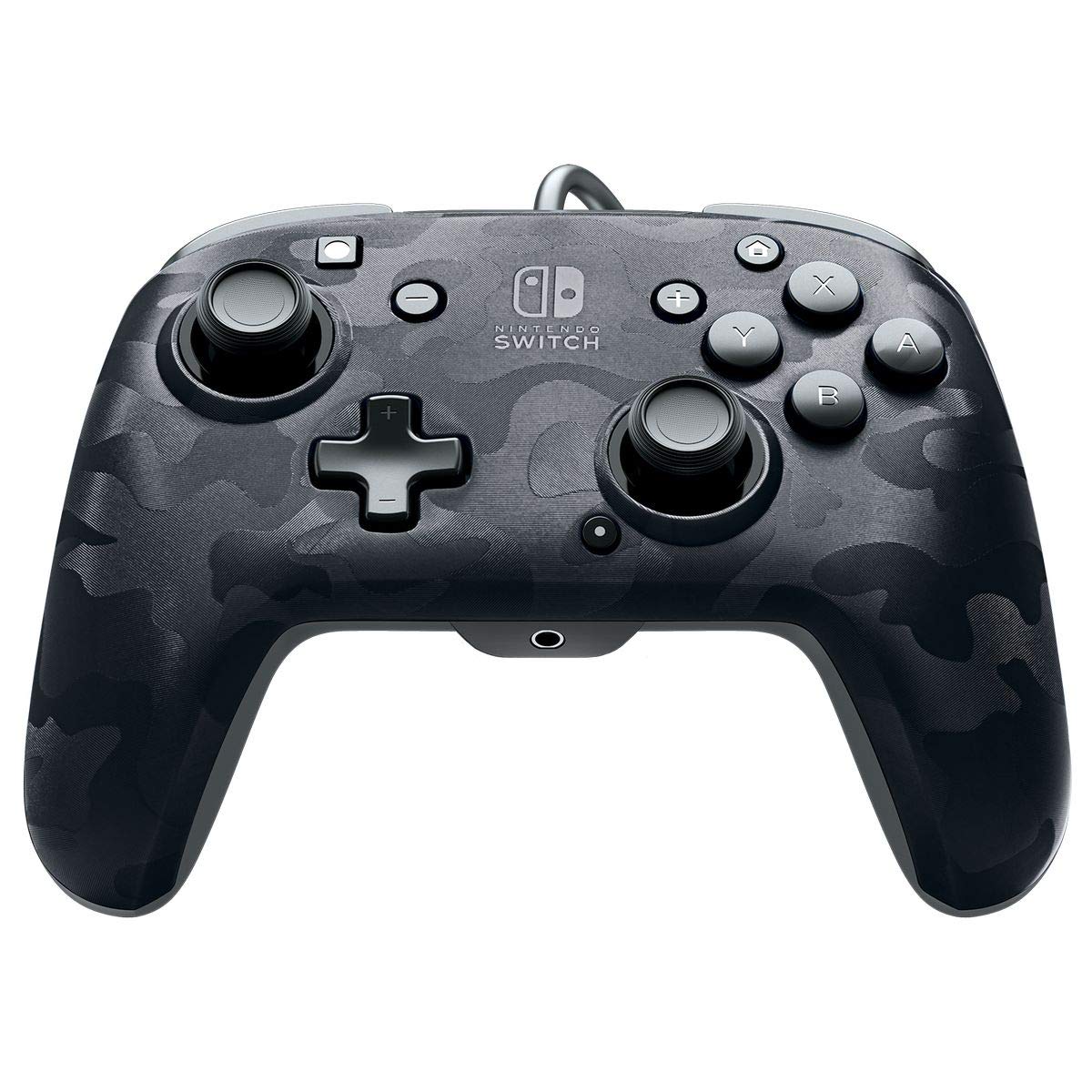

Imatge: Frontal view of the PDP Gaming Faceoff Deluxe+ Audio Wired Controller in Black Camo.
Configuració
1. Connexió inicial
- Ensure your Nintendo Switch console is docked and powered on.
- Connect the controller's fixed USB cable to an available USB port on the Nintendo Switch dock.
- The controller should automatically be recognized by the console.
2. Configuració d'àudio
- Plug your 3.5mm headset into the audio jack located at the bottom center of the controller.
- In-game audio will now be routed through your headset. USB chat is supported for compatible titles.
Image: A user playing with the PDP Gaming Faceoff Deluxe+ Audio Wired Controller, demonstrating the headset connection.
Funcionament del controlador
1. Disposició i funcions dels botons
Familiaritzeu-vos amb la disposició dels botons del controlador per a una jugabilitat òptima.
Imatge: Detallada view of the controller with key buttons labeled for easy identification.
- View Botó: Typically used for in-game menus or map access.
- Botó d'inici: Returns to the Nintendo Switch HOME Menu.
- Control de volum: Adjusts headset audio volume.
- Botó de funció: Used in conjunction with other buttons for specific features (refer to game instructions).
- Manets analògics: Provide precise movement and camera control. Features low friction rings for smooth performance.
2. Programmable Back Buttons
The controller features dual programmable paddle-style buttons on the back, allowing for customized gameplay. These can be mapped to other buttons on the controller to suit your play style.
Image: The back of the controller highlighting the programmable paddle buttons.
3. Adjusting Audio Volume
Volume can be adjusted directly on the controller using the D-pad while holding the Function button (refer to the labeled image above for button location).
4. Faceplate Customization
The unique interchangeable design allows you to swap out and snap in different Faceoff faceplates to personalize your controller's appearance.
Image: Illustration demonstrating the interchangeable faceplate design of the controller.
Manteniment
- Mantingueu el controlador net netejant-lo amb un drap suau i sec.
- Eviteu exposar el controlador a temperatures extremes, humitat o llum solar directa.
- No intenteu desmuntar el controlador, ja que això podria anul·lar la garantia.
Resolució de problemes
- El controlador no respon: Ensure the USB cable is securely connected to the Nintendo Switch dock. Try a different USB port.
- No hi ha àudio pels auriculars: Verify the headset is fully plugged into the controller's 3.5mm jack. Check the volume settings on the controller and the Nintendo Switch console.
- Buttons not working correctly: Ensure the controller's firmware is up to date (if applicable, check PDP's official website). If issues persist, try restarting the Nintendo Switch console.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | 500-134-NA-CM00 |
| Connectivitat | Wired (10-foot fixed USB cable) |
| Jack d'àudio | 3.5mm (supports in-game audio and USB chat) |
| Personalització | Interchangeable faceplates, dual programmable paddle-style back buttons |
| Dimensions | 0.35 x 0.12 x 0.83 polzades |
| Pes | 14.1 unces |
| Compatibilitat | Nintendo Switch |
| Fabricant | PDP |
Image: Controller dimensions for reference.
Vídeo oficial del producte
Vídeo: Una resposta honestaview of the PDP Gaming Wired Nintendo Switch Controller, showcasing les seves característiques i funcionalitats.
Garantia i Suport
Per obtenir informació sobre la garantia i l'assistència al client, consulteu la documentació inclosa amb el producte o visiteu el lloc web oficial de PDP. weblloc.
També podeu visitar el PDP Store on Amazon per obtenir informació addicional sobre el producte i recursos d'assistència.
