AURLANE CAB188 Shower Cabin User Manual

1. Introducció

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your AURLANE CAB188 Shower Cabin. Please read these instructions carefully before installation and use, and retain them for future reference.

2. Instruccions de seguretat importants

• Ensure all electrical and plumbing connections are performed by qualified professionals in accordance with local regulations.
• Always handle glass panels with care. Tempered glass, while strong, can shatter if struck forcefully at the edges.
• Verify that the installation surface is level and capable of supporting the weight of the shower cabin and its contents (approximately 115 kg dry weight).
• Do not use abrasive cleaners or sharp objects on any surfaces of the shower cabin, especially glass and acrylic, to prevent damage.
• Keep children and pets away from the installation area during assembly.

3. Contingut del paquet

L'AURLANE CAB188 Shower Cabin package includes the following components:

• 1 x AURLANE CAB188 Shower Cabin structure (black matte lacquered aluminum)
• Reversible sliding door (6mm tempered glass)
• Back panels (5mm white tempered glass)
• Roof panel (white tempered glass)
• Reinforced white acrylic shower tray
• Magnetic closure system for the door
• Black matte rain shower head
• Black matte multi-jet anti-limescale hydromassage panel
• Anti-limescale hand shower with black matte PVC flexible hose
• Prestatge de vidre
• Black matte metallic handle
• Mechanical mixer
• Reixa de ventilació
• 90mm high-flow drain plug

4. Configuració i instal·lació

L'AURLANE CAB188 Shower Cabin is designed for silicone-free assembly. A minimum installation height of 230 cm is required. Follow these general steps for installation:

1. Prepareu l'àrea d'instal·lació: Ensure the floor is level and the walls are plumb. Verify that water supply and drainage connections are correctly positioned.
2. Muntar el marc: Construct the black matte aluminum frame according to the detailed assembly diagrams provided in the separate installation guide.
3. Install the Shower Tray: Position the reinforced white acrylic shower tray and connect the 90mm high-flow drain plug to your drainage system. Ensure a watertight seal.
4. Mount Glass Panels: Carefully install the white tempered glass back panels, the clear tempered glass sliding door, and the tempered glass roof panel into the frame. Secure all panels as per the instructions.
5. Connecteu la fontaneria: Install the mechanical mixer, rain shower, hydromassage panel, and hand shower. Connect all water supply lines. Ensure all connections are tight and leak-free.
6. Comprovacions finals: Test all functions, including water flow, temperature control, and drainage, before sealing any access points.

5. Instruccions de funcionament

L'AURLANE CAB188 Shower Cabin offers a comfortable and versatile showering experience.

• Porta corredissa: The reversible sliding door operates smoothly on its runners. Gently push or pull the handle to open and close. The magnetic closure ensures a secure seal.
• Mechanical Mixer: Use the mechanical mixer to control water temperature and flow. Turn the handle to adjust the temperature from cold to hot, and pull or push to regulate water volume.

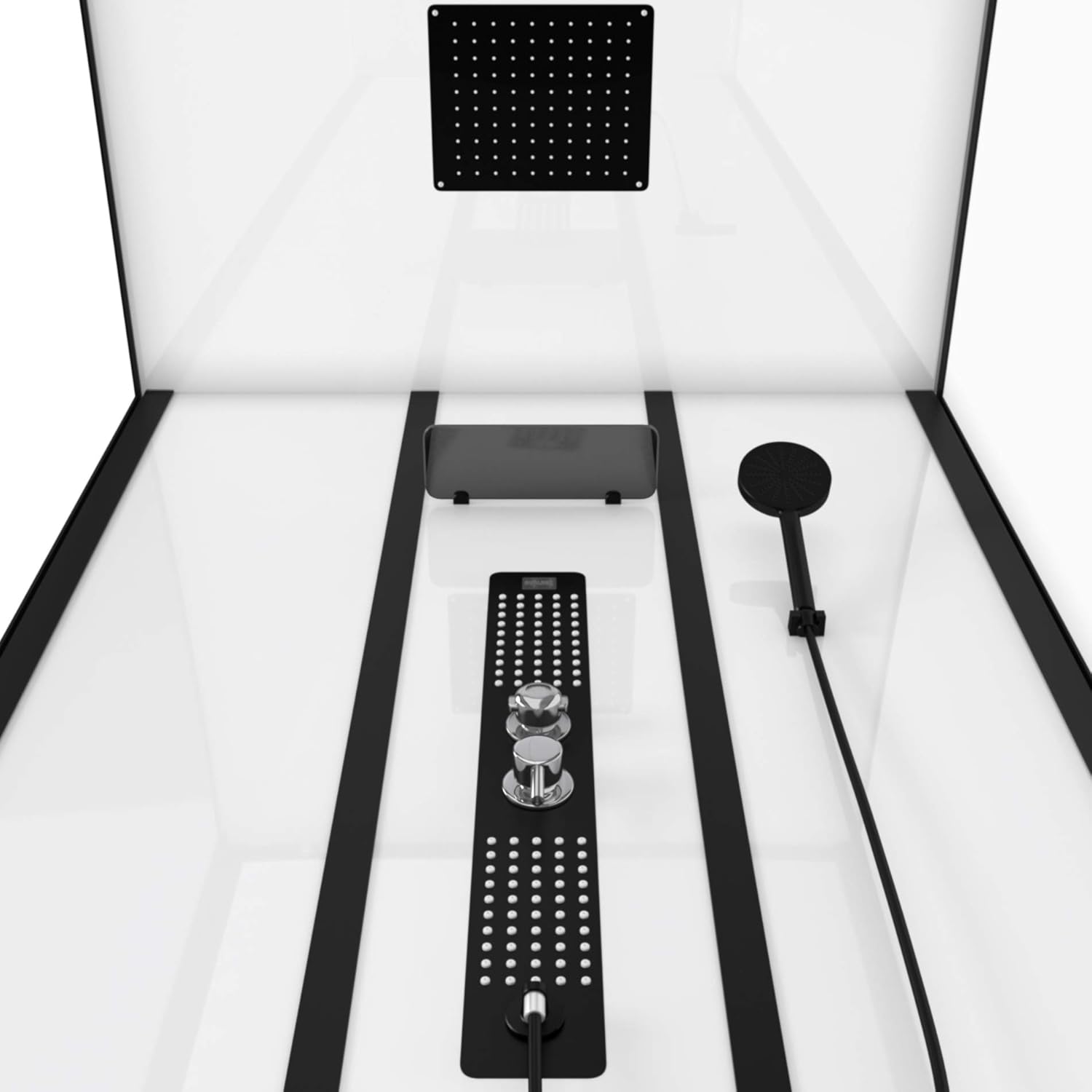

• Funcions de la dutxa: The cabin is equipped with a rain shower, a hand shower, and a multi-jet hydromassage panel. Use the diverter knob on the control panel to switch between these functions.
• Hydromassage Panel: The multi-jet anti-limescale hydromassage panel provides a relaxing experience. Adjust the water pressure and direction of the jets as desired.

6. Manteniment i Neteja

Regular cleaning and maintenance will ensure the longevity and optimal performance of your shower cabin.

• Panells de vidre: Clean glass surfaces with a soft cloth and a non-abrasive glass cleaner. For stubborn water spots, a vinegar-water solution can be effective.
• Aluminum Frame and Acrylic Tray: Use a mild, non-abrasive bathroom cleaner and a soft sponge or cloth. Rinse thoroughly with water.
• Anti-Limescale Features: The rain shower head, hand shower, and hydromassage jets are designed with anti-limescale nozzles. Periodically rub the rubber nozzles to dislodge any mineral buildup.
• Desguàs: Regularly check and clean the 90mm high-flow drain plug to prevent blockages from hair and soap residue.
• Atenció general: Avoid using harsh chemicals, abrasive pads, or solvents, as these can damage the surfaces and finishes.

7. Solució De Problemes

Aquí teniu alguns problemes comuns i les seves possibles solucions:

• Fuga d'aigua: Check all plumbing connections for tightness. Ensure the drain plug is properly seated and sealed. Inspect the magnetic door closure for proper alignment.
• Baixa pressió d'aigua: Verify that the main water supply valves are fully open. Check for any blockages in the shower heads or hoses.
• Problemes de drenatge: Clear any hair or debris from the drain plug and the shower tray drain opening. Ensure the drain pipe is not blocked.
• La porta no llisca suaument: Clean the door runners and wheels to remove any dirt or soap residue. Apply a silicone-based lubricant if necessary.

If problems persist, consult a qualified plumber or contact customer support.

8. Especificacions

9. Garantia i Suport

Warranty information for the AURLANE CAB188 Shower Cabin is typically provided at the point of purchase or included with the product documentation. Please refer to these documents for details regarding warranty coverage and terms.

For technical support, spare parts, or further assistance, please contact AURLANE customer service through their official weblloc web o la informació de contacte proporcionada amb la compra.
