1. Introducció i finalview
This manual provides essential information for the safe and efficient operation of the Schneider Electric Altivar 310 Variable Speed Drive (VSD), model ATV310HU15N4E. The Altivar 310 series is designed for simple machine applications, offering robust performance and ease of integration.
Les característiques principals d'aquest model inclouen:
- Product Group: Easy Altivar 310
- Product Type: Variable Speed Drive
- Application: Simple Machine
- Assembly: With Heat Sink
- Network Phases: Three Phases
- Vol. d'oferta nominaltage: 380-460 Volts (-15% to +10%)
- Motor Power: 1.5 kW (2 HP)
- Nivell de soroll: 50 dB

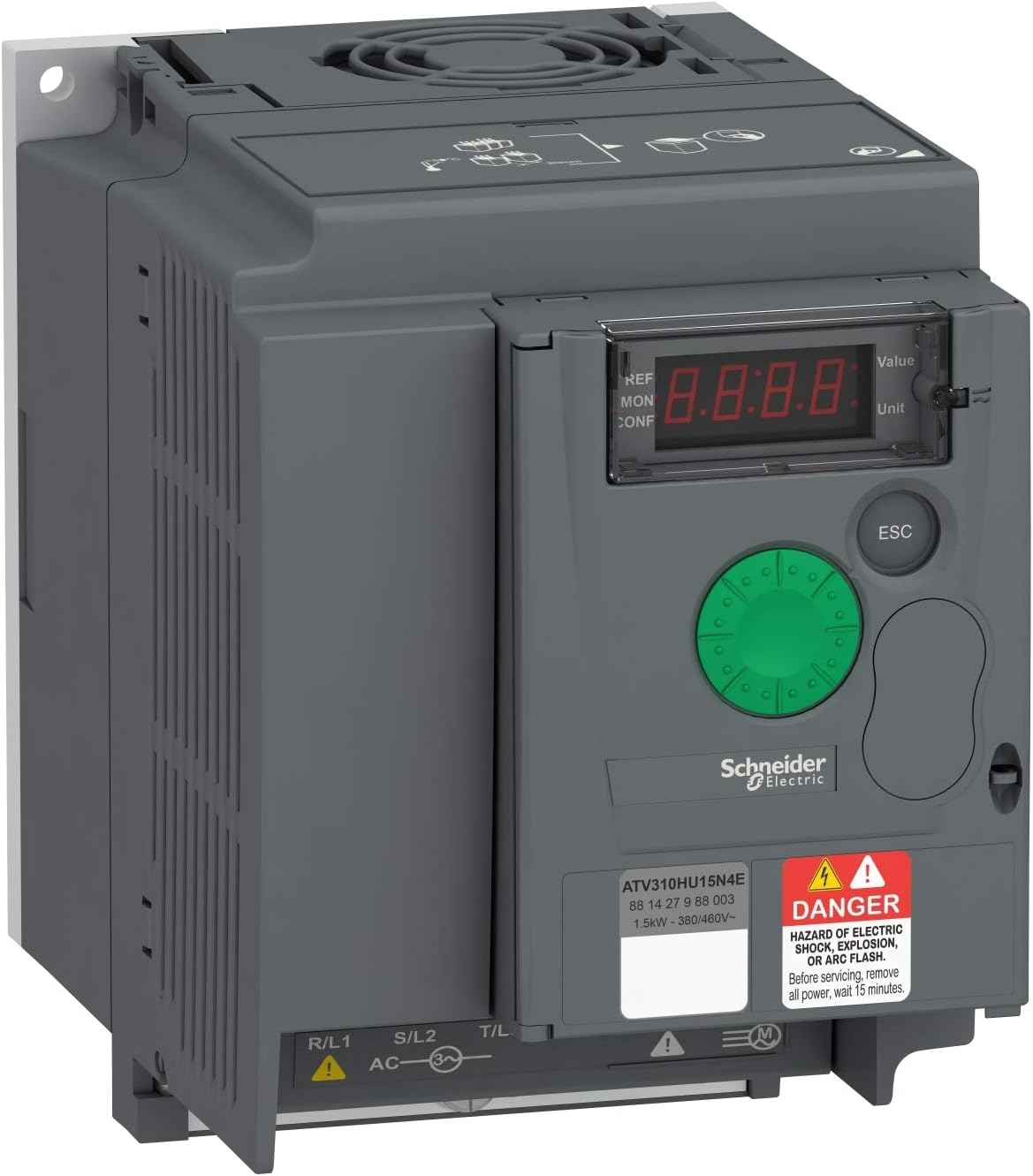

Figura 1.1: Frontal view of the Altivar 310 Variable Speed Drive, showing the display and control panel.
2. Informació de seguretat
DANGER: HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH.
Only qualified personnel should install, adjust, repair, or maintain this equipment. Read and understand this manual completely before installing or operating the Altivar 310 VSD. Failure to follow these instructions will result in death or serious injury.
Precaucions generals de seguretat:
- Always disconnect power before working on the drive or connected equipment. Wait at least 15 minutes after disconnecting power for capacitors to discharge.
- Assegureu-vos de la connexió a terra correcta del variador i del motor.
- Protect against accidental startup.
- Utilitzar equips de protecció individual (EPI) adequats.
- Comproveu que el volum de subministramenttage matches the drive's rated voltage.
3. Configuració i instal·lació
Proper installation is crucial for the performance and longevity of the Altivar 310 VSD. Follow these guidelines carefully.
Muntatge:
The drive should be mounted vertically on a flat, stable surface. Ensure adequate clearance for ventilation, especially around the heat sink. The unit is designed for assembly with a heat sink for efficient thermal management.
Figura 3.1: lateral view of the Altivar 310 VSD with the protective cover opened, revealing internal components and connection terminals.
Connexions de cablejat:
All wiring must comply with local and national electrical codes. The Altivar 310HU15N4E is a three-phase unit. Connect the main power supply to the L1/R, L2/S, L3/T terminals and the motor to the U, V, W terminals. Ensure proper grounding (PE) connections.
Figura 3.2: superior view of the Altivar 310 VSD, showing the input (R/L1, S/L2, T/L3) and output (U, V, W) terminals, along with control terminals.
Designacions de terminals:
- R/L1, S/L2, T/L3: Three-phase AC power input (380-460V).
- U, V, O: Three-phase motor output.
- PE: Connexió de terra de protecció.
- Terminals de control: For digital inputs, analog inputs/outputs, and relay outputs (refer to detailed wiring diagrams in the full product manual for specific pinouts).
4. Instruccions de funcionament
The Altivar 310 VSD can be operated via its integrated control panel or external control signals.
Tauler de control acabatview:
The front panel features a 4-digit display, navigation buttons, and an ESC button. The green rotary knob is used for value adjustment and menu navigation.
- Visualització: Shows parameters, values, and fault codes.
- Pom giratori: Used to scroll through menus and adjust parameter values. Press to confirm selection.
- Botó ESC: S'utilitza per sortir de menús o cancel·lar una operació.
Funcionament bàsic:
- Encès: Apply power to the drive. The display will illuminate.
- Configuració de paràmetres: Use the rotary knob to navigate to the desired parameter menu (e.g., frequency reference, acceleration/deceleration times). Press the knob to enter the parameter, adjust the value, and press again to confirm.
- Inici/Parada: Depending on the control mode (local or remote), use the appropriate start/stop command. For local control, there might be dedicated buttons or a specific parameter setting.
- Seguiment: The display can show real-time values such as output frequency, motor current, and motor speed.
Refer to the comprehensive programming manual for detailed parameter descriptions and advanced control modes.
5. Manteniment
Regular maintenance ensures optimal performance and extends the lifespan of your Altivar 310 VSD.
Comprovacions rutinàries:
- Neteja: Periodically clean the drive's exterior and ventilation openings to prevent dust accumulation, which can impede cooling. Use a soft, dry cloth. Do not use solvents.
- Inspecció del ventilador: Check the cooling fan for proper operation and ensure it is free from obstructions. Replace if noisy or not functioning correctly.
- Estanquitat del terminal: Annually check the tightness of all power and control terminal connections. Loose connections can cause overheating and damage.
- Condicions ambientals: Assegureu-vos que l'entorn de funcionament es mantingui dins dels rangs de temperatura i humitat especificats.
WARNING: Always disconnect and lock out power before performing any maintenance. Allow 15 minutes for capacitor discharge.
6. Solució De Problemes
Aquesta secció proporciona orientació per a problemes comuns. Per a problemes complexos, poseu-vos en contacte amb el servei d'assistència tècnica de Schneider Electric.
Errors comuns i solucions:
| Codi de símptoma/error | Causa possible | Solució |
|---|---|---|
| Sense pantalla/Sense alimentació | No input power, blown fuse, internal fault. | Check power supply, fuses. Verify wiring. If problem persists, contact support. |
| El motor no funciona | No run command, incorrect wiring, motor fault, parameter error. | Check run command signal, motor wiring (U, V, W), motor integrity. Verify frequency reference and other parameters. |
| Overcurrent fault (OCF) | Motor overload, short circuit, rapid acceleration/deceleration. | Check motor load, motor wiring. Increase acceleration/deceleration times. Check for mechanical binding. |
| Overvoltage fault (OVF) | Volum d’entrada elevattage, rapid deceleration of high inertia load. | Comproveu el volum d'entradatage. Increase deceleration time. Consider adding a braking resistor if applicable. |
For a complete list of fault codes and detailed troubleshooting steps, refer to the full Altivar 310 programming manual.
7. Especificacions tècniques
| Especificació | Valor |
|---|---|
| Fabricant | Schneider Electric |
| Marca | Schneider Electric |
| Model | Unitat de velocitat variable |
| Número de model de l'article | ATV310HU15N4E |
| Número de peça del fabricant | ATV310HU15N4E |
| Dimensions del producte | 16 x 17 x 19 cm |
| Pes de l'article | 1.1 quilos |
| Voltage | 460 Volts |
| Classificació de seguretat | No aplicable |
| ASIN | B07SBCPFPJ |
| Data de primera disponibilitat | 19 d'abril de 2021 |
8. Garantia i Suport
Schneider Electric products are designed for reliability and performance. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Schneider Electric weblloc.
Atenció al client:
For technical assistance, troubleshooting, or service inquiries, please contact Schneider Electric customer support. You can find contact information on the official Schneider Electric weblloc web o a través del vostre distribuïdor local.
Online resources and additional documentation, including detailed programming manuals and wiring diagrams, are available on the Schneider Electric weblloc.
