FRIGIDAIRE 4.6 cu ft 2-Door Refrigerator/Freezer Instruction Manual

1. Introducció i finalview

Thank you for choosing the FRIGIDAIRE 4.6 cu ft 2-Door Refrigerator/Freezer. This appliance is designed to provide efficient and reliable cooling for your food and beverages. Its compact design makes it suitable for various spaces, including apartments, offices, and recreational areas. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to ensure you get the most out of your new refrigerator/freezer.

Característiques principals:

• 4.6 Cubic Feet Total Capacity
• Separate Freezer Compartment with Ice Cube Tray
• Adjustable Glass Shelves with Transparent Crisper
• 2 Liter Bottle Rack in Refrigerator Door
• Adjustable Thermostat Control
• Reversible Door Hinges for flexible placement
• Black Stainless Steel Finish

2. Informació de seguretat

Si us plau, llegiu totes les instruccions de seguretat abans d'utilitzar aquest aparell per reduir el risc d'incendi, descàrrega elèctrica o lesions.

• Seguretat elèctrica: Ensure the appliance is connected to a properly grounded 120V, 60Hz electrical outlet. Do not use extension cords or ungrounded adapters.
• Ventilació: Maintain adequate clearance around the refrigerator for proper ventilation (at least 4 inches on sides and back, 8 inches on top).
• Materials inflamables: No emmagatzemeu substàncies explosives ni materials inflamables dins o a prop de l'aparell.
• Seguretat infantil: Keep children away from the appliance, especially when the door is open. Old refrigerators are dangerous for children; remove doors before disposal.
• Neteja: Always unplug the appliance before cleaning. Use non-flammable cleaning agents.
• Servei: Do not attempt to repair or replace any part of your refrigerator unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.

3. Configuració

3.1 Desembalatge

Remove all packaging materials, including foam and adhesive tape. Inspect the refrigerator for any damage. Keep packaging materials out of reach of children.

3.2 Col·locació

Place the refrigerator on a flat, stable surface strong enough to support the appliance when fully loaded. Ensure proper ventilation by leaving at least 4 inches of space on the sides and back, and 8 inches on top. Avoid direct sunlight or heat sources.

3.3 Anivellació

Adjust the leveling feet at the bottom front of the refrigerator to ensure it is level. A level appliance operates more efficiently and prevents door alignment issues.

3.4 Connexió elèctrica

Plug the refrigerator into a dedicated, grounded 120V, 60Hz electrical outlet. Do not use a multi-outlet adapter or extension cord.

3.5 Neteja inicial

Abans del primer ús, netegeu l'interior i l'exterior de la nevera amb un detergent suau i aigua tèbia. Assequeu-la bé.

3.6 Inversió de porta (opcional)

The door hinges are reversible, allowing you to change the door swing direction to suit your space. Refer to the detailed diagrams in the full product manual for specific instructions on reversing the doors. This process typically involves removing the top hinge, transferring the door, and reattaching hinges on the opposite side.

4. Instruccions de funcionament

4.1 Control de temperatura

The refrigerator features an adjustable thermostat control located inside the fresh food compartment. Turn the dial to adjust the cooling intensity. A higher number typically indicates a colder setting. Start with a medium setting (e.g., '4') and adjust as needed based on ambient temperature and food load.

4.2 Emmagatzematge d'aliments

Organize food items to allow for proper air circulation. The refrigerator compartment is ideal for fresh foods, dairy, and beverages. The freezer compartment is designed for frozen foods and ice.

• Prestatges de vidre ajustables: The glass shelves can be adjusted to different heights to accommodate various item sizes. Simply lift and slide them out to reposition.
• Calaixera transparent: Use the crisper drawer at the bottom for fruits and vegetables to maintain their freshness.
• 2 Liter Bottle Rack: The door includes a dedicated rack for larger bottles, optimizing space.
• Compartiment congelador: Utilize the large freezer compartment for long-term storage of frozen goods. An ice cube tray is included for convenience.

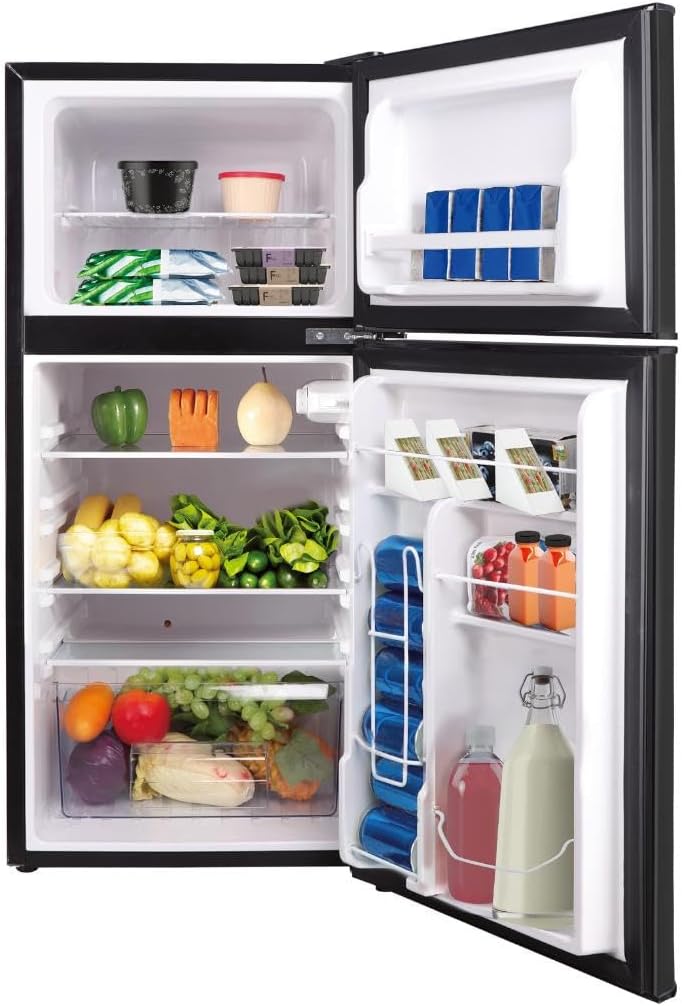

Figure 1: Interior layout with adjustable shelves and storage options.

5. Manteniment

5.1 Neteja

Regular cleaning helps maintain the efficiency and appearance of your refrigerator.

• Interior: Unplug the appliance. Remove all food and removable parts. Wash with a solution of mild detergent and warm water. Rinse and dry thoroughly.
• Exterior: Netegeu les superfícies exteriors amb un drap suau dampened with mild detergent. For black stainless steel, use a specialized stainless steel cleaner if necessary, wiping in the direction of the grain.
• Juntes de la porta: Netegeu les juntes de les portes regularment per assegurar-ne un segellat hermètic.

5.2 Descongelació (manual)

Aquesta nevera té descongelació manual per al compartiment del congelador. L'acumulació de gebre pot reduir l'eficiència de la refrigeració.

• When frost accumulates to about 1/4 inch (6mm) thick, defrost the freezer.
• Unplug the refrigerator. Remove all food from the freezer and place it in a cooler.
• Leave the freezer door open to allow frost to melt naturally. You can place towels at the bottom to absorb water. Do not use sharp objects or heating devices to speed up defrosting.
• Once defrosted, clean and dry the interior before plugging the appliance back in and returning food.

5.3 Power Outtage

En cas d'una potènciatage, keep the refrigerator and freezer doors closed as much as possible to maintain internal temperatures. Food can remain frozen for several hours if the doors are kept shut.

6. Solució De Problemes

Abans de contactar amb el servei d'atenció al client, review aquests problemes i solucions comuns.

7. Especificacions

Figura 2: Dimensions del producte.

8. Garantia i Suport

Per obtenir informació sobre la garantia i assistència al client, consulteu la targeta de garantia inclosa amb el producte o visiteu el lloc web oficial de Frigidaire. weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
