CooSpo Cycling Sensor 2-in-1 Speed and Cadence Sensor User Manual

1. Introducció

The CooSpo Cycling Sensor is a versatile 2-in-1 device designed to accurately track both speed and cadence for your cycling activities. Utilizing both Bluetooth and ANT+ wireless technologies, it offers broad compatibility with various cycling computers, smartphones, and fitness applications. This manual provides detailed instructions for the proper installation, operation, and maintenance of your sensor to ensure optimal performance.

2. Contingut del paquet

Si us plau, verifiqueu que tots els elements que s'enumeren a continuació estiguin inclosos al vostre paquet:

• CooSpo Cycling Sensor Unit
• Cadence Magnet
• Speed Magnet
• Coixinet de muntatge de goma
• Zip Ties (various sizes)
• Bandes de goma
• Clau hexadecimal
• Manual d'usuari

Figure 2.1: CooSpo Cycling Sensor package contents.

3. Configuració i instal·lació

3.1. Instal·lació de la bateria

The sensor comes with a pre-installed CR2032 battery. Before first use, you must remove the insulation film to activate the battery.

1. Localitzeu el compartiment de la bateria a la unitat del sensor.
2. Gently twist the battery cover counter-clockwise to open it.
3. Remove the small plastic insulation film covering the battery.
4. Ensure the CR2032 battery is correctly seated with the positive (+) side facing up.
5. Replace the battery cover by twisting it clockwise until securely closed.

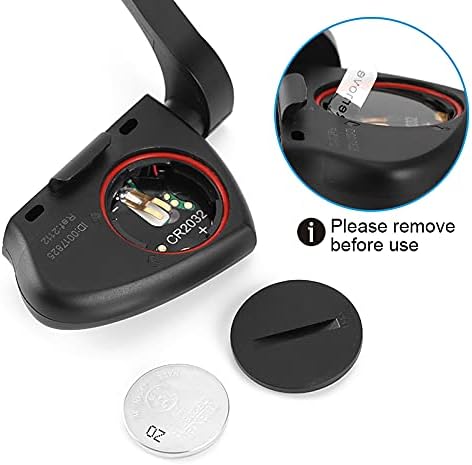

Figure 3.1: Removing the battery insulation film.

3.2. Muntatge del sensor

The CooSpo sensor can function as either a speed sensor or a cadence sensor. The installation method differs based on the desired function.

3.2.1. Cadence Sensor Installation

To use the sensor as a cadence tracker, it should be mounted on the crank arm.

1. Attach the sensor unit to the inside of your bicycle's left crank arm using the provided rubber pad and rubber bands or zip ties. Ensure it is securely fastened and does not interfere with pedaling.
2. Attach the cadence magnet to the pedal spindle or the crank arm itself, ensuring it passes closely by the sensor unit with each pedal rotation. The gap between the sensor and the magnet should be approximately 3-5mm.

3.2.2. Speed Sensor Installation

To use the sensor as a speed tracker, it should be mounted on the rear chainstay.

1. Mount the sensor unit to the rear chainstay of your bicycle using the provided rubber pad and zip ties. Position it so that the sensor's detection area faces the wheel spokes.
2. Attach the speed magnet to one of the wheel spokes. Adjust the magnet's position so that it passes closely by the sensor unit with each wheel rotation. The gap between the sensor and the magnet should be approximately 3-5mm.

Figure 3.2: Sensor and magnet placement for speed and cadence tracking.

Figure 3.3: Close-up of sensor with indicator lights and magnet interaction.

Figure 3.4: CooSpo Cycling Sensor and included magnets.

3.3. Guia d'instal·lació de vídeo

For a visual guide on the installation process, please refer to the official video below:

4. Instruccions de funcionament

4.1. Pairing with Cycling Computer or App

The CooSpo sensor supports both Bluetooth and ANT+ connectivity, allowing it to pair with a wide range of devices.

1. Ensure the sensor is active. Spin the wheel or crank arm a few times to wake it up. The LED indicator on the sensor will flash.
2. On your cycling computer or smartphone app (e.g., CooSpo Fitness, Zwift, Wahoo Fitness), navigate to the sensor pairing or device connection menu.
3. Select to add a new sensor. The device should detect the CooSpo sensor via Bluetooth or ANT+.
4. Confirm the pairing. Once connected, your device will display real-time speed or cadence data.

Figure 4.1: CooSpo Cycling Sensor connected to a smartphone app.

Figure 4.2: Cyclist using the CooSpo sensor with a cycling computer.

4.2. Checking Connection

After pairing, spin the wheel or crank arm to ensure data is being transmitted and displayed correctly on your connected device. The sensor's LED indicator will typically flash to confirm data transmission.

5. Manteniment

5.1. Substitució de la bateria

The sensor uses a standard CR2032 coin cell battery. Replace the battery when the sensor's LED indicator no longer flashes or when your connected device reports low battery.

1. Twist the battery cover counter-clockwise to open.
2. Traieu la bateria CR2032 antiga.
3. Inseriu una nova bateria CR2032 amb el costat positiu (+) cap amunt.
4. Replace the battery cover by twisting it clockwise until securely closed.

5.2. Neteja i emmagatzematge

To maintain the sensor's performance and longevity:

• Netegeu el sensor amb anuncisamp cloth after use, especially if it has been exposed to dirt or sweat.
• Eviteu utilitzar productes químics aggressivs o netejadors abrasius.
• Guardeu el sensor en un lloc fresc i sec quan no l'utilitzeu.
• If storing for an extended period, consider removing the battery to prevent leakage.

6. Solució De Problemes

If you encounter issues with your CooSpo Cycling Sensor, try the following troubleshooting steps:

• No Data or Intermittent Readings:
  • Ensure the sensor's battery is not depleted and the insulation film has been removed. Replace the battery if necessary.
  • Verify that the sensor and magnets are correctly aligned and the gap is within the recommended 3-5mm.
  • Check that the sensor is securely mounted and not shifting during activity.
  • Assegureu-vos que no hi hagi interferències electromagnètiques fortes a prop.
  • Try re-pairing the sensor with your cycling computer or app.
• Sensor no detectat:
  • Wake up the sensor by spinning the wheel or crank arm.
  • Ensure Bluetooth or ANT+ is enabled on your receiving device.
  • Move the sensor closer to your receiving device during the pairing process.
  • Check if the sensor is already paired with another device, which might prevent new connections.
• Incorrect Speed/Cadence Readings:
  • Re-check the magnet placement and ensure it passes directly over the sensor's detection area.
  • For speed, ensure your cycling computer or app has the correct wheel circumference set.

7. Especificacions

8. Garantia i Suport

CooSpo products are designed for reliability and performance. For information regarding warranty coverage, technical support, or to access additional resources, please visit the official CooSpo weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
