Introducció
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your MOMAN Matrix 600S Wireless Video Transmission System. Designed for professional and hobbyist filmmakers, this system offers reliable, low-latency video transmission over significant distances.
Figure 1: MOMAN Matrix 600S Transmitter and Receiver units.
Característiques clau
- Matrix 600 Algorithm: Encrypted wireless connection for audio/video transmission up to 600ft with ultra-low 0.08s latency.
- Antenes integrades: Built-in antennas on both transmitter and receiver for convenient setup and efficient shooting, especially beneficial for gimbal stabilizers.
- Zero Noise Design: Fanless design with natural heat distribution ensures silent operation and a sensible temperature below 48℃, ideal for professional filming environments.
- Baix consum d'energia: Consumes less than 3.5W, extending battery life significantly.
- Compatibilitat versàtil: Supports both HDMI and SDI inputs/outputs, compatible with a wide range of cameras (Blackmagic BMPCC, Sony Camcorders, DSLRs), field monitors, and other gear.
- Múltiples opcions d'alimentació: Can be powered via USB Type-C or NP-F batteries.
- Muntatge flexible: Two 1/4” threads allow for horizontal or vertical installation.
Guia de configuració
1. Desembalatge i inspecció inicial
Carefully unpack all components. Verify that all items listed in the product packaging are present and undamaged. If any items are missing or damaged, contact customer support immediately.
2. Alimentació de les unitats
The MOMAN Matrix 600S Transmitter and Receiver can be powered using two methods:
- NP-F Batteries: Attach a fully charged NP-F series battery to the integrated battery plate on both the transmitter and receiver units.
- USB tipus C: Connect a compatible USB Type-C power source (e.g., power bank, wall adapter) to the USB-C port on each unit.
Figure 2: Multiple power options for the Matrix 600S units.
3. Connexió a dispositius
The system supports both HDMI and SDI connections. Ensure your camera and monitor are compatible with these interfaces.
- Transmissor (TX): Connect your camera's HDMI or SDI output to the corresponding input port on the Matrix 600S Transmitter.
- Receptor (RX): Connect the Matrix 600S Receiver's HDMI or SDI output to the corresponding input port on your monitor or recording device.
Figure 3: Connection guide for the MOMAN Matrix 600S system.
The built-in antennas simplify setup, eliminating the need for external antenna attachment.

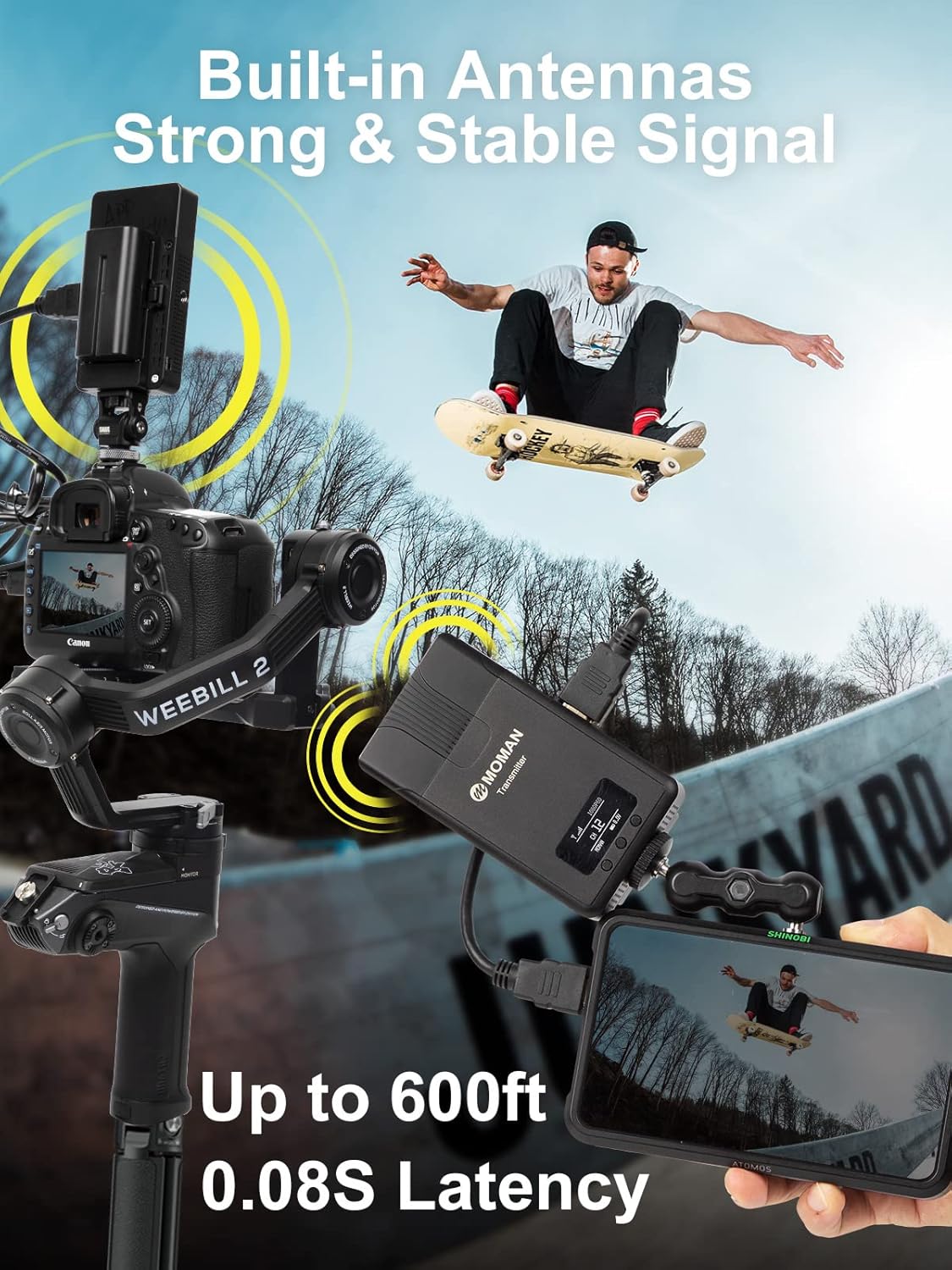

Figure 4: Integrated antennas provide strong and stable signal transmission.
Instruccions de funcionament
1. Encès i aparellament
Once connected to power and devices, turn on both the Transmitter and Receiver units. The system is designed for automatic pairing and channel selection. The OLED display on each unit will show the current channel and signal status.
Figure 5: The OLED display provides real-time status information.
2. Transmissió de vídeo
The Matrix 600S transmits true 1080P 60Hz video with minimal latency (0.08s). Ensure your camera's output settings match the supported resolutions and frame rates for optimal performance.
Figure 6: High-quality 1080P 60Hz video transmission.
3. Using the MomanMatrix App (iOS)
For enhanced monitoring and control, download the MomanMatrix app for iOS devices. The app allows for remote monitoring and provides features such as prompting, zoom, peaking, and zebra patterns.
Figure 7: MomanMatrix app features for iOS devices.
Figure 8: Reading and monitoring scripts directly on your smartphone via the app.
4. Escenaris d'aplicació
The MOMAN Matrix 600S is suitable for a variety of professional and creative applications, including:
- Film Shooting
- Sport Events Broadcast
- Liveshow Broadcast
- Meeting Recording
- Wedding Recording
- Use with gimbal stabilizers
Figure 9: Diverse application scenarios for the Matrix 600S.
Manteniment
- Neteja: Use a soft, dry cloth to clean the exterior of the units. Do not use liquid cleaners or solvents.
- Emmagatzematge: Guardeu el sistema en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Cura de la bateria: If using NP-F batteries, follow the manufacturer's guidelines for charging and storage to maximize battery life.
- Protecció del port: Keep HDMI and SDI ports free from dust and debris. Use port covers when not in use.
- Actualitzacions de firmware: Check the official Moman weblloc web periòdicament per a les actualitzacions de firmware disponibles per garantir un rendiment i una compatibilitat òptims.
Figure 10: The fanless design contributes to silent operation and requires minimal maintenance.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| No video signal / Frequent disconnections |
|
|
| OLED display burn-in | Prolonged display of static image. | This is a characteristic of OLED screens. While the unit does not have a timeout for the screen, minimizing prolonged static display when possible can help. |
| La unitat no s'encén |
|
|
If problems persist after attempting these solutions, please contact Moman customer support for further assistance.
Especificacions
| Característica | Detall |
|---|---|
| Dimensions del producte | 6.06 x 4.5 x 2.8 polzades |
| Pes de l'article | 9.2 unces |
| Número de model | Matrix 600S |
| Tecnologia de connectivitat | HDMI i SDI |
| Tipus de controlador | iOS (via MomanMatrix App) |
| Característica especial | Zero Noise Design (Fanless) |
| Dispositius compatibles | Tablet, Smartphone, Blackmagic BMPCC, Sony Camcorders, DSLR cameras, Field Monitors |
| Ports HDMI totals | 2 (on receiver, for output) |
| Mode de sortida d'àudio | estèreo |
| Codificació de vídeo | H.264, MPEG-2, MPEG-4 |
| Color | Negre |
| Fabricant | Hollyland (as per Amazon listing, though brand is Moman) |
| Primera data disponible | 17 de juny de 2019 |
Garantia i Suport
For detailed warranty information, please refer to the official Moman product documentation or contact Moman customer support directly. Extended protection plans may also be available for purchase.
Hi ha disponible una versió PDF del manual d'usuari per descarregar:
Descarrega el manual d'usuari (PDF)
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please visit the official Moman weblloc o poseu-vos en contacte amb el seu equip d'atenció al client.
