1. Introducció

The AC Infinity AIRLIFT T12 is a high-airflow shutter exhaust fan designed for efficient ventilation and cooling in various environments such as greenhouses, garages, attics, workshops, and sheds. This system is engineered to automatically eliminate heat, moisture, odor, and dust, contributing to a healthier and more controlled indoor climate.

Equipped with a smart controller, the AIRLIFT T12 offers dynamic climate and time-based programming, allowing for precise environmental management. Its innovative EC motor with PWM control ensures maximum airflow while minimizing energy consumption and noise levels. The robust construction features durable aluminum blades, steel wire guards, and steel shutters, ensuring longevity and reliable performance.

This product integrates seamlessly into the AC Infinity UIS platform, designed for interconnected grow devices and smart controllers to create an optimal environment.

2. Característiques del producte

• High-Airflow Design: Effectively ventilates heat, moisture, odor, and dust from various spaces.
• Controlador intel·ligent: Features dynamic temperature and humidity programming, timers, grow cycles, scheduling, and minimum speed settings.
• WiFi App Connectivity: Remotely connect via the AC Infinity app to access advanced programs, alarms, notifications, and view historical climate data.
• Construcció duradora: Built with steel shutters, aluminum blades, and an IP-44 rating for high resistance to liquid and dust.
• Motor EC eficient: PWM-controlled EC motor maximizes airflow while reducing noise and power consumption.
• Rodaments de doble bola: Permanently lubricated motor with dual-ball bearings rated for 67,000 hours of operation.
• UIS Platform Integration: Designed to connect with other UIS devices like CLOUDLINE inline fans and AIRTITAN crawlspace fans.

Figure 2.1: Smart Control Features Overview. This diagram highlights the key functionalities of the smart controller, including independent programs, remote access via WiFi app, advanced automation, dynamic temperature and humidity control, precise PWM 10-level control, climate charts, CSV data export, and alert notifications.

Figure 2.2: High Performance EC Motor. Aquesta imatge ofereix un detall view of the fan's internal components, emphasizing the PWM-controlled EC motor engineered for maximized airflow at lower noise levels, featuring dual-ball bearings rated for 67,000 hours.

3. Configuració i instal·lació

The AIRLIFT T12 fan is designed for wall-mount installation. Ensure you have the necessary tools and a suitable location with adequate space for the fan and controller.

3.1 Desembalatge i inspecció

• Traieu amb cura tots els components de l'embalatge.
• Inspect the fan, controller, and accessories for any signs of damage. Contact AC Infinity support if any components are damaged or missing.
• Verify all included components are present: fan unit, smart controller, temperature/humidity probe, power cord, and fan-to-controller cord.

3.2 Muntatge del ventilador

• Choose a suitable location for the fan, typically an exterior wall of the space requiring ventilation.
• Measure and mark the opening for the fan. Refer to the specifications section for precise dimensions (15.75" x 15.75" overall, with a recommended cut-out size just under 13.5" for the flap box).
• Cut the opening in the wall.
• Secure the fan unit into the opening using appropriate fasteners. Ensure a tight seal to prevent air leakage and vibrations. Butyl glue can be used for sealing where the fan meets the wall.

3.3 Connexió del controlador

• Mount the smart controller in a convenient location, ideally near the fan or an access point.
• Connect the fan to the controller using the provided 10 FT fan-to-controller cord. Ensure the 4-pin molex connector is inserted correctly.
• Plug the temperature/humidity probe into the controller. The probe length is 12 FT.
• Connect the controller to a power outlet using the 8 FT power cord.

Figure 3.1: Exhaust Fan Airflow. This illustration demonstrates how the exhaust fan ventilates heat, moisture, odor, and dust from an enclosed space, with fresh air entering through an intake vent.

Figura 3.2: Example Instal·lació. Un example of the AIRLIFT T12 fan and its smart controller installed on a wall in a workshop environment, demonstrating a typical setup.

4. Instruccions de funcionament

The AIRLIFT T12 is controlled by the advanced Controller 69 PRO, offering comprehensive programming options via its display and the AC Infinity app.

4.1 Funcionament bàsic

• Encès/apagat: Use the power button on the controller to turn the unit on or off.
• Control de velocitat manual: Adjust fan speed manually from 1 to 10 using the controller buttons.
• Visualització: The controller display shows current temperature, humidity, and other settings.

4.2 Smart Programming (Controller 69 PRO)

The Controller 69 PRO allows for sophisticated automation based on environmental conditions and time.

• Temperature and Humidity Triggers: Set specific temperature and humidity thresholds to activate or adjust fan speed.
• Dynamic Fan Speeds: Program the fan to respond dynamically to changes in temperature and humidity.
• Minimum Speed Setting: Define a constant minimum speed for the fan, which will only increase when triggered by set conditions.
• Mode de temporitzador: Set the fan to run for a specific duration.
• Mode de cicle: Program the fan to run in repeating on/off cycles.
• Mode de programació: Set specific times for the fan to activate or deactivate.

4.3 AC Infinity App (WiFi Connectivity)

For remote access and advanced features, connect the controller to the AC Infinity app via WiFi.

• Comandament a distància: Operate your fan from anywhere.
• Programes avançats: Unlock and configure more complex automation scenarios.
• Notificacions i alarmes: Receive alerts for critical environmental changes or system status.
• Historical Climate Charts: View past temperature and humidity data.
• CSV Data Export: Export climate data for analysis.

Figure 4.1: AIRLIFT T12 System. This image displays the complete AIRLIFT T12 system, including the shutter exhaust fan, the smart controller, and a representation of the mobile app interface, illustrating the integrated control capabilities.

5. Manteniment

Regular maintenance ensures optimal performance and longevity of your AIRLIFT T12 fan.

• Neteja: Periodically clean the fan blades and shutters to prevent dust and debris buildup, which can reduce airflow and efficiency. Use a soft cloth or brush.
• Shutter Inspection: Ensure the steel shutters open and close freely. The IP-44 rating provides resistance to dust and liquids, but regular checks are recommended.
• Motor: The EC motor is permanently lubricated and features dual-ball bearings, requiring no user maintenance.
• Connexions: Periodically check all cable connections (power, fan-to-controller, probe) to ensure they are secure.

6. Solució De Problemes

If you encounter issues with your AIRLIFT T12 fan, refer to the following common troubleshooting steps:

• El ventilador no s'encén:
  • Check if the power cord is securely plugged into both the controller and the wall outlet.
  • Ensure the fan-to-controller cord is properly connected and not reversed.
  • Verifiqueu que el controlador estigui encès.
• Fan Not Responding to Settings:
  • Confirm the correct operating mode (manual, auto, timer, etc.) is selected on the controller or app.
  • Check if any alarms or triggers are preventing the desired operation.
  • Ensure the temperature/humidity probe is clean and correctly positioned.
• Problemes de connectivitat Wi-Fi:
  • Ensure your WiFi network is active and the controller is within range.
  • Restart your router and the controller.
  • Verify the AC Infinity app is updated to the latest version.
• Soroll inusual:
  • Check for any obstructions in the fan blades or shutters.
  • Assegureu-vos que el ventilador estigui ben muntat i que no vibri contra la paret.

For further assistance, consult the AC Infinity app's help section or contact AC Infinity customer support.

7. Especificacions

Detailed technical specifications for the AC Infinity AIRLIFT T12 fan:

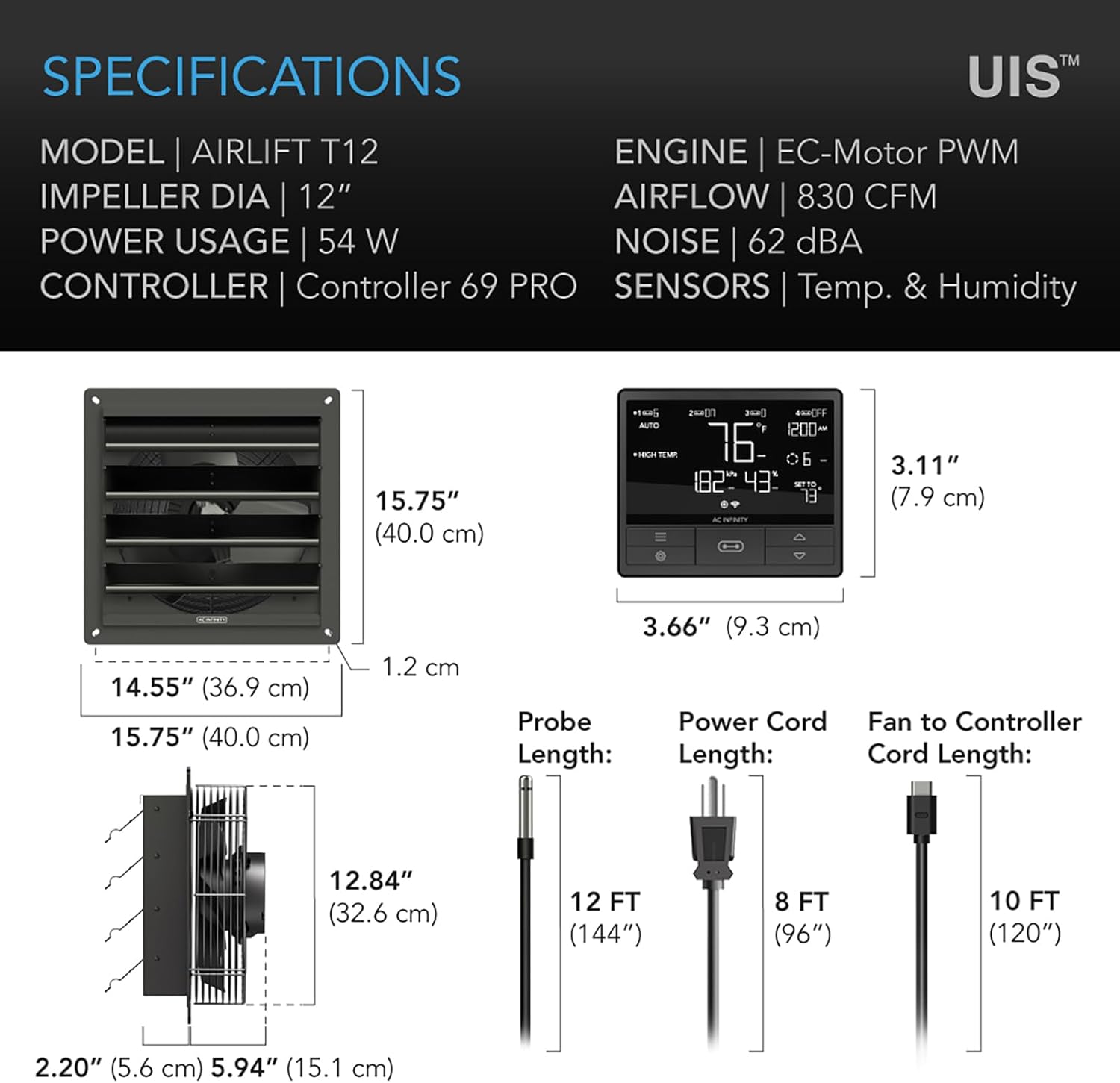

Figure 7.1: Product Dimensions and Component Lengths. This diagram provides precise measurements for the fan unit, controller, and the lengths of the included probe, power cord, and fan-to-controller cord.

8. Garantia i Suport

AC Infinity is committed to providing dependable service and product quality. For warranty information, technical support, or any inquiries regarding your AIRLIFT T12 fan, please contact AC Infinity directly.

You can find more information and contact details by visiting the official AC Infinity store on Amazon: AC Infinity Amazon Store.

9. AC Infinity Ecosystem

The AIRLIFT T12 is part of the AC Infinity UIS platform, designed for seamless integration with other AC Infinity devices. This ecosystem allows you to control up to four UIS devices, providing dynamic climate and time-based programming across your entire setup.

• AIRLIFT Series: Shutter Exhaust Fans (like the T12)
• CLOUDLINE Series: Inline Exhaust Fans
• AIRTITAN Series: Crawl Space Fans

These devices can be mixed and matched and controlled by the same smart controller, allowing you to create a fully integrated and automated environmental control system.

Figure 9.1: AC Infinity UIS Ecosystem. This diagram shows how various AC Infinity fan series, including AIRLIFT, CLOUDLINE, and AIRTITAN, can be connected and controlled by a single UIS controller to create a comprehensive environmental management system.
