1. Producte acabatview
The VIVIBRIGHT F40 is a Native 1080P Full HD Projector designed for home theater and entertainment. It features a 5.8-inch (1920x1080p) BOE LCD Panel with Blu-ray boost technology for vibrant image projection. Equipped with 2x 10 Watt Chamber Stereo Speakers, it delivers a rich audio experience. The F40 model utilizes an Mstar/V56 Chip with LCD+LED technology, offering 4200 White Light LED Brightness and a dynamic contrast ratio of approximately 15,000:1.

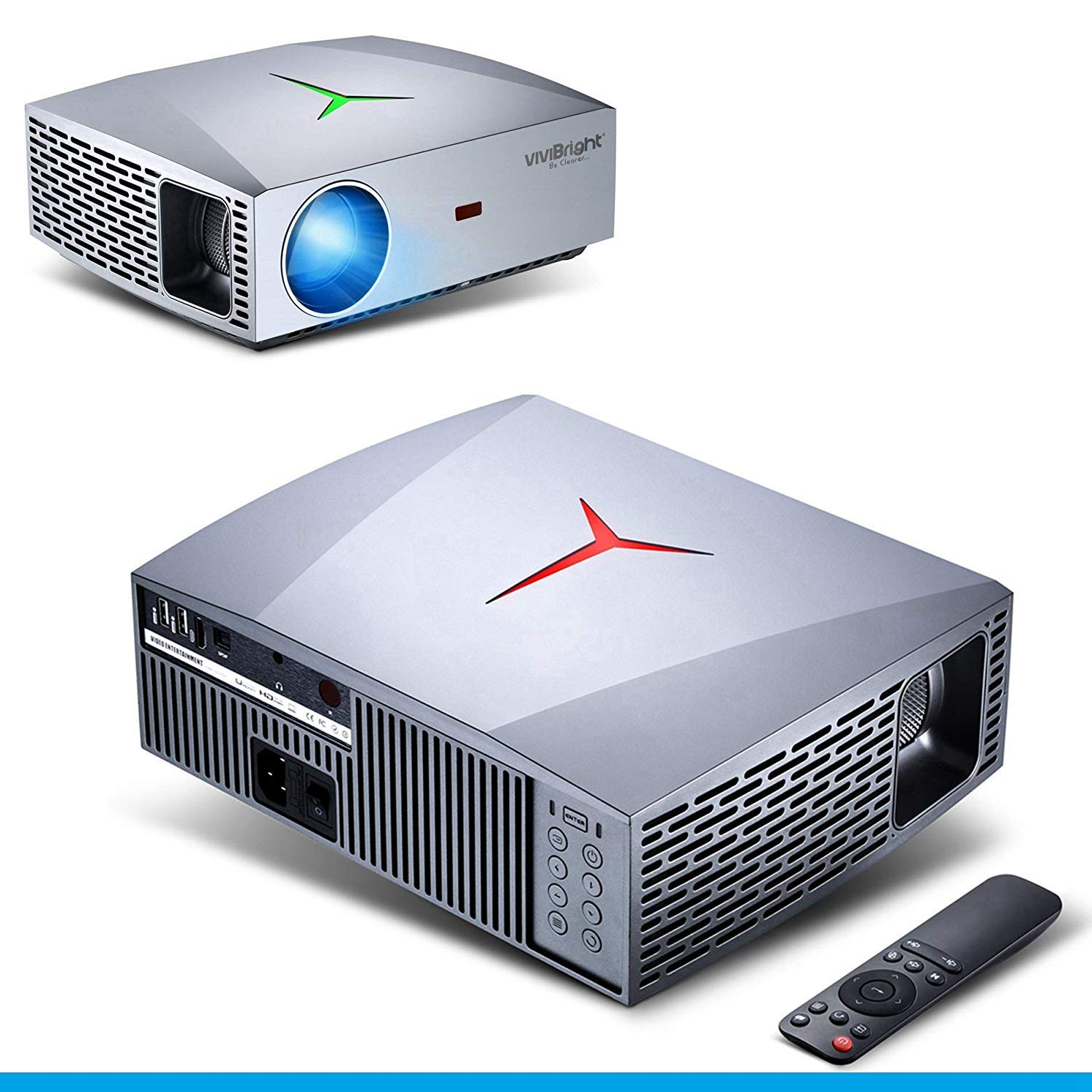

Figure 1: VIVIBRIGHT F40 Projector and Remote Control. This image displays the projector from various angles, highlighting its compact design and the included remote control.
Característiques principals:
- Resolució nativa de 1080p Full HD: Provides a sharp and clear image with 1920x1080 physical pixels.
- Alt Brillantor: 4200 Lumens LED white light for vivid colors.
- So superior: Built-in 2x 10 Watt Chamber Stereo Speakers with SPDIF output for HiFi audio.
- Connectivitat àmplia: HDMI, dual USB ports with multimedia direct play, SPDIF out, and audio output.
- Mida de pantalla gran: Supports clear image sizes from 60" to 120", with a maximum projection size up to 300".
- Ajust Keystone: Supports ±15 degrees vertical keystone adjustment.
Figure 2: Key Features of the VIVIBRIGHT F40 Projector. This image visually represents the main specifications and capabilities of the projector, including its resolution, brightness, and audio features.
2. Configuració
2.1 Desembalatge i inspecció inicial
Carefully remove all components from the packaging. Verify that all items listed in the packing list are present and undamaged. If any items are missing or damaged, contact customer support immediately.
2.2 Col·locació
Position the projector on a stable, flat surface. Ensure adequate ventilation around the unit to prevent overheating. Maintain a clear path between the projector lens and the projection surface (screen or wall). The projection distance varies between 1.2 and 6.8 meters to achieve screen sizes from 60 inches to 300 inches diagonally.
- For a 100-inch screen, the recommended projection distance is approximately 2.8 meters.
- The projector does not have a zoom function; adjust the physical distance to achieve the desired screen size.
2.3 Connexió d'alimentació
- Connecteu el cable d'alimentació al port d'entrada d'alimentació del projector.
- Connecteu l'altre extrem del cable d'alimentació a una presa de corrent adequada.
2.4 Connexió de dispositius d'entrada
The VIVIBRIGHT F40 supports various input sources:
- HDMI: Connect devices such as TV sticks, PS4, Xbox, Blu-ray players, or laptops using an HDMI cable.
- USB: Insert USB drives for direct multimedia playback (photos, videos, audio). The projector features dual USB ports.
- DE: Feu servir el port AV per a dispositius més antics.
- Sortida SPDIF: For connecting to external audio systems for enhanced sound quality.
- Sortida d'àudio: Per connectar auriculars o altaveus externs.
3. Instruccions de funcionament
3.1 Engegada/apagada
- Premeu el botó d'engegada del projector o del comandament a distància per encendre la unitat.
- The projector will display the startup screen.
- Per apagar, torneu a prémer el botó d'engegada.
3.2 Enfocament de la imatge
The F40 model uses a fixed lens with manual focus. Rotate the focus ring on the projector lens until the projected image appears clear and sharp.
3.3 Adjusting Keystone Correction
If the projected image appears trapezoidal (wider at the top or bottom), use the keystone adjustment feature. The projector supports ±15 degrees vertical keystone correction. Adjust this setting via the projector's menu or dedicated button on the remote control to square the image.
3.4 Selecció de la font d'entrada
Use the "Source" button on the remote control or the projector's control panel to cycle through available input sources (HDMI1, HDMI2, USB1, USB2, AV).
3.5 Configuració d'àudio
The projector has built-in 10W stereo speakers. Volume can be adjusted using the remote control. For external audio, connect speakers or a sound system to the SPDIF out or Audio out ports.
Figure 3: VIVIBRIGHT F40 Audio Capabilities. This image illustrates the projector's integrated HiFi stereo speakers and SPDIF output for high-quality sound.
4. Manteniment
4.1 Neteja de la lent
Use a soft, lint-free cloth specifically designed for optical lenses to gently wipe the projector lens. Do not use abrasive cleaners or excessive force, as this can scratch the lens.
4.2 Neteja del cos del projector
Netegeu l'exterior del projector amb un drap suau i sec. Per a marques difícils, netegeu lleugeramentamp Es pot fer servir un drap, però assegureu-vos que no entri líquid a les obertures de ventilació.
4.3 Ventilació
Ensure that the projector's ventilation ports are not blocked. Dust accumulation can impede airflow and lead to overheating. Periodically check and gently clean the vents if necessary using a soft brush or compressed air.
4.4 Emmagatzematge
When not in use for extended periods, store the projector in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to cover the projector to protect it from dust.
5. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| No es projecta cap imatge | Power cable disconnected; Incorrect input source selected; Lens cap on. | Comproveu la connexió d'alimentació; seleccioneu la font d'entrada correcta; traieu la tapa de l'objectiu. |
| La imatge és borrosa | Lens out of focus; Incorrect projection distance. | Adjust the manual focus ring; Adjust the projector's distance from the screen. |
| La imatge és trapezoïdal | Projector no perpendicular a la pantalla. | Adjust keystone correction (±15 degrees vertical). |
| Sense so | Volume too low; External speakers not connected properly; Muted. | Increase volume; Check audio cable connections; Unmute the projector. |
| El projector es sobreescalfa | Ventilació bloquejada; Ús prolongat en ambients calorosos. | Ensure vents are clear; Operate in a well-ventilated area; Allow cool-down periods. |
6. Especificacions
| Característica | Detall |
|---|---|
| Model | F40 |
| Resolució nativa | 1920 x 1080 (Full HD) |
| Brillantor | 4200 Lumens (LED White Light) |
| Relació de contrast | 15,000:1 (dinàmic) |
| Tecnologia de visualització | LCD + LED |
| Relació d'aspecte | 16:9 (nadiu) |
| Projection Throw Ratio | 1.38:1 (100" @ 2.8m) |
| Distància de projecció | 1.2 m - 6.8 m |
| Mida de projecció | 60" - 120" (Clear Image), up to 300" (Max) |
| Correcció de pedra clau | ±15 degrees Vertical |
| Altaveus | 2x 10 Watt Chamber Stereo Speakers |
| Interfícies d'entrada | HDMI, 2x USB, AV |
| Interfícies de sortida | SPDIF Out, Audio Out |
| Consum d'energia | 140 watts |
| Pes de l'article | 4.54 kg |
7. Garantia i Suport
7.1 Informació de la garantia
This VIVIBRIGHT F40 Projector comes with a 1 anys de garantia from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance.
7.2 Atenció al client
For technical assistance, troubleshooting, or warranty inquiries, please contact VIVIBRIGHT customer support. Refer to the product packaging or the official VIVIBRIGHT weblloc web per obtenir la informació de contacte més actualitzada.
When contacting support, please be prepared to provide the following information:
- Product Model: VIVIBRIGHT F40
- Data de compra
- Descripció detallada del problema
