1. Producte acabatview
The Einhell TC-PW 340 compressed air impact wrench is a powerful tool designed for various tasks in the home, workshop, and garage. It delivers a maximum torque of 340 Nm, making it suitable for demanding applications. The tool features a non-slip rubberized handle for comfortable and secure operation, and offers both left (one-stage) and clockwise (three-stage) rotation for versatility.
Figure 1: Einhell TC-PW 340 Compressed Air Impact Wrench with included sockets, oil bottle, and plug nipple.
Característiques principals:
- Maximum torque of 340 Nm for powerful performance.
- Non-slip rubberized handle for safe and comfortable working.
- Left- (one-stage) and clockwise (three-stage: 180, 255, 340 Nm) rotation.
- Includes 8 sockets (8/10/11/13/17/19/21/22 mm), 1 oil bottle (empty), and 1 plug nipple.
Figure 2: The ergonomic, rubberized handle provides a secure and comfortable grip during operation.
2. Instruccions de seguretat
Always observe the following safety precautions when operating the compressed air impact wrench to prevent injury and damage:
- Porteu protecció ocular: Always wear safety goggles to protect your eyes from flying debris.
- Utilitzeu protecció auditiva: The tool can be loud; use ear protection during operation.
- Porteu guants: Protect your hands from vibrations and potential pinch points.
- Peça de treball segura: Ensure the workpiece is stable and cannot move during operation.
- Pressió d'aire adequada: No supereu la pressió màxima de funcionament de 6.3 bar.
- Desconnecteu el subministrament d'aire: Desconnecteu sempre el subministrament d'aire abans de canviar accessoris, realitzar manteniment o quan l'eina no estigui en ús.
- Mantenir els nens allunyats: Do not allow children or untrained persons to operate the tool.
- Inspeccionar l'eina: Before each use, check the tool for any damage or wear. Do not use a damaged tool.
3. Contingut del paquet
En desembalar, assegureu-vos que tots els elements que s'enumeren a continuació hi siguin presents i no estiguin danyats:
- Einhell TC-PW 340 Compressed Air Impact Wrench
- 8 x Sockets (sizes: 8, 10, 11, 13, 17, 19, 21, 22 mm)
- 1 x Oil Bottle (empty, for lubrication)
- 1 x Plug Nipple (for air hose connection)
- 1 x Transport and Storage Case

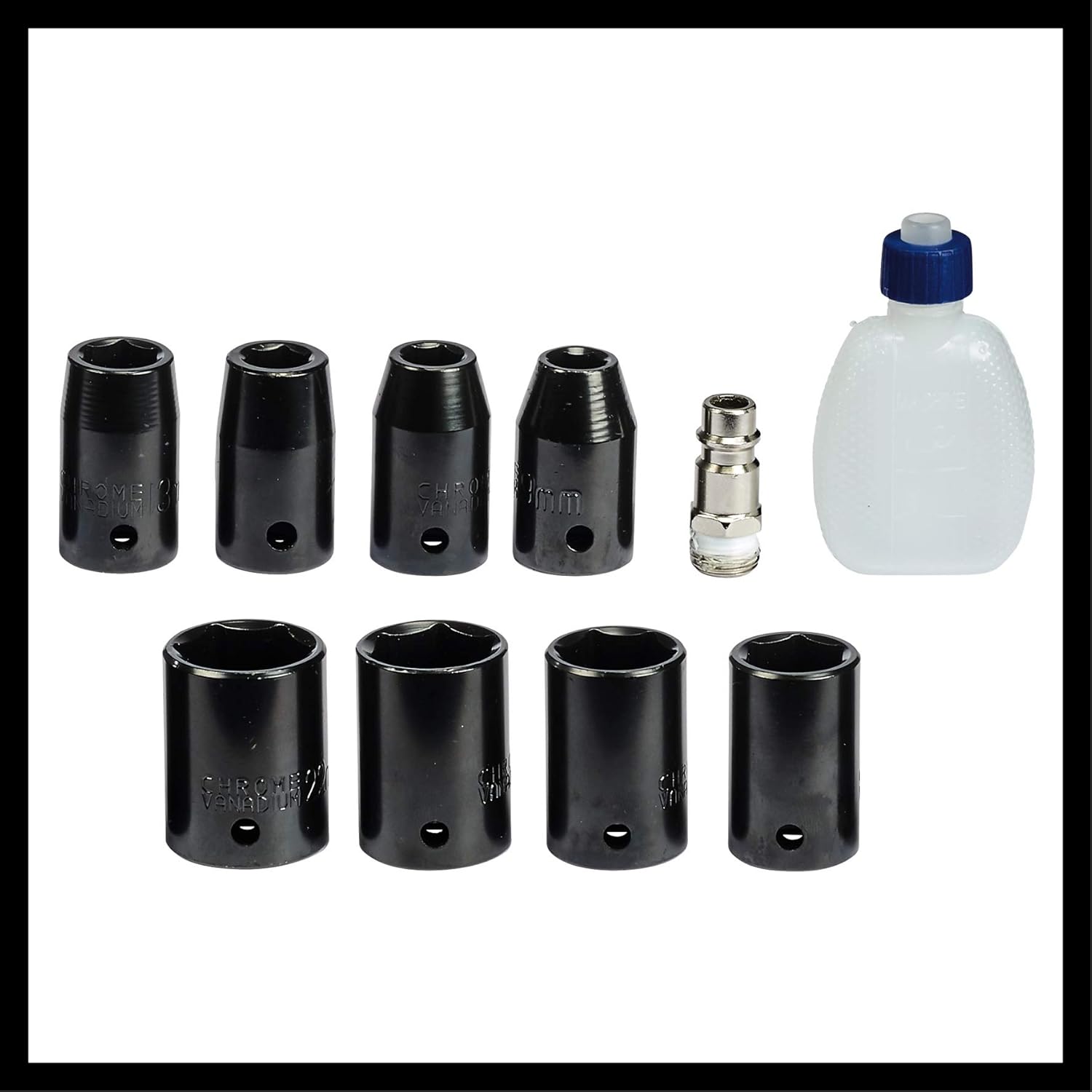

Figure 3: The complete set of accessories, including various socket sizes, the oil bottle, and the plug nipple.
Figure 4: The range of standard socket sizes provided for common applications.
4. Configuració i funcionament inicial
4.1 Connexió al subministrament d'aire
- Ensure your air compressor is off and depressurized.
- Attach the included plug nipple to the air inlet of the impact wrench.
- Connect your air hose (minimum inner diameter of 9 mm for best performance) to the plug nipple.
- Set your air compressor to the recommended operating pressure (maximum 6.3 bar).
4.2 Connectant els endolls
- Ensure the air supply is disconnected from the impact wrench.
- Select the appropriate 1/2" square drive socket for your application.
- Push the socket firmly onto the square drive spindle of the impact wrench until it clicks into place.
- To remove, pull the socket off the spindle.
Figure 5: The 1/2 inch square drive for attaching standard sockets.
5. Instruccions de funcionament
5.1 Direction of Rotation and Torque Adjustment
The Einhell TC-PW 340 features a selector switch for controlling the direction of rotation and the torque setting.
- Clockwise Rotation (Tightening): The tool offers three stages of torque for tightening: 180 Nm, 255 Nm, and 340 Nm. Adjust the selector to the desired torque level.
- Left Rotation (Loosening): The tool operates at one stage for loosening, providing full power for removal.
Figure 6: The selector switch allows for easy adjustment of rotation direction and torque settings.
Figure 7: The tool offers a 4-step torque setting for precise control during tightening applications.
5.2 Using the Impact Wrench
- Ensure the correct socket is attached and the air supply is connected.
- Select the desired direction of rotation and torque setting.
- Place the socket firmly onto the fastener (nut or bolt head).
- Press the trigger to operate the tool. Apply steady pressure.
- Deixeu anar el disparador per aturar l'eina.
Figure 8: The impact wrench is ideal for tasks such as changing car tires.
Figure 9: The tool's versatility extends to various applications, from automotive work to other workshop tasks, requiring a hose with a minimum inner diameter of 9 mm for optimal performance.
6. Manteniment
Un manteniment regular garanteix la longevitat i el rendiment òptim de la clau d'impacte.
6.1 Lubricació
It is crucial to lubricate the impact mechanism regularly. Use a few drops of pneumatic tool oil (not included) in the air inlet before and after each use, or at least daily if used frequently. The included oil bottle is for convenient application.
Figure 10: Regular oiling is essential for the proper functioning and lifespan of the pneumatic tool.
6.2 Neteja i emmagatzematge
- After use, wipe down the tool with a clean, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Store the impact wrench in its transport case in a dry, clean, and dust-free environment, away from direct sunlight and extreme temperatures.
- Ensure the air supply is disconnected before storing.
7. Solució De Problemes
If you encounter issues with your Einhell TC-PW 340, refer to the table below for common problems and solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| L'eina no funciona o té poca potència. | Insufficient air pressure or volume. Clogged air filter. Lack of lubrication. | Check compressor pressure (max 6.3 bar). Ensure air hose has minimum 9mm inner diameter. Clean or replace air filter. Lubricate tool with pneumatic oil. |
| Fuites d'aire per les connexions. | Connexions fluixes. Juntes tòriques o segells danyats. | Estrenyeu totes les connexions. Inspeccioneu i substituïu les juntes tòriques o els segells danyats. |
| Vibracions o sorolls excessius. | Worn internal components. Lack of lubrication. | Lubricate the tool. If problem persists, contact customer support for inspection. |
| L'endoll no s'enganxa correctament. | Damaged square drive or socket. Debris in drive. | Inspect drive and socket for damage. Clean any debris from the drive. |
8. Especificacions tècniques
Detailed specifications for the Einhell TC-PW 340 Compressed Air Impact Wrench:
| Especificació | Valor |
|---|---|
| Número de model | 4138950 |
| Parell màxim | 340 Nm |
| Pressió màxima de funcionament | 6.3 bar |
| Mida de la unitat | Unitat quadrada d'1/2 polzada |
| Recommended Hose Inner Diameter | 9 mm |
| Configuració de rotació | Left (1-stage), Clockwise (3-stage: 180, 255, 340 Nm) |
| Pes de l'article | 1.9 quilograms (4.18 lliures) |
| Material | Rubber (handle) |
| Color | Vermell |
Figure 11: The maximum torque output of the impact wrench is 340 Newton-meters.
Figure 12: The tool operates efficiently at a maximum air pressure of 6.3 bar.
Figure 13: The impact wrench features a standard 1/2 inch square drive for compatibility with common sockets.
9. Garantia i atenció al client
Einhell products are manufactured to high-quality standards and undergo strict quality controls. This product is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Einhell website. For technical assistance, spare parts, or any other inquiries, please contact Einhell customer support through their official channels.
