Tronsmart Element T6 Plus Bluetooth Speaker User Manual

Producte acabatview

The Tronsmart Element T6 Plus is a versatile and powerful portable Bluetooth speaker designed for robust audio performance in various environments. Featuring 40W stereo sound, True Wireless Stereo pairing, and multiple bass effects, it delivers a rich listening experience. Its IPX6 waterproof rating ensures durability against splashes and rain, making it suitable for outdoor activities. The speaker also includes a built-in power bank function for charging mobile devices.

Figure 1: Tronsmart Element T6 Plus Bluetooth Speaker

Característiques clau

• 40W Stereo Sound: Delivers powerful and clear audio output.
• True Wireless Stereo (TWS): Allows pairing two T6 Plus speakers for immersive stereo sound.
• Tri-Bass Effects: Customize your audio with Vocal, 3D Deep Bass, and Extra Bass modes.
• Temps de joc de 15 hores: Durada de la bateria estesa per a una escolta prolongada.
• IPX6 Impermeable: Resistant to heavy splashes, rain, and sweat.
• Banc d'energia integrat: USB-A output port for charging external devices.
• Bluetooth 5.0: Proporciona connectivitat sense fil estable i eficient.
• Micro SD/TF Card & AUX Input: Multiple playback options.

Contingut del paquet

• Tronsmart Element T6 Plus Bluetooth Speaker
• Cable de càrrega USB-C
• Cable AUX
• Manual d'usuari

Primers passos

Carregant l'altaveu

Before first use, fully charge the speaker using the provided USB-C charging cable. The charging indicator light will show the charging status.

Encès/Apagat

Manteniu premut el botó d'engegada (⏻) for 2-3 seconds to turn the speaker on or off. A blue light will illuminate when the speaker is on.

Emparellament Bluetooth

1. Turn on the Tronsmart Element T6 Plus speaker. It will automatically enter Bluetooth pairing mode, indicated by a flashing blue light.
2. Activa el Bluetooth al teu dispositiu (telèfon intel·ligent, tauleta, etc.).
3. Select "Tronsmart Element T6 Plus" from the list of available devices.
4. Un cop connectat, la llum blava romandrà fixa.

Vinculació True Wireless Stereo (TWS).

To achieve a true stereo sound experience, you can pair two Tronsmart Element T6 Plus speakers together.

Figura 2: Configuració estèreo sense fil veritable

1. Ensure both T6 Plus speakers are powered on and not connected to any other Bluetooth device.
2. On one speaker, press the TWS button. The indicator light will flash.
3. The two speakers will automatically connect to each other. Once connected, the TWS indicator light on both speakers will remain solid.
4. Connect your device to one of the paired speakers via Bluetooth. Both speakers will now play audio in stereo.

Instruccions de funcionament

Controls acabatsview

Figure 3: Speaker Controls

• Roda multifunció: Rotate to adjust volume. Press to play/pause music or answer/end calls. Hold for 3 seconds to activate voice assistant.
• Botons de pista anterior/següent: Saltar pistes.
• Botó TWS: Inicia l'emparellament estèreo sense fil veritable.
• Botó EQ: Cycle through Tri-Bass Effects.
• Botó Mode (M): Switch between Bluetooth, Micro SD/TF, and AUX modes.
• Botó d'encesa: Enceneu/apaga l'altaveu.

Tri-Bass Effects (EQ)

The speaker offers three distinct equalizer audio modes to suit different music genres:

Figure 4: Tri-Bass Effects

• Vocal: Default mode, optimized for clear vocals.
• 3D Deep Bass: Enhances bass and provides a wider soundstage.
• Baix addicional: Delivers powerful, deep bass.

Press the EQ button to cycle through these modes. The indicator light will change color to show the active mode.

Using the USB Charging Port (Power Bank)

The Element T6 Plus features a built-in power bank, allowing you to charge your mobile devices directly from the speaker.

Figura 5: Capacitat de càrrega USB

Connect your device's charging cable to the USB-A output port on the speaker. The speaker will begin charging your device.

Micro SD/TF Card Playback & AUX Input

Insert a Micro SD/TF card into the designated slot for direct music playback. Alternatively, connect an external audio device using the provided AUX cable to the 3.5mm AUX input port.

Trucades mans lliures

When connected via Bluetooth, you can use the speaker for hands-free calls. Press the Multifunction Wheel to answer or end a call. Press and hold to reject a call.

Cura i Manteniment

Resistència a l'aigua IPX6

The Element T6 Plus is IPX6 waterproof, meaning it can withstand powerful water jets and heavy splashes. It is suitable for use in rainy conditions or near water sources like pools. No submergiu l'altaveu a l'aigua. Assegureu-vos que la tapa del port de càrrega estigui ben tancada abans d'exposar l'altaveu a l'aigua.

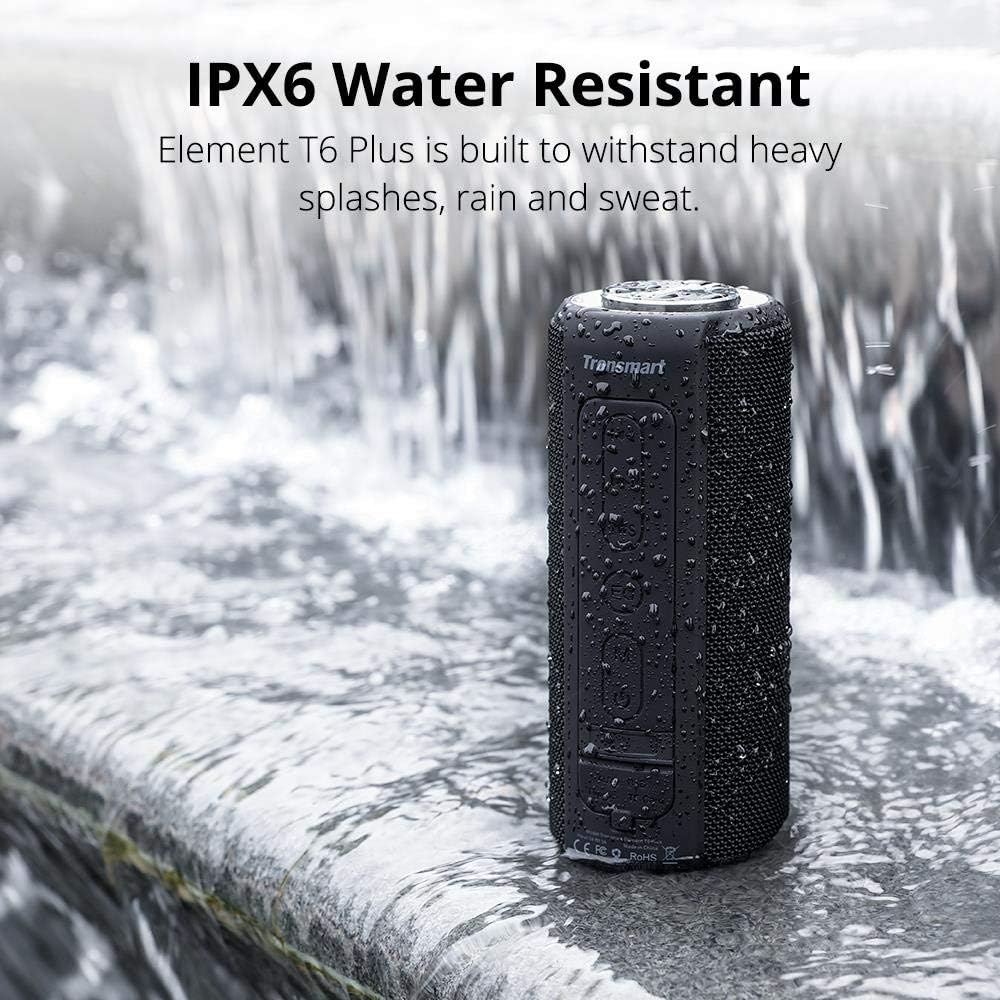

Figura 6: Resistència a l'aigua IPX6

Neteja

Netegeu l'altaveu amb un suau, damp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.

Resolució de problemes

Especificacions del producte

Garantia i Suport

Informació de la garantia

Tronsmart products typically come with a limited warranty. Please refer to the warranty card included in your package or visit the official Tronsmart weblloc web per obtenir informació detallada sobre els termes i condicions de la garantia.

Atenció al client

For any product inquiries, technical assistance, or warranty claims, please contact Tronsmart customer support through their official weblloc web o la informació de contacte que es proporciona al manual d'usuari.
