Manual d'usuari de l'indicador digital Clockwise Tools DITR-0105N

1. Introducció

This manual provides detailed instructions for the proper use, setup, operation, and maintenance of your Clockwise Tools DITR-0105N Digital Indicator. This precision instrument is designed for accurate dimensional measurement in various applications, including machining, metalworking, and quality control. Please read this manual thoroughly before operating the device to ensure optimal performance and longevity.

2. Informació de seguretat

• Handle the digital indicator with care to avoid damage to the precision components.
• No exposeu el dispositiu a temperatures extremes, humitat o llum solar directa.
• Eviteu deixar caure l'instrument o sotmetre'l a impactes forts.
• Keep the device clean and free from dust, oil, and other contaminants.
• Store the indicator in its protective case when not in use.

3. Producte acabatview

The Clockwise Tools DITR-0105N Digital Indicator features a large LCD display, dual unit conversion, and a robust design for reliable measurements.

Característiques principals:

• Dual Unit Conversion: Supports both inch and metric readings.
• Extra-Large LCD Display: 1.6" x 0.7" high-contrast screen for easy readability.
• High Precision & Accuracy: 0-1" (25.4mm) measuring range, 0.00005" (0.001mm) resolution, and ±0.0002" (0.005mm) accuracy.
• Muntatge versàtil: Includes flat back and lug back options (6.5mm hole size), 3/8" stem diameter, and UNF 4-48 threaded tip.
• RS232 Data Transfer: Equipped with a port for seamless measurement logging (requires Clockwise Tools DTCR-01 cable, sold separately).

Components:

1. Pantalla LCD
2. Botó polzades/mm
3. Botó OFF/ON
4. Botó ZERO
5. Measuring Spindle/Contact Point
6. Mounting Stem

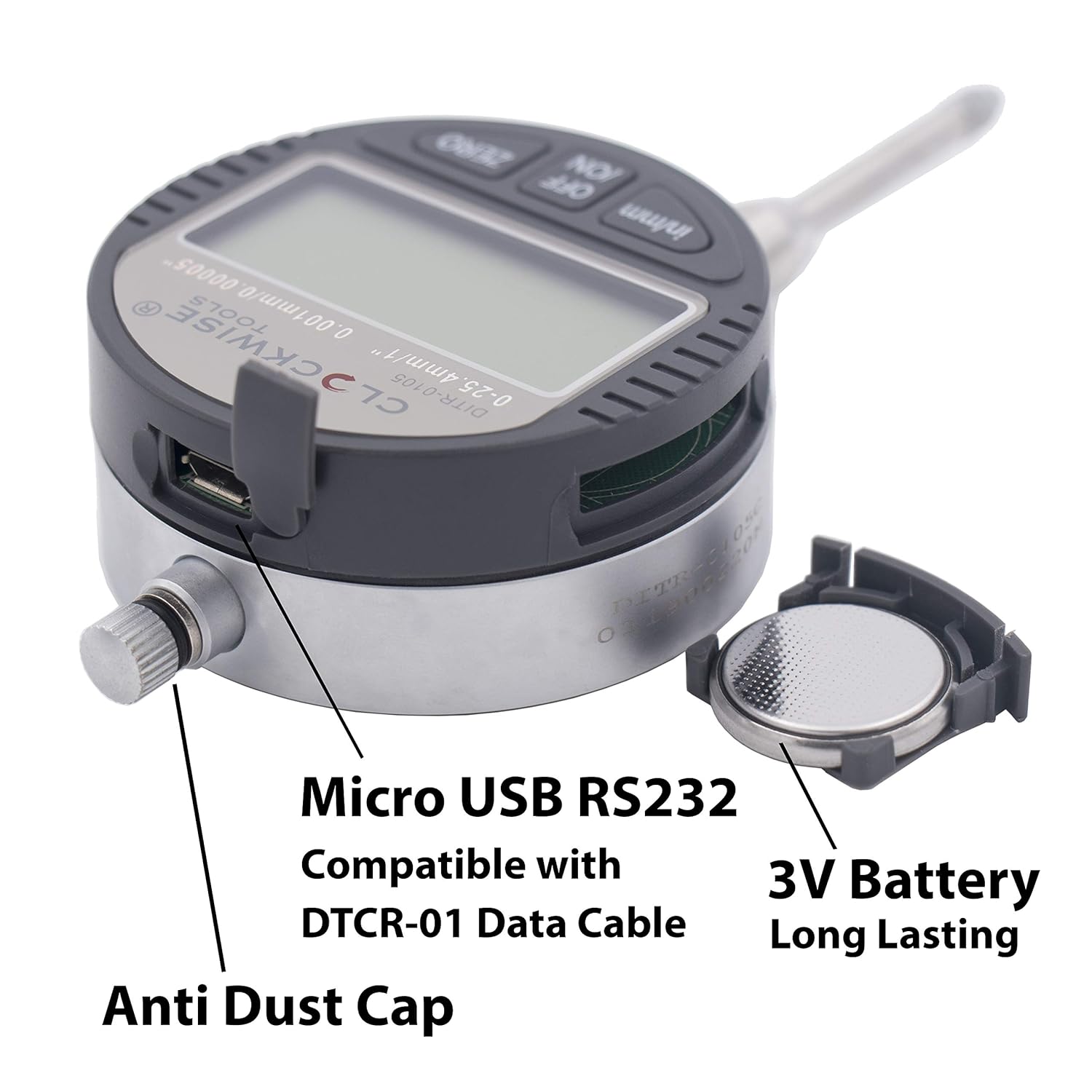

7. Data Output Port (Micro USB RS232 compatible)
8. Compartiment de la bateria

4. Configuració

4.1 Instal·lació de la bateria

The DITR-0105N requires two CR2032 batteries (included). To install or replace batteries:

1. Locate the battery compartment cover on the back of the indicator.
2. Use a small screwdriver or coin to gently open the cover.
3. Insert the two CR2032 batteries with the positive (+) side facing up.
4. Tanqueu bé la tapa del compartiment de la bateria.

4.2 Muntatge de l'indicador

The indicator can be mounted using its 3/8" stem or via the included lug back attachment.

• Stem Mounting: Insert the 3/8" diameter stem into a compatible fixture or stand and secure it.
• Lug Back Mounting: Attach the lug back plate to the indicator's rear using the provided screws. Then, mount the lug back to a fixture using its 6.5mm hole.

5. Funcionament

5.1 Encès/Apagat

• Premeu el botó OFF/ON button to turn the indicator on.
• Manteniu premut el botó OFF/ON button to turn the indicator off. The device does not have an auto-off feature.

5.2 Posar a zero la pantalla

To set a reference point (zero) for your measurements:

1. Position the measuring spindle at the desired reference point.
2. Premeu el botó ZERO button. The display will show '0.0000' (or '0.000' in metric), and all subsequent measurements will be relative to this point.

5.3 Inch/Metric Conversion

To switch between inch and millimeter units:

• Premeu el botó polzades / mm button. The display will toggle between inch (in) and millimeter (mm) readings.

5.4 Data Transfer (RS232)

The DITR-0105N is equipped with an RS232 data transfer port for connecting to a PC for measurement logging. This functionality requires the separate purchase of the Clockwise Tools DTCR-01 data cable.

• Connect the DTCR-01 data cable to the indicator's data port and to your computer.
• Follow the instructions provided with the DTCR-01 cable for software installation and data acquisition.
• Note: The data port is Micro USB RS232 compatible, but it is NOT a standard USB port for direct PC connection without the specific DTCR-01 cable.

6. Manteniment

6.1 Neteja

• Wipe the indicator's body with a soft, dry cloth.
• Per a la brutícia persistent, utilitzeu un drap lleugerament humit.ampened with mild soap and water, then dry thoroughly.
• Do not use harsh chemicals, solvents, or abrasive cleaners, as these can damage the display or finish.
• Keep the measuring spindle and contact point clean and free of debris to ensure accurate readings.

6.2 Emmagatzematge

• Store the digital indicator in its original protective case when not in use.
• Ensure the storage environment is dry, clean, and free from extreme temperatures or humidity.
• Traieu les piles si no heu d'utilitzar el dispositiu durant un període prolongat per evitar fuites.

7. Solució De Problemes

• La pantalla no funciona: Check battery installation. Ensure batteries are correctly oriented and have sufficient charge. Replace batteries if necessary.
• Lectures inexactes: Clean the measuring spindle and contact point. Ensure the indicator is securely mounted and stable. Re-zero the display. Verify the workpiece is clean and properly positioned.
• Botons que no responen: Ensure the device is powered on. If issues persist after checking batteries, contact customer support.
• Problemes de transferència de dades: Verify the DTCR-01 cable is correctly connected to both the indicator and the PC. Ensure the correct software/drivers are installed on the PC. Consult the DTCR-01 cable manual for specific troubleshooting steps.

8. Especificacions

9. Garantia i Suport

Clockwise Tools products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your product or visit the official Clockwise Tools website. Please have your model number (DITR-0105N) and purchase information ready when contacting support.
