1. Introducció
Thank you for choosing the Midea MPPDB-12HRN7-QB6 Portable Air Conditioner. This manual provides important information for the proper installation, operation, and maintenance of your unit. Please read it thoroughly before using the appliance and keep it for future reference.
This portable air conditioner is designed to provide both cooling and heating, featuring a HEPA filter for improved air quality, three fan speeds, and a convenient remote control with an integrated thermostat. It also includes a quick-connect window kit for easy setup.
2. Informació de seguretat
Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions a les persones.
- Llegiu totes les instruccions abans d'utilitzar l'aparell.
- Assegureu-vos que la font d'alimentació coincideixi amb el voltage especificat a l'etiqueta de qualificació.
- No feu servir la unitat amb un cable o un endoll danyats.
- No bloquegeu les entrades o sortides d'aire.
- Mantingueu la unitat allunyada de materials inflamables.
- Desconnecteu sempre la unitat abans de netejar-la o fer-ne el servei.
- Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
3. Característiques del producte
- Sistema de filtració dual: Features a HEPA filter to remove bacteria, viruses, allergens, dust, and odors, ensuring cleaner air.
- Kit de finestres inclòs: A quick-connect window kit is provided for easy installation and adaptability to various window sizes.
- Temporitzador de 24 hores: Permet programar la unitat perquè s'encengui o s'apagui automàticament en un període de 24 hores.
- Funció Segueix-me: The wireless remote control includes a "Follow Me" function, allowing the unit to sense the temperature at the remote's location for more precise comfort.
- Deshumidificació potent: Capable of removing up to 84 liters of moisture per 24 hours, significantly reducing humidity.
- Superior Cooling/Heating Capacity: Designed for effective cooling and heating in large rooms and spaces.
- Eco-friendly Refrigerant: Uses R290, a natural, low-carbon, and ozone-friendly refrigerant.
4. Components inclosos
Els components següents s'inclouen a la caixa:
- Midea MPPDB-12HRN7-QB6 Portable Air Conditioner Unit
- Filtre HEPA (preinstal·lat o separat)
- Control remot
- Window Kit (exhaust hose, window slider kit, adapters)
- Manual d'usuari (aquest document)
Figure 4.1: Midea Portable Air Conditioner Unit and Remote Control.
5. Configuració i instal·lació
5.1 Desembalatge
Carefully remove the unit from its packaging. Keep the packaging materials for future storage or transport. Inspect the unit for any damage. If damaged, do not operate and contact customer service.
5.2 Col·locació
Place the unit on a flat, stable surface. Ensure there is at least 20 cm (8 inches) of space around the unit for proper air circulation. Do not place the unit near heat sources or in direct sunlight.
Figura 5.1: Example of suitable unit placement in a room.
5.3 Instal·lació del kit de finestra
The included window kit is essential for exhausting hot air (in cooling mode) or cold air (in heating mode) outside. Proper installation ensures efficient operation.
- Assemble the Exhaust Hose: Extend the exhaust hose and attach one end to the hose adapter and the other end to the window slider kit adapter.
- Install the Window Slider Kit: Ajusteu el kit de corredissa de finestra perquè s'adapti a l'obertura de la finestra. Fixeu-lo al seu lloc.
- Connectar a la unitat: Attach the hose adapter to the exhaust outlet on the back of the air conditioner unit.
- Connect to Window: Insert the window slider kit adapter into the opening in the window slider kit.
- Buits del segell: Ensure all gaps around the window kit are sealed to prevent air leakage, which can reduce efficiency.
Figure 5.2: Window Kit installation for exhaust.
6. Instruccions de funcionament
6.1 Tauler de control i comandament a distància
The unit can be operated using the control panel on the top of the unit or the included remote control. The remote control offers full functionality and includes the "Follow Me" thermostat feature.
6.2 Modes de funcionament
- Mode fresc: Per refredar l'habitació. Ajusteu la temperatura desitjada i la velocitat del ventilador.
- Mode de calor: Per escalfar l'habitació. Ajusteu la temperatura desitjada i la velocitat del ventilador.
- Mode sec (deshumidificació): For reducing humidity. The fan speed is typically fixed in this mode.
- Mode de ventilador: Circulates air without cooling or heating. Select desired fan speed (Low, Medium, High).
Figure 6.1: Unit supports both cooling and heating functions.
Figure 6.2: Powerful dehumidification capability.
6.3 Configuració del temporitzador
The 24-hour timer allows you to schedule the unit to turn on or off automatically. Refer to the remote control section in your full manual for detailed timer setting instructions.
6.4 Funció Segueix-me
Activate the "Follow Me" function on the remote control. The remote will then act as the thermostat, sensing the temperature at its location and adjusting the unit's operation accordingly for optimized comfort where you are.
7. Manteniment
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil del teu aire condicionat.
7.1 Neteja del filtre
The HEPA filter should be cleaned regularly, typically every two weeks, or more often depending on usage and air quality. A dirty filter can reduce efficiency and air quality.
- Desendolleu la unitat de la presa de corrent.
- Locate and remove the air filter(s) (usually at the back or side).
- Clean the filter using a vacuum cleaner to remove dust. For heavily soiled filters, wash gently with warm water and mild detergent.
- Allow the filter to dry completely before reinstalling. Do not expose to direct sunlight.
- Torneu a instal·lar el filtre i connecteu la unitat.
7.2 Escorregut d'aigua
During dehumidification or cooling, water condensation will accumulate inside the unit. The unit has an internal self-evaporation system, but in high humidity conditions, the water tank may fill up. When full, the unit will stop operating and display an error code (refer to troubleshooting). Drain the water using the drain port at the back of the unit.
7.3 Neteja general
Netegeu l'exterior de la unitat amb un damp drap. No utilitzeu productes químics agressius ni netejadors abrasius. Assegureu-vos que la unitat estigui desendollada abans de netejar-la.
8. Solució De Problemes
Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | No power, plug loose, timer active | Check power cord, wall outlet, disable timer. |
| La unitat no refreda/escalfa eficaçment | Dirty air filter, blocked air intake/outlet, room too large, window kit not sealed, door/window open | Clean filter, clear obstructions, ensure proper room size, seal window kit, close doors/windows. |
| Fuga d'aigua | Drain plug loose, unit not level, internal tank full (in high humidity) | Check drain plug, ensure unit is level, drain water if tank is full. |
| Funcionament sorollós | Unit not level, fan obstruction | Ensure unit is on a flat surface, check for obstructions in fan area. |
9. Especificacions
Technical specifications for the Midea MPPDB-12HRN7-QB6 Portable Air Conditioner:
| Especificació | Valor |
|---|---|
| Número de model | MPPDB-12HRN7-QB6 |
| Marca | Midea |
| Dimensions (L x A x A) | 39.7 x 46.7 x 76.5 cm (15.6 x 18.4 x 30.1 polzades) |
| Pes | 39.3 kg (86.6 lliures) |
| Font d'alimentació | 240 volts (CA) |
| Potència elèctrica | 3500 W |
| Tipus de filtre | Double filter with HEPA system |
| Capacitat de deshumidificació | 84 litres/24 h |
| Refrigerant | R290 |
| Nivell de soroll | 65 dB |
| Ràtio d'eficiència energètica estacional (SEER) | 20 |

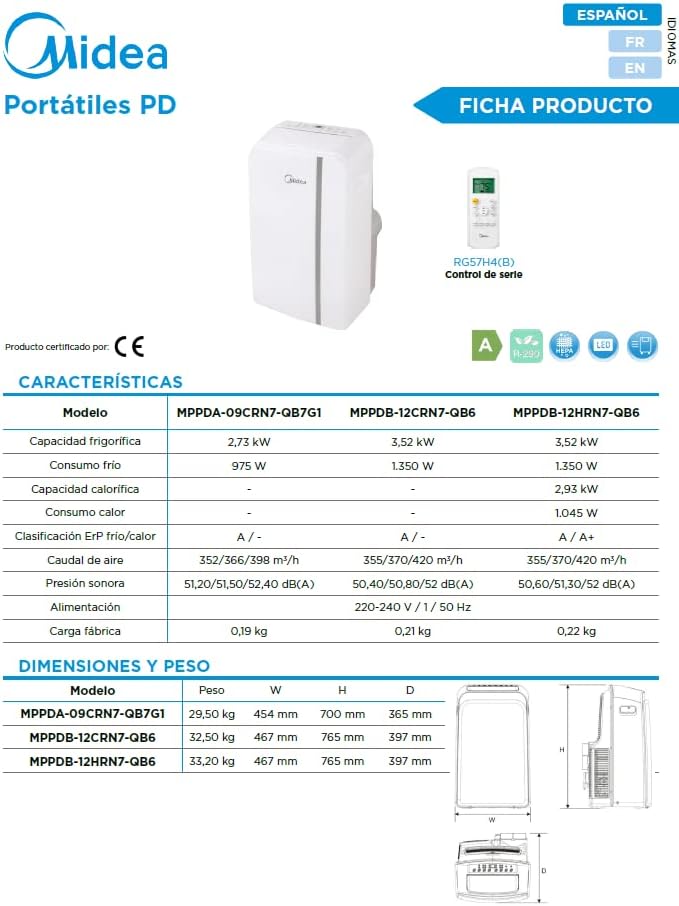

Figura 9.1: Taula detallada d'especificacions del producte.
Figura 9.2: Etiqueta d'eficiència energètica.
10. Garantia i Suport
Midea products come with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage.
For technical assistance, troubleshooting beyond this manual, or to inquire about service, please contact Midea customer support. You can find contact information on the Midea official weblloc web o la documentació del vostre producte.
Figure 10.1: Midea offers extensive technical support.
Figure 10.2: Midea is a leading brand in air treatment appliances.
