1. Producte acabatview
The GROHE Rainshower SmartActive 130 Hand Shower is designed to enhance your showering experience with multiple spray patterns and a durable chrome finish. This manual provides essential information for the safe and effective installation, operation, and maintenance of your hand shower.
Figura 1: Frontal view of the GROHE Rainshower SmartActive 130 Hand Shower, showcasing its design and spray plate.
Les característiques clau inclouen:
- GROHE SmartTip: Easy selection of three distinct spray patterns with a fingertip.
- GROHE Long-Life Shine: A durable sparkling sheen that is easy to clean.
- Broquets SpeedClean: Designed for easy removal of limescale deposits.
- GROHE DreamSpray: Ensures a perfect spray pattern for an enjoyable shower.
- GROHE EcoJoy: Reduces water consumption without compromising performance.
2. Informació de seguretat
Si us plau, llegiu atentament totes les instruccions abans de la instal·lació i l'ús. Conserveu aquest manual per a futures consultes.
- Assegureu-vos que el subministrament d'aigua estigui tallat abans de començar qualsevol instal·lació o manteniment.
- Use appropriate tools and follow local plumbing codes.
- No estrenyeu massa les connexions, ja que això podria danyar el producte.
- Avoid using abrasive cleaners or harsh chemicals on the chrome finish.
- This product is designed for domestic use with potable water systems.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de continuar amb la instal·lació:
- GROHE Rainshower SmartActive 130 Hand Shower (Model 26574000)
Note: Shower hose and wall holder are typically sold separately.
4. Instruccions d'instal·lació
This section outlines the general steps for installing your GROHE Rainshower SmartActive 130 Hand Shower. Professional installation is recommended if you are unfamiliar with plumbing procedures.
- Prepara la zona: Turn off the main water supply to your shower. Ensure the existing shower hose and holder (if applicable) are removed.
- Connect to Shower Hose: Screw the new GROHE Rainshower SmartActive 130 Hand Shower onto your existing shower hose. The connection is a standard G 1/2 thread. Hand-tighten first, then use a wrench to gently tighten, ensuring a watertight seal. Do not overtighten.
- Comproveu si hi ha fuites: Torneu a obrir el subministrament principal d'aigua i comproveu si hi ha fuites a totes les connexions. Si hi ha fuites, estrenyeu suaument les connexions.
- Muntatge (si escau): If installing a new wall holder, follow the instructions provided with the holder.

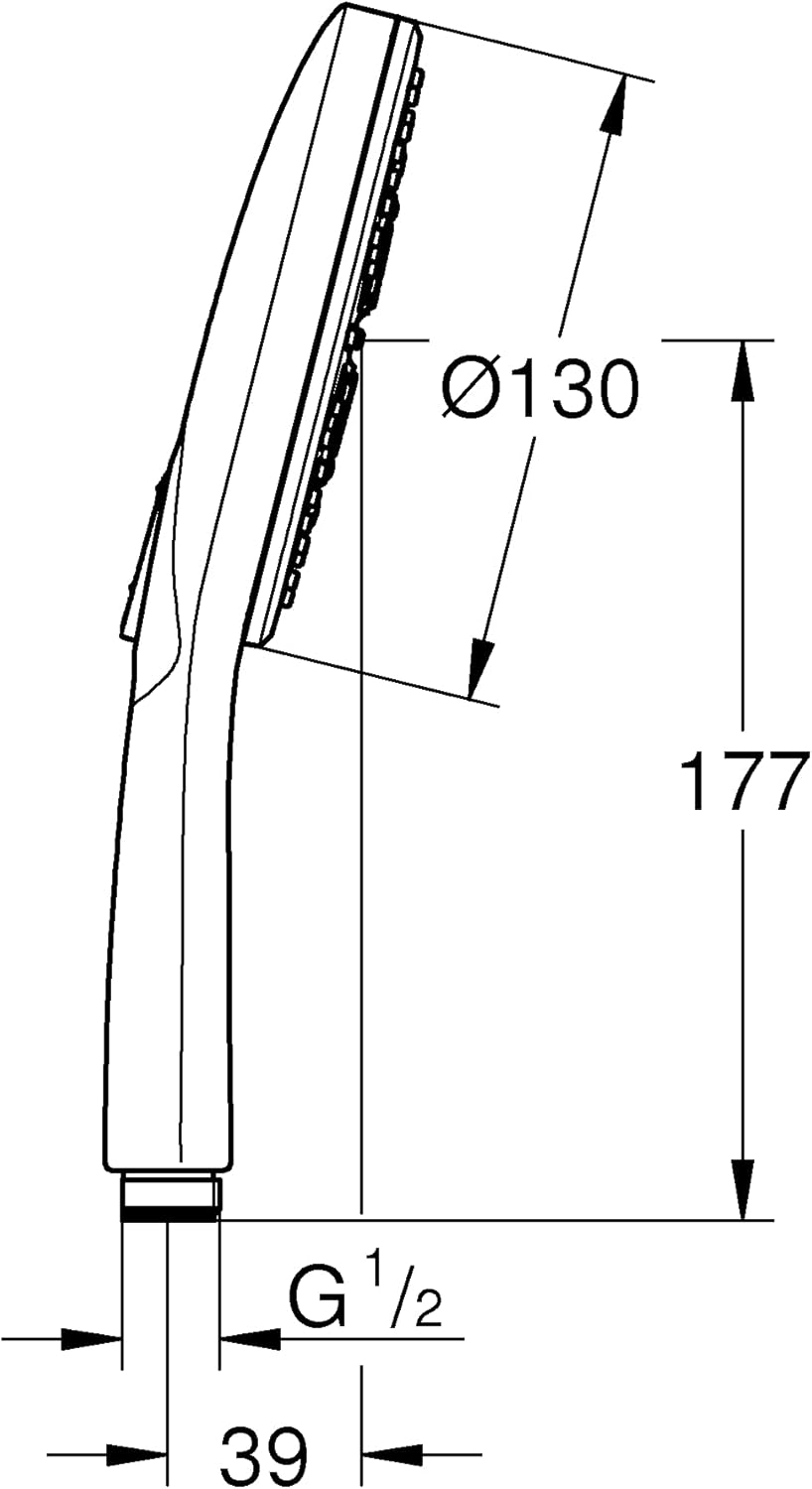

Figure 2: Technical drawing showing the dimensions and G 1/2 connection of the hand shower for proper installation.
5. Instruccions de funcionament
The GROHE Rainshower SmartActive 130 Hand Shower features three distinct spray patterns, easily selectable with the innovative SmartTip control.
Figura 3: posterior view of the hand shower with the SmartTip control for spray selection.
Figure 4: Visual guide to the three spray patterns and SmartTip selection.
5.1. Spray Pattern Selection (GROHE SmartTip)
To switch between spray patterns, simply press the button on the back of the showerhead with your fingertip. The available spray patterns are:
- Rain Spray: A soft and soothing spray, ideal for a relaxing shower.
- ActiveMassage Spray: A pulsating massage spray designed to reduce stress and tension.
- Raig de polvorització: A powerful and revitalizing spray, suitable for rinsing hair or targeted cleaning.
The GROHE DreamSpray technology ensures a balanced flow from all nozzles for an optimal experience.
5.2. Vídeo del producte
Vídeo 1: Un overview of the GROHE Rainshower SmartActive hand shower, demonstrating its features and spray patterns. This video highlights the cutting-edge technology and slim design, showcasing the Rain, ActiveMassage, and Jet sprays, as well as features like GROHE DreamSpray, EcoJoy, StarLight, and SpeedClean.
6. Manteniment i Neteja
Regular cleaning will help maintain the appearance and functionality of your GROHE Rainshower SmartActive 130 Hand Shower.
- Neteja de l'acabat: Clean the chrome finish with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots. The GROHE Long-Life Shine finish is designed for durability and easy maintenance.
- Limescale Removal (SpeedClean): The SpeedClean nozzles are made of silicone, allowing for easy removal of limescale. Simply wipe the nozzles with your finger or a soft cloth to dislodge any mineral buildup.
- Manteniment del filtre: Periodically check the filter screen (if present in your shower hose connection) for debris and clean as necessary to maintain optimal water flow.
Do not use abrasive sponges, scouring agents, or cleaners containing alcohol, acid, or abrasive particles, as these can damage the finish.
7. Solució De Problemes
If you encounter issues with your hand shower, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Baixa pressió d'aigua | Clogged nozzles or filter screen; low household water pressure. | Clean SpeedClean nozzles. Check and clean the filter screen in the shower hose connection. Consult a plumber if household water pressure is consistently low. |
| Water dripping after use | Residual water in the showerhead. | A small amount of dripping is normal as residual water drains. If excessive, ensure the showerhead is angled downwards to allow proper drainage. |
| Patró de polvorització desigual | Acumulació de calç als broquets. | Wipe the SpeedClean nozzles to remove limescale. |
| Difficulty changing spray patterns | Debris or limescale affecting the SmartTip mechanism. | Rinse the SmartTip button area with warm water. Gently press the button multiple times to dislodge any minor obstructions. |
8. Especificacions
| Característica | Detall |
|---|---|
| Marca | GROHE |
| Número de model | 26574000 |
| Nom del producte | Rainshower SmartActive 130 Hand Shower |
| Color | Chrome |
| Material | Chrome, Plastic, Silicone |
| Tipus d'acabat | Chrome Finish (GROHE Long-Life Shine) |
| Tipus d'instal·lació | Wall Mounted (via hose connection) |
| Nombre de paràmetres de polvorització | 3 (Rain, ActiveMassage, Jet) |
| Eficiència | 9.5 LPM (Liters Per Minute), 2.5 GPM (Gallons Per Minute) |
| Dimensions del producte | 9.88 x 5.2 x 2.05 polzades (aproximadament) |
| Pes de l'article | 10.2 unces |
9. Garantia i Suport
GROHE products are manufactured to the highest quality standards and come with a manufacturer's warranty. For specific warranty details, registration, or technical support, please refer to the official GROHE weblloc web o contacteu directament amb el seu servei d'atenció al client.
Podeu trobar més informació i suport a: www.grohe.us
