1. Producte acabatview
The Baseus D02 Bluetooth Headphones (Model NGD02-01) offer a versatile audio experience with both wireless Bluetooth and wired 3.5mm jack connectivity. Designed for comfort and portability, these over-ear headphones provide clear sound for music playback.

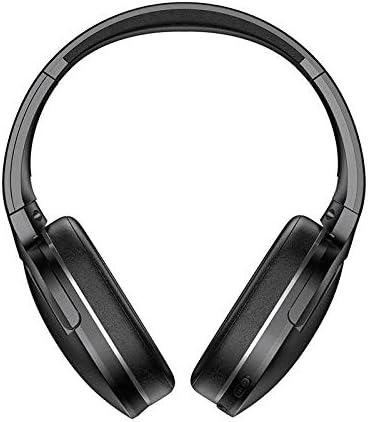

Imatge 1.1: Frontal view of the Baseus D02 Bluetooth Headphones, showcasing their over-ear design.
2. Contingut del paquet
Si us plau, comproveu el paquet per veure si hi ha els elements següents:
- Baseus D02 Bluetooth Headphones
- Cable de càrrega USB
- Cable d'àudio de 3.5 mm
- Manual d'usuari (aquest document)
- Ear Cushions (pre-installed or as spares)
- Headband (part of the headphone structure)
3. Configuració i connexió
3.1 Càrrega dels auriculars
Before first use, fully charge the headphones. Connect the provided USB charging cable to the Micro USB charging port on the headphones and the other end to a USB power adapter (not included) or a computer's USB port.
- The indicator light will typically be red during charging.
- The indicator light will turn blue or off when charging is complete.
A full charge usually takes approximately 2 hours.
3.2 Vinculació Bluetooth
- Assegureu-vos que els auriculars estiguin apagats.
- Press and hold the Power/Multi-Function Button (MFB) for approximately 3-5 seconds until the indicator light flashes red and blue alternately. This indicates pairing mode.
- Al dispositiu (telèfon intel·ligent, tauleta, ordinador), activeu el Bluetooth i cerqueu els dispositius disponibles.
- Select "Baseus D02" from the list of found devices.
- Once connected, the indicator light will typically flash blue slowly or remain solid blue.
- Si se us demana una contrasenya, introduïu "0000".
Els auriculars intentaran tornar a connectar-se automàticament amb l'últim dispositiu emparellat quan s'engeguin.
3.3 Wired Connection (3.5mm Audio Jack)
To use the headphones in wired mode, connect one end of the 3.5mm audio cable to the 3.5mm audio port on the headphones and the other end to your audio source's 3.5mm jack. The headphones can be used in wired mode even if the battery is depleted.
Imatge 3.1: Detallada view of the headphone's controls, including the power switch, 3.5mm audio port, Micro USB charging port, and volume/MFB buttons.
4. Instruccions de funcionament
4.1 Encès/Apagat
- Encès: Slide the power switch to the "ON" position. The indicator light will flash blue.
- Apagar: Slide the power switch to the "OFF" position. The indicator light will turn off.
4.2 Reproducció de música
- Reproduir/pausa: Short press the Multi-Function Button (MFB).
- Pista següent: Premeu llargament el botó "Volum +".
- Pista anterior: Premeu llargament el botó "Volum -".
4.3 Control de volum
- Pujar el volum: Premeu breument el botó "Volum +".
- Baixar el volum: Premeu breument el botó "Volum -".
Note: As per product specifications, these headphones do not include a microphone. Therefore, call management features are not available directly through the headphones.
5. Manteniment i cura
Un manteniment adequat garanteix la longevitat i el rendiment òptim dels teus auriculars.
- Neteja: Feu servir un drap suau, sec i sense borrissol per netejar els auriculars. No utilitzeu productes de neteja abrasius, alcohol ni dissolvents químics.
- Emmagatzematge: When not in use, store the headphones in a cool, dry place, away from direct sunlight and extreme temperatures. The headphones are foldable for compact storage.

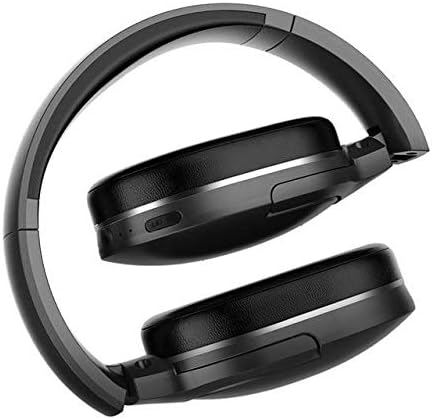

Image 5.1: The Baseus D02 Bluetooth Headphones shown in their folded configuration, ideal for travel and compact storage.
- Cura de la bateria: To preserve battery life, avoid fully discharging the headphones frequently. Charge them regularly, even if not in constant use.
- Eviteu l'aigua: Aquests auriculars no són impermeables. Eviteu l'exposició a l'aigua o a una humitat excessiva.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| No es pot encendre | Bateria baixa | Carregueu els auriculars completament. |
| No es pot emparellar per Bluetooth | Auriculars no en mode d'emparellament; Bluetooth desactivat al dispositiu; massa lluny del dispositiu. | Ensure headphones are in pairing mode (flashing red/blue). Enable Bluetooth on your device. Move headphones closer to the device (within 10 meters). Try restarting both devices. |
| Sense so | Volume too low; incorrect audio source selected; headphones not connected properly (wired or wireless). | Increase volume on both headphones and connected device. Check Bluetooth connection or 3.5mm cable connection. Ensure the correct audio output is selected on your device. |
| Mala qualitat del so | Weak Bluetooth signal; interference; low-quality audio source. | Move closer to the Bluetooth device. Avoid obstacles between headphones and device. Try a different audio source. |
7. Especificacions
| Característica | Detall |
|---|---|
| Marca | Baseus |
| Número de model | NGD02-01 |
| Tipus | Auriculars sobre l'orella |
| Connectivitat | Bluetooth (Wireless), 3.5mm Jack (Wired) |
| Tecnologies de comunicació sense fil | Bluetooth |
| Conector d'auriculars | 3.5 mm Jack |
| Tipus de control | Volume Control, Multi-Function Button (MFB) |
| Micròfon inclòs | No |
| Cancel·lació de soroll | No |
| Color | Negre |
| Material | Plàstic |
| Font d'alimentació | Funciona amb bateria |
| Dimensions del paquet | 19.8 x 13.6 x 9 cm |
| Pes de l'article | 180.98 g |
8. Garantia i Suport
For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For further support or inquiries, please visit the official Baseus weblloc o poseu-vos en contacte amb el seu servei d'atenció al client.
You can find more information about Baseus products at the Botiga Baseus a Amazon.
