Introducció
This user manual provides detailed instructions for the operation and maintenance of your Radioddity PR-T1 PMR446 Two-Way Radio. The PR-T1 is a compact, lightweight, and license-free radio designed for both professional and personal use, offering reliable communication with 16 pre-programmed channels.
Figure 1: Radioddity PR-T1 Two-Way Radios (4-unit pack)
The image displays four black Radioddity PR-T1 two-way radios, each with an antenna, LCD screen, and control buttons, positioned on white display blocks. This illustrates the multi-unit package often available for the product.
Producte acabatview
Característiques clau
- PMR446 License-Free: Operates on PMR446 frequencies, requiring no license for use.
- 16 Pre-programmed Channels: Ready for immediate use with pre-set channels.
- Comunicació de llarg abast: Effective range up to 1.5-4 km, depending on terrain.
- Fàcil d'utilitzar: Simple Push-to-Talk (PTT) operation.
- Rechargeable 1500mAh Li-Ion Battery: Provides up to 12 hours of operation.
- Càrrega USB: Convenient 2-in-1 USB charging cable included.
- Funcions múltiples: Includes FM radio, VOX (Voice Operated Exchange), voice prompt, and an integrated LED flashlight.
- 10 Call Tones: Variety of alert tones.
- Disseny durador: Suitable for professional and recreational use.
Contingut del paquet
En obrir el paquet, comproveu que hi hagi tots els elements i que estiguin en bon estat:
- Radioddity PR-T1 Two-Way Radio Unit(s)
- 1500mAh Li-Ion Battery Pack(s)
- USB Charging Cable(s) (2-in-1)
- AC Charger(s)
- Lanyard(s)
- Manual d'usuari (aquest document)
Components i controls
Familiarize yourself with the various parts and controls of your PR-T1 radio:
Figure 2: PR-T1 Radio Components
Aquesta imatge ofereix un primer pla view of the Radioddity PR-T1 radio, highlighting key components such as the antenna, volume/power knob, PTT button, menu button, monitor button, FM button, up/down navigation buttons, and the USB charging port. It shows both front and side views with magnified insets of specific features.
- Antena: Per transmetre i rebre senyals.
- Control de volum/alimentació: Gireu per encendre/apagar la ràdio i ajustar el volum.
- Botó PTT (Prem per parlar): Mantingueu premut per transmetre la vostra veu.
- Botó MENÚ: Accedeix al menú de configuració de la ràdio.
- Botó MONI (Monitor): Desactiva temporalment el silenciador per escoltar senyals febles.
- Botó FM: Toggles the FM radio function.
- Botons amunt / avall: Navigate through menus and change channels.
- Port de càrrega USB: Per connectar el cable de càrrega USB.
- Jack d'accessoris: For connecting compatible audio accessories like earphones.
- Llanterna LED: Llum integrada per a la il·luminació.
Configuració
Instal·lació i càrrega de la bateria
The PR-T1 uses a rechargeable 1500mAh Li-Ion battery. Ensure the battery is fully charged before first use.
Figure 3: PR-T1 Battery Pack
This image shows the removable battery pack for the Radioddity PR-T1 radio, labeled "Radioddity BL-T8 Li-ion Battery". Text overlays indicate estimated battery life: 8 hours for heavy use, 12 hours for light use, and 24 hours for standby.
- Instal·la la bateria: Align the battery pack with the compartment on the back of the radio and slide it into place until it clicks securely.
- Càrrega de la bateria: Connect the USB charging cable to the radio's USB port and plug the other end into the AC charger or a compatible USB power source. The charging indicator light will show the charging status.
- Càrrec inicial: For optimal battery life, fully charge the battery for approximately 3-4 hours before the first use.
Encès/Apagat
- Per encendre: Rotate the Volume/Power knob clockwise until you hear a click and the display illuminates.
- Per apagar: Rotate the Volume/Power knob counter-clockwise until you hear a click and the display turns off.
Instruccions de funcionament
Comunicació bàsica
- Seleccioneu el canal: Use the Up/Down buttons to select one of the 16 pre-programmed channels. Ensure all radios you wish to communicate with are on the same channel.
- Ajustar el volum: Rotate the Volume/Power knob to adjust the listening volume.
- Transmetre: Press and hold the PTT button firmly. Speak clearly into the microphone, holding the radio approximately 2-5 cm from your mouth. Release the PTT button to listen.
- Rebre: Quan no es prem el botó PTT, la ràdio està en mode de recepció.
Funcions avançades
- Monitor Function (MONI): Press the MONI button to temporarily disable the squelch. This allows you to hear very weak signals or to check if a channel is clear before transmitting.
- Ràdio FM: Press the FM button to activate the built-in FM radio. Press it again to exit FM radio mode. The radio will automatically switch back to communication mode if a signal is detected on the current channel.
- VOX (Central Operada per Veu): The VOX function allows you to transmit without pressing the PTT button, by simply speaking into the microphone. This feature can be enabled and adjusted via the MENU.
- Llanterna LED: The integrated LED flashlight can be activated for illumination, particularly useful in low-light conditions. Refer to the menu for activation.
- Tons de trucada: The radio supports 10 different call tones. These can be selected and sent to alert other users on the same channel.
Àmbit de comunicació
The effective communication range of your PR-T1 radio varies significantly based on terrain, obstacles, and electromagnetic interference. The following estimates provide a general guideline:
Figure 4: Estimated Communication Range
This diagram visually represents the estimated communication range of the two-way radios in different environments: up to 6 miles between two mountain tops, 4 miles on flat open terrain, 3 miles in suburban locations and woods, and 1.5 miles in urban areas or inside buildings. This helps users understand expected performance in varied conditions.
- Up to 6 Miles: Between two mountain tops (line of sight).
- Up to 4 Miles: On flat, open terrain with minimal obstructions.
- Up to 3 Miles: In suburban locations and wooded areas.
- Up to 1.5 Miles: In urban areas or inside buildings with significant obstructions.
Manteniment
- Neteja: Utilitzeu un suau, damp drap per netejar la superfície de la ràdio. No utilitzeu productes químics agressius ni netejadors abrasius.
- Cura de la bateria: To prolong battery life, avoid fully discharging the battery frequently. Recharge the battery when the low battery indicator appears. If storing the radio for an extended period, charge the battery to about 50% and remove it from the radio.
- Emmagatzematge: Guardeu la ràdio en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Resistència a l'aigua: Note that the PR-T1 is no impermeable. Avoid exposing the radio to rain or moisture.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La ràdio no s'encén. | La bateria està morta o no està instal·lada correctament. | Ensure battery is properly installed. Charge the battery fully. |
| No es pot transmetre ni rebre. | Canal incorrecte seleccionat; fora de l'abast; bateria baixa. | Verify all radios are on the same channel. Move closer to the other radio. Recharge battery. |
| Mala qualitat d'àudio o estàtica. | Fora de l'abast; interferències; bateria baixa. | Move closer to the other radio. Avoid sources of interference. Recharge battery. |
| La durada de la bateria és més curta del que s’esperava. | Frequent heavy use; battery degradation over time. | Reduce transmission time. Ensure full charges. Consider replacing battery if very old. |
Especificacions

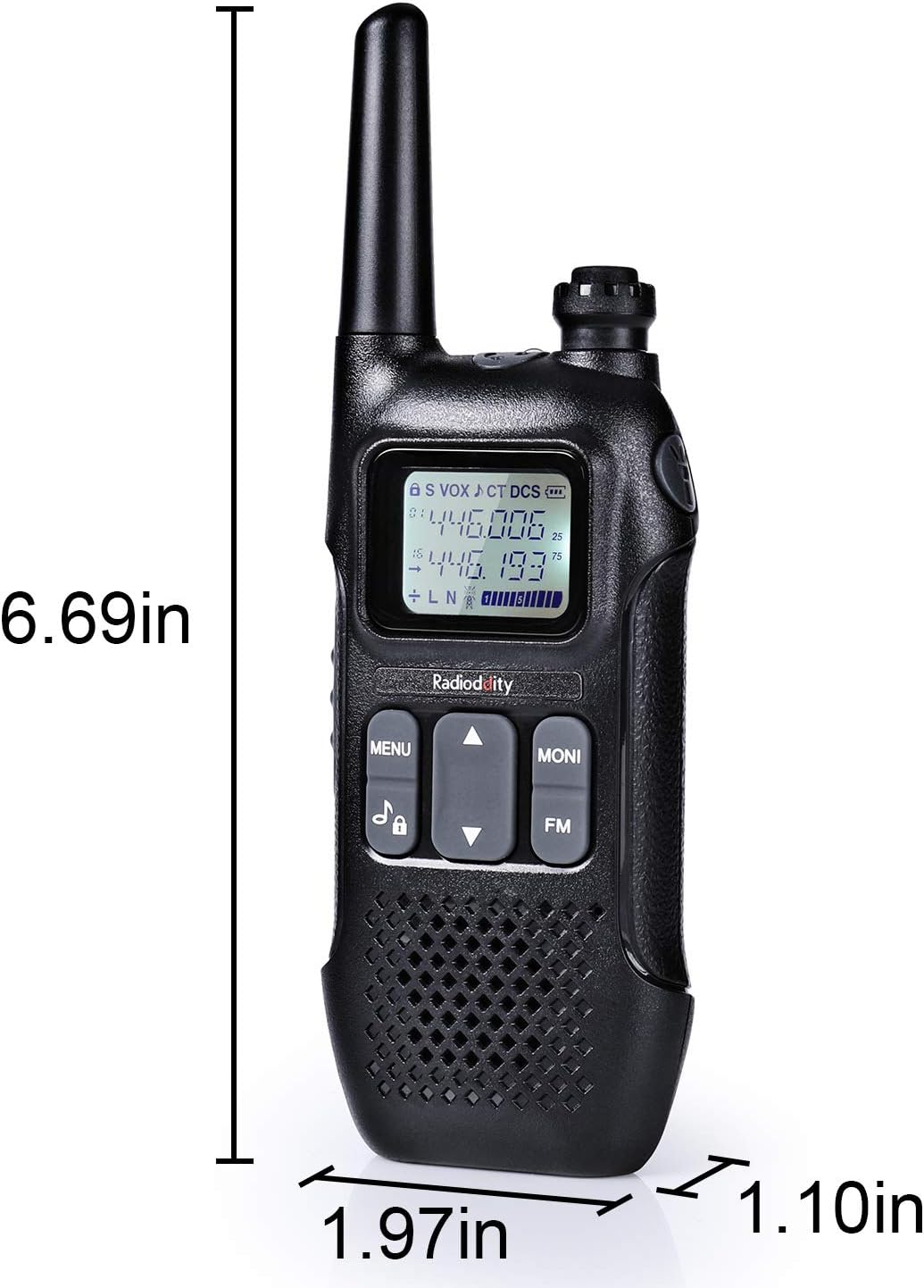

Figure 5: PR-T1 Radio Dimensions
This image displays the dimensions of the Radioddity PR-T1 two-way radio. The height is indicated as 6.69 inches, the width as 1.97 inches, and the depth as 1.10 inches, providing a clear understanding of the radio's physical size.
| Característica | Detall |
|---|---|
| Marca | Radioditat |
| Número de model | PR-T1 |
| Color | Negre |
| Nombre de canals | 16 |
| Interval de freqüència | 446.00625 MHz - 446.105 MHz (PMR446) |
| Interval màxim | Up to 4 Kilometers (terrain dependent) |
| Tipus de bateria | Ió de liti |
| Capacitat de la bateria | 1500 mAh |
| Característiques especials | FM Radio, VOX, Voice Prompt, LED Flashlight |
| Nivell de resistència a l'aigua | No impermeable |
| Dimensions (aprox.) | Height: 6.69 in, Width: 1.97 in, Depth: 1.10 in |
Garantia i Suport
Radioddity provides comprehensive support for its products.
- Garantia del fabricant: Your Radioddity PR-T1 comes with an 18-month manufacturer's warranty.
- Suport de per vida: Radioddity offers lifetime technical support for this product.
- Contacte amb l'assistència: For technical assistance, warranty claims, or general inquiries, please visit the official Radioddity website or contact their customer service department. Refer to the product packaging or official weblloc web per obtenir la informació de contacte més actualitzada.
