1. Introducció
Thank you for choosing the Steinel L 810 SC Outdoor LED Wall Light. This high-quality luminaire combines modern design with advanced technology, featuring an invisible high-frequency motion sensor and Bluetooth connectivity for convenient control via the Steinel Smart Remote app. This manual provides essential information for safe installation, operation, and maintenance of your new light.
2. Instruccions de seguretat
- Instal·lació elèctrica: La instal·lació ha de ser realitzada per un electricista qualificat d'acord amb les normatives nacionals de cablejat i els codis elèctrics locals.
- Desconnexió d'alimentació: Always disconnect the power supply before performing any work on the light fixture.
- Voltage: Assegureu-vos el subministrament voltage matches the requirements specified on the product label (220-240V).
- Superfície de muntatge: Mount the light on a stable, flat surface suitable for its weight.
- Classe de protecció: This product is rated IP44, suitable for outdoor use and protected against splashing water. Do not submerge.
- LED: No mireu directament a la font de llum LED.
3. Contingut del paquet
Carefully unpack the product and check that all components are present and undamaged. If any parts are missing or damaged, contact your retailer.
Imatge 3.1: Contents of the Steinel L 810 SC package, showing the LED wall light, mounting screws, wall plugs, and a quick start guide.
- Steinel L 810 SC LED Wall Light
- Suport de muntatge
- Cargols de muntatge i taps de paret
- Guia d'inici ràpid
4. Producte acabatview
The Steinel L 810 SC is an elegant outdoor LED wall light designed for up/down illumination. It integrates a high-frequency motion sensor discreetly within its housing, offering a clean aesthetic. The light can be controlled and configured via Bluetooth using the Steinel Smart Remote app.

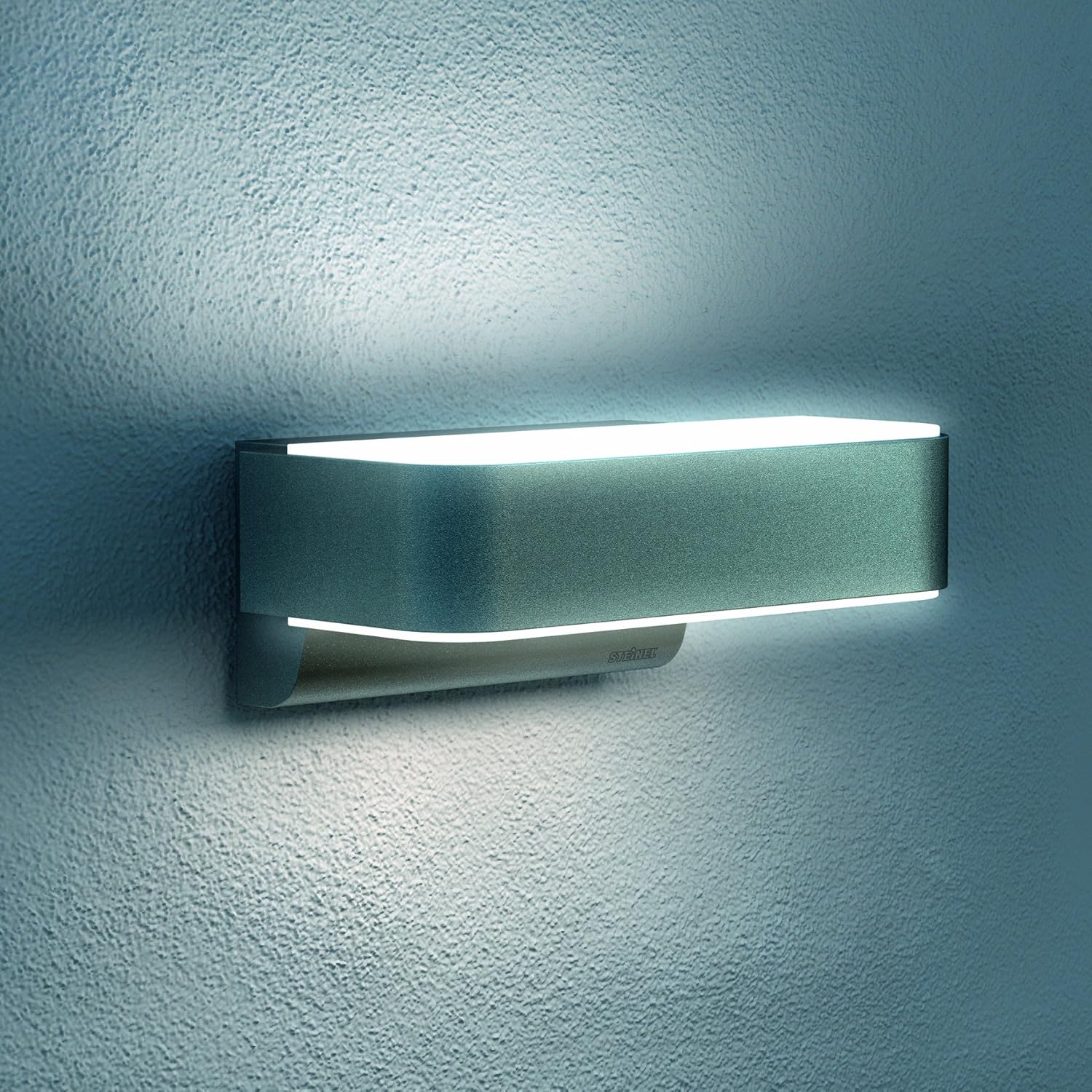

Imatge 4.1: Davant view of the Steinel L 810 SC LED Wall Light.
Imatge 4.2: Key features and specifications of the L 810 SC, including LED technology, 160° high-frequency sensor, detection range, Bluetooth Mesh, color temperature, light level, time setting, and soft light start.
5. Instal·lació (Configuració)
Segueix aquests passos per a una instal·lació segura i correcta:
- Prepareu el lloc d'instal·lació: Choose a suitable location on an exterior wall. Ensure the power supply is turned off at the main circuit breaker.
- Marca els punts de perforació: Hold the mounting bracket against the wall at the desired installation height and mark the drilling points.
- Forats: Perforeu els forats als punts marcats i introduïu els tacs de paret.
- Muntar el suport: Fixeu el suport de muntatge a la paret amb els cargols proporcionats.
- Connecteu el cablejat: Connect the mains power supply cables to the terminal block on the light fixture. Ensure correct polarity (Live, Neutral, Earth).
- Connecteu la lluminària: Fixeu amb cura el llum al suport de muntatge, assegurant-vos que estigui ben fixat.
- Restaura l'alimentació: Turn the power supply back on at the main circuit breaker. The light will perform a brief self-test.
6. Funcionament
The Steinel L 810 SC can be operated and configured via the Steinel Smart Remote app.
6.1 Initial Setup and Bluetooth Connection
- Descarrega l'aplicació: Download the free Steinel Smart Remote app from the Google Play Store or Apple App Store.
- Inicieu l'aplicació: Open the app on your smartphone or tablet.
- Connect to Light: The app will search for nearby Steinel Bluetooth-enabled devices. Select your L 810 SC from the list to connect.
- Configura la configuració: Once connected, you can adjust various settings.
6.2 Funcions de control de l'aplicació
The app allows for comprehensive customization of your light's behavior:
Imatge 6.1: Screenshot of the Steinel Smart Remote app interface for configuring the L 810 SC.
- Àrea de detecció: Digitally adjust the 160° high-frequency motion sensor's detection range up to 5 meters.
- Configuració de l'hora: Set the light duration from 5 seconds to 60 minutes after motion detection.
- Crepuscle: Adjust the ambient light level (2-2000 lux) at which the sensor becomes active.
- Basic Light Function: Configure a continuous low-level light (10-100% dimmable) that activates at dusk and brightens to full intensity upon motion detection.
- Llum permanent: Activate a 4-hour permanent light function via the app.
- Inici de llum suau: The light gradually increases to full brightness, enhancing comfort and extending LED lifespan.
- Agrupació: Connect multiple Steinel Bluetooth lights to create groups and control them simultaneously.
Imatge 6.2: Illustration of the motion detection principle using high-frequency technology.
7. Manteniment
L'Steinel L 810 SC requereix un manteniment mínim.
- Neteja: Clean the light fixture regularly with a soft, damp drap. No utilitzeu productes de neteja abrasius ni dissolvents, ja que poden danyar la superfície.
- Substitució de LED: The LEDs are integrated and not user-replaceable. The product has a long average lifespan of 50,000 hours.
- Inspecció: Periodically check the mounting screws for tightness and the cable for any signs of wear or damage.
8. Solució De Problemes
If you encounter issues with your Steinel L 810 SC, refer to the following table:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No power supply; incorrect wiring; twilight setting too high; sensor faulty. | Check circuit breaker; verify wiring connections; adjust twilight setting in app; contact support if sensor is suspected faulty. |
| La llum es manté encesa contínuament. | Permanent light activated; continuous motion in detection area; wiring error. | Deactivate permanent light in app; check detection area for constant movement; verify wiring. |
| El sensor no detecta moviment. | Detection range too small; sensor obstructed; sensitivity too low. | Increase detection range in app; remove obstructions; increase sensor sensitivity in app. |
| Problemes de connexió Bluetooth. | Fora de l'abast; aplicació no actualitzada; interferències. | Move closer to the light; update the Steinel Smart Remote app; restart phone and light. |
9. Especificacions
Technical data for the Steinel L 810 SC LED Wall Light:
| Característica | Detall |
|---|---|
| Número de model | 065706 |
| Dimensions (L x A x A) | 23 x 14.5 x 9.1 cm |
| Pes | 920 g |
| Font d'alimentació | 220-240 V, 50/60 Hz |
| Consum d'energia | 9.8 W |
| Flux lluminós | 679 lm |
| Temperatura de color | 3000 K (blanc càlid) |
| Índex de reproducció del color (CRI) | 80 |
| Vida mitjana | 50,000 hores |
| Tipus de sensor de moviment | High-frequency (iHF) |
| Angle de detecció | 160° |
| Interval de detecció | Up to 5 m (adjustable) |
| Crepuscle | 2-2000 lux (ajustable) |
| Configuració de l'hora | 5 sec - 60 min (adjustable) |
| Classe de protecció | IP44 |
| Material | Alumini, Plàstic |
Imatge 9.1: Dimensional drawing of the L 810 SC (measurements in mm).
10. Garantia i Suport
Steinel products are manufactured to the highest quality standards. For warranty information, please refer to the warranty card included with your product or visit the official Steinel website. For technical support, spare parts, or service inquiries, please contact your retailer or the Steinel customer service department.
You can find more information and support resources on the official Steinel weblloc: www.steinel.de
