Introducció
This user manual provides detailed instructions for the installation, operation, and maintenance of your FLYLINKTECH V6 Battery Replacement. This 6.0Ah, 21.6V Lithium-Ion battery is designed to provide extended power and reliable performance for your compatible V6 series cordless handheld vacuum cleaner.
Informació de seguretat
The FLYLINKTECH V6 Replacement Battery is equipped with an ECP Intelligent Multiprotection system to ensure safe operation. This includes:
- Protecció contra sobrecàrrega: Evita que la bateria es sobrecarregui, allargant-ne la vida útil.
- Protecció contra curtcircuits: Talla automàticament l'alimentació en cas de curtcircuit.
- Protecció contra altes temperatures: Monitors and regulates battery temperature to prevent overheating.
- Protecció contra sobreintensitat: Protegeix contra un consum excessiu de corrent.
- Fire-resistant Construction: Designed with materials that resist fire.
Always use the original V6 battery charger or a compatible charger. Do not disassemble, puncture, or expose the battery to extreme temperatures or fire.
Image: Illustration of the battery's built-in safety features, including overheating, overcurrent, overvoltage, overcharge, over discharge, short circuit, over temperature, and overload protection.
Contingut del paquet
El vostre paquet ha de contenir els elements següents:
- 1 x FLYLINKTECH V6 Battery Replacement (6.0Ah, 21.6V)
- 2 x Replacement Filters
- 1 x raspall de neteja
- 2 x Screws (for installation)

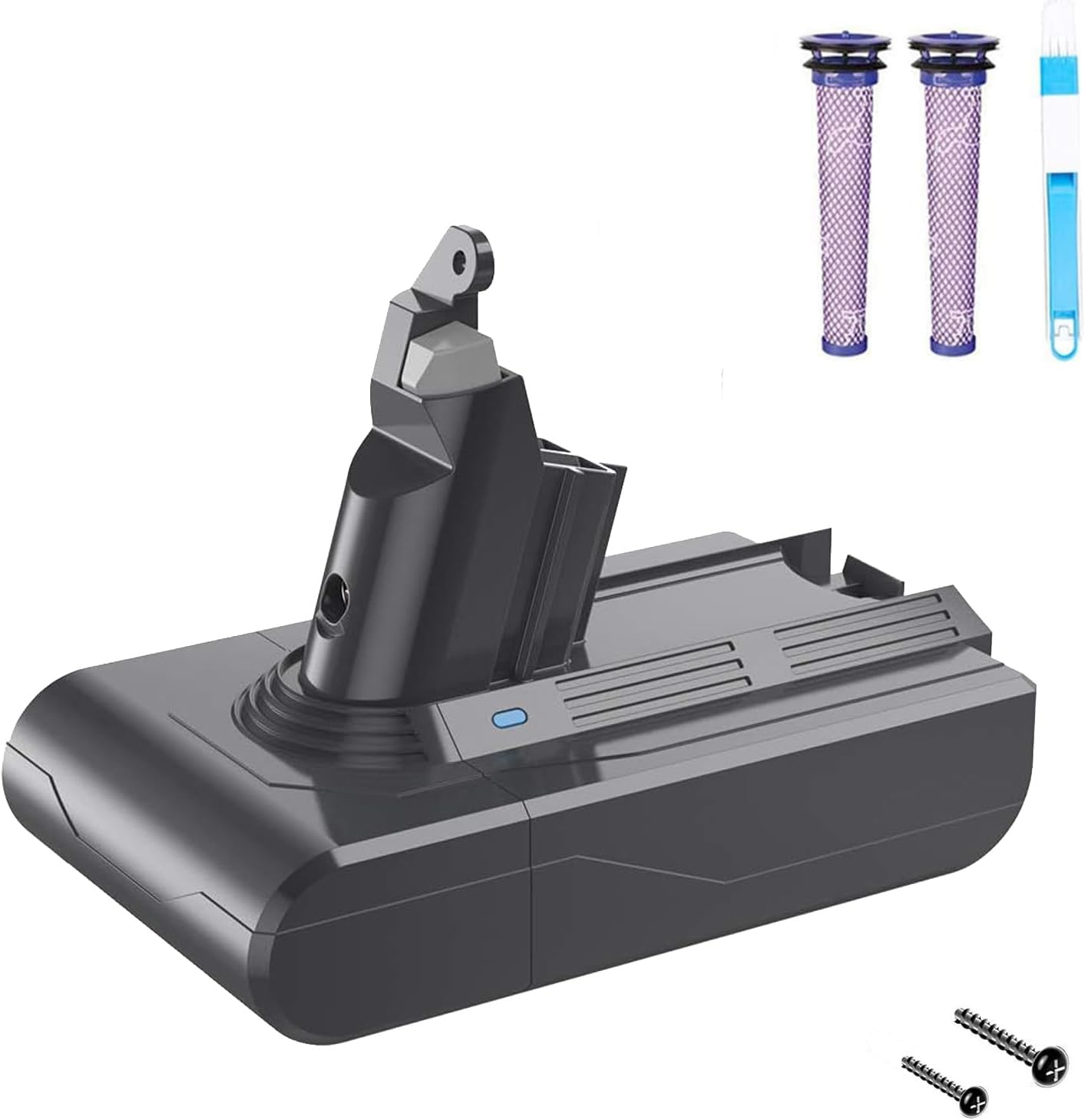

Image: The complete package contents, including the battery, two purple filters, a blue cleaning brush, and two small screws.
Compatibilitat
This FLYLINKTECH V6 Battery Replacement is fully compatible with the following Dyson V6 series cordless handheld vacuum cleaners and original V6 battery chargers:
- V6 SV03, SV04, SV05, SV06, SV07, SV09
- DC58, DC59, DC61, DC62, DC72, DC74
- V6 Animal, V6 Total Clean, V6 Absolute, V6 Slim, V6 Trigger, V6 Fluffy, V6 Motorhead
- Models 595, 650
Image: Visual representation of various Dyson V6 vacuum models, such as V6 Car+Boat, V6 Baby+Child, V6 Mattress, V6 Top Dog, V6 Animal, V6 Cord-Free, V6 Motorhead, and V6 Trigger, indicating broad compatibility.
Image: A graphic illustrating the battery's compatibility with specific Dyson V6 series models, including SV03, SV04, SV06, SV07, DC58, DC59, DC62, and DC74.
Guia d'instal·lació
Follow these steps to replace the battery in your Dyson V6 vacuum cleaner:
- Step 1: Remove Dust Bin. First, pull up the dust box (clear bin) so that the lower cover is open and the bin can be detached from the main vacuum body.
- Step 2: Remove Screws. Locate and remove three screws using a Phillips screwdriver. Two screws are at the bottom of the vacuum body, and one is on the handle.
- Step 3: Release Old Battery. Gently release the old battery from its housing.
- Step 4: Install New Battery. Locate the new battery into the handle, ensuring it clicks into place securely.
- Step 5: Tighten Screws. Secure the new battery in place with the three existing screws.
- Step 6: Reattach Dust Bin. Reinstall the dust bin onto the vacuum body.
Note: The new battery has only a small amount of remaining power. Please fully charge it before the first use.

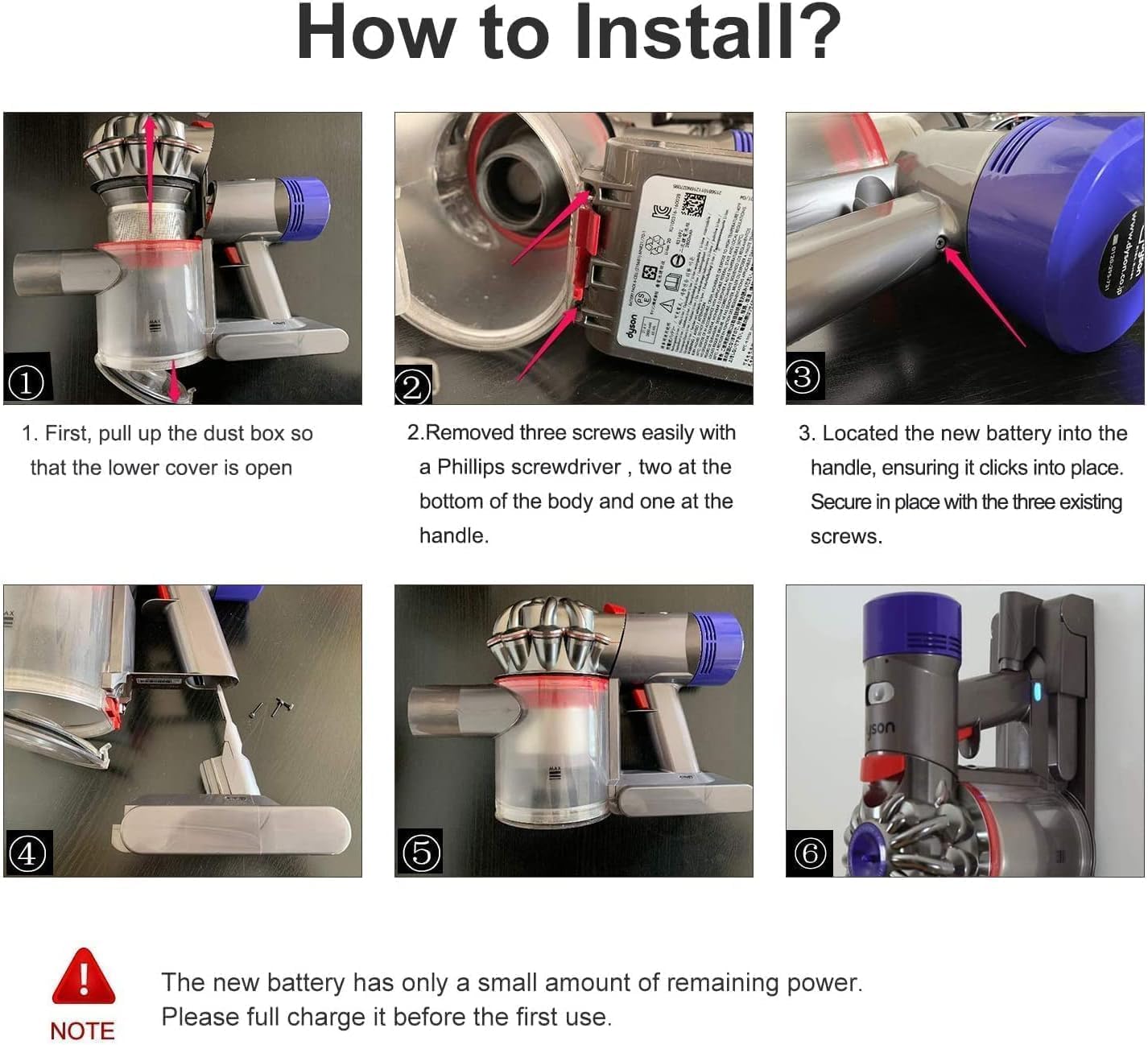

Image: A six-panel visual guide demonstrating the battery replacement process, from removing the dust bin and screws to installing the new battery and reassembling the vacuum.
Video: An official product video demonstrating the installation process of the V6 replacement battery, showing how to remove the old battery and install the new one.
Instruccions de funcionament
Carregant la bateria
The battery can be charged using your original V6 charger. The charging indicator light provides status updates:
- Llum blava constant: Indicates the battery is currently charging or in use.
- Llum apagada: Indicates charging is complete.
- Yellow Flashing Light: The battery temperature is too low or too high. It needs to be recharged after cooling down or warming up.
- Llum vermella: Indicates a battery fault. Please contact customer service if this persists.
There is no memory effect, so the battery can be charged or discharged as needed without loss of capacity. After the battery runs out, allow it to cool down for 10-20 minutes before charging, especially if used in MAX mode, as the battery may be hot.
Image: A graphic detailing the meaning of the battery indicator lights during charging and usage, including blue for charging/working, light off for full charge, yellow flashing for temperature issues, and red for battery fault.
Consells d'ús
- Ensure the battery is fully charged before initial use for optimal performance.
- For prolonged battery life, avoid completely draining the battery frequently.
- If the vacuum stops due to low battery, allow it to cool before recharging.
Manteniment
Cura de la bateria
- Emmagatzemeu la bateria en un lloc fresc i sec, lluny de la llum solar directa i de temperatures extremes.
- Si l'emmagatzemeu durant períodes prolongats, carregueu la bateria fins a aproximadament un 50% de la seva capacitat.
- No exposeu la bateria a l'aigua o la humitat.
Manteniment del filtre
The included replacement filters are washable and reusable. Regular cleaning of your vacuum's filters is essential for maintaining optimal suction and battery performance.
- Remove the filter from your vacuum.
- Wash the filter under cold running water until the water runs clear.
- Allow the filter to air dry completely for at least 24 hours before reinserting it into the vacuum. Do not use a dryer or heat source.
Image: Two purple filters shown with water splashes, indicating they are washable and reusable, alongside small images of a vacuum head and handheld vacuum.
Resolució de problemes
| Problema | Llum indicadora | Solució |
|---|---|---|
| Battery not charging / Vacuum not turning on | Llum vermella | Indicates a battery fault. Reinstall the battery and check DC head contacts. If the issue persists, contact customer service. |
| Battery not charging / Vacuum not working | Llum groc intermitent | Battery temperature is too low or too high. Wait for the battery to cool down or warm up, then try again. |
| Reduced run time / No power | Blue light reduction / Light off | Battery needs to be recharged. Ensure the charger is properly connected. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | FLYLINKTECH |
| Número de model | V6 |
| Tipus de bateria | Ió de liti |
| Voltage | 21.6 V |
| Capacitat | 6000 mAh (6.0 Ah) |
| Energia | 129.6 Wh |
| Dimensions del producte | 6.89 x 3.54 x 0.35 polzades |
| Pes de l'article | 1.12 lliures |
| Certificacions de seguretat | Conforme a CE, FCC, RoHS |
Garantia i assistència al client
FLYLINKTECH is committed to providing high-quality products and excellent customer service. If you encounter any problems during use, please do not hesitate to contact us via Amazon message. We are always available to assist you.
While specific warranty details are not provided in the product description, customer reviews indicate a commitment to support and replacement for issues within a reasonable timeframe. Please refer to your purchase platform for the most accurate warranty information.
