Manual d'usuari

Introducció

The Sew Mighty Mini Sewing Machine is designed for ease of use, making it ideal for beginners, children, and for quick repairs or small projects while traveling. This portable, dual-speed machine offers both AC and DC power options, providing flexibility for various sewing environments. It includes essential features such as an automatic bobbin winder, integrated work light, and a foot pedal for convenient operation.

Contingut del paquet

En obrir el paquet, assegureu-vos que hi hagi tots els components:

• Mighty Mini Sewing Machine
• 110V AC Power Adapter (for wall outlet use)
• Foot Control Pedal
• 2 Pre-wound 1/2" metal bobbins (with black and white thread)
• 2 Empty 1/2" metal bobbins
• 1 Replacement Needle
• 1 Needle Threader
• Pink 60" Flexible Measuring Tape
• 8" x 9.75" Extension Table

Image: The Sew Mighty Mini Sewing Machine, its packaging, and all included accessories such as the foot pedal, AC adapter, bobbins, measuring tape, and needle threader.

Identificació de peces

Familiarize yourself with the key components of your sewing machine:

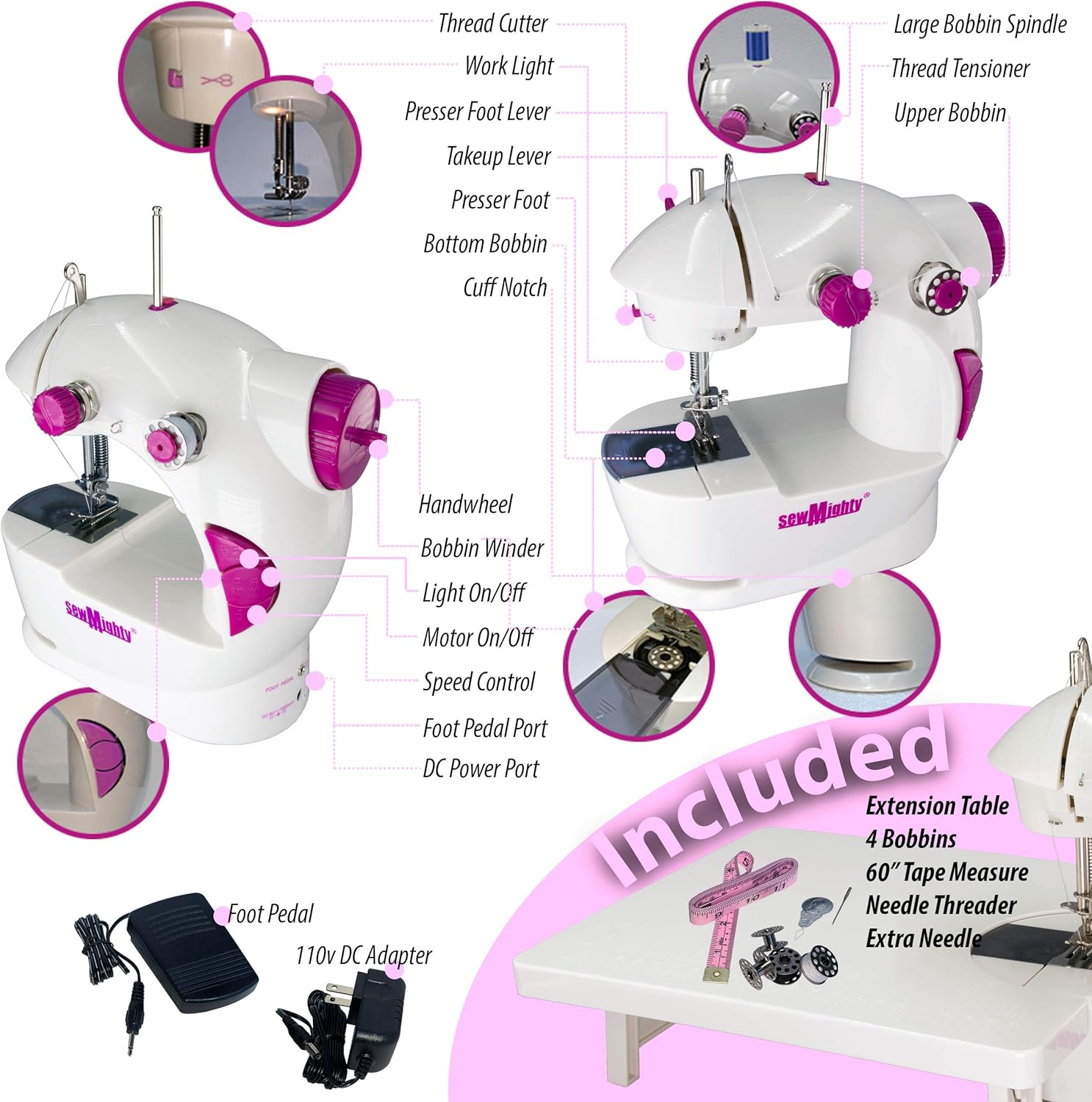

Image: Detailed diagram highlighting various parts of the sewing machine, including the thread cutter, work light, presser foot lever, take-up lever, presser foot, bottom bobbin, cuff notch, handwheel, bobbin winder, light on/off, motor on/off, speed control, foot pedal port, and DC power port.

• Interruptor d'encesa/apagada: Controls the machine's power.
• Compartiment de la bateria: Located at the bottom of the unit for optional battery power.
• Thread Spindle: Holds the spool of thread.
• Thread Spool: Guides the thread during winding.
• Take-up Lever: Moves the thread up and down with the needle.
• Presser Foot Lever: Raises and lowers the presser foot.
• Peu premsador: Holds fabric in place while sewing.
• Bobbin Compartment: Houses the bobbin.
• Roda de mà: Manually controls needle movement.
• Control de velocitat: Adjusts sewing speed (two speeds available).
• Foot Pedal Jack: Port for connecting the foot pedal.
• Agulla: The sewing needle.
• Tension Adjusting Screw: Controls thread tension.
• Agulla Clamp: Secures the needle.
• Adjusting Screw: For fine-tuning adjustments.
• Bobina: Holds the lower thread.
• Bobbin Winder Spool: Used for winding thread onto bobbins.
• Bobbin Holder: Secures the bobbin in place.
• Llum LED: Illuminates the sewing area.
• Tallador de fils: For easily cutting threads.
• Power Adapter DC Jack: Port for connecting the AC power adapter.

Configuració

Before operating your Sew Mighty Mini Sewing Machine, follow these steps:

1. Font d'alimentació:
   • For AC power, insert the 110V AC adapter into the Power Adapter DC Jack on the back of the machine and plug it into a wall outlet.
   • For battery power, open the battery compartment (bottom of the unit) and insert four AA batteries (not included). Important: Do not use AC and DC power simultaneously.
2. Extension Table (Optional):

   Attach the 8" x 9.75" extension table to the machine by aligning the pegs with the corresponding holes and gently pressing down until it clicks into place. This provides a larger work surface for bigger projects.



   Image: The Sew Mighty Mini Sewing Machine with its extension table attached, showing overall dimensions of the unit.

3. Enfilar la màquina:

   Proper threading is crucial for successful sewing. Refer to the detailed diagrams and instructions in the included user manual for the correct threading path for both upper thread and bobbin thread. Ensure the thread is placed correctly between the tension discs.

   Consell: If you are new to sewing, practice threading with a contrasting thread color to easily identify the path.

4. Enrotllament de la bobina:

   To wind a new bobbin, place an empty bobbin onto the Bobbin Winder Spool. Guide the thread from the main spool through the tension disc and around the bobbin. Turn on the machine to activate the bobbin winder. Stop when the bobbin is full but not overfilled.

Instruccions de funcionament

Follow these steps for basic sewing operations:

1. Prepare Fabric: Place the fabric you wish to sew under the presser foot. Use the Presser Foot Lever to lower the presser foot onto the fabric.
2. Start Sewing:
   • Using the On/Off Button: Press the On/Off Switch to start sewing. Press again to stop.
   • Ús del pedal: Connect the Foot Control Pedal to the Foot Pedal Jack. Press down on the pedal to start sewing and release to stop. Nota: The foot pedal and On/Off button cannot be used simultaneously.


   Image: A person operating the Sew Mighty Mini Sewing Machine, guiding fabric under the needle.
3. Ajustar velocitat: Use the Speed Control switch to select between the two available speeds (low and high).
4. Finishing a Seam: Once your seam is complete, raise the needle to its highest position by turning the Hand Wheel towards you. Raise the Presser Foot Lever. Pull the fabric gently away from the machine. Use the Thread Cutter or scissors to cut the threads.

Notes importants:

• This machine performs a straight stitch only. It does not have a backstitch function.
• Always ensure the needle is in its highest position before removing fabric to prevent damage.
• If thread breaking or jamming occurs, switch off the machine immediately and re-thread carefully. Adjusting the thread tension may also help.

Manteniment

Regular maintenance ensures the longevity and optimal performance of your sewing machine:

• Neteja: Regularly clean lint and dust from the bobbin area and around the needle plate using a small brush.
• Substitució de l'agulla: Replace the needle if it becomes bent, dull, or breaks. To replace, loosen the Needle Clamp screw, remove the old needle, insert the new needle with the flat side facing the back, and tighten the screw securely.
• Emmagatzematge: When not in use, unplug the machine and store it in a dry, safe place away from direct sunlight and extreme temperatures.

Resolució de problemes

Si teniu problemes, proveu aquests passos habituals per resoldre problemes:

• Skipped Stitches or Loose Stitches:
  • Check if the machine is threaded correctly. Re-thread both the upper thread and the bobbin.
  • Ensure the needle is inserted correctly and is not bent or dull. Replace if necessary.
  • Ajusteu la tensió del fil.
• Trencaclosques:
  • Verify correct threading.
  • Check thread tension; it might be too tight.
  • Ensure the needle is not bent or damaged.
  • Utilitzeu fil de bona qualitat.
• La màquina no arrenca:
  • Check if the power adapter is securely plugged into both the machine and the wall outlet.
  • If using batteries, ensure they are correctly inserted and not depleted.
  • Confirm that only one power source (AC or DC) is connected at a time.

Per a una resolució de problemes més detallada, consulteu el manual d'usuari complet.

Especificacions

Garantia i Suport

Information regarding product warranty is not available in the provided data. For specific warranty details or further support, please refer to the official Sew Mighty weblloc web o contacteu directament amb el seu servei d'atenció al client.

Podeu descarregar un manual d'usuari complet en format PDF: Sew Mighty Mini Sewing Machine User Manual (PDF).
