Introducció
This manual provides comprehensive instructions for the Decathlon ONstart 110 Stopwatch. Designed for running enthusiasts, this device accurately measures performance with features including time, date, alarm, and a precise 1/100th of a second stopwatch function with split time capability. Please read this manual carefully to ensure proper use and maintenance of your stopwatch.

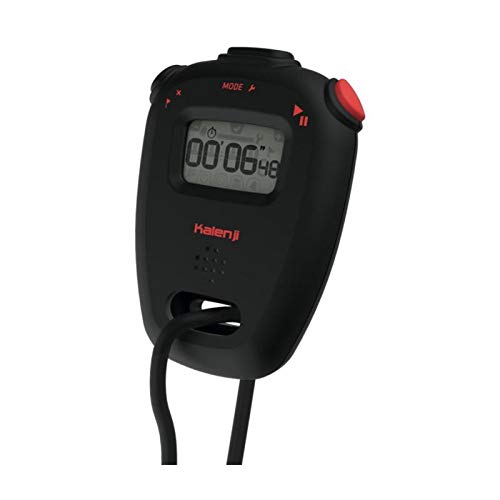

Figure 1: The ONstart 110 Stopwatch. This image displays the compact black stopwatch with its digital screen showing "00'06"48" and the brand "Kalenji". Red buttons are visible on the top right and left, and a black lanyard is attached at the bottom.
Configuració
The ONstart 110 Stopwatch is designed for ease of use. Initial setup primarily involves setting the time and date.
1. Engegada inicial
The stopwatch typically arrives with the battery installed. If the display is blank, press any button to activate it. The device features an automatic or manual stand-by mode to optimize battery life.
2. Configuració de l'hora i la data
- Locate the "MODE" button, usually on the top of the stopwatch. Press it repeatedly until the time/date setting mode is displayed.
- Use the other two buttons (often marked with arrows or play/pause symbols) to adjust the flashing digits (hours, minutes, day, month, year).
- Press the "MODE" button again to confirm each setting and move to the next parameter.
- Once all parameters are set, press "MODE" to exit the setting mode.
Instruccions de funcionament
The ONstart 110 Stopwatch offers multiple functions accessible via its three buttons and clear screen icons.
1. Stopwatch Function (1/100th of a second)
- Premeu el botó MODE button until the stopwatch display (00:00:00) appears.
- Premeu el botó Inici/Parada button (often the red button on the top right) to begin timing.
- To record a split time (LAP), press the Dividir/restablir button (often the button on the top left) while the stopwatch is running. The display will show the split time, while the stopwatch continues to run in the background. Press again to return to the main running time.
- Premeu el botó Inici/Parada de nou per posar en pausa el cronòmetre.
- Per posar el cronòmetre a zero, premeu la tecla Dividir/restablir botó mentre el cronòmetre està en pausa.
2. Visualització de l'hora i la data
From any mode, press the MODE button until the current time and date are displayed. The large figures ensure perfect visibility.
3. Funció d'alarma
- Premeu el botó MODE button until the alarm setting screen is visible.
- Use the adjustment buttons to set the desired alarm time.
- Activate or deactivate the alarm using the designated button (refer to screen icons for guidance).
- The stopwatch features a loud beep for audio efficiency when the alarm sounds.
Manteniment
Proper care will extend the life of your ONstart 110 Stopwatch.
- Neteja: Netegeu el cronòmetre amb un drap suauamp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Emmagatzematge: Store the stopwatch in a dry place away from direct sunlight and extreme temperatures.
- Bateria: The stopwatch uses a Li Po battery. While designed for optimal battery life with automatic/manual stand-by, if the display becomes dim or unresponsive, consider professional battery replacement.
- Resistència a l'aigua: This stopwatch is not designed for water immersion. Avoid exposing it to heavy rain or submersion in water.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La pantalla està en blanc o tènue. | Low battery or in stand-by mode. | Press any button to wake from stand-by. If still dim, the battery may need replacement. |
| Els botons no responen. | Error temporal de programari o bateria baixa. | Try removing and reinserting the battery (if accessible and recommended by manufacturer, otherwise consult support). Ensure hands are dry and clean. |
| Stopwatch not accurate. | Not applicable for digital stopwatch. | The 1/100th of a second accuracy is inherent. Ensure correct operation as per instructions. |
Especificacions
| Característica | Detall |
|---|---|
| Número de model | 2698415 |
| Marca | Decatló |
| Color | Negre |
| Material | 100% Acrylonitrile Butadiene Styrene (ABS) structure |
| Pes de l'article | 57 g (0.06 quilograms) |
| Dimensions de l'article (LxWxH) | 8.7 x 6.7 x 3.3 centímetres |
| Mesura del temps | Up to 99hr 59min 59sec |
| Stopwatch Accuracy | 1/100 de segon |
| Funcions | Time, Date, Alarm, 1 Split Time (LAP) |
| Tipus de bateria | Li Po |
Garantia i Suport
The Decathlon ONstart 110 Stopwatch comes with a manufacturer's warranty to ensure your peace of mind.
Informació de la garantia
Aquest producte està cobert per a 2 anys de garantia from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. Please retain your proof of purchase for warranty claims.
Atenció al client
For any questions, technical assistance, or warranty claims, please contact Decathlon customer support. Refer to the official Decathlon weblloc web o la documentació de compra per obtenir les dades de contacte específiques de la vostra regió.
