Introducció
This manual provides detailed instructions for the setup, operation, and maintenance of your 612 Vermont Battery Operated LED Window Candles, Model VT-1620A-4. These candles feature a patented dual LED flicker flame, a light sensor for automatic dusk-on activation, and an 8-hour timer. Please read this manual thoroughly before use to ensure proper functionality and longevity of your product.
Components inclosos:
- LED Window Candle units (Pack of 4)
- Candle bases
- Manual d'instruccions
Note: 3 AA batteries are required per candle and are not included.
Configuració
1. Instal·lació de la bateria
- Locate the battery compartment at the bottom of the candle base.
- Obriu la tapa del compartiment de la bateria.
- Insert 3 AA batteries into the compartment, ensuring correct polarity (+/-).
- Tanqueu bé la tapa del compartiment de la bateria.
Figure 1: Battery compartment located at the base of the candle for stability.
2. Placement and Sensor Orientation
Place the candle on your windowsill or desired surface. Ensure the small light sensor hole, located on the side of the candle, is facing outwards towards the window. This allows the sensor to detect ambient light levels for automatic operation.

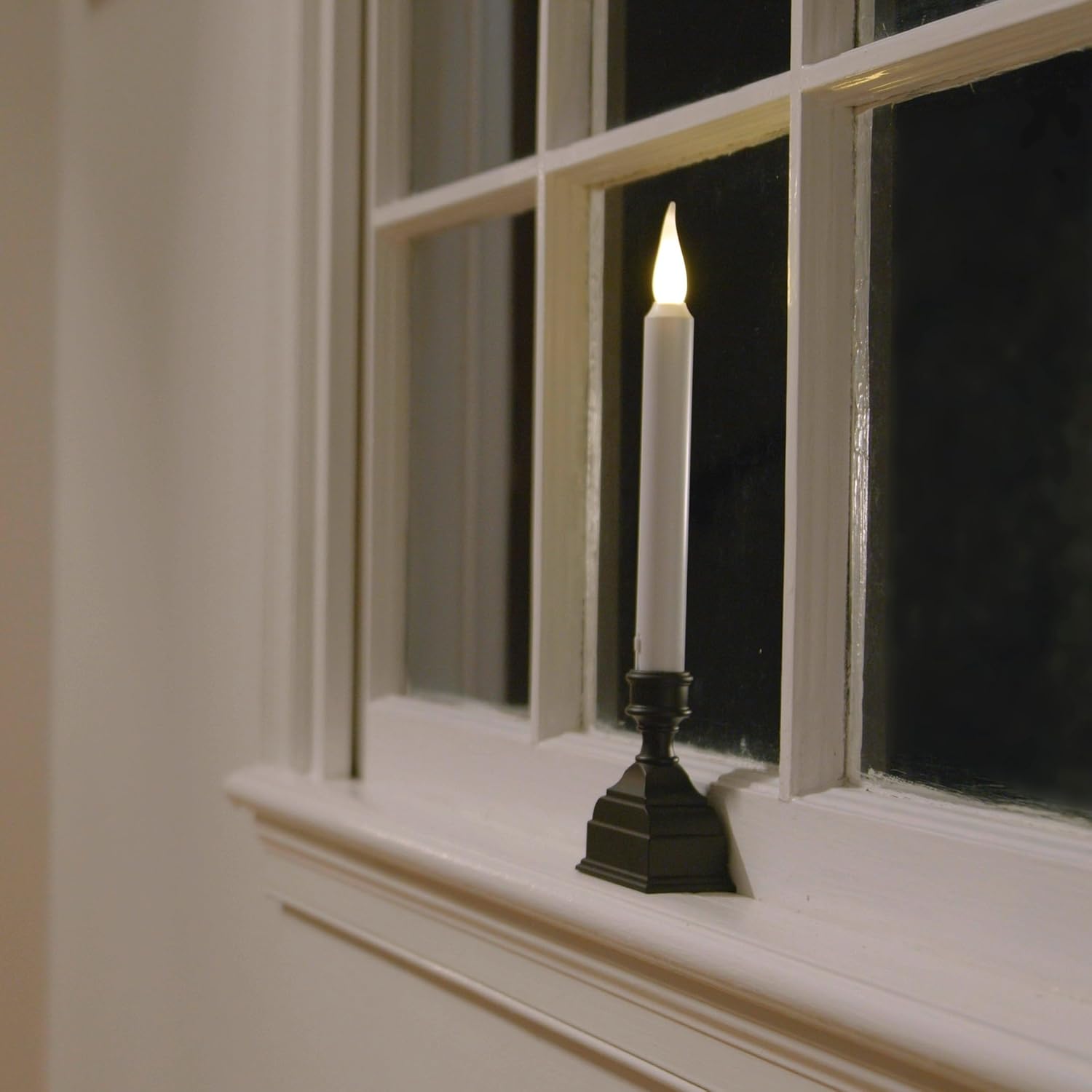

Figure 2: Proper placement of the LED window candle on a windowsill.
3. Engegada inicial
Locate the slide switch on the side of the candle. Move the switch to the middle position for flickering flame or the top position for a steady light. The candle will then be ready for operation based on the light sensor.
Video 1: Demonstration of battery installation, slide switch operation, and sensor functionality for the 612 Vermont LED Window Candle.
Instruccions de funcionament
1. Light Sensor and Timer Functionality
The 612 Vermont LED Window Candle is equipped with a light-dependent resistor (LDR) sensor. When the slide switch is in either the flicker or steady-on position, the candle will automatically turn on at dusk (when ambient light levels decrease) and remain lit for approximately 8 hours. After 8 hours, the candle will automatically turn off. It will then reactivate the following dusk.
2. Selecting Light Mode
- Mode de parpelleig: Slide the switch to the middle position for a realistic flickering flame effect.
- Steady-On Mode: Slide the switch to the top position for a constant, steady light.
- Apagat: Slide the switch to the bottom position to turn the candle off completely.
Figure 3: Features of the 612 Vermont LED Window Candle, including the slide switch for light mode selection.
Manteniment
1. Substitució de la bateria
When the light output diminishes or the candle stops illuminating, it is time to replace the batteries. Follow the battery installation steps in the "Setup" section. It is recommended to replace all 3 AA batteries simultaneously for optimal performance.
2. Neteja
To clean the candle, gently wipe the surface with a soft, dry cloth. Do not use abrasive cleaners or immerse the unit in water. Ensure the light sensor is kept clear of dust and debris for accurate operation.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Candle does not turn on at dusk. |
|
|
| Candle turns off too early or too late. |
|
|
| Flicker effect is not working. |
|
|
Especificacions
| Característica | Detall |
|---|---|
| Número de model | VT-1620A-4 |
| Font d'alimentació | 3 piles AA (no incloses) |
| Durada de la bateria | Approximately 70 days (1680 hours) on one set of batteries |
| Font de llum | Dual LED (Warm White) |
| Modes de llum | Flicker Flame, Steady-On |
| La tecnologia de sensors | Light Dependent Resistor (LDR) for dusk-on activation |
| Temporitzador | Temporitzador automàtic de 8 hores |
| Dimensions (total) | 12" d'alçada x 3.125" d'amplada x 1.75" de profunditat |
| Candlestick Diameter | 7/8" |
| Material base | Bronze (Antique Bronze finish) |
| Material | Plàstic |
| Ús interior/exterior | Interior |
Figure 4: Detailed dimensions of the 612 Vermont LED Window Candle.
Informació de la garantia
Warranty information for the 612 Vermont Battery Operated LED Window Candle (Model VT-1620A-4) is not explicitly detailed in the provided product information. Please refer to the product packaging or contact 612 Vermont customer support for specific warranty terms and conditions.
Informació de suport
For further assistance, technical support, or inquiries regarding your 612 Vermont LED Window Candles, please contact the manufacturer or refer to their official website. Contact details are typically provided on the product packaging or within the purchase documentation.
