1. Introducció
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Portronics Timeout Smart Countdown Timer Cube. Please read this manual carefully to ensure proper use and to maximize the functionality of your device.
Figure 1: Portronics Timeout Smart Countdown Timer Cube. A blue, hexagonal timer cube with numbers '1' and '7' visible on two faces, and a small LCD display on another face showing '00:00'.
2. Producte acabatview
The Portronics Timeout is a smart countdown timer cube designed for efficient time management. It features a unique flip-to-start mechanism and offers both audio and visual alarm options. The timer is ideal for various activities including kitchen tasks, study sessions, games, workouts, meditation, and yoga.
Característiques principals:
- Fixed Countdown Durations: Offers four preset countdown times: 1, 3, 5, and 7 minutes.
- Audio Alarm Options: Three adjustable volume levels: High, Medium, and Mute.
- Visual Alarm Options: Inbuilt LED light with three settings: High, Medium, and Off.
- Operació senzilla: No programming required; simply flip the desired minute side up to start the countdown.
- Visualització dinàmica: The LCD display automatically rotates to remain upright regardless of the cube's orientation.
Figure 2: Features and Functions. An annotated diagram of the timer cube's bottom face, highlighting the speaker, LED light, light controller (Off/Low/High), volume controller (Mute/Low/High), LCD display, and battery compartment for 2 AAA batteries. It also indicates the four fixed time durations: 1, 3, 5, 7 minutes.
3. Contingut del paquet
- 1 x Portronics Timeout Smart Countdown Timer Cube (Model POR-653)
4. Configuració
Instal·lació de la bateria:
- Locate the battery compartment cover on the bottom face of the timer cube.
- Feu lliscar o desenganxeu suaument la tapa per obrir el compartiment.
- Insert 2 x AAA batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
- Col·loqueu la coberta del compartiment de la bateria amb seguretat.
5. Instruccions de funcionament
The Portronics Timeout timer cube is designed for intuitive operation without complex settings.
Starting a Countdown:
- Assegureu-vos que les bateries estiguin instal·lades.
- Identify the desired countdown duration (1, 3, 5, or 7 minutes) on one of the cube's faces.
- Place the cube with the desired minute value facing upwards. The countdown will begin automatically.
- The LCD display will show the remaining time.
Pausa i reinici:
- To pause the timer, flip the cube so that a blank (non-numbered) side is facing upwards. The display will show 'PAUSE'.
- To resume the timer, flip the cube back to the numbered side that was previously counting down. The timer will continue from where it left off.
Aturant el temporitzador:
- When the countdown reaches zero, the alarm (audio and/or visual) will activate.
- To stop the alarm, flip the cube so that a blank (non-numbered) side is facing upwards.
Figure 3: Easy Start, Pause, and Stop Operations. A sequence of illustrations demonstrating the timer's operation: placing a numbered side up to start, flipping to a blank side to pause, flipping back to resume, and the 'Times Up' notification followed by flipping to a blank side to stop the alarm.
Dynamic Display Feature:
The LCD display is designed to automatically adjust its orientation, ensuring that the time is always shown upright, regardless of how the cube is positioned.
Figure 4: Dynamic Display. Three images of the timer cube rotated at different angles, all showing the LCD display remaining static and readable, indicating that the display adjusts to the cube's orientation.
6. Configuració d'alarma
The Portronics Timeout offers customizable audio and visual alarm options to suit your environment and preferences.
Audio Alarm Control:
On the bottom face of the cube, locate the volume controller. You can select from three settings:
- Alt: Loudest audio alarm.
- Mitjà: Moderate audio alarm.
- Silenciar: No audio alarm.
Visual Alarm (LED Light) Control:
Also on the bottom face, locate the light controller. You can select from three settings for the inbuilt LED light:
- Alt: Brightest LED light.
- Mitjà: Moderate LED light.
- Apagat: No LED light.

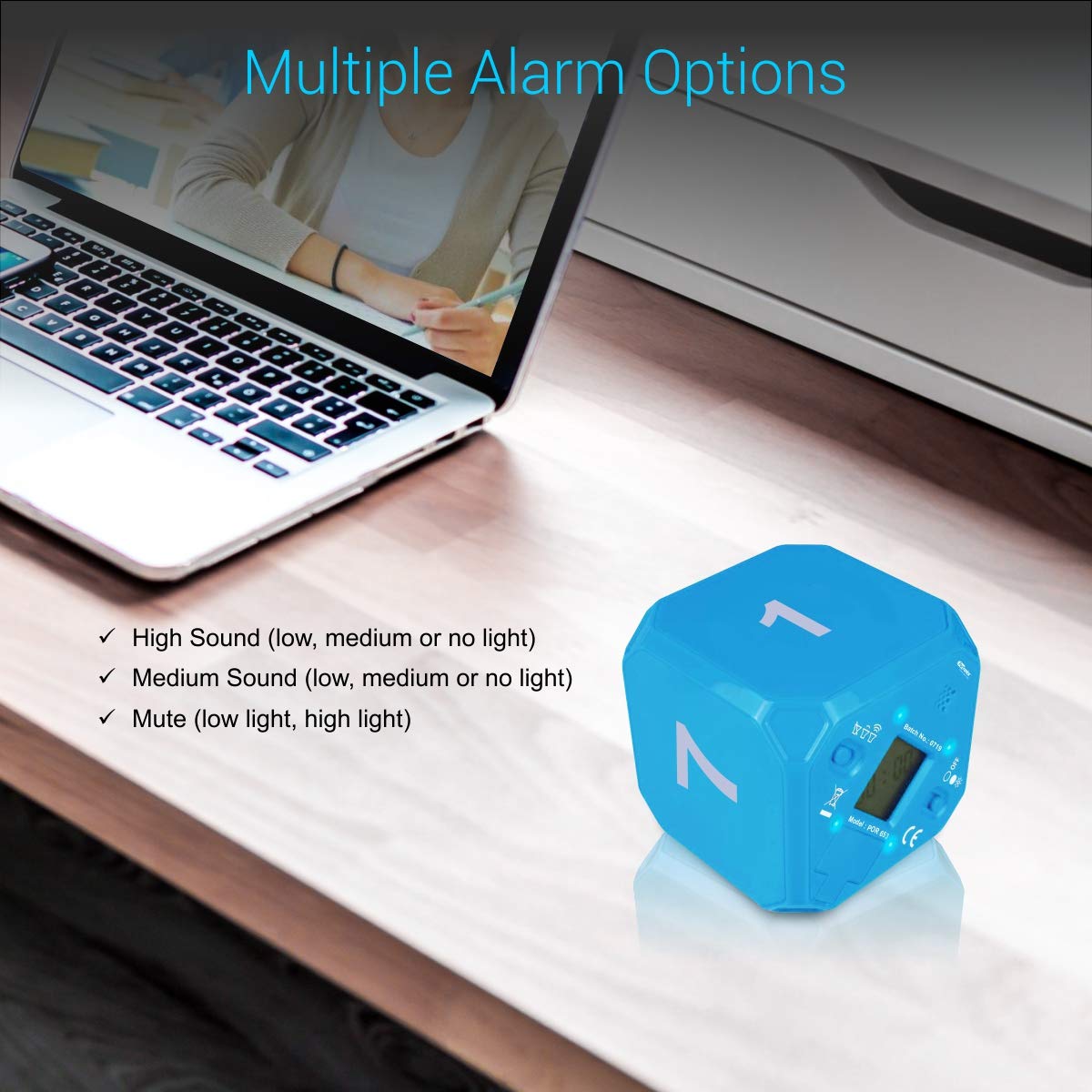

Figure 5: Multiple Alarm Options. The timer cube on a desk next to a laptop, with text listing the multiple alarm options: High Sound (low, medium or no light), Medium Sound (low, medium or no light), and Mute (low light, high light).
7. Manteniment
Neteja:
- Wipe the timer cube with a soft, dry cloth.
- No utilitzeu netejadors ni dissolvents abrasius, ja que poden danyar la superfície.
Substitució de la bateria:
- Replace batteries when the display becomes dim or the timer functions inconsistently.
- Feu servir sempre piles AAA noves.
- Eliminar les piles velles de manera responsable d'acord amb la normativa local.
Emmagatzematge:
- Guardeu el temporitzador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Si l'emmagatzemeu durant un període prolongat, traieu les piles per evitar fuites.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El temporitzador no comença. | Les piles estan baixes o instal·lades incorrectament. | Comproveu la polaritat de la bateria o substituïu-la per piles AAA noves. |
| No audio alarm. | Audio alarm is set to 'Mute'. | Adjust the volume controller to 'Low' or 'High'. |
| No visual alarm (LED light). | LED light is set to 'Off'. | Adjust the light controller to 'Low' or 'High'. |
| La pantalla està tènue o parpelleja. | Potència de bateria baixa. | Canvieu les piles per piles AAA noves. |
| El temporitzador s'atura inesperadament. | Cube was accidentally flipped to a blank side (pause). | Ensure the numbered side remains facing upwards during countdown. |
9. Especificacions
| Característica | Detall |
|---|---|
| Marca | Portronics |
| Número de model | POR-653 |
| Color | Blau |
| Material | Plàstic ABS |
| Dimensions del producte | 6P x 6A x 6H centímetres |
| Pes de l'article | 47 grams |
| Number of Settings (Durations) | 4 (1, 3, 5, 7 minuts) |
| Font d'alimentació | 2 piles AAA (no incloses) |
Figure 6: Compact and Lightweight Design. A hand holding the timer cube, illustrating its compact size (6cm x 6cm x 6cm) and light weight (47 grams).
10. Garantia i Suport
Informació de la garantia:
The Portronics Timeout Smart Countdown Timer Cube comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Atenció al client:
For technical assistance, warranty claims, or any product-related inquiries, please contact Portronics customer support. Refer to the official Portronics weblloc web o la documentació de compra per obtenir la informació de contacte més actualitzada.
Figure 7: Versatile Usage. A collage depicting the timer cube being used in different environments: an office setting, a kitchen while cooking, during a workout, and during meditation, highlighting its versatility.
