HOBBYWING XR10 PRO-1S (1S HD) Electronic Speed Controller User Manual

1. Introducció

Thank you for choosing the HOBBYWING XR10 PRO-1S (1S HD) Electronic Speed Controller (ESC). This high-performance ESC is designed for 1/12 brushless sensored system stock and modified racing applications. Please read this manual thoroughly before use to ensure proper operation and maximize the lifespan of your product.

2. Precaucions de seguretat

Operating high-power systems for RC models can be dangerous. Always exercise extreme caution and adhere to the following safety guidelines:

• Always disconnect the battery from the ESC when not in use.
• Assegureu-vos que totes les connexions estiguin ben fixades i degudament aïllades per evitar curtcircuits.
• Never operate the ESC in wet conditions or allow it to come into contact with water.
• Keep the ESC away from heat sources and direct sunlight.
• Always use appropriate battery types and voltages as specified for this ESC.
• Children should only operate this product under direct adult supervision.
• Do not modify the ESC or its components. Unauthorized modifications can lead to malfunction and void the warranty.
• Ensure proper ventilation around the ESC during operation to prevent overheating.

3. Característiques del producte

The HOBBYWING XR10 PRO-1S (1S HD) ESC incorporates advanced technology for superior performance:

• Redesigned Architecture: Features a new architecture platform, resulting in a 40% smaller volume and 24% lighter weight compared to the previous generation.
• Premium MOSFETs: Equipped with high-quality Toshiba MOSFETs for enhanced efficiency and reliability.
• Super BEC: Internal BEC with booster circuitry provides up to 6A/6V output, capable of powering various servos without an additional receiver battery.
• Built-in Electronic Switch: Offers a lifespan of over 50,000 on/off cycles, with a dust-proof and shock-resistant design.
• Integrated Capacitor Module: Saves space and weight, simplifying wiring for a neat setup.
• PWM Frequency Tuning: Allows for precise throttle and brake control, crucial for competitive racing, especially in the Stock class.
• Separate Programming/Fan Port: A dedicated PRG/FAN port enables connection of an external cooling fan for maximum performance or an LCD program box/WiFi module for ESC programming.

4. Configuració i instal·lació

Proper installation is critical for optimal performance and safety. Follow these steps carefully:

4.1 Identificació de components

Familiarize yourself with the ESC components:

Figura 1: HOBBYWING XR10 PRO-1S (1S HD) ESC. This image displays the top view of the electronic speed controller, highlighting its compact design and heat sink. The main power terminals and sensor port are visible.

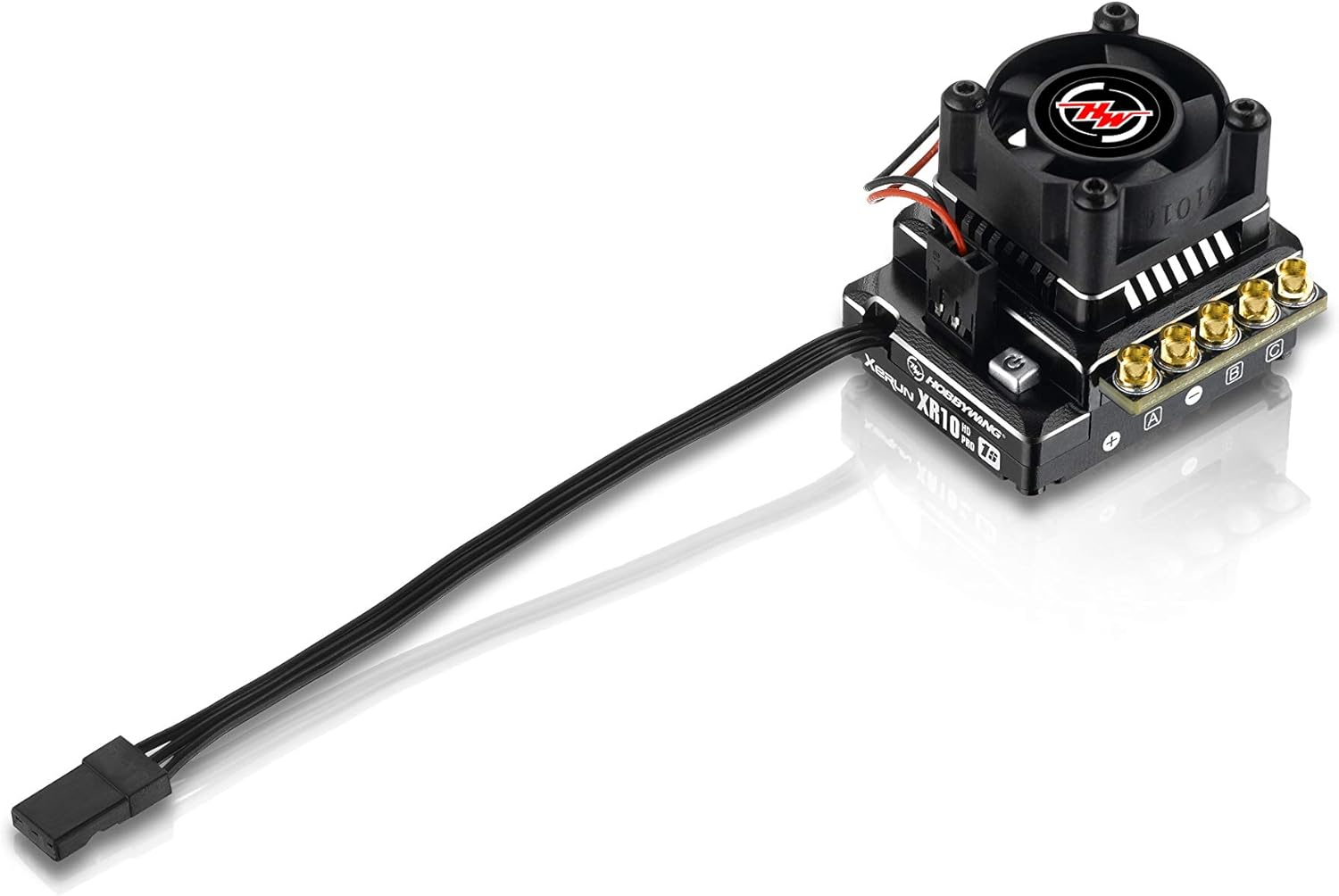

Figura 2: HOBBYWING XR10 PRO-1S (1S HD) ESC with cooling fan installed. This image shows the ESC with an optional cooling fan attached to the heat sink, demonstrating how to enhance thermal management for demanding applications.

4.2 Connexions de cablejat

• Connexió del motor: Connect the three motor wires (A, B, C) from the ESC to the corresponding motor phases. For sensored motors, ensure the sensor cable is also connected between the ESC and the motor.
• Connexió de la bateria: Connect the battery's positive (+) and negative (-) terminals to the corresponding terminals on the ESC. Ensure correct polarity to prevent damage.
• Connexió del receptor: Plug the ESC's throttle cable into the throttle channel (usually channel 2) of your receiver.
• Cooling Fan (Optional): If using an external cooling fan, connect it to the dedicated PRG/FAN port on the ESC.

4.3 Muntatge de l'ESC

Securely mount the ESC in your vehicle using double-sided tape or screws. Ensure it is positioned to allow adequate airflow for cooling and is protected from impacts.

5. Instruccions de funcionament

Before operating your vehicle, perform the following steps:

5.1 Throttle Range Calibration

Calibrating the throttle range ensures proper communication between your transmitter and the ESC:

1. Turn on your transmitter and set the throttle trim to neutral.
2. Connect the battery to the ESC while holding the SET button on the ESC. Release the SET button when the LED starts flashing.
3. Push the throttle stick to the full throttle position and press the SET button.
4. Push the throttle stick to the full brake/reverse position and press the SET button.
5. Release the throttle stick to the neutral position and press the SET button. The ESC is now calibrated.

5.2 Programació de l'ESC

The ESC can be programmed using an LCD program box or a WiFi module connected to the PRG/FAN port. Refer to the specific programming device's manual for detailed instructions on adjusting parameters such as running mode, drag brake, initial brake force, punch, and PWM frequency.

6. Manteniment

Regular maintenance helps prolong the life and performance of your ESC:

• Neteja: Periodically clean the ESC and its cooling fan (if installed) to remove dirt, dust, and debris. Use a soft brush or compressed air.
• Inspecció: Regularly inspect all wires and connectors for signs of wear, damage, or loose connections.
• Emmagatzematge: Guardeu l'ESC en un lloc sec i fresc, allunyat de la llum solar directa i de temperatures extremes.
• Actualitzacions de firmware: Consulteu el HOBBYWING website for any available firmware updates for your ESC model.

7. Solució De Problemes

If you encounter issues with your ESC, refer to the following common problems and solutions:

• Sense energia: Check battery connection, ensure battery is charged, and verify the electronic switch is engaged.
• El motor no respon: Re-calibrate the throttle range. Check motor and sensor wire connections. Ensure the motor is not seized.
• Sobreescalfament: Ensure adequate ventilation. Check for proper gear ratio. Consider installing an external cooling fan if not already in use. Reduce load or adjust ESC settings.
• Comportament erràtic: Check for radio interference. Ensure all connections are secure. Re-calibrate the throttle.
• LED Error Codes: Consult the detailed HOBBYWING manual (usually available online) for specific LED flash patterns and their corresponding error meanings.

8. Especificacions

9. Garantia i Suport

This product is covered by the official HOBBYWING manufacturer warranty. Please note that stores outside of North America (e.g., Hong Kong, Chinese stores) are not authorized HOBBYWING dealers in North America, and items purchased from them may not be covered under warranty.

HOBBYWING North America assumes no liability for damages, losses, or costs resulting from the incorrect use, installation, application, or maintenance of our products. Any claims arising from operating failures or malfunctions will be denied if not related to manufacturing defects.

For further information or support, please contact HOBBYWING North America directly through their official online store, HOBBYWINGDirect.com.
