Kolice Commercial Automatic Donut Machine Model T101 User Manual

1. Introducció

This manual provides detailed instructions for the safe and efficient operation, setup, maintenance, and troubleshooting of your Kolice Commercial Automatic Donut Machine, Model T101. This machine is designed for commercial use, integrating donut forming, dripping, frying, flipping, collecting, counting, and outputting into one streamlined process. Please read this manual thoroughly before operating the machine.

2. Instruccions de seguretat

Adhering to these safety guidelines is crucial for preventing injury and damage to the equipment.

• Connexió elèctrica: The machine operates on 110V 60HZ and requires 3000W. Due to its high power, it does not come with a standard plug. It is strongly recommended to hook up the machine directly to a circuit breaker for security and proper electrical load management. Consult a qualified electrician for installation.
• Prevenció de cremades seques: NEVER turn on the machine if there is no oil or water inside the tank. Operating the machine dry can cause severe damage and is strictly forbidden.
• Configuració de temperatura: The default temperature setting is in Celsius. The maximum temperature setting cannot exceed 250 Celsius. Refer to the temperature conversion table provided for Fahrenheit equivalents.
• Material: The entire machine is constructed from 304 stainless steel, offering durability and corrosion resistance.
• Llegeix el manual: Llegiu sempre tot el manual abans de fer funcionar la màquina.

Imatge: Example of a 110V 30A electrical plug. For safety, direct wiring to a circuit breaker is recommended for this high-power machine.

Image: Temperature conversion table from Celsius to Fahrenheit. Note that the machine's default temperature display is in Celsius.

3. Producte acabatview

3.1 Components

• Tremuja: 7-liter capacity for donut batter.
• Tauler de control: Features indicators, temperature controls, timer controls, and mode selection (On/Off, Heat, Drop, Flip, Auto).
• Dipòsit d'oli: Inner dimensions 32.1"x6.9"x3.9" (815x175x100mm), approximately 15L capacity. Equipped with a drain hole for oil outlet.
• Donut Molds: Includes 3 interchangeable molds (2.5cm, 3.5cm, 4.5cm) for producing various donut sizes.
• Frying and Conveyor System: Automatic flipping and collection system for continuous production.

Imatge: Més deview of the Kolice Commercial Automatic Donut Machine, showing its main components.

3.2 Característiques clau

• Automatic Counting System: Tracks the number of donuts produced.
• Control intel·ligent de la temperatura: Maintains optimal frying temperature.
• Over-High Temperature Protection System: Millora la seguretat evitant el sobreescalfament.
• Output Speed Regulator: Adjusts the production rate.
• Automatic Flipping System: Ensures even frying.
• Automatic Collection System: Collects finished donuts.
• Safety Oil Drain Valve: Facilitates safe and easy oil drainage.

3.3 Especificacions

4. Configuració

4.1 Desembalatge i col·locació

1. Carefully unpack the donut machine and all its components. Retain packaging for future transport or storage.
2. Place the machine on a stable, level, and heat-resistant surface in a well-ventilated area. Ensure adequate clearance around the machine for operation and maintenance.
3. Ensure the drain valve is securely closed before adding oil.

4.2 Connexió elèctrica

As noted in the safety instructions, this high-power machine requires a direct connection to a circuit breaker. Do not attempt to use a standard wall outlet. Consult a certified electrician for proper installation to ensure safety and compliance with local electrical codes.

4.3 Neteja inicial

Before first use, clean all parts that will come into contact with food. Use warm, soapy water and rinse thoroughly. Dry all components completely before assembly.

5. Instruccions de funcionament

5.1 Preparació de la màquina

1. Omplir el dipòsit d'oli: Pour cooking oil into the inner oil tank. Ensure the oil level is between the minimum and maximum fill lines. No ompliu en excés.
2. Connectar l'alimentació: Ensure the machine is properly connected to the circuit breaker.
3. Activar: Press the 'On/Off' button on the control panel to power on the machine.
4. Temperatura establerta: Use the temperature controls to set the desired frying temperature. The display shows Celsius. Refer to the conversion table if Fahrenheit is preferred. Allow the oil to heat up to the set temperature.
5. Preparar la massa: Mix your donut batter according to your recipe.
6. Tremuja d'ompliment: Pour the prepared donut batter into the 7-liter hopper.
7. Select Mold: Choose one of the three donut molds (2.5cm, 3.5cm, or 4.5cm) based on the desired donut size and install it into the dropping mechanism.

Image: The control panel, showing temperature and timer settings, and operational buttons.

Image: The three interchangeable donut molds for varying donut sizes.

5.2 Donut Production

1. Start Dropping: Once the oil reaches the set temperature, press the 'Drop' button to begin dispensing batter into the hot oil.
2. Automatic Flipping: The machine's automatic flipping system will turn the donuts to ensure even cooking on both sides.
3. Col·lecció: After frying, the donuts will be automatically conveyed and collected at the end of the machine.
4. Ajustar la configuració: You can adjust the output speed regulator and the three gears for sweetness/size/weight balance as needed during operation.

Image: The donut dropping mechanism in action, forming donuts directly into the frying oil.

Image: The automatic conveyor system moving donuts through the frying process.

6. Manteniment i Neteja

Regular cleaning and maintenance are essential for the longevity and hygienic operation of your donut machine.

1. Apagar i refredar: Always turn off the machine and allow it to cool completely before cleaning or performing any maintenance.
2. Escórrer l'oli: Use the safety oil drain valve at the bottom of the tank to safely drain used oil into an appropriate container.
3. Neteja el dipòsit d'oli: Once the oil is drained, clean the inner oil tank thoroughly with warm, soapy water. Rinse well and dry completely.
4. Components nets: Remove and clean the hopper, donut molds, and conveyor parts. Ensure all batter and oil residue are removed.
5. Neteja exterior: Netegeu l'exterior de la màquina amb un anunciamp cloth. Avoid using abrasive cleaners or scouring pads that could scratch the stainless steel surface.
6. Inspecció periòdica: Periodically inspect all electrical connections and moving parts for wear or damage.

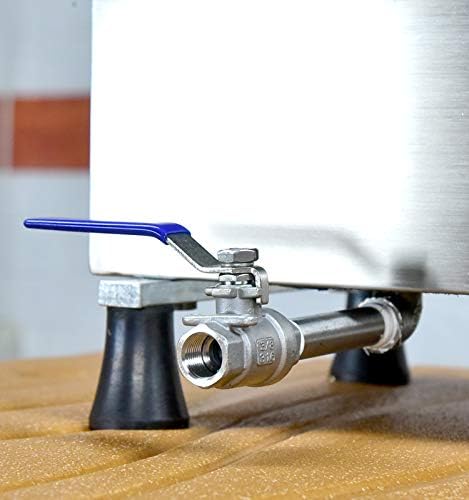

Image: The safety oil drain valve for convenient and safe oil removal.

Image: The interior of the oil tank, highlighting the frying area and conveyor system for cleaning.

7. Solució De Problemes

This section addresses common issues you might encounter during operation. Refer to the control panel for specific error codes.

7.1 Control Panel Error Codes

• E-1/2: Rolling stroke is abnormal.
  Acció: Check the mechanical components related to the rolling/flipping mechanism for obstructions or damage. Ensure all parts are correctly aligned.
• E-3/4: The NTC open circuit is abnormal.
  Acció: This indicates an issue with the temperature sensor (NTC thermistor). Check the sensor's connection and for any visible damage. Contact customer support if the issue persists.
• E-4/5: The temperature is too high.
  Acció: The oil temperature has exceeded the safe operating limit. Turn off the heating element immediately and allow the oil to cool. Verify the temperature sensor is functioning correctly.
• E-6/7: The load open circuit is abnormal.
  Acció: This suggests an issue with the heating element's circuit. Check connections and for any signs of damage. Professional inspection may be required.
• E-7/7: The load short circuit is abnormal.
  Acció: This indicates a short circuit in the heating element or related wiring. Immediately power off the machine and contact a qualified technician for repair.

7.2 Solució de problemes generals

• La màquina no s'encén:
  Comprovar: Ensure the machine is properly connected to the circuit breaker and that the breaker has not tripped. Verify the main power switch is in the 'On' position.
• Donuts Not Forming Correctly:
  Comprovar: Batter consistency (too thick or too thin). Ensure the correct mold is installed and clean. Check the dropping mechanism for obstructions.
• Donuts Not Frying Evenly:
  Comprovar: Oil temperature. Ensure the automatic flipping mechanism is operating correctly. Verify oil level.
• Sobreescalfament de la màquina:
  Comprovar: Ensure proper ventilation around the machine. Verify the temperature sensor is clean and functioning. Do not operate without oil.

8. Informació de la garantia

The Kolice Commercial Automatic Donut Machine Model T101 comes with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty documentation provided with your purchase or contact Kolice customer support.

9. Atenció al client

For technical assistance, parts, or warranty inquiries, please contact Kolice customer support. When contacting support, please have your model number (T101) and purchase information readily available.

Fabricant: Kolice refrigeration equipment manufacturer

Per a més informació, podeu visitar el Kolice Store on Amazon.
