Maxima 38120LMGI Leather Analog White Dial Men's Watch Instruction Manual

1. Introducció

Thank you for choosing the Maxima 38120LMGI Leather Analog White Dial Men's Watch. This timepiece combines classic design with reliable quartz movement, featuring a white dial, black leather band, and a durable brass case. This manual provides essential information for the proper setup, operation, and maintenance of your watch to ensure its longevity and accurate performance.

Imatge 1.1: Frontal view of the Maxima 38120LMGI watch, showcasing its white dial, black leather strap, and silver-tone case.

2. Característiques clauview

Your Maxima 38120LMGI watch is equipped with several features designed for convenience and durability:

• Moviment de quars: Assegura una cronometratge precís.
• Pantalla analògica: Classic three-hand display for hours, minutes, and seconds.
• Visualització del dia i la data: Conveniently located on the dial.
• 30 Meters Water Resistance: Suitable for everyday use and splashes, but not for swimming or diving.
• Mineral Dial Glass: Provides good scratch resistance.
• Corretja de cuir genuí: Offers comfort and style.
• PVD Coated Metal: For enhanced durability and longevity.

Image 2.1: Visual representation of the watch's key features, including water resistance, movement type, and material details.

3. Instruccions de configuració

3.1. Configuració de l'hora

1. Estireu suaument la corona (el petit botó del lateral del rellotge) fins a la segona posició de clic.
2. Turn the crown clockwise or counter-clockwise to move the hands and set the desired time. Ensure you differentiate between AM and PM when setting the time, especially if setting the date.
3. Once the time is set, push the crown back into its original position against the watch case.

3.2. Setting the Day and Date

1. Estireu la corona fins al primer clic.
2. Gireu la corona en sentit horari per ajustar la data.
3. Turn the crown counter-clockwise to adjust the day.
4. Avoid setting the date and day between 9:00 PM and 3:00 AM, as this is when the watch's internal mechanism is engaged in changing the date, and manual adjustment can cause damage. If adjustment is needed during this period, first set the time outside this window, adjust the date/day, then reset the time.
5. Once the day and date are set, push the crown back into its original position.

Imatge 3.1: Anglesa view of the watch, illustrating the position of the crown for time and date adjustments.

4. Instruccions de funcionament

Once the time, day, and date are set, your Maxima watch will operate continuously. The quartz movement ensures high accuracy. The second hand will move in distinct one-second intervals.

4.1. Resistència a l'aigua

Your watch is water-resistant up to 30 meters (3 ATM). This means it is suitable for daily use, such as accidental splashes, rain, or hand washing. It is no suitable for showering, bathing, swimming, diving, or any water sports. Always ensure the crown is fully pushed in to maintain water resistance.

5. Manteniment

5.1. Neteja del rellotge

• Wipe the watch case and crystal with a soft, dry cloth regularly to remove dust and smudges.
• Per a la brutícia persistent, una mica deamp es pot fer servir un drap, seguit d'un drap sec. Eviteu fer servir netejadors químics, ja que poden danyar l'acabat del rellotge.

5.2. Leather Strap Care

• Avoid prolonged exposure of the leather strap to water, direct sunlight, and extreme temperatures, as this can cause drying, cracking, or discoloration.
• Clean the leather strap with a soft, slightly damp cloth. Allow it to air dry completely.
• Consider using a leather conditioner periodically to keep the strap supple and prevent cracking.

5.3. Substitució de la bateria

Your watch is powered by a quartz battery. When the watch stops or the second hand begins to skip, it indicates a low battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and maintain water resistance. Attempting to replace the battery yourself may void the warranty and damage the watch.

5.4. Emmagatzematge

When not wearing your watch, store it in a cool, dry place, away from direct sunlight and strong magnetic fields, which can affect timekeeping accuracy.

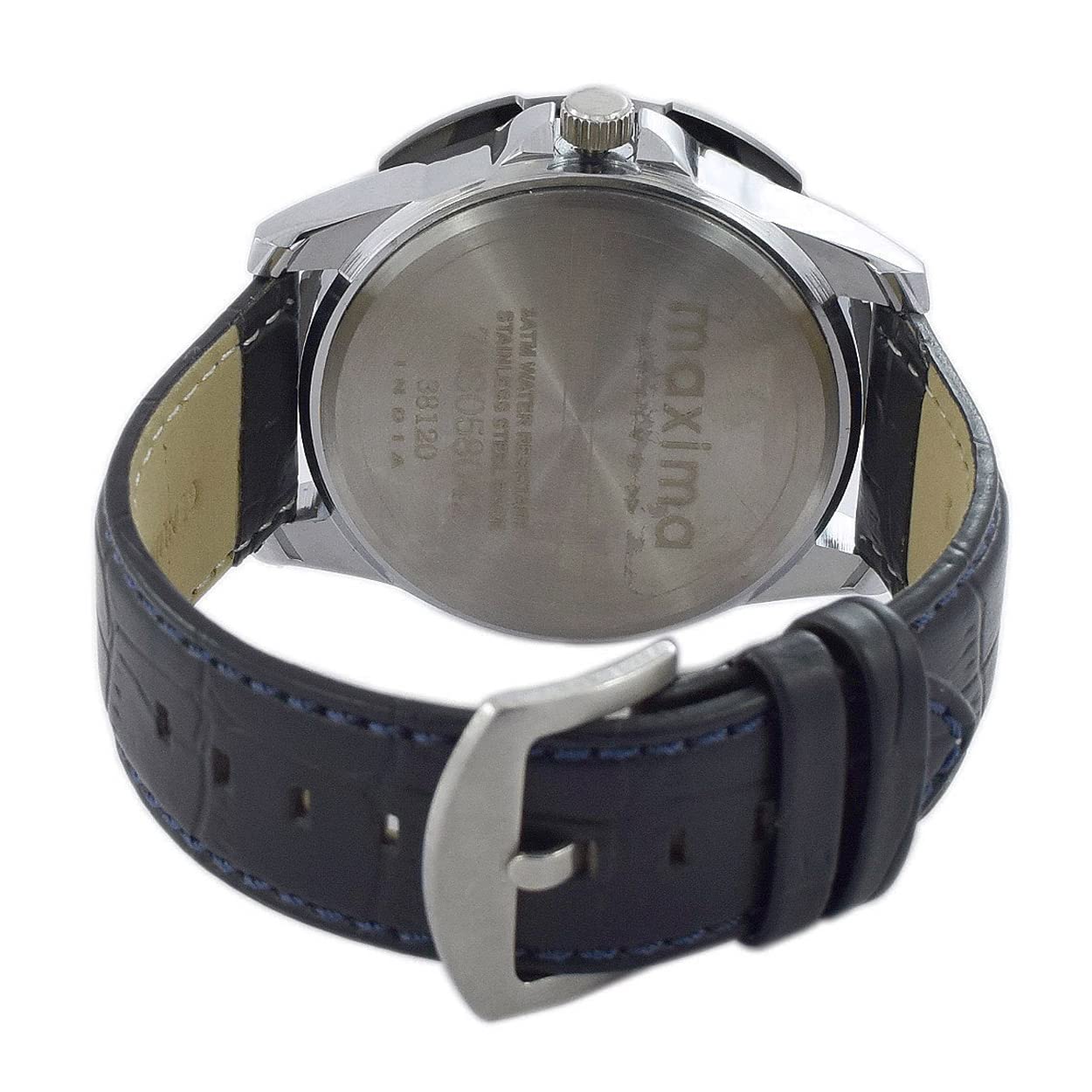

Imatge 5.1: posterior view of the watch, displaying the stainless steel case back with Maxima branding and the leather strap with its buckle.

6. Solució De Problemes

• El rellotge no funciona:
  • Comproveu si la corona està completament empenta cap a dins.
  • The battery may be depleted. Contact an authorized service center for battery replacement.
• L'hora és incorrecta:
  • Reinicieu el temps tal com s'indica a la secció 3.1.
  • Assegureu-vos que la corona estigui completament empenta després de la col·locació.
• Day/Date not changing or changing at the wrong time:
  • Ensure the time is set correctly, differentiating between AM and PM. The date typically changes around midnight.
  • Reset the day/date as per Section 3.2.
• Condensació sota el cristall:
  • This indicates moisture ingress. Immediately take the watch to an authorized service center. Do not attempt to dry it yourself.

7. Especificacions

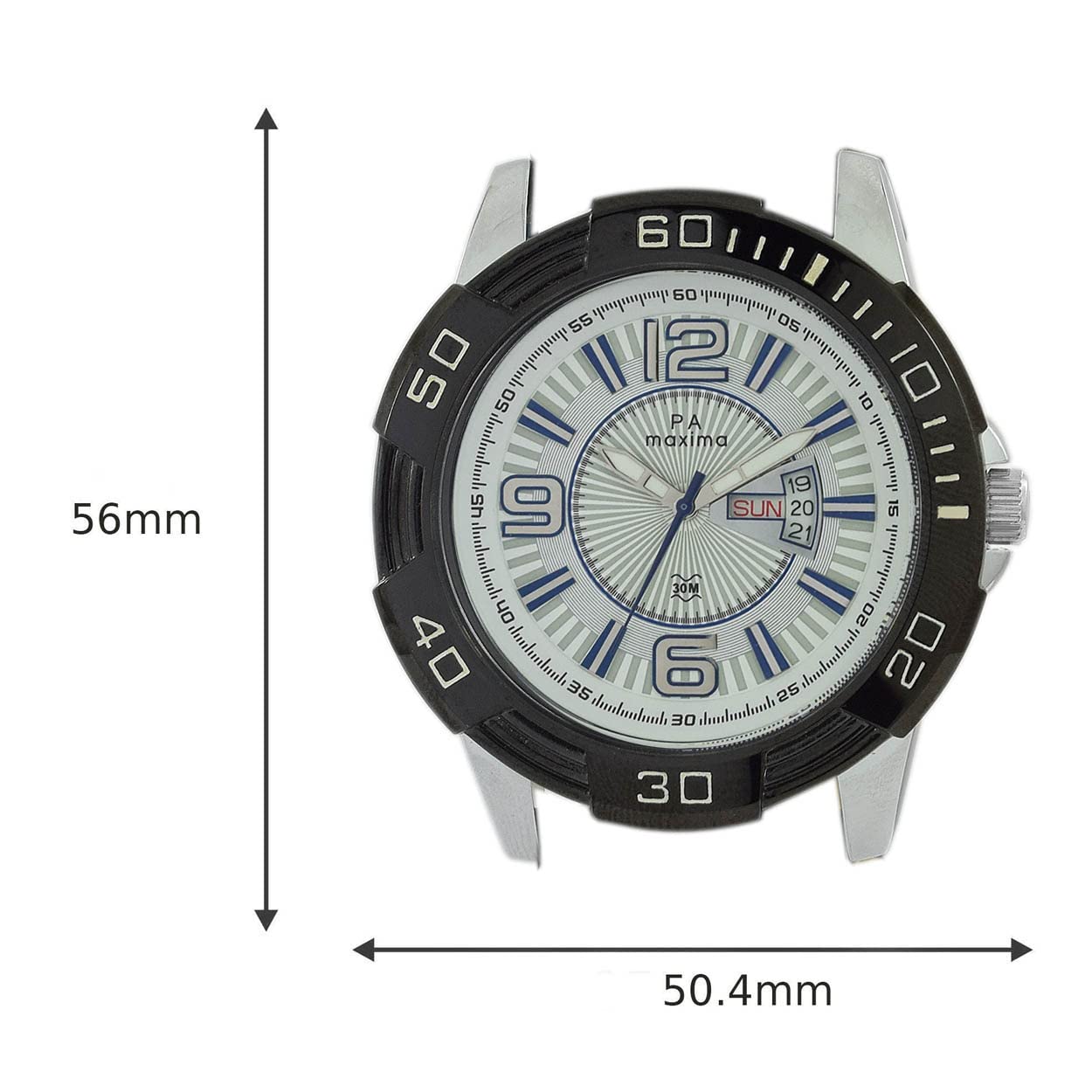

Image 7.1: Watch dimensions, indicating a height of 56mm and a width of 50.4mm.

Image 7.2: The Maxima 38120LMGI watch displayed on a wrist, providing a visual reference for its size and appearance when worn.

8. Garantia i Suport

8.1. Garantia del fabricant

Your Maxima watch is covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary. Please refer to the warranty card included with your purchase or visit the official Maxima weblloc per obtenir informació detallada.

8.2. Extended Warranty Option

An optional 1-year extended warranty may be available for purchase. Please check with your retailer or the Maxima brand store for details on how to avail this extended coverage.

8.3. Atenció al client

For any service, repair, or technical assistance, please contact an authorized Maxima service center or visit the Maxima official website for support contact information. Do not attempt to open or repair the watch yourself, as this may void the warranty.
