1. Introducció
Thank you for choosing the Nanlite RC-1 Wireless Remote Control. This device is designed to provide convenient wireless control over brightness and color temperature for compatible Nanlite FORZA lighting units and PavoTube lights. With its 2.4G wireless technology and 99 channels, it offers reliable operation up to 15 meters (49 feet) away. Please read this manual thoroughly before use to ensure proper operation and to maximize the lifespan of your remote control.
2. Informació de seguretat
- Do not expose the remote control to water or high humidity.
- Eviteu deixar caure el comandament a distància ni sotmetre'l a impactes forts.
- No intenteu desmuntar ni modificar el comandament a distància. Això anul·larà la garantia.
- Mantenir fora de l'abast dels nens.
- Eliminar les bateries correctament d'acord amb la normativa local.
- Assegureu-vos de la polaritat correcta de la pila en inserir-la.
3. Contingut del paquet
Si us plau, comproveu el contingut del paquet per assegurar-vos que hi hagi tots els elements:
- Nanlite RC-1 Wireless Remote Control
- Manual d'instruccions (aquest document)

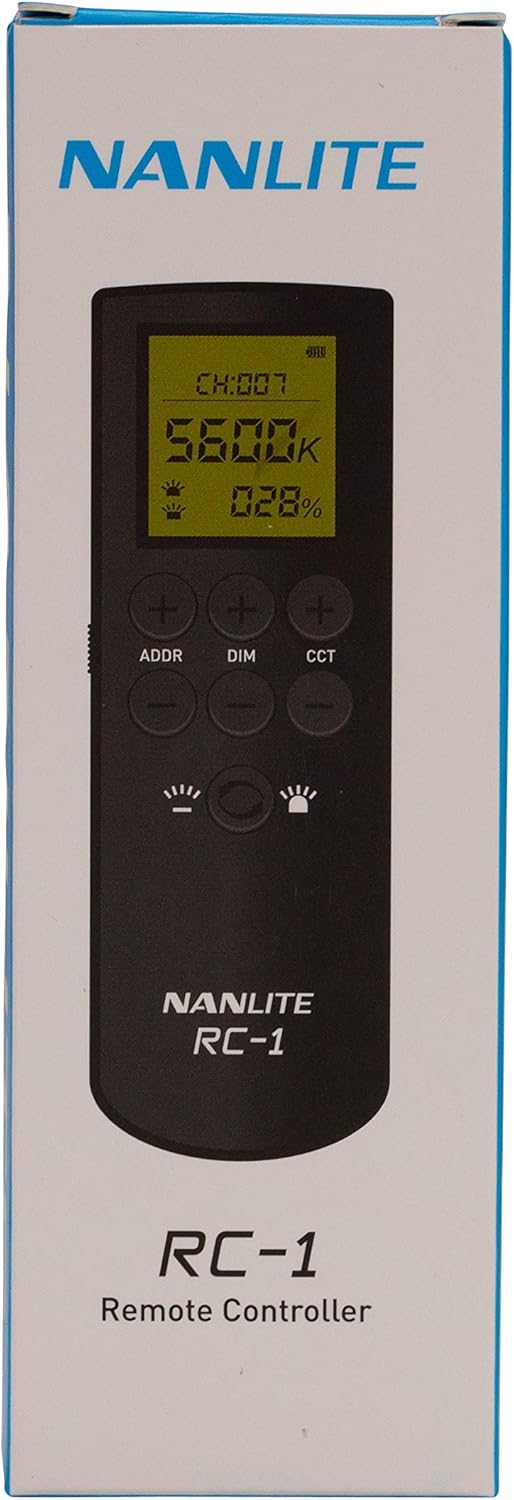

Image: The Nanlite RC-1 Remote Control shown within its retail packaging, displaying the product name and brand.
4. Producte acabatview
The Nanlite RC-1 features a clear display and intuitive button layout for easy control.
Imatge: Un front directe view of the Nanlite RC-1 Wireless Remote Control, highlighting its display screen and button layout.
Funcions del botó:
- ADDR +/-: Adjusts the channel address.
- DIM +/-: Adjusts the brightness (dimming) level.
- CCT +/-: Ajusta la temperatura del color.
- Botó d'encesa: Encén/apaga el comandament a distància.
- Mode Buttons (Light icons): Specific functions for light modes (e.g., effects, presets).
Image: A close-up of the Nanlite RC-1 remote control's green LCD screen, showing channel, color temperature (K), and brightness percentage (%) readings.
5. Configuració
5.1 Instal·lació de la bateria
The Nanlite RC-1 remote control requires batteries for operation (batteries are not included). Locate the battery compartment on the back of the remote control. Open the compartment cover, insert the required batteries, ensuring correct polarity (+/-), and then close the cover securely.
5.2 Pairing with Lights
To control your Nanlite FORZA or PavoTube lights, ensure they are set to the same channel as your RC-1 remote control. The remote control features 99 channels for broad compatibility and to avoid interference.
- Turn on your Nanlite lighting unit.
- On the RC-1 remote control, use the ADDR +/- botons per seleccionar el canal desitjat.
- Set your Nanlite lighting unit to the exact same channel. Refer to your lighting unit's manual for instructions on changing its channel.
- Once the channels match, the remote control should be able to communicate with the light.
Image: The Nanlite RC-1 Remote Control displayed with an attached wrist strap, indicating portability and secure handling.
6. Instruccions de funcionament
The RC-1 remote control allows for precise adjustments of your Nanlite lighting units.
6.1 Ajust de la brillantor (reducció de la llum)
Utilitza el DIM +/- buttons to increase or decrease the light's brightness output. The current brightness percentage will be displayed on the remote's screen.
6.2 Ajust de la temperatura de color
For Nanlite Bicolor products, use the CCT +/- buttons to adjust the color temperature. The color temperature will be displayed in Kelvin (K) on the remote's screen.
6.3 Canvi de canals
If you are controlling multiple lights or experiencing interference, you can change the operating channel. Press the ADDR +/- buttons to cycle through the available 99 channels. Remember to match the channel on your lighting unit to the remote control's channel.
7. Manteniment
- Clean the remote control with a soft, dry cloth. Do not use liquid cleaners or solvents.
- Si no feu servir el comandament a distància durant un període prolongat, traieu-ne les piles per evitar fuites.
- Store the remote control in a cool, dry place, away from direct sunlight and extreme temperatures.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El comandament a distància no respon. | Piles baixes o esgotades. Instal·lació incorrecta de la bateria. | Substituïu les piles. Comproveu la polaritat de la bateria. |
| Light not responding to remote. | Channels do not match. Remote out of range. Interference. | Ensure remote and light are on the same channel. Move closer to the light (within 15m). Try changing to a different channel. |
| Display screen is blank or dim. | Bateries baixes. | Substituïu les piles. |
9. Especificacions
- Model: RC-1
- Compatibilitat: Nanlite FORZA series lighting units, Nanlite PavoTube lights
- Tipus de control: 2.4G sense fil
- Funcions: Brightness adjustment, Color Temperature adjustment
- Canals: 99
- Distància d'operació: Fins a 15 metres (49 peus)
- Font d'alimentació: Piles (no incloses)
10. Garantia i Suport
For warranty information and technical support, please refer to the official Nanlite website or contact your local Nanlite distributor. Keep your purchase receipt as proof of purchase for warranty claims.
