VINABTY AKB74815301 Remote Control Instruction Manual

Introducció

This manual provides instructions for the VINABTY AKB74815301 replacement remote control. This remote is designed to be compatible with various LG Soundbar and Home Theater Soundbar models. It is pre-programmed and requires no additional setup beyond battery installation.

Compatible LG Soundbar Models include:

• S55A3-D, LAS454B, S45A1-D, LAS453B, SH3B, SPH3B-W, SH3K, SJ4Y, SPH4B-W, LAS485B
• SPH4BW, S45A1D, S55A3D, SPH3BW, SJ7, SK4D, LAS464B, SK3D, LAC553B, LAS260B, LAS465B, SH4, SH5B, SH7B

Configuració

1. Instal·lació de la bateria

The VINABTY AKB74815301 remote control requires two (2) AAA batteries for operation. Batteries are not included with the remote control.

1. Localitzeu el compartiment de la bateria a la part posterior del comandament a distància.
2. Feu lliscar la tapa del compartiment de la bateria cap avall i retireu-la.
3. Introduïu dues piles AAA, assegurant-vos que els terminals positiu (+) i negatiu (-) s'alineïn correctament amb les marques de l'interior del compartiment.
4. Torneu a col·locar la tapa del compartiment de la bateria fent-la lliscar fins que faci clic de manera segura.

This image shows the VINABTY AKB74815301 remote control with its battery compartment open, indicating the placement for two AAA batteries. Batteries are not included with the remote.

2. Ús inicial

This remote control is pre-programmed for the listed LG Soundbar models. No additional programming or pairing is required. Once batteries are installed, the remote is ready for immediate use.

Instruccions de funcionament

The VINABTY AKB74815301 remote control provides direct access to essential functions of your compatible LG Soundbar. Below is a general overview of the buttons and their functions:

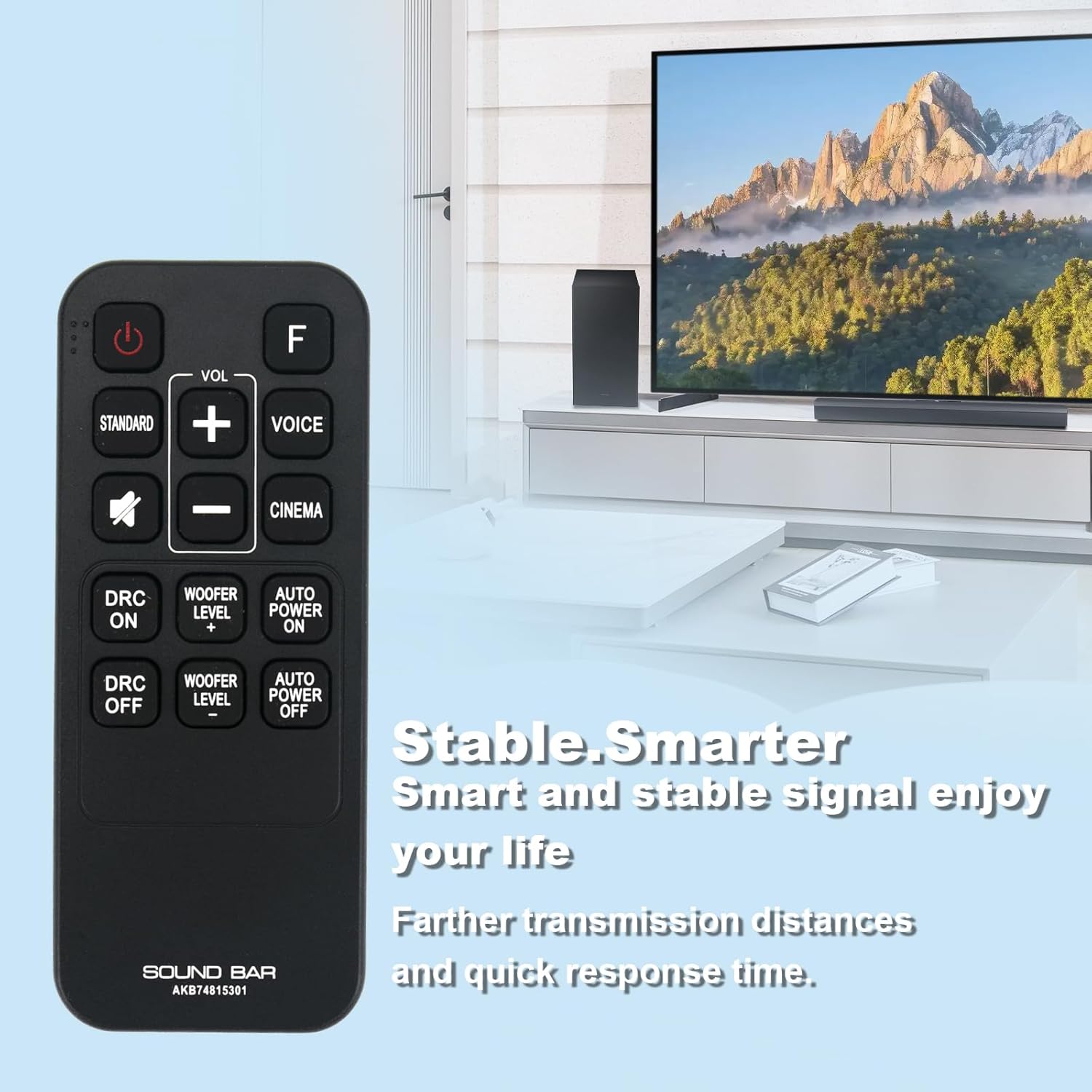

This image displays the VINABTY AKB74815301 remote control, highlighting its ergonomic design and button layout for various functions like power, volume, sound modes, and woofer level.

• Botó d'encendre (U): Activa o desactiva la barra de so.
• VOL (+/-): Increases or decreases the main volume level.
• Botó Silenciar (🔇): Silencia o activa el so.
• F Button: Function/Input selection. Press to cycle through available input sources (e.g., Optical, Bluetooth, HDMI).
• ESTÀNDARD: Activates the standard sound mode.
• VEU: Activates the voice enhancement sound mode.
• CINEMA: Activates the cinema sound mode.
• DRC ON / OFF: Toggles Dynamic Range Control on or off.
• WOOFER LEVEL (+/-): Ajusta el nivell de volum del subwoofer.
• ENCENDIDA / APAGADA AUTOMÀTICA: Toggles the auto power feature of the soundbar.

This image depicts a user operating the VINABTY AKB74815301 remote control to interact with an LG soundbar and television setup, demonstrating typical usage.

Manteniment

Canvi de bateria

If the remote control's range decreases or it becomes unresponsive, replace both AAA batteries with new ones. Refer to the "Battery Installation" section for instructions.

Neteja

Per netejar el comandament a distància, feu servir un drap suau i sec. No utilitzeu netejadors líquids, esprais ni materials abrasius, ja que poden danyar la superfície o els components interns del comandament a distància.

Resolució de problemes

• El comandament a distància no respon:
  • Assegureu-vos que les piles AAA noves estiguin instal·lades correctament.
  • Check for any obstructions between the remote control and the soundbar's sensor.
  • Apunteu el comandament a distància directament a la barra de so.
• Rang limitat:
  • Canvieu les piles si estan baixes.
  • Ensure there is a clear line of sight to the soundbar.
• Funcions específiques que no funcionen:
  • Verify that your LG Soundbar model is listed as compatible with the AKB74815301 remote.
  • Some advanced features of your original soundbar remote may not be present on this replacement remote if they are not standard functions.

Especificacions

This image illustrates the physical dimensions of the VINABTY AKB74815301 remote control, measuring approximately 4.53 inches in length and 1.77 inches in width.

Garantia i Suport

For any issues or questions regarding your VINABTY AKB74815301 remote control, please refer to the retailer or manufacturer's support channels. Keep your purchase receipt for warranty claims, if applicable.
