1. Introducció
This manual provides essential information for the setup, operation, and maintenance of your Xtrfy K4 RGB Mechanical Gaming Keyboard. Please read these instructions carefully to ensure optimal performance and longevity of your device. The Xtrfy K4 RGB is designed for high-performance gaming and typing, featuring durable mechanical switches and customizable RGB illumination.
2. Contingut del paquet
Verifiqueu que tots els elements siguin presents al vostre paquet:
- Xtrfy K4 RGB Mechanical Gaming Keyboard
- Cable USB (adjunt)
- Manual d'usuari (aquest document)
3. Configuració
Follow these steps to set up your Xtrfy K4 RGB keyboard:
- Descomprimir el teclat: Traieu amb cura el teclat del seu embalatge.
- Connexió a l'ordinador: Plug the attached USB-A cable from the keyboard into an available USB port on your computer. The keyboard is plug-and-play and does not require additional drivers for basic functionality.
- Col·locació: Position the keyboard comfortably on your desk. Ensure stable placement for optimal use.

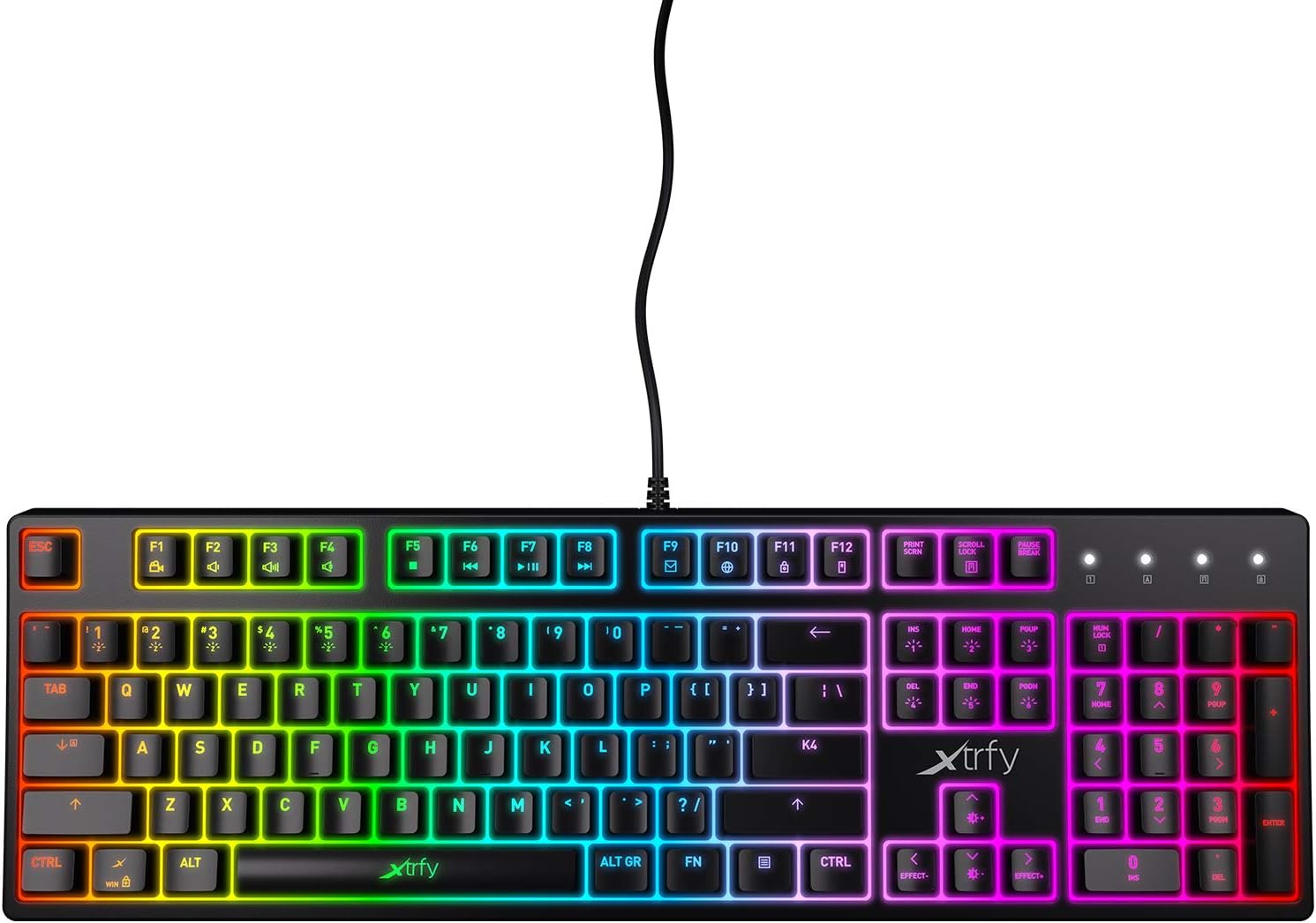

Figura 3.1: De dalt a baix view of the Xtrfy K4 RGB keyboard, showing key layout and attached USB cable.
4. Instruccions de funcionament
4.1 Funcions bàsiques del teclat
The Xtrfy K4 RGB functions as a standard mechanical keyboard. All keys are pre-programmed for their respective characters and functions. It features full N-key rollover and a 1000 Hz polling rate for precise and responsive input.
4.2 RGB Illumination Control
The keyboard features customizable RGB illumination. Use the Function (FN) key in combination with specific keys to adjust lighting effects, brightness, and colors. Refer to the keycap legends for specific lighting controls.
- FN + F1-F12: These keys often control media functions or system shortcuts. Specific functions are indicated by icons on the keycaps.
- FN + Tecles de fletxa: Typically used to adjust brightness or change lighting directions/patterns.
- FN + Insert/Home/Page Up/Delete/End/Page Down: These keys are commonly used to cycle through different RGB lighting modes and effects.
Figure 4.1: The Xtrfy K4 RGB keyboard showcasinla seva il·luminació RGB personalitzable.
5. Manteniment
Un manteniment adequat garanteix la longevitat i el rendiment del teclat:
- Neteja: Use a soft, dry cloth to wipe the surface of the keyboard. For deeper cleaning, use compressed air to remove dust and debris from between the keycaps. Avoid using harsh chemicals or abrasive materials.
- Eliminació de la tapa de les tecles (avançada): Si cal, les tapes de les tecles es poden treure amb cura amb un extractor de tapes de tecles per a una neteja a fons. Aneu amb compte per evitar danyar els interruptors.
- Emmagatzematge: Quan no l'utilitzeu, guardeu el teclat en un lloc net i sec, allunyat de la llum solar directa i de temperatures extremes.
6. Solució De Problemes
If you encounter issues with your Xtrfy K4 RGB keyboard, refer to the following common solutions:
- El teclat no respon:
- Assegureu-vos que el cable USB estigui ben connectat tant al teclat com a l'ordinador.
- Prova de connectar el teclat a un port USB diferent.
- Reinicieu l'ordinador.
- Il·luminació RGB no funciona/incorrecta:
- Check if the lighting is turned off or set to a very low brightness using the FN key combinations.
- Ensure no software conflicts are present if you are using third-party lighting control applications.
- Claus que no es registren:
- Clean the affected key area to remove any debris that might be obstructing the switch.
- If the issue persists, contact Xtrfy support.
7. Especificacions
| Característica | Detall |
|---|---|
| Marca | Xtrfy |
| Número de model | XG-K4-RGB-R-US |
| Sèrie | K4 RGB |
| Descripció del teclat | Mecànica |
| Commutadors de tecles | Mechanical key switches (e.g., Kailh Red, depending on variant) |
| Il·luminació | RGB personalitzable |
| Taxa de votació | 1000 Hz |
| Canvi de clau N | Full N-key rollover |
| Connectivitat | USB-A (Corded Electric) |
| Dispositius compatibles | PC/Mac |
| Pes de l'article | 2.2 lliures (aprox. 1 kg) |
| Dimensions del producte (LxWxH) | 17.44" x 17.44" x 1.54" (approx. 44.3 x 44.3 x 3.9 cm) |
| Color | Negre |
8. Garantia i Suport
Xtrfy products are manufactured to high standards and come with a limited warranty. For specific warranty terms and conditions, please refer to the official Xtrfy weblloc o poseu-vos en contacte amb el seu servei d'atenció al client.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please visit the official Xtrfy support page or contact their customer service directly. Keep your purchase receipt as proof of purchase.
Assistència en línia: www.xtrfy.com/support
