ckpsms Replacement Hook Gear Set Instruction Manual

1. Introducció

This manual provides essential information for the installation and maintenance of your new ckpsms Replacement Hook Gear Set. This set includes part numbers 174204 and 163996, designed to replace worn or damaged gears in compatible Singer sewing machines. Proper installation ensures optimal performance and extends the life of your sewing machine.

Please read these instructions carefully before attempting any installation or repair.

2. Compatibilitat

This replacement gear set is compatible with the following Singer 600 series Touch-N-Sew sewing machine models:

• Singer 600 series Touch-N-Sew machines
• Models: 620, 625, 628, 629, 630, 635, 636, 638, 639, 640, 645, 646, 648, 649

3. Peces incloses

The ckpsms Replacement Hook Gear Set includes the following components:

• Part #163996: Lower right horizontal gear
• Part #174204: Bottom vertical gear

Image: The two replacement gears, Part #174204 and Part #163996.

4. Configuració i instal·lació

Replacing sewing machine gears requires careful attention and mechanical aptitude. If you are not comfortable performing this repair, it is recommended to seek assistance from a qualified sewing machine technician.

Passos generals d'instal·lació:

1. La seguretat primer: Always unplug your sewing machine from the power outlet before beginning any repair or maintenance.
2. Access the Gears: Depending on your specific Singer 600 series model, you will need to remove the necessary covers and panels to access the internal gear mechanisms. Refer to your sewing machine's original service manual for detailed disassembly instructions.
3. Identify Old Gears: Locate the existing lower right horizontal gear (corresponding to #163996) and the bottom vertical gear (corresponding to #174204). These are typically found in the lower shaft assembly and the vertical shaft connecting to the hook mechanism.
4. Remove Old Gears: Carefully remove the old, worn, or broken gears. This may involve loosening set screws, removing retaining clips, or gently prying them off the shafts. Note the orientation and position of the old gears before removal.
5. Install New Gears: Slide the new ckpsms gears onto their respective shafts.
   • Instal·lar Part #163996 (Lower right horizontal gear) onto its shaft.
   • Instal·lar Part #174204 (Bottom vertical gear) onto its shaft.
   Ensure the gears are properly seated and aligned. The diagram below illustrates the general location of these gears within a sewing machine.
6. Secure Gears: Tighten any set screws or reattach retaining clips to secure the new gears in place. Do not overtighten.
7. Timing and Adjustment: After replacing gears, it is crucial to check and adjust the timing of your sewing machine. Incorrect timing can lead to skipped stitches, needle breakage, or other operational issues. Consult your sewing machine's service manual for specific timing procedures.
8. Torneu a muntar: Carefully reassemble all covers and panels that were removed.

Image: Diagram indicating the approximate installation locations for gears #174204 and #163996 within a sewing machine.

5. Funcionament (postinstal·lació)

After successful installation and reassembly, perform a test run of your sewing machine:

• Connecteu la màquina i engegueu-la.
• Slowly operate the machine without thread to ensure all mechanisms move smoothly and quietly.
• Thread the machine and perform test stitches on a scrap piece of fabric. Check for proper stitch formation, tension, and smooth operation.
• If any issues arise, refer to the Troubleshooting section or consult a professional technician.

6. Manteniment

To ensure the longevity of your new gears and the overall health of your sewing machine:

• Neteja regular: Periodically clean lint and debris from the gear areas and other moving parts.
• Lubricació: Apply appropriate sewing machine oil to moving metal parts as recommended by your sewing machine's original manual. Avoid over-lubrication.
• Servei professional: Consider professional servicing every 1-2 years to ensure all components are in good working order and properly adjusted.

7. Solució De Problemes

If you encounter problems after installing the replacement gears, consider the following:

• Machine Not Running Smoothly/Noisy:
  • Check if gears are properly seated and secured.
  • Ensure no debris is caught in the gear teeth.
  • Verify proper lubrication.
• Skipped Stitches/Poor Stitch Quality:
  • This often indicates incorrect timing. Re-check the machine's timing according to your service manual.
  • Ensure the needle is inserted correctly and is not bent or dull.
• Machine Jams:
  • Check for thread jams in the bobbin area or needle plate.
  • Verify that all covers are correctly reassembled and not interfering with moving parts.

If problems persist, it is advisable to consult a professional sewing machine repair technician.

8. Especificacions

• Producte: Replacement Hook Gear Set
• Marca: ckpsms
• Números de peça: 174204, 163996
• Compatibilitat: Singer 600 series Touch-N-Sew sewing machines (Models 620, 625, 628, 629, 630, 635, 636, 638, 639, 640, 645, 646, 648, 649)
• Gear Dimensions (Approximate):
  • Part #174204 (Bottom vertical gear): Inner diameter approx. 7.87mm
  • Part #163996 (Lower right horizontal gear): Inner diameter approx. 6.33mm

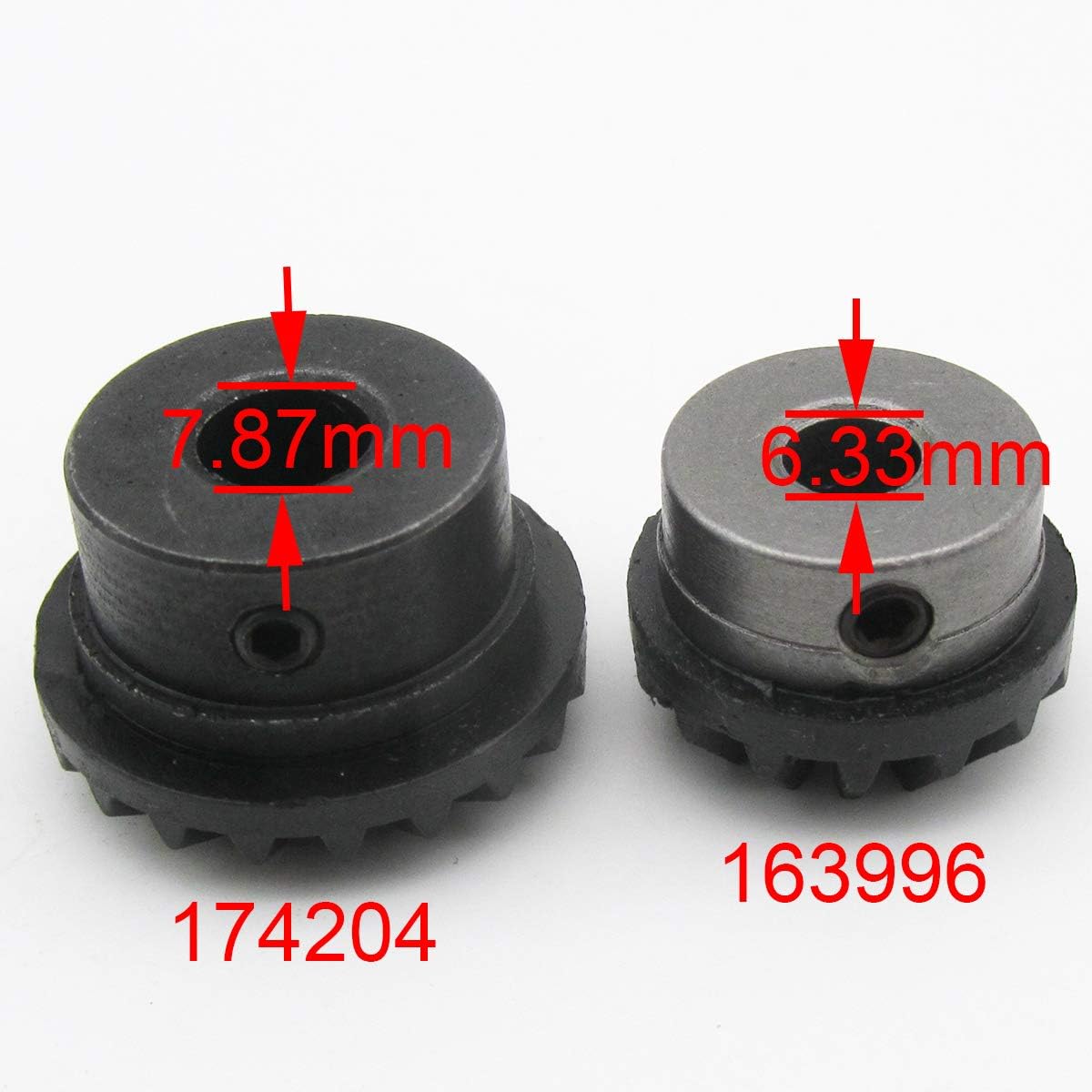

Image: Dimensions of the replacement gears, Part #174204 and Part #163996.

9. Garantia i Suport

Specific warranty information for this ckpsms replacement part is not provided in this manual. For details regarding warranty coverage or technical support, please contact the manufacturer, ckpsms, directly or refer to the product's original purchase documentation.

També podeu visitar el ckpsms Store on Amazon for additional product information or to contact their support.
