RYOBI Multi Surface Level ELL1750 Instruction Manual

Introducció

The RYOBI Multi-Surface Laser Level (Model ELL1750) is an innovative tool designed for various leveling projects. It offers multiple attachment methods and features a 90-degree protractor for accurate angle measurements, ensuring precision and convenience for both DIY enthusiasts and professionals.

Informació de seguretat

ADVERTIMENT: This product emits a laser. Avoid direct eye exposure to the laser beam. Do not stare into the beam. Always operate the device in a safe manner, away from children and unauthorized personnel. Follow all local safety regulations.

• No intenteu modificar ni desmuntar el nivell làser.
• Guardeu el dispositiu en un lloc segur quan no l'utilitzeu.
• Assegureu-vos que la zona de treball estigui lliure d'obstacles i possibles perills.

Contingut del paquet

• RYOBI Multi Surface Laser Level (ELL1750)
• 2 piles AAA (incloses)
• Wall attachment accessories (suction cups, pins, magnets)
• 90-degree protractor attachment
• Manual d'instruccions

Note: This item is bulk packaged and may arrive in a generic box.

Característiques del producte

• Multi-Surface Attachment: Equipped with three methods for hands-free leveling: suction cups for smooth surfaces, pins for textured surfaces, and magnets for metal surfaces.
• 90-Degree Protractor: Integrated protractor allows for accurate leveling of items with an angle.
• Horizontal and Vertical Bubble Vials: Ensures precise leveling for all applications.
• 20 ft. Laser Range: Projects a clear laser line up to 20 feet for various project sizes.
• Disseny compacte: Lightweight and easy to handle for both DIY and professional tasks.

Configuració

1. Instal·lació de la bateria

1. Localitzeu la tapa del compartiment de la bateria al dispositiu.
2. Open the cover and insert 2 AAA batteries, ensuring correct polarity (+/-).
3. Tanqueu bé la tapa del compartiment de la bateria.

2. Attaching the Protractor

Align the 90-degree protractor attachment with the designated slots on the laser level and secure it firmly. This allows for precise angle measurements.

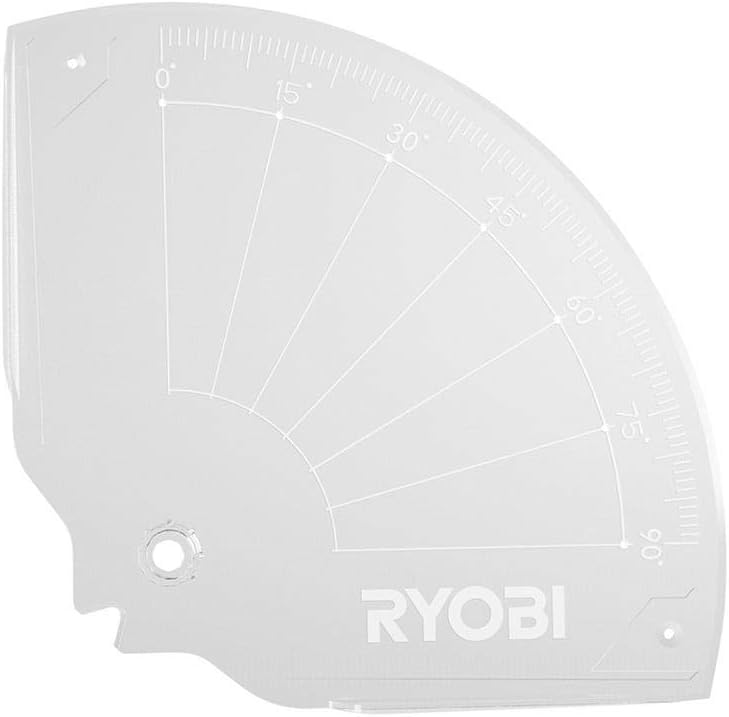

Image: The RYOBI Multi Surface Level with its clear 90-degree protractor attachment, showing angle markings.

Instruccions de funcionament

1. Encès / apagat

Press the power button located on the device to turn the laser level on or off. The laser line will project once powered on.

Imatge: De dalt a baix view of the RYOBI Multi Surface Level, highlighting the power button and the horizontal and vertical bubble vials.

2. Attachment Methods for Hands-Free Leveling

The RYOBI Multi Surface Level offers versatile attachment options:

• Ventoses: For smooth, non-porous surfaces like glass, tiles, or painted drywall. Press the suction cups firmly against the surface until they adhere.
• Pins: For textured surfaces or wallpapers where suction cups may not hold. Gently push the pins into the surface to secure the device.
• Imants: For attaching to metal surfaces such as steel beams, metal shelving, or appliance sides. The strong magnets will hold the level in place.

Imatge: Part inferior view of the RYOBI Multi Surface Level, showing the suction cups and magnetic base for various attachment options.

3. Achieving Level Lines

1. Attach the laser level to your desired surface using one of the methods described above.
2. Adjust the device until the bubble in the horizontal or vertical vial is centered, indicating a level or plumb position.
3. The projected laser line will provide an accurate reference for your task.

Image: A woman using the RYOBI Multi Surface Level, attached to a wall with suction cups, to project a horizontal laser line for marking. The level is positioned on a staircase wall.

Image: The RYOBI Multi Surface Level positioned in a corner on a floor, projecting cross laser lines to assist with tile alignment during installation.

Manteniment

• Keep the laser lens clean and free of dust or debris. Use a soft, dry cloth for cleaning.
• Guardeu el dispositiu en un lloc fresc i sec quan no l'utilitzeu.
• Traieu les piles si no heu d'utilitzar el dispositiu durant un període prolongat per evitar fuites.
• Regularly check the battery compartment for corrosion.

Resolució de problemes

• Laser not turning on: Comproveu la instal·lació de les piles i assegureu-vos que no estiguin esgotades. Substituïu-les si cal.
• Laser line is dim or flickering: Replace batteries. Ensure the laser lens is clean.
• Device not adhering to surface: For suction cups, ensure the surface is clean, smooth, and non-porous. For pins, ensure they are fully inserted. For magnets, ensure the surface is ferrous metal.
• Lectures inexactes: Ensure the device is properly leveled using the bubble vials. Avoid extreme temperatures or vibrations during use.

Especificacions

Vídeos oficials de productes

Garantia i Suport

Per obtenir informació sobre la garantia, assistència tècnica o consultes sobre el servei tècnic, consulteu el lloc web oficial del fabricant. weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el rebut de compra per a reclamacions de garantia.
