1. Introducció
This manual provides detailed instructions for the safe and effective use of the ANENG AN870 Digital Multimeter. The AN870 is a battery-powered, True-RMS, auto-ranging digital multimeter featuring a 19999-count LCD display with backlight. It is designed for measuring AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode, Continuity, Frequency, Duty Cycle, and Temperature. Its stable function, high reliability, and overload protection make it an ideal tool for professionals and hobbyists alike.
2. Característiques del producte
- Visualització de 19999 comptes: High-resolution LCD for precise readings.
- Mesura de RMS veritable: Proporciona lectures precises per a formes d'ona no sinusoïdals.
- Classificació automàtica: Automatically selects the correct measurement range.
- Multifuncionalitat: Mesures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode, Continuity, Frequency, Duty Cycle, and Temperature.
- Pantalla de retroil·luminació: Ensures clear readability in low-light conditions.
- Conservació de dades: Congela la lectura mostrada per a un registre còmode.
- Mesura relativa: Allows for comparison of measurements.
- Protecció de sobrecàrrega: Enhances safety and durability.
- Volum baixtage Indicació: Alertes quan la bateria és baixa.
- Apagat automàtic: Conserva la durada de la bateria.

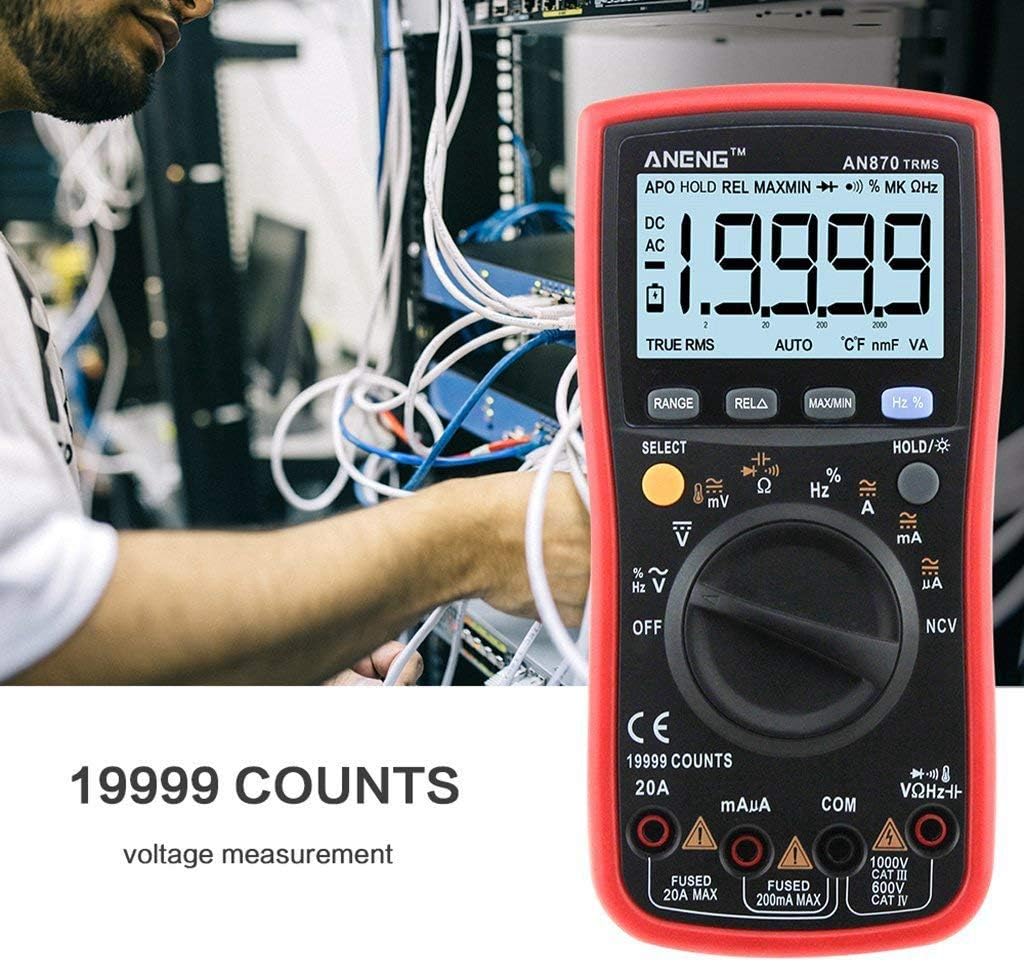

Image: The ANENG AN870 Digital Multimeter's display showing '19999 COUNTS' for voltage measurement, highlighting its high resolution.
3. Contingut del paquet
Upon opening your ANENG AN870 Digital Multimeter package, please verify that all the following items are included:
- ANENG AN870 Digital Multimeter
- Cables de prova (vermell i negre)
- Sonda de temperatura
- Multi-function Test Leads / Alligator Clips
- Manual d'usuari (aquest document)
- Maleta de transport
Image: The ANENG AN870 Digital Multimeter, along with its test leads, temperature probe, and other accessories, neatly organized within its protective carrying case.
Imatge: Un primer pla view of the various test leads, including standard probes and alligator clips, and other small accessories that come with the multimeter.
4. Configuració
4.1 Instal·lació de la bateria
The ANENG AN870 Multimeter requires 2 x 1.5V AAA batteries (not included). To install or replace batteries:
- Assegureu-vos que el multímetre estigui APAGAT.
- Localitzeu la tapa del compartiment de la bateria a la part posterior de la unitat.
- Feu servir un tornavís per afluixar el cargol que fixa la tapa.
- Traieu la tapa del compartiment de la bateria.
- Insert the AAA batteries, observing the correct polarity (+ and -) as indicated inside the compartment.
- Substituïu la tapa del compartiment de la bateria i premeu el cargol.
Imatge: La part posterior view of the ANENG AN870 Multimeter with its battery compartment open, showing where the batteries are inserted.
4.2 Connexió dels cables de prova
Connecteu sempre els cables de prova correctament per a la mesura desitjada:
- Introduïu el cable de prova negre al COM Jack (comú).
- Per a la majoria de volumstage, resistance, continuity, diode, capacitance, and frequency measurements, insert the red test lead into the VΩHz jack.
- For current measurements up to 400mA, insert the red test lead into the mAµA jack.
- For high current measurements up to 10A, insert the red test lead into the 10A jack.
5. Instruccions de funcionament
5.1 Encès/Apagat
Rotate the function switch from the OFF position to any desired measurement function to turn the multimeter ON. To turn the multimeter OFF, rotate the function switch back to the OFF position.
5.2 Funcions de mesura
Select the desired measurement function by rotating the central rotary switch. Use the 'SELECT' button to toggle between AC/DC modes or different sub-functions within a range (e.g., Resistance, Diode, Continuity).
- Voltage Measurement (V~ / V-): Connect leads in parallel with the circuit.
- Current Measurement (A~ / A-): Connect leads in series with the circuit. Ensure correct jack (mAµA or 10A) is used.
- Resistance Measurement (Ω): Ensure circuit is de-energized before measuring.
- Capacitance Measurement (F): Ensure capacitor is discharged before measuring.
- Diode Test (→|): Used to check diode functionality and forward voltage gota.
- Continuity Test (•))): Emits an audible tone if resistance is below a certain threshold.
- Freqüència (Hz) / Cicle de treball (%): Measures the frequency and duty cycle of AC signals.
- Temperature Measurement (°C/°F): Use the included temperature probe.
Image: A user holding the ANENG AN870 Multimeter and its test leads, performing a measurement on a circuit board, demonstrating typical usage.
5.3 Funcions especials
- GAMMA: Press to manually select a range instead of auto-ranging.
- RELΔ (Relative Measurement): Press to store the current reading as a reference for subsequent measurements.
- MÀXIM / MÍN: Press to display the maximum or minimum reading recorded during a measurement session.
- HOLD/* (Data Hold/Backlight): Press briefly to hold the current reading. Press and hold to toggle the backlight.
- NCV (vol sense contacte).tage): Detecta AC voltagi sense contacte directe.
6. Manteniment
6.1 Neteja
Netegeu el cas amb l'anunciamp cloth and mild detergent. Do not use abrasives or solvents. Keep the terminals free of dirt and moisture.
6.2 Substitució de la bateria
Refer to Section 4.1 for battery replacement instructions when the low battery indicator appears on the display.
6.3 Canvi de fusibles
If the current measurement function fails, the fuse may need replacement. This should only be performed by qualified personnel. Refer to the specifications for fuse type and rating.
6.4 Emmagatzematge
If the multimeter is not used for a long period, remove the batteries to prevent leakage and damage. Store the device in a cool, dry place, away from direct sunlight and extreme temperatures.
7. Solució De Problemes
If you encounter issues with your ANENG AN870 Multimeter, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense pantalla o pantalla tènue | Piles baixes o gastades; instal·lació incorrecta de la bateria. | Canvieu les piles; comproveu la polaritat de les piles. |
| Es mostra "OL" (sobrecàrrega) | Input value exceeds selected range; Input value exceeds maximum rating. | Switch to a higher range (if not in auto-range); Ensure input is within device limits. |
| Lectures inexactes | Poor test lead connection; Interference; Damaged test leads. | Ensure leads are firmly connected; Move away from strong electromagnetic fields; Replace damaged leads. |
| La mesura de corrent no funciona | Blown fuse; Incorrect lead connection. | Check and replace fuse (if qualified); Ensure red lead is in mAµA or 10A jack. |
8. Especificacions
The following table details the technical specifications of the ANENG AN870 Digital Multimeter:
| Paràmetre | Especificació |
|---|---|
| Mostra | 19999 Counts LCD with Backlight |
| Main Measurements | Volum AC / DCtage, AC/DC Current, Resistance, Capacitance, Diode, Continuity, Frequency, Duty Cycle, Temperature |
| DC Voltage | 400mV/4V/40V (±0.5%+4), 400V/600V (±0.8%+4) |
| Vol. ACtage | 400mV (±1.5%+4), 4V/40V/400V (±1.2%+4), 600V (±1.5%+4) |
| Corrent DC | 40mA/400mA (±1.0%+4), 10A (±1.5%+4) |
| Corrent alterna | 40mA/400mA/10A (±2.0%+4, 50-200Hz) |
| Resistència | 400Ω/4K/40K/400K/4MΩ (±0.8%+4), 40MΩ (±2.0%+4) |
| Freqüència | 1Hz to 10MHz (99.5/999.5/9.999k/99.99k/999.9k/9.999MHz) (±0.08%+2) |
| Cicle de treball | 0.1% to 99.9% (±0.08%+2) |
| Indicació de sobreabast | OL |
| Entorn de treball | 0~40°C, relative humidity < 80% |
| Font d'alimentació | 3V (2 piles AAA d'1.5V) |
| Dimensions | 130 x 65 x 30 mm |
| Material | ABS |
| Número de model de l'article | ANENG 19999 Counts Digital Multimeter |
| UPC | 630282714588 |

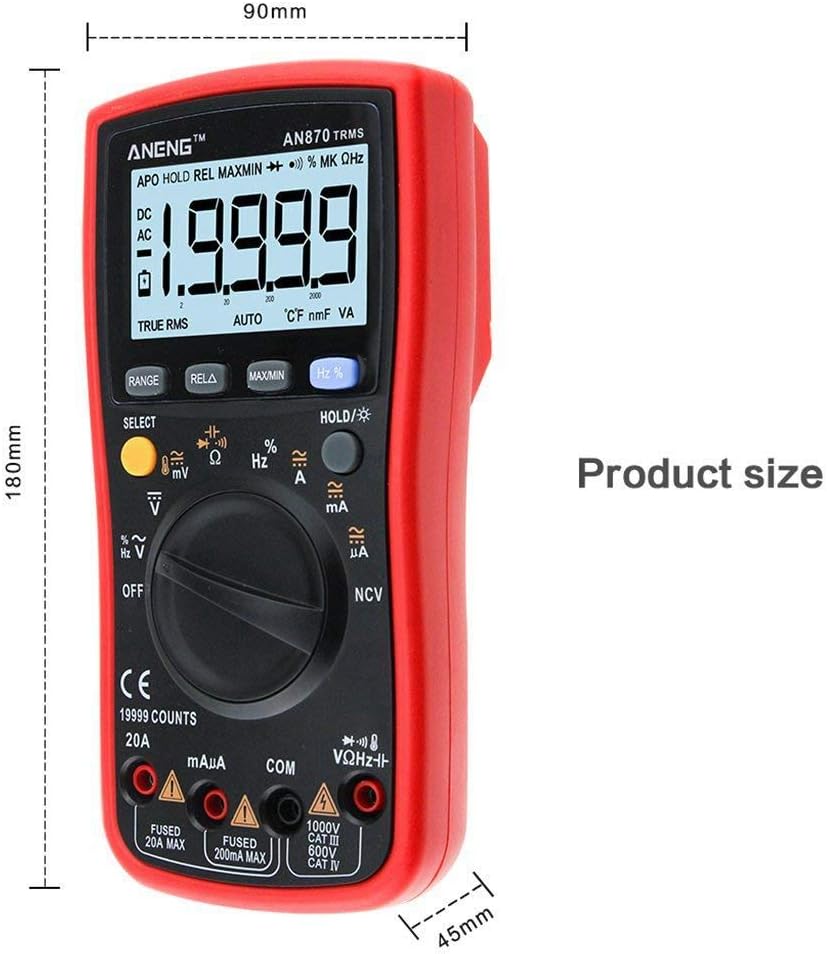

Image: A diagram illustrating the physical dimensions of the ANENG AN870 Multimeter, showing its length, width, and thickness.
Imatge: Un costat view of the ANENG AN870 Multimeter, showing its integrated kickstand extended for convenient hands-free operation on a workbench.
9. Garantia i Suport
For any technical support or inquiries regarding your ANENG AN870 Digital Multimeter, please refer to the contact information provided with your purchase or visit the manufacturer's official weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
