MOJOGEAR 177cm 2-in-1 Tripod

1. Informació de seguretat

• No supereu la capacitat de càrrega màxima de 4 kg.
• Ensure all locks and adjustments are securely tightened before use to prevent equipment damage.
• Keep the tripod away from extreme temperatures, moisture, and corrosive substances.
• Do not leave the tripod unattended in windy conditions, especially with equipment mounted.
• Mantenir fora de l'abast dels nens.

2. Contingut del paquet

Si us plau, verifiqueu que tots els elements siguin presents al vostre paquet:

• MOJOGEAR 177cm 2-in-1 Tripod (with detachable monopod)
• Premium Phone Holder with Cold Shoe Mount
• Placa d'alliberament ràpid
• Bossa de transport

3. Producte acabatview

Familiarize yourself with the main components of your MOJOGEAR tripod.

Figura 3.1: Mésview of the MOJOGEAR 2-in-1 Tripod, demonstrating its versatility as both a tripod and a monopod, along with the included phone holder.

Figure 3.2: The MOJOGEAR Tripod in its compact, folded state, highlighting the integrated carry handle for easy transport.

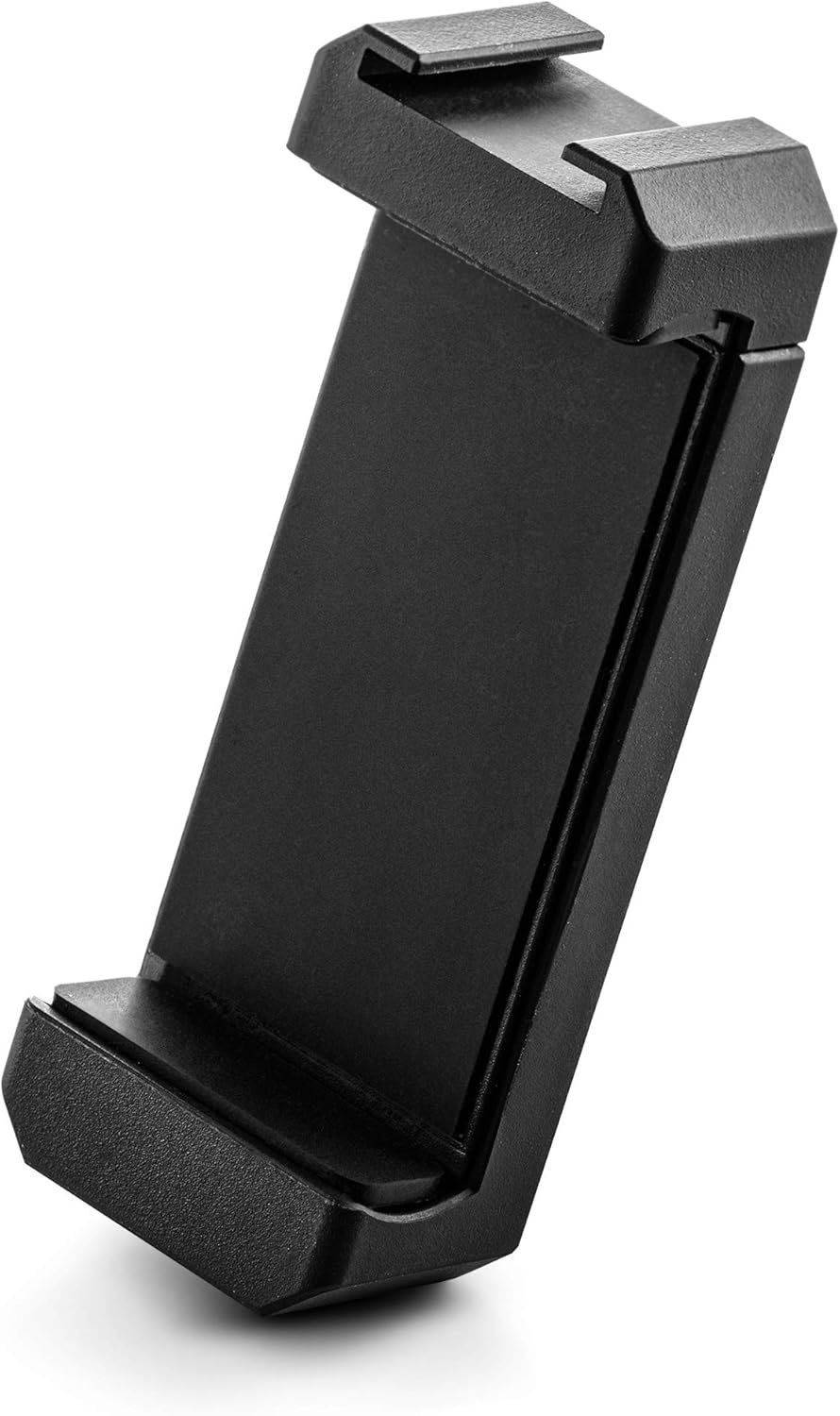

Figura 3.3: Detall view of the premium phone holder, designed to securely grip smartphones.

Figure 3.4: The tripod shown with a DSLR camera mounted, demonstrating its compatibility with professional camera equipment.

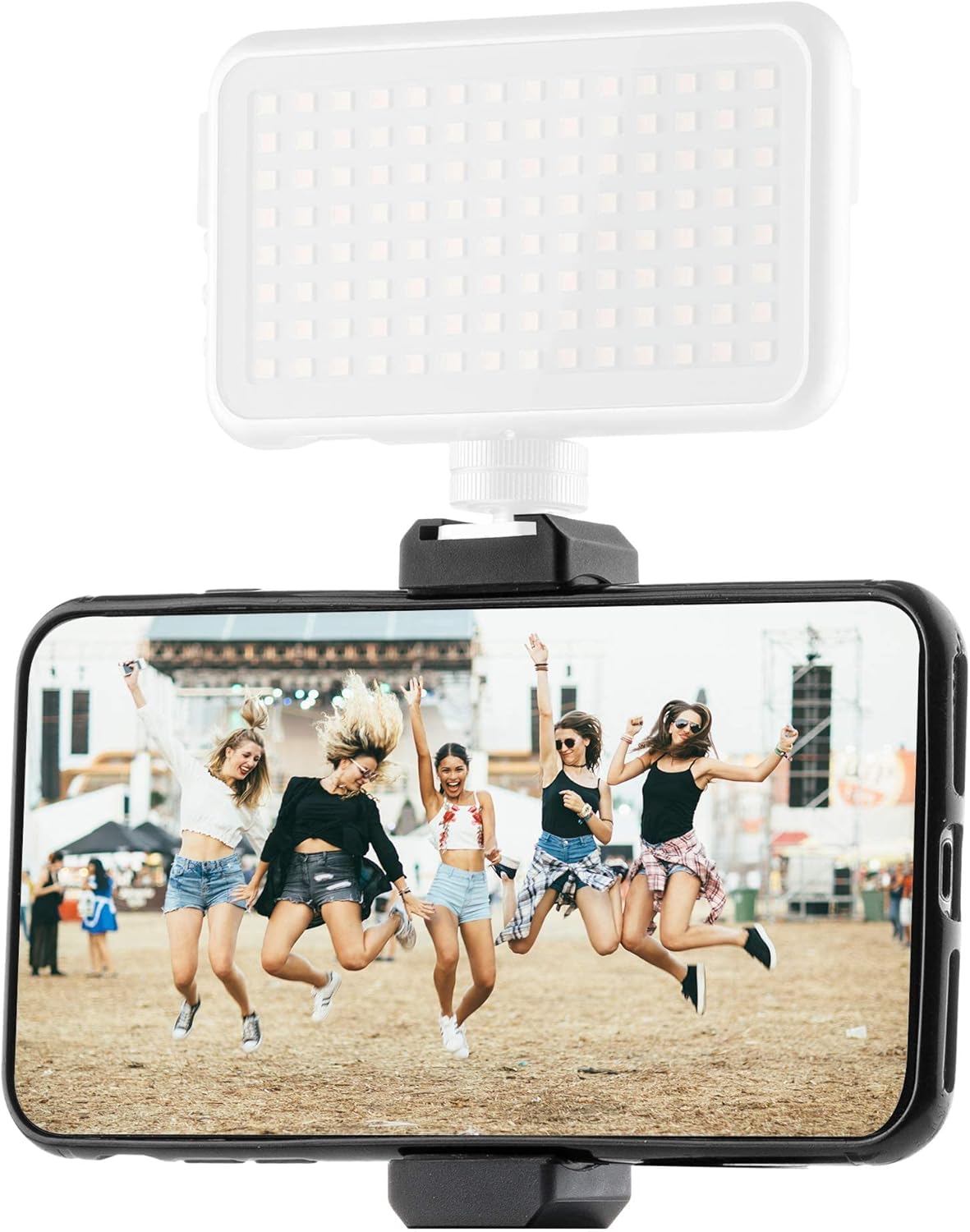

Figure 3.5: The phone holder in use with a smartphone, featuring an attached LED light via the cold shoe mount, illustrating accessory integration.

Figure 3.6: The durable carry bag included with the tripod, providing convenient storage and transport.

Figure 3.7: A visual representation of the monopod's adjustable height, ranging from 45cm to 165cm.

Figura 3.8: Un primer pla view of the tripod head, illustrating its ability to tilt for various shooting angles.

4. Instruccions de configuració

4.1 Desplegament del trípode

1. Col·loqueu el trípode sobre una superfície plana i estable.
2. Release the leg locks on each leg and extend them outwards until fully spread.
3. Adjust the leg sections to your desired height by opening the flip locks, extending the sections, and then closing the locks securely.

4.2 Fixació de la placa de fixació ràpida

1. Localitzeu la placa de fixació ràpida al capçal del trípode.
2. Press the release lever or button to detach the plate from the tripod head.
3. Screw the quick release plate onto the bottom of your camera or the phone holder using the 1/4-inch screw. Ensure it is tightened firmly.
4. Slide the quick release plate with your device back into the tripod head until it clicks securely into place.

4.3 Conversió a monopeu

1. Identify the central leg of the tripod, which is designed to detach.
2. Desenrosqueu la columna central del cos del trípode.
3. The detached central column can now be used as a standalone monopod. You can attach the tripod head or directly mount your camera/phone holder to its top screw.
4. Extend the monopod sections by opening the flip locks and securing them at your desired height (up to 165 cm).

5. Instruccions de funcionament

5.1 Adjusting the 3-Way Pan/Tilt Head

• Ajust de panoràmica: Loosen the horizontal locking knob to rotate the head 360 degrees horizontally. Tighten to secure.
• Ajust d'inclinació: Use the handle to tilt the camera up or down. Loosen the tilt locking knob to adjust the angle, then tighten to secure.
• Portrait/Landscape Mode: The quick release plate platform can be tilted 90 degrees for vertical shooting. Loosen the side knob, adjust, and tighten.

5.2 Using the Phone Holder

• Attach the phone holder to the quick release plate.
• Gently pull the spring-loaded top clamp of the phone holder upwards to insert your smartphone. Ensure it is securely seated.
• The phone holder features a cold shoe mount on top, allowing you to attach accessories like LED lights or microphones.

5.3 Anivellament del trípode

The tripod head includes an integrated bubble level. Adjust the tripod legs until the bubble is centered within the circle, indicating a perfectly level setup for your shots.

6. Manteniment

• Neteja: Netegeu el trípode amb un drap suau i sec després de cada ús. Per a la brutícia resistent, utilitzeu un drap lleugerament sec.amp drap i sabó suau, i després eixugueu-ho bé. Eviteu productes químics agressius.
• Emmagatzematge: Store the tripod in its carry bag in a cool, dry place, away from direct sunlight and extreme temperatures.
• Inspecció: Periodically check all screws, knobs, and leg locks for tightness. Ensure all moving parts operate smoothly. Do not force any components.

7. Solució De Problemes

• El trípode és inestable: Ensure all leg sections are fully extended and their flip locks are securely closed. Verify that the quick release plate is properly seated and locked onto the head. Check the ground for unevenness.
• Head movement is stiff: Check if all locking knobs are fully loosened. If the issue persists, a small amount of silicone-based lubricant can be applied to moving parts, but avoid over-lubrication.
• Camera/Phone not secure: Ensure the quick release plate is tightly screwed onto your device. Confirm the quick release plate is fully inserted and locked into the tripod head.

8. Especificacions

9. Garantia i Suport

MOJOGEAR products are designed for durability and performance. For any questions, technical support, or warranty claims, please contact MOJOGEAR customer service through the retailer's platform or the official MOJOGEAR weblloc web. Si us plau, conserveu el comprovant de compra per validar la garantia.
