ROFAVEZCO HDMI Splitter 1x2 4K 60Hz Instruction Manual

1. Introducció

Thank you for choosing the ROFAVEZCO HDMI Splitter 1x2. This device allows you to duplicate a single HDMI input signal to two HDMI output displays simultaneously. It supports high-resolution video up to 4K@60Hz, 1080p@120Hz, and advanced audio formats, making it ideal for various home theater and professional applications. Please read this manual carefully to ensure proper installation and operation.

2. Característiques del producte

• 4K 60Hz HDMI 1x2 Splitter: Duplicates one HDMI input to two HDMI outputs, supporting resolutions up to 4K@60Hz and 1080p@120Hz.
• Advanced Video Support: Compatible with 3D, HDR, Dolby Vision, HDCP 2.2, and HDCP 2.3 bypass. Supports 3840x2160@60Hz and 1440p@60Hz.
• Amplada de banda alta: 8-bit 18Gbps data transfer rate for smooth, high-quality video.
• Superior Audio Support: Supports Dolby Atmos, 7.1CH digital audio, DTS:X, Dolby True HD, and DTS-HD Master Audio.
• Gestió EDID: Features EDID management for optimal display compatibility.
• Funció d'escalador: Includes a scaler function to downscale 4K to 1080p for one output, allowing simultaneous use of 4K and 1080p displays.
• Plug and Play: Easy to set up with no drivers required. Powered via Micro USB.

3. Contingut del paquet

Si us plau, comproveu el contingut del paquet en obrir-lo. Si falta algun article o hi ha algun dany, poseu-vos en contacte amb el vostre distribuïdor.

• 1x ROFAVEZCO HDMI Splitter 1x2 (Model EZ-SP12H2)
• 1x USB Type-C Power Cable
• 1 x manual d'usuari

Figura 3.1: Contingut del paquet i dimensions del producte

The image above illustrates the compact design of the HDMI splitter, its packaging, the included USB Type-C power cable, and the user manual. The unit measures approximately 58mm x 52.8mm x 22mm.

4. Diagrama del producte

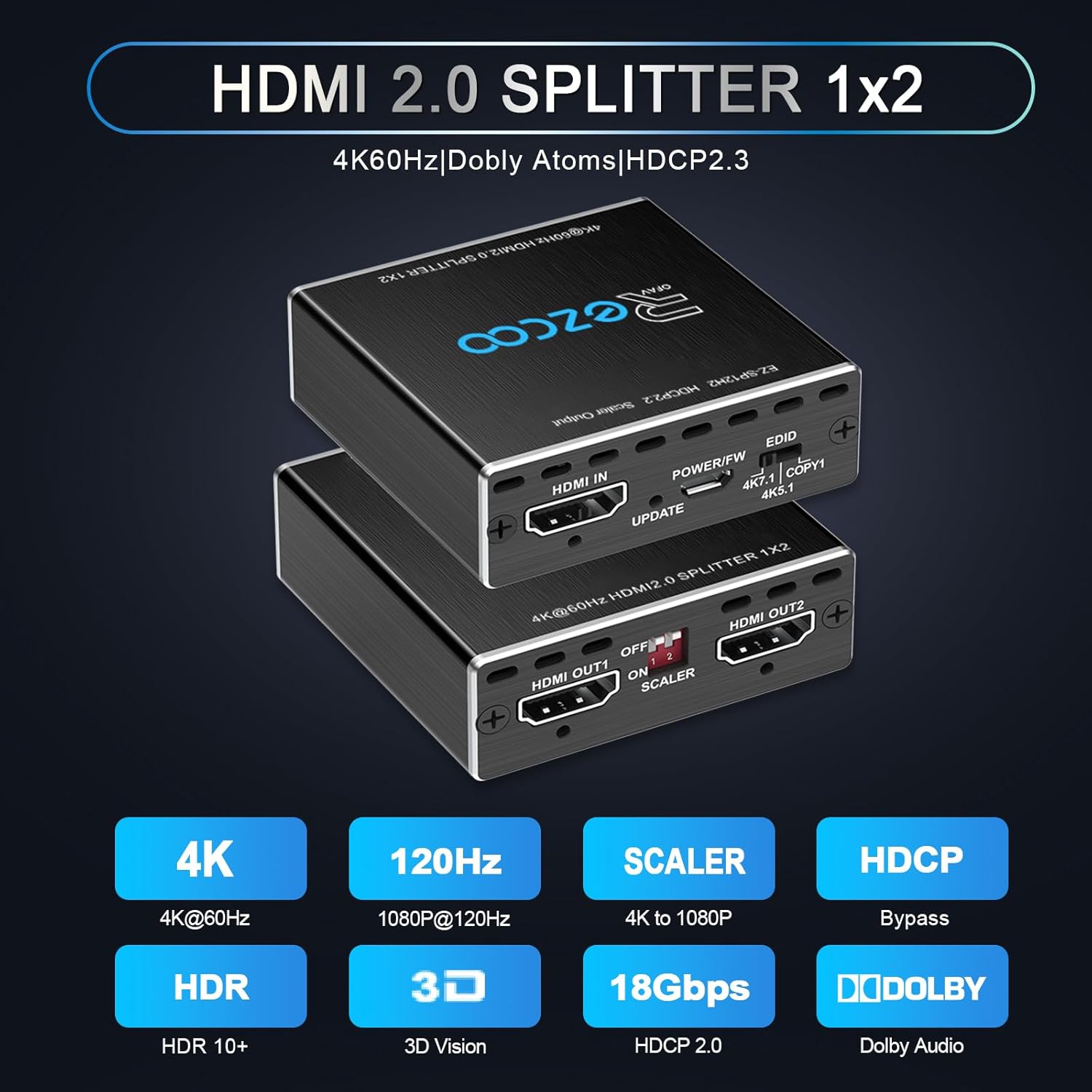

Figura 4.1: Panell frontal i posteriorview

The diagram above highlights the various ports and controls on the ROFAVEZCO HDMI Splitter:

• Entrada HDMI: Connect your source device (e.g., PS5, Xbox, Blu-ray player).
• SORTIDA HDMI 1: Connect to your primary display (e.g., 4K TV).
• SORTIDA HDMI 2: Connect to your secondary display (e.g., 1080p monitor, soundbar).
• POWER/FW: Micro USB port for power supply and firmware updates.
• Interruptor EDID: Used to configure EDID settings (4K7.1, 4K5.1, COPY1).
• SCALER Switch: Controls the 4K to 1080p downscaling function for Output 2.

5. Instruccions de configuració

Segueix aquests passos per configurar el teu divisor HDMI:

1. Connectar el dispositiu d'origen: Connect your HDMI source device (e.g., game console, media player) to the Entrada HDMI port on the splitter using a high-quality HDMI 2.0 cable (recommended length under 3 meters).
2. Connecta les pantalles:
   • Connect your primary display (e.g., 4K TV) to the SORTIDA HDMI 1 port.
   • Connect your secondary display (e.g., 1080p monitor or soundbar) to the SORTIDA HDMI 2 port.
3. Encès: Connect the included USB Type-C power cable to the POWER/FW port on the splitter and then to a 5V/1A-5V/3A USB power adapter (not included) or a USB port on your source device/TV.
4. Configure EDID and Scaler: Adjust the EDID and SCALER switches according to your display requirements (refer to Section 7 for details).
5. Dispositius d'encesa: Power on your displays and source device. The splitter should automatically detect the signals.

Figura 5.1: Diagrama de connexió bàsic

This diagram illustrates a typical setup where a source device (Xbox) is connected to the splitter's input, and the splitter's outputs are connected to a 4K TV and a 1080p TV. The scaler function can be used to ensure compatibility with both displays.

6. Instruccions de funcionament

The ROFAVEZCO HDMI Splitter operates automatically once connected and powered. It supports two primary modes of operation:

6.1 Mode mirall

In Mirror Mode, the splitter duplicates the input signal to both HDMI OUT1 and HDMI OUT2, displaying the same content on both screens. This is ideal for presentations, gaming setups with multiple displays, or simply watching content on two screens simultaneously.

6.2 Soundbar Mode

When using a soundbar or AV receiver for audio, you can connect your primary display to HDMI OUT1 and your soundbar/receiver to HDMI OUT2. Ensure your EDID settings are configured correctly to pass through the desired audio format.

Figure 6.1: Mirror Mode and Soundbar Mode Setup

This image illustrates how to configure the splitter for Mirror Mode (top) where two displays show identical content, and Soundbar Mode (bottom) where one display receives video and a soundbar receives audio, often with the scaler enabled for the soundbar output if it's an older model.

7. EDID and Scaler Settings

The EDID and SCALER switches on the splitter allow you to optimize video and audio output for different display configurations.

Figure 7.1: EDID and Scaler Switch Configuration

7.1 Configuració EDID

The EDID (Extended Display Identification Data) switch has three positions:

• 4K7.1: Forces the output to 4K@60Hz 4:4:4, Dolby Vision, Dolby Atmos, 7.1CH, 3D, HDR. Use this setting when both displays support these advanced formats.
• 4K5.1: Forces the output to 4K@60Hz 4:4:4, 5.1CH, 3D, HDR. Suitable for setups where 5.1 channel audio is preferred.
• COPY1: Copies the EDID from HDMI OUT1. This is useful when you want the splitter to mimic the capabilities of your primary display.

7.2 Scaler Settings

The SCALER switch controls the downscaling function for HDMI OUT2:

• Position 1 (OFF): For HDMI OUT1, the signal passes through without scaling.
• Position 2 (OFF): For HDMI OUT2, the signal passes through without scaling.
• Position 1 (ON): For HDMI OUT1, the signal passes through without scaling.
• Position 2 (ON): For HDMI OUT2, 4K signals are downscaled to 1080p. This allows a 4K source to be displayed on both a 4K TV (OUT1) and a 1080p TV (OUT2) simultaneously.

Nota: The scaler does not downscale refresh rate or Dolby Vision. If using 4K HDR Dolby Vision, please turn OFF the SCALER function.

8. Compatibilitat

The ROFAVEZCO HDMI Splitter offers wide compatibility with various devices and displays:

• Dispositius font: PS5, PS4, Nintendo Switch, Xbox One S, Xbox X, Nvidia Shield, Roku Ultra, Apple TV, Chromecast, Google TV, Fire TV, Fire Stick, Xfinity Box, Elgato Game Capture, set-top boxes, cable satellite boxes, PC laptops, HD cameras, HD DVRs, Comcast.
• Dispositius de visualització: TVs, monitors, projectors, soundbars.

Figure 8.1: Wide Device Compatibility

This image visually confirms the broad range of devices compatible with the splitter, from gaming consoles and streaming devices to various display types and audio equipment.

8.1 HDCP Bypass

The splitter features automatic HDCP 2.2 and HDCP 2.3 bypass, allowing you to connect HDCP-protected content sources to displays that might not fully support the latest HDCP versions.

Figure 8.2: Automatic HDCP Bypass

The diagram above demonstrates the splitter's ability to automatically bypass HDCP, ensuring that protected content from sources like a PS4 can be displayed without issues on compatible screens.

9. Manteniment

To ensure the longevity and optimal performance of your HDMI splitter, follow these simple maintenance guidelines:

• Neteja: Use a soft, dry cloth to clean the unit. Avoid liquid cleaners or abrasive materials.
• Ventilació: Ensure the unit is placed in a well-ventilated area to prevent overheating. Do not block any ventilation openings.
• Cura del cable: Handle HDMI cables carefully. Avoid bending them sharply or pulling them forcefully, as this can damage the connectors or internal wiring.
• Font d'alimentació: Always use the provided USB power cable and a compatible 5V/1A-5V/3A power adapter.

10. Solució De Problemes

If you encounter issues with your HDMI splitter, refer to the following common problems and solutions:

• Sense senyal a la pantalla:
  • Ensure all HDMI cables are securely connected to the correct ports.
  • Verify the splitter is receiving power from the USB cable.
  • Check the input source selection on your display.
  • Try different HDMI cables, especially high-quality HDMI 2.0 cables under 3 meters.
  • Adjust the EDID switch settings to match your display's capabilities.
• Intermittent Video or Audio:
  • This often indicates poor quality or excessively long HDMI cables. Use certified HDMI 2.0 cables, preferably under 3 meters.
  • Ensure the splitter is adequately powered. Some devices may require a dedicated power adapter rather than a TV's USB port.
  • Check for overheating. Ensure the unit has proper ventilation.
• Sense àudio o format d'àudio incorrecte:
  • Verify your displays and audio system support the audio format being sent by the source.
  • Adjust the EDID switch to a setting that includes the desired audio format (e.g., 4K7.1 for Dolby Atmos).
  • Ensure your soundbar or AV receiver is correctly configured to receive audio from the HDMI input.
• 4K Content Not Displaying on 1080p TV:
  • Ensure the SCALER switch for HDMI OUT2 is set to ON to enable 4K to 1080p downscaling.
• HDR/Dolby Vision Issues:
  • Ensure both your source and display support HDR/Dolby Vision.
  • The splitter does not downscale HDR Dolby Vision (4K60 4:2:2) or convert HDR to SDR.
  • Turn OFF the SCALER function when using 4K HDR Dolby Vision.

11. Especificacions

12. Notes i avisos importants

• Aquest dispositiu ho fa NO support ARC (Audio Return Channel), e-ARC/Sonos ARC, CEC (Consumer Electronics Control), VRR (Variable Refresh Rate), 4K@120Hz, or upscaling.
• Ho fa NO downscale HDR Dolby Vision (4K60 4:2:2) or VRR.
• Ho fa NO convert HDR to SDR.
• There is no audio down-mixer.
• For optimal performance, use high-quality HDMI 2.0 cables with a length of less than 3 meters.
• To achieve both Dolby Atmos and Dolby Vision, ensure that both your TV and receiver/sound system support these formats.

13. Garantia i Suport

Warranty information for this product is not explicitly provided in the available product data. For details regarding warranty coverage, returns, or technical support, please contact the seller or manufacturer directly through their official channels.
