1. Introducció
This manual provides essential information for the installation, operation, and maintenance of the Balboa GS510SZ Spa and Hot Tub Control Box. The GS510SZ system is designed with Balboa's patented M7 water temperature and flow sensing technology, enhancing reliability, ease of service, and system installation.

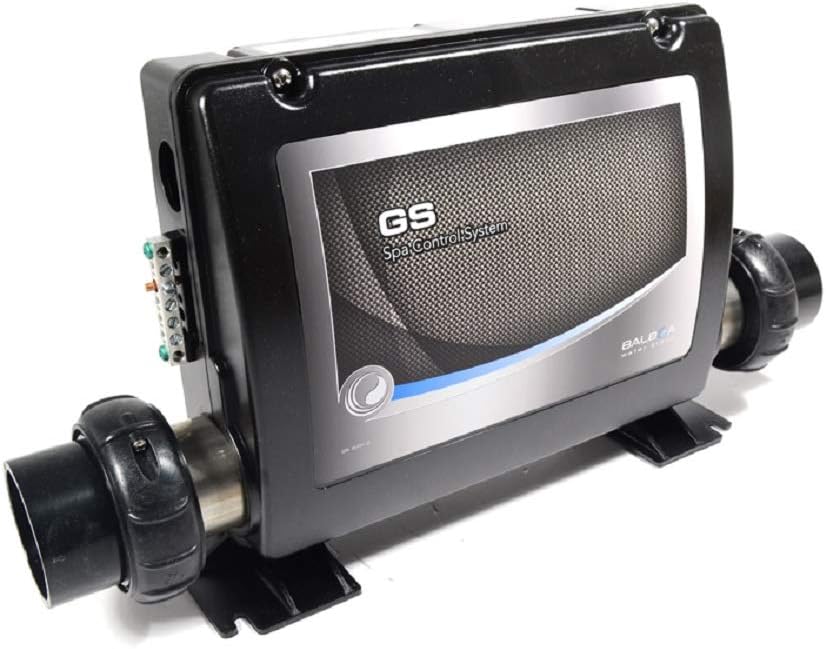

Figura 1: Frontal view of the Balboa GS510SZ Spa Control Box, showcasing its compact design and integrated display area.
2. Configuració i instal·lació
The Balboa GS510SZ control box is a direct replacement unit. When replacing an existing unit, verify the serial number 54517 on your outgoing unit matches for compatibility. This system is designed to operate with a variety of Serial Std panels, including VL701S and VL700S touch panels, with the exception of configurations identical to a GS510DZ.
2.1 Dimensions
- Longitud: 26.82 cm (10.56 polzades)
- Amplada: 31.14 cm (12.26 polzades)
- Alçada: 11.68 cm (4.60 polzades)
2.2 Connexions
All components connect to this pack via AMP plugs, ensuring secure and straightforward connections.
Figura 2: Intern view of the Balboa GS510SZ control box, showing the circuit board, heater assembly, and wiring connections.
3. Operating Configuration
The GS510SZ control box supports the following operational configurations:
- Ventilador: 1 velocitat
- Pump 1: 2 speeds (single or dual speed pump + circulation pump if required)
- Pump 2: 1 velocitat
- Escalfador: 3 kW with M7 technology (15-inch assembly with 2-inch diameter)
- Spa Lamp: 10V 12W - On/Off control
- Ozó: Connexió disponible
- Audio Visual Output: Connexió disponible
4. Maintenance and Reliability
The Balboa Global Series (GS) control systems, including the GS510SZ, are designed with M7 patented sensor technology. This technology significantly increases the reliability and ease of service for the system. The custom plastic enclosure is built for durability and ease of access for maintenance.
4.1 Environmental Compliance
The GS510SZ system is RoHS compliant, reflecting an environmentally friendly design and manufacturing process.
Figure 3: The Balboa GS510SZ control box with its cover removed, illustrating the accessible internal components for service and maintenance.
5. Solució De Problemes
A key feature for enhanced reliability and reduced troubleshooting is the integration of M7 flow and temperature sensors. These advanced sensors replace the older, failure-prone mechanical pressure/flow switches, minimizing common issues related to water flow detection.

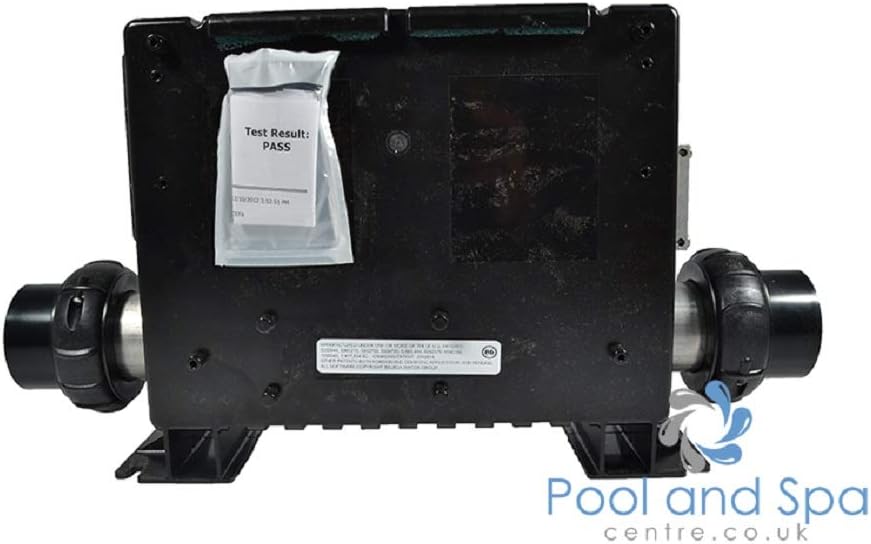

Figura 4: posterior view of the Balboa GS510SZ control box, showing a factory test result sticker, indicating quality assurance.
6. Especificacions
| Característica | Especificació |
|---|---|
| Model | GS510SZ |
| Potència de l'escalfador | 3 kW |
| Pes | 230 g (0.51 lliures) |
| Freqüència | 50 Hz |
| Heater Assembly Diameter | 2 polzades |
| Material | Plàstic |
| Dimensions (L x A x A) | 26.82 x 31.14 x 11.68 cm |
| La tecnologia de sensors | Patented M7 Flow and Temperature Sensors |
| Compliment | European Safety Approvals, RoHS Compliant |
7. Garantia i Suport
This product is sold by Pool and Spa Centre, an official reseller of Balboa products. For any inquiries regarding warranty, technical support, or replacement components (such as the GS510SZ Printed Circuit Board, 3 kW Complete Heater Assembly, or 3 kW Titanium Heating Element), please contact your authorized reseller.
