VANNECT D51845 Electric Paint Sprayer User Manual

Introducció

This user manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your VANNECT D51845 Electric Paint Sprayer. Please read this manual thoroughly before first use to ensure optimal performance and to prevent damage to the unit or injury to yourself.

Image: The VANNECT D51845 Electric Paint Sprayer, showcasing its red and black body, white paint container, and various accessories like nozzles and cleaning tools.

Instruccions importants de seguretat

ADVERTÈNCIA: Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis i/o lesions greus.

• Always wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and a respirator when operating the paint sprayer.
• Ensure the work area is well-ventilated to prevent the buildup of flammable vapors.
• Mantingueu els nens i els espectadors allunyats mentre feu servir el polvoritzador de pintura.
• Do not spray near open flames, pilot lights, or other ignition sources.
• No submergiu mai la unitat del motor en aigua o altres líquids.
• Disconnect the power plug from the power source before cleaning, servicing, or when not in use.
• Utilitzeu només els accessoris i les peces de recanvi recomanades pel fabricant.
• Do not modify the sprayer or its components.
• Always check the paint sprayer for damaged parts before each use.
• Assegureu-vos que el cable d'alimentació no estigui danyat ni pinçat.

Contingut del paquet

En desembalar, comproveu que tots els elements que s'enumeren a continuació siguin presents i no estiguin danyats:

• Paint Gun Unit (Motor and Spray Gun Assembly)
• 1000ml Paint Container
• 4 Nozzles (1.5mm, 1.8mm, 2.2mm, 2.6mm)
• Filtre d'aire
• Power Cord (Integrated)
• Raspall de neteja
• Copa de mesura de viscositat

Producte acabatview

Familiarize yourself with the components of your paint sprayer:

Imatge: Una explosió view of the paint sprayer gun, showing its detachable components: 1. Union Nut, 2. Air Cap, 3. Spray Jet Width Adjusting Lever, 4. Nozzle, and 5. 1000ml Container.

• Union Nut: Secures the air cap and nozzle.
• Cap d'aire: Directs the air flow and helps shape the spray pattern.
• Spray Jet Width Adjusting Lever: Allows selection of different spray patterns (circular, horizontal, vertical).
• Broquet: Determines the paint flow rate and spray fineness.
• 1000ml Container: Holds the paint material.
• Pom de control de flux: Adjusts the paint output volume.
• Activador: Activates the sprayer.
• Unitat motora: Houses the electric motor and air pump.

Configuració

1. Preparar la zona de treball: Ensure the area is clean, well-ventilated, and free from dust and debris. Cover any surfaces not to be painted.
2. Prepare the Paint Material:

   Most paints require thinning for optimal spraying. Use the included viscosity measuring cup to determine the correct consistency. Fill the cup with paint and time how long it takes for the paint to flow out. Refer to your paint manufacturer's instructions for recommended viscosity. Add appropriate thinner (water for latex, mineral spirits for oil-based) gradually, stirring well, until the desired viscosity is achieved.

3. Ompliu el contenidor: Unscrew the 1000ml container from the spray gun. Pour the prepared paint material into the container. Do not overfill. Securely reattach the container to the spray gun.
4. Select and Install Nozzle:

   Choose the appropriate nozzle size based on your paint material and desired finish:

   • 1.5mm - 2.2mm nozzles: Ideal for thin paints like sealers, varnishes, stains, and lacquers.
   • 2.6mm nozzle: Suitable for thicker paints such as latex, chalk paint, and primers.

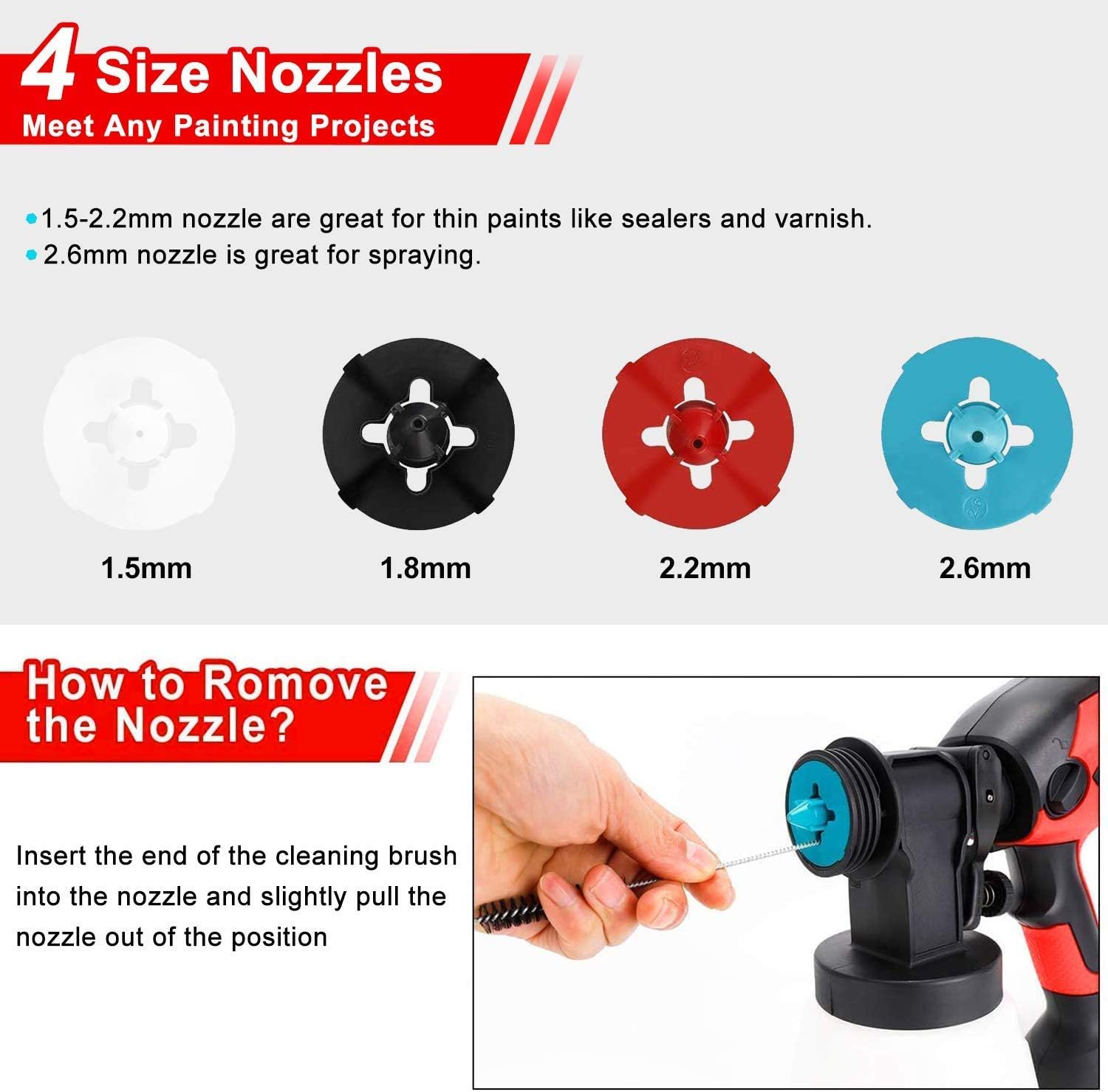

   Image: Displays four nozzle sizes (1.5mm, 1.8mm, 2.2mm, 2.6mm) and an illustration demonstrating how to remove a nozzle using the cleaning brush.

   To install, ensure the nozzle is clean and properly seated in the air cap. Secure the union nut firmly.

5. Ajustar el patró de polvorització: Rotate the air cap to select one of three spray patterns:
   • Circular (45°): For small areas or detailed work.
   • Horizontal (90°): For horizontal surfaces or wide coverage.
   • Vertical (180°): For vertical surfaces or tall objects.

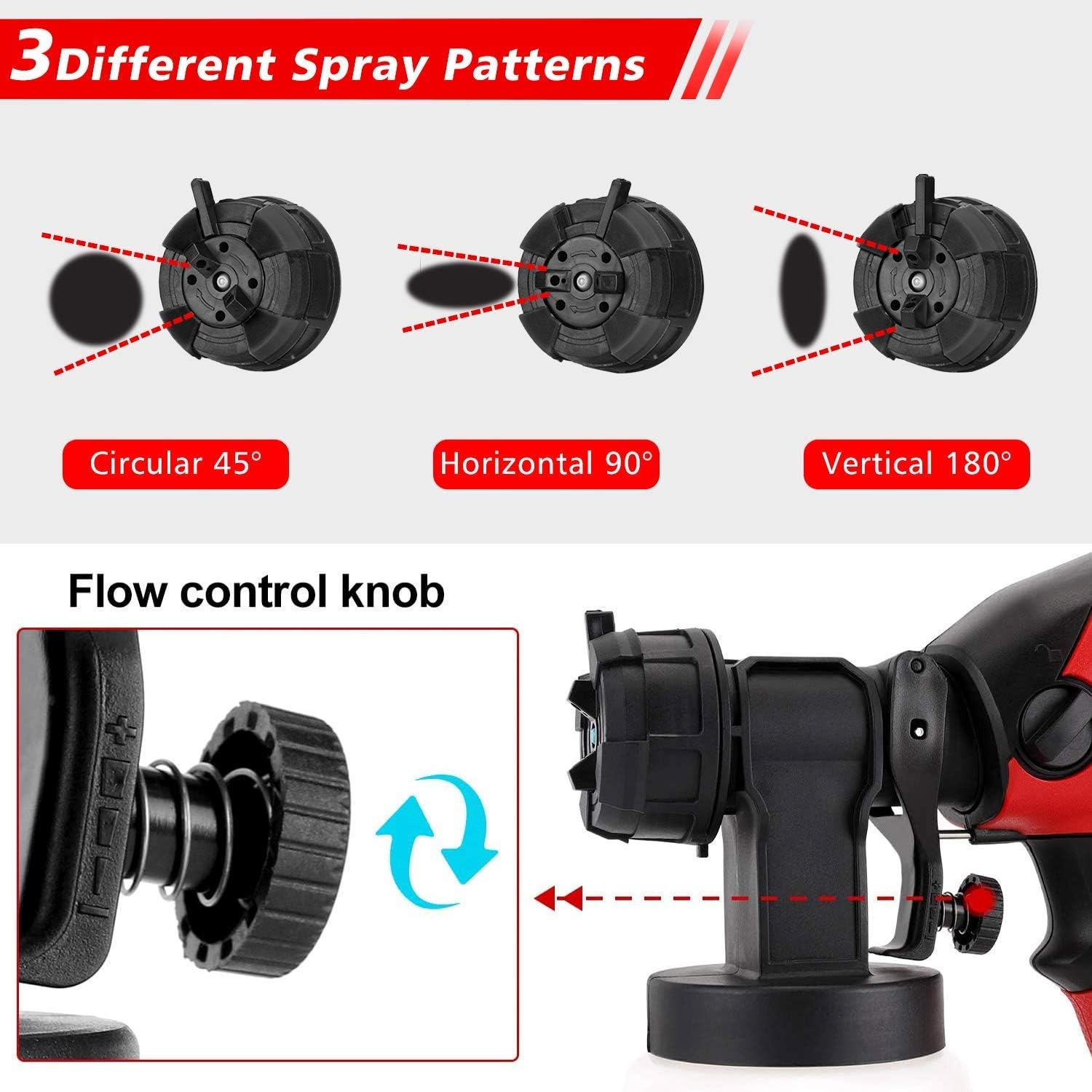

   Image: Illustrates the three available spray patterns (circular, horizontal, vertical) and highlights the flow control knob for adjusting paint output.

6. Ajustar el control de flux: Turn the flow control knob on the trigger to adjust the paint output volume. Start with a lower setting and increase as needed.

Instruccions de funcionament

1. Connectar l'alimentació: Plug the power cord into a grounded electrical outlet. The sprayer features a 6.6 ft extra long cord for increased accessibility.
2. Spray de prova: Before spraying your actual project, test the spray pattern and flow on a piece of scrap material (cardboard, wood). Adjust the flow control knob and spray pattern until you achieve the desired result.
3. Tècnica de polvorització:
   • Hold the sprayer approximately 6-12 inches (15-30 cm) from the surface, perpendicular to the surface.
   • Move the sprayer in smooth, even strokes, overlapping each pass by about 50%.
   • Maintain a consistent speed to ensure an even coat.
   • Release the trigger at the end of each stroke to avoid paint buildup.
   • For best results, apply multiple thin coats rather than one thick coat.


   Image: A person using the VANNECT paint sprayer to apply paint to a wall, demonstrating the sprayer's reach with its 6.6 ft extra long cord.



   Image: A close-up of a hand holding the paint sprayer, applying paint to wooden planks, illustrating its use for various surfaces.



   Image: A person in protective gear spraying a wooden door with the paint sprayer, showing its application for larger home projects.
4. Pauses: If taking a short break, place the sprayer on a flat surface to prevent tipping. For longer breaks, clean the nozzle and air cap to prevent drying.

Manteniment i Neteja

Una neteja adequada després de cada ús és crucial per a la longevitat i el rendiment del vostre polvoritzador de pintura.

1. Contenidor buit: Disconnect the power. Unscrew the paint container and pour any remaining paint back into its original can.
2. Esbandida inicial: Fill the container with appropriate cleaning solution (water for latex, mineral spirits for oil-based). Reattach the container and spray the cleaning solution into a waste container until the spray runs clear.
3. Desmuntar i netejar:
   • Desenrosqueu la femella d'unió i traieu la tapa d'aire i el broquet.
   • Thoroughly clean all disassembled parts (container, suction tube, nozzle, air cap, union nut) with the appropriate cleaning solution and the included cleaning brush.
   • Pay special attention to the nozzle and air cap holes to ensure they are free of paint residue.
   • Use the cleaning needle to clear any blockages in the nozzle.
4. Unitat motora neta: Wipe down the exterior of the motor unit with a damp cloth. Do not immerse the motor unit in liquid.
5. Filtre d'aire: Regularly check and clean the air filter located on the motor unit. Replace if heavily soiled or damaged.
6. Assecar i emmagatzemar: Ensure all parts are completely dry before reassembling. Store the paint sprayer in a clean, dry place, away from direct sunlight and extreme temperatures.

Resolució de problemes

Especificacions

Garantia i Suport

For warranty information, technical support, or to inquire about replacement parts, please contact VANNECT customer service directly. Refer to the product packaging or the manufacturer's official weblloc web per obtenir les dades de contacte més actualitzades.

Always provide your product model number (D51845) and purchase date when contacting support.
