Manual d'usuari de la serra d'ingletes STANLEY SM16 de 254 mm (10")

1. Introducció

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your STANLEY 10" (254mm) Miter Saw, model SM16-B3. This powerful tool is designed for precise cross-cutting and miter cutting of wood, plastic, and non-ferrous metals with the appropriate blade. Please read this manual thoroughly before initial use to ensure proper handling and to maximize the lifespan of your tool.

Figura 1: global view of the STANLEY 10" Miter Saw SM16, showing its compact design and main components.

2. Informació de seguretat

Observeu sempre les precaucions de seguretat bàsiques per reduir el risc d'incendi, descàrrega elèctrica i lesions personals. Conserveu aquest manual per a futures consultes.

Normes generals de seguretat:

• Seguretat de l'àrea de treball: Mantingueu la zona de treball neta i ben il·luminada. Les zones desordenades o fosques conviden als accidents. No feu servir eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
• Seguretat elèctrica: Els endolls de les eines elèctriques han de coincidir amb la presa de corrent. No modifiqueu mai l'endoll de cap manera. No maltracteu el cable. No utilitzeu mai el cable per transportar, estirar o desconnectar l'eina elèctrica. Mantingueu el cable allunyat de la calor, l'oli, les vores afilades o les peces mòbils.
• Seguretat personal: Always wear eye protection (safety glasses or goggles) and hearing protection. Use a dust mask if operating in dusty conditions. Dress properly; avoid loose clothing, jewelry, or long hair that can be caught in moving parts.
• Ús i cura de l'eina: No forceu l'eina elèctrica. Feu servir l'eina elèctrica adequada per a la vostra aplicació. Desconnecteu l'endoll de la font d'alimentació abans de fer qualsevol ajust, canviar accessoris o guardar eines elèctriques.
• Specific Miter Saw Safety:
  • Ensure the blade guard is always in place and functioning correctly.
  • Secure the workpiece firmly with clamps or a vise before cutting.
  • Never attempt to cut freehand.
  • Deixeu que la fulla arribi a la màxima velocitat abans de començar a tallar.
  • Mantingueu les mans allunyades de la trajectòria de la fulla.

3. Components i característiques

Familiarize yourself with the various parts of your STANLEY Miter Saw for safe and efficient operation.

Figura 2: Frontal view of the miter saw, highlighting key components such as the blade, guard, fence, and base.

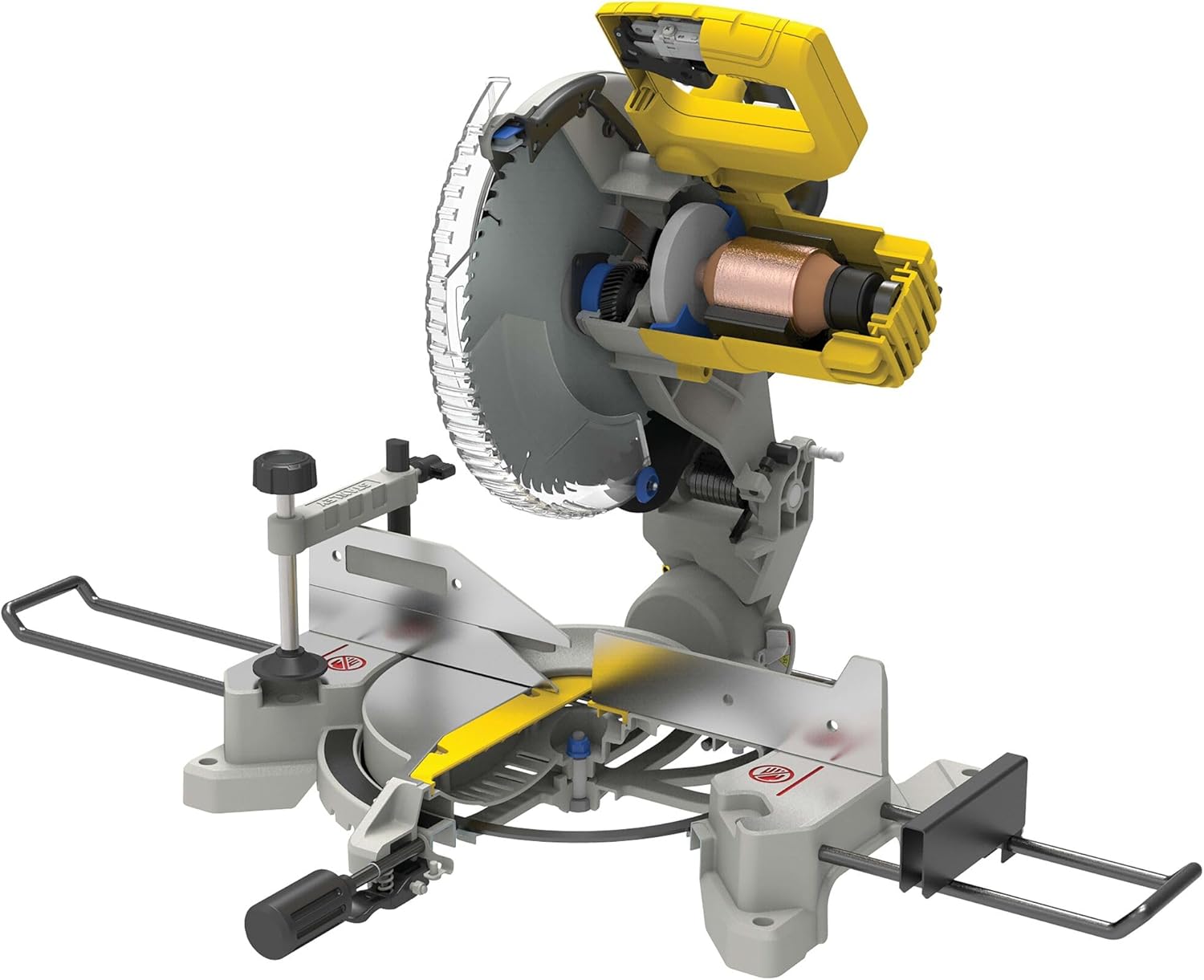

Figura 3: lateral view of the miter saw, showing the motor housing and handle assembly.

Figura 4: Primer pla view of the blade and guard assembly, showing the spindle lock and blade bolt area.

Components clau:

4. Muntatge i muntatge

Before operating the miter saw, ensure it is properly assembled and secured.

1. Desembalatge: Traieu amb cura tots els components de l'embalatge. Verifiqueu que hi hagi totes les peces enumerades.
2. Muntatge de la serra: For stability and safety, it is highly recommended to bolt the miter saw to a sturdy workbench or a dedicated miter saw stand. Use the mounting holes provided in the base of the saw.
3. Instal·lació de la fulla (si no està preinstal·lada):
   • Assegureu-vos que la serra estigui desendollada de la font d'alimentació.
   • Press the spindle lock button to prevent the blade from rotating.
   • Feu servir la clau anglesa proporcionada per afluixar el cargol de la fulla.
   • Install the new blade, ensuring the teeth are pointing in the correct direction (downwards towards the fence).
   • Tighten the blade bolt securely.
4. Dust Bag Attachment: Slide the dust bag onto the dust port located at the rear of the blade guard assembly. Ensure it is securely fitted to maximize dust collection efficiency.
5. Ajust de la tanca: The fence should be perpendicular to the blade for standard cuts. Adjust if necessary using the adjustment screws.

5. Instruccions de funcionament

Seguiu aquests passos per a un funcionament segur i eficaç de la vostra serra de tall biaixat.

Basic Cutting Procedure:

1. Preparar la peça de treball: Mark your desired cut line clearly on the material. Ensure the material is free of nails, screws, or other foreign objects.
2. Posicioneu la peça de treball: Place the workpiece firmly against the fence and flat on the saw table. Use the workpiece clamp to secure it in place. Ensure your hands are a safe distance from the blade.
3. Estableix l'angle d'ingleta: Loosen the miter lock handle and pivot the saw table to the desired angle on the miter scale. Tighten the miter lock handle firmly.
4. Engegar la serra: Depress the trigger switch on the handle. Allow the blade to reach full operating speed before beginning the cut.
5. Fes el tall: Slowly and steadily lower the saw head through the workpiece. Do not force the cut. Maintain a consistent feed rate.
6. Completa el tall: Once the cut is complete, release the trigger switch and allow the blade to come to a complete stop before raising the saw head.
7. Treure la peça de treball: Only remove the cut material after the blade has stopped rotating and the saw head is fully raised.

Figure 5: A user demonstrating the proper technique for operating the miter saw, ensuring the workpiece is secured and hands are clear.

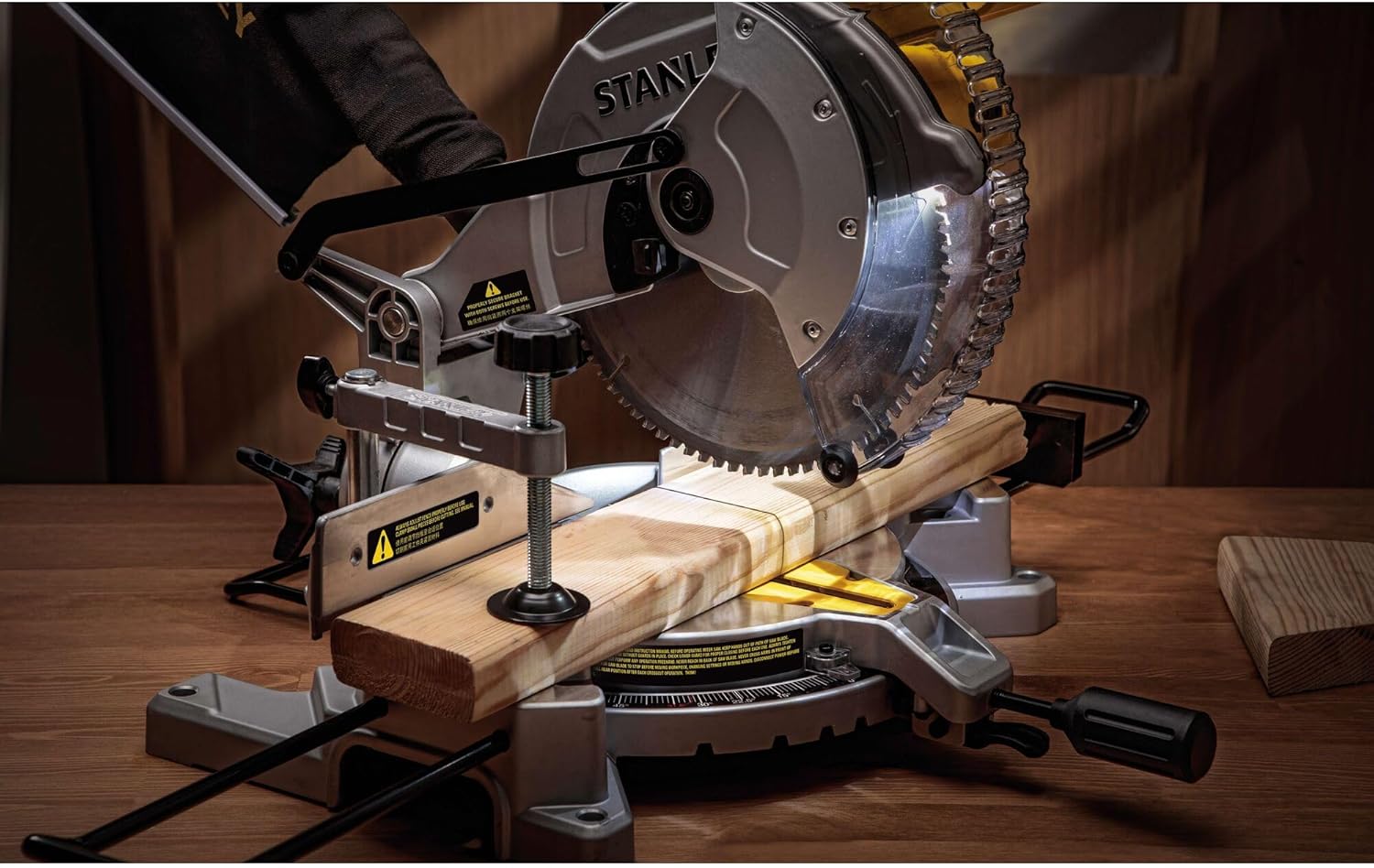

Figura 6: Detallada view of the blade engaging with a wooden workpiece during a cut, illustrating the precision of the tool.

Adjusting for Bevel Cuts:

The SM16-B3 allows for bevel cuts up to 45 degrees. To adjust the bevel angle:

1. Loosen the bevel lock knob located at the rear of the saw.
2. Tilt the saw head to the desired angle indicated on the bevel scale.
3. Tighten the bevel lock knob securely before making the cut.

6. Manteniment

Regular maintenance ensures optimal performance and extends the life of your miter saw. Always unplug the tool before performing any maintenance.

• Neteja: After each use, clean the saw thoroughly. Remove sawdust and debris from the blade guard, motor vents, and table using a brush or compressed air. Do not use solvents that could damage plastic parts.
• Inspecció i substitució de la fulla: Regularly inspect the blade for sharpness, cracks, or missing teeth. A dull or damaged blade can cause kickback and poor cut quality. Replace the blade as described in the "Setup and Assembly" section when necessary.
• Escombretes de carbó: The motor's carbon brushes may need periodic inspection and replacement. Refer to the service diagram for location and replacement procedure. This task is often best performed by a qualified service technician.
• Lubricació: Moving parts and pivot points may require light lubrication periodically. Use a dry lubricant or silicone spray. Avoid excessive lubrication that could attract dust.
• Inspecció del cable: Check the power cord for any signs of damage, cuts, or fraying. Replace a damaged cord immediately to prevent electrical hazards.

7. Solució De Problemes

Aquesta secció tracta els problemes habituals que podeu trobar amb la vostra serra de tall biaixat.

If the problem persists after attempting these solutions, contact STANLEY customer support or an authorized service center.

8. Especificacions

Technical specifications for the STANLEY 10" Miter Saw SM16-B3.

9. Garantia i Suport

STANLEY products are manufactured to high quality standards and are guaranteed for a period of 2 years from the date of purchase against manufacturing defects.

Informació de la garantia:

• Aquesta garantia cobreix defectes de materials i mà d'obra.
• It does not cover damage caused by misuse, abuse, normal wear and tear, unauthorized repairs, or failure to follow operating instructions.
• Es requereix una prova de compra per a totes les reclamacions de garantia.

Atenció al client:

For technical assistance, warranty claims, or to locate an authorized service center, please visit the official STANLEY website or contact their customer service department. Refer to the contact information provided on the product packaging or the STANLEY official weblloc.

Recursos en línia: www.stanleytools.com
