Introducció
This manual provides essential information regarding the Polaris 3089900 Complete Fuel Delivery Pipe. It covers product overview, compatibility, general installation guidelines, maintenance, and specifications. Please read this manual thoroughly before installation and use to ensure proper function and safety.
The Polaris 3089900 is a genuine OEM replacement part designed to meet the exact specifications of your Polaris vehicle's fuel system. Using genuine parts ensures optimal performance and longevity.
Producte acabatview
The Polaris 3089900 is a complete fuel delivery pipe assembly. It is a critical component of the vehicle's fuel system, responsible for safely and efficiently delivering fuel to the engine. This part is specifically designed for schematic location 3, as indicated in the diagram below.

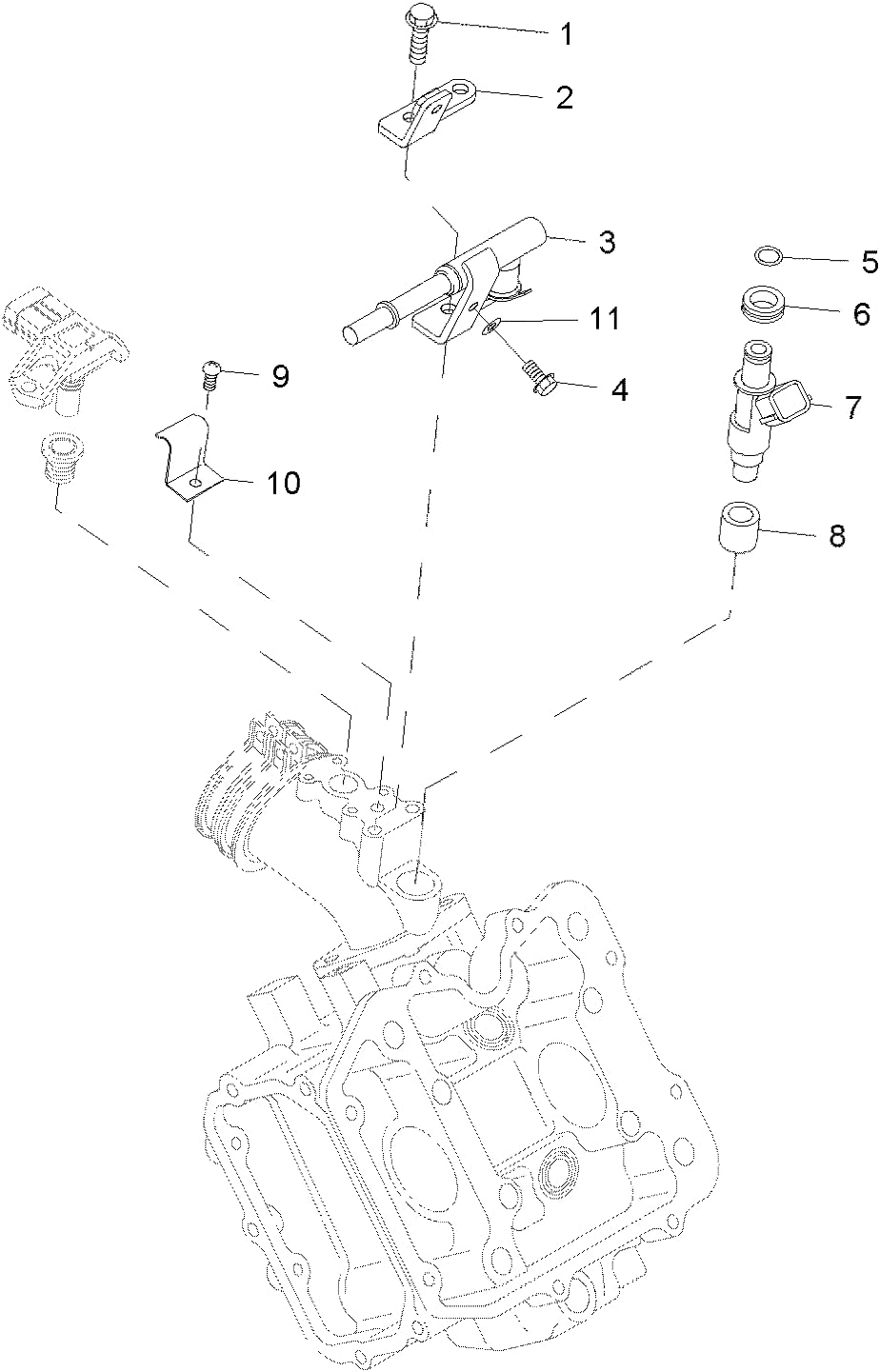

Figura 1: Schematic diagram illustrating the Polaris fuel delivery system. Component 3 represents the fuel delivery pipe, with other associated parts numbered for reference (e.g., 1: screw, 2: clamp, 4: screw, 5: O-ring, 6: washer, 7: injector, 8: cap, 9: screw, 10: bracket, 11: clamp).
This assembly includes the necessary components for a complete replacement, ensuring a secure and leak-free connection within the fuel system.
Vehicles compatibles
The Polaris 3089900 Complete Fuel Delivery Pipe is compatible with the following Polaris vehicle models and years:
- Ranger 500 EFI Limited: 2012-2013
- Ranger 500 EFI: 2006-2013
- Ranger Crew 500 EFI Limited: 2012-2013
- Ranger Crew 500 EFI: 2011-2013
- Sportsman 500 HO Limited: 2007
- Sportsman 500 HO: 2006-2014
- Sportsman 550 EPS: 2014
- Sportsman Touring 500 HO: 2008-2009
- Sportsman X2 500 Deluxe: 2007
- Sportsman X2 500: 2006-2009
For specific vehicle fitment verification, it is recommended to consult your vehicle's service manual or contact an authorized Polaris dealer with your Vehicle Identification Number (VIN).
Configuració i instal·lació
Installation of the fuel delivery pipe should be performed by a qualified technician or an individual with appropriate mechanical experience. Improper installation can lead to fuel leaks, engine damage, or fire hazards.
Precaucions de seguretat:
- Desconnecteu sempre la bateria del vehicle abans de començar qualsevol treball al sistema de combustible.
- Ensure the engine is cool and the fuel system is depressurized.
- Work in a well-ventilated area, away from open flames or ignition sources.
- Utilitzeu l'equip de protecció individual adequat, incloent-hi ulleres i guants de seguretat.
- Tingueu un extintor a mà.
Passos generals d'instal·lació:
- Locate the existing fuel delivery pipe on your vehicle. Refer to your vehicle's service manual for exact location and removal procedures.
- Carefully disconnect all fuel lines and electrical connectors attached to the old pipe. Be prepared for residual fuel leakage and contain it appropriately.
- Remove any mounting hardware securing the old pipe and carefully extract it from the vehicle.
- Inspect the new Polaris 3089900 fuel delivery pipe for any damage or defects before installation.
- Install the new pipe, ensuring all connections are secure and O-rings (if applicable) are properly seated and lubricated with appropriate fuel-resistant lubricant.
- Reconnect all fuel lines and electrical connectors. Double-check all connections for tightness.
- Torneu a connectar la bateria del vehicle.
- Turn the ignition to the "ON" position (without starting the engine) several times to allow the fuel pump to prime the system and check for any leaks.
- Start the engine and carefully inspect for any fuel leaks or abnormal operation.
For detailed, model-specific instructions, always consult your vehicle's official service manual.
Consideracions de funcionament
Once installed, the fuel delivery pipe operates as an integral part of your vehicle's fuel system. No specific user operation is required for this component itself. Ensure that all other fuel system components, such as the fuel pump and injectors, are functioning correctly for optimal engine performance.
Regularly inspect the fuel system for any signs of leaks or damage, especially after off-road use or impacts.
Manteniment
The Polaris 3089900 fuel delivery pipe is designed for durability and reliability. Routine maintenance primarily involves visual inspection and ensuring proper connections.
Inspection Schedule:
- Abans de cada viatge: Perform a quick visual check for any obvious fuel leaks around the pipe and connections.
- Every 50 Hours or Annually (whichever comes first): Conduct a more thorough inspection of the entire fuel system, including the fuel delivery pipe. Look for:
- Cracks, chafing, or damage to the pipe material.
- Connexions soltes o corroïdes.
- Signs of fuel seepage or residue.
- Damage to mounting brackets or clamps.
If any damage or leaks are detected, replace the affected components immediately with genuine Polaris parts. Do not attempt to repair a damaged fuel pipe, as this can compromise safety and performance.
Resolució de problemes
Issues related to the fuel delivery pipe are typically associated with leaks or blockages. If you experience any of the following symptoms, inspect the fuel delivery pipe and surrounding components:
- Fuel Odor: A strong smell of fuel around the vehicle, especially when the engine is running or recently shut off.
- Visible Fuel Leaks: Any drips or wet spots indicating fuel escaping from the pipe or its connections.
- Problemes de rendiment del motor: While less common for the pipe itself, a severe blockage or leak could lead to rough idling, misfires, or a loss of power.
- Llum de revisió del motor: The vehicle's diagnostic system may trigger a check engine light if a fuel system fault is detected.
If a leak is identified, immediately shut off the engine and address the issue. Do not operate the vehicle with a leaking fuel system. If you are unable to diagnose or resolve the problem, seek assistance from an authorized Polaris service center.
Especificacions
| Atribut | Detall |
|---|---|
| Número de part | 3089900 |
| Marca | Polaris |
| Pes de l'article | 3.04 unces |
| Dimensions del producte | 5 x 3 x 1 polzades |
| Número de peça OEM | 3089900 |
| Classificació de seguretat | Certificat DOT |
| Què hi ha a la caixa | Pipa |
Note: Specifications are subject to change without notice. Always refer to the latest information from Polaris.
Polaris Engineered Quality
Polaris Engineered Parts are designed, tested, and manufactured to the highest standards to ensure optimal performance and reliability for your vehicle. The following video provides insight into the rigorous engineering and testing processes that go into every Polaris part.
Vídeo: "Polaris Engineered Parts Precision in Motion." This video showcases the extensive design, testing, and manufacturing processes undertaken by Polaris to ensure the quality and reliability of their genuine parts and accessories. It highlights the dedication of Polaris engineers and the rigorous validation parts undergo in various challenging environments.
Garantia i Suport
Genuine Polaris parts are backed by a manufacturer's warranty. For specific warranty terms and conditions applicable to the 3089900 Fuel Delivery Pipe, please refer to the warranty information provided with your purchase or consult an authorized Polaris dealer.
For technical support, service, or to purchase additional genuine Polaris parts, please contact your local authorized Polaris dealer or visit the official Polaris website. Always provide your vehicle's VIN and the part number (3089900) when seeking support.
Important: Use of non-genuine parts may void your vehicle's warranty and could compromise safety and performance.
