MikroTik RB2011UiAS-2HnD-IN Router Instruction Manual

Introducció

This manual provides essential information for the proper setup, operation, and maintenance of your MikroTik RB2011UiAS-2HnD-IN Router. Please read through these instructions carefully to ensure optimal performance and longevity of your device. This router is designed for versatile networking applications, featuring a combination of Gigabit and Fast Ethernet ports, an SFP port, and integrated wireless capabilities.

Producte acabatview

The MikroTik RB2011UiAS-2HnD-IN is a versatile router designed for various networking environments. It combines robust routing capabilities with integrated wireless functionality. Key features include:

• Ports Ethernet: 5x Gigabit Ethernet ports (Eth1-Eth5) and 5x Fast Ethernet ports (Eth6-Eth10).
• Port SFP: One SFP port for fiber connectivity.
• Sense fil: Integrated 802.11b/g/n wireless with two external antennas.
• Port USB: One USB port for additional storage or 3G/4G modem connectivity.
• Alimentació per Ethernet (PoE): PoE output on Eth10, allowing power to be supplied to another PoE-compatible device.
• Sistema operatiu: RouterOS, offering extensive configuration options.

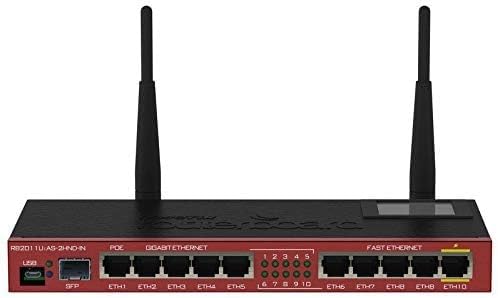

Figura 1: Frontal view of the MikroTik RB2011UiAS-2HnD-IN Router. It features five Gigabit Ethernet ports (Eth1-Eth5), five Fast Ethernet ports (Eth6-Eth10), one SFP port, one USB port, and two external antennas for wireless connectivity. LED indicators for port activity are also visible.

Configuració

1. Connexió inicial

1. Connexió d'alimentació: Connect the provided power adapter to the DC jack on the router and plug it into a power outlet.
2. Connexió a Internet: Connect your internet service provider's modem or main network cable to the WAN port (typically Eth1 or a designated WAN port).
3. Local Network Devices: Connect your computers or other network devices to any of the available Ethernet ports (Eth1-Eth10).
4. Antenes sense fil: Ensure the two external antennas are securely attached and positioned for optimal signal coverage.

2. First-Time Configuration

1. Accés a RouterOS: Obre a web browser on a computer connected to the router and navigate to the default IP address (usually http://192.168.88.1).
2. Inici de sessió: The default username is 'admin' with no password. It is highly recommended to set a strong password immediately after logging in.
3. Set ràpid: Use the "Quick Set" interface for basic configuration, including setting up your internet connection, wireless network name (SSID), and password.
4. Configuració avançada: For advanced settings, refer to the RouterOS documentation available on the MikroTik weblloc.

Figura 2: Un angle view of the MikroTik RB2011UiAS-2HnD-IN Router, highlighting its compact design and the placement of its various ports and antennas.

Instruccions de funcionament

1. Wireless Network Usage

• Dispositius de connexió: Cerca your configured wireless network (SSID) on your devices and connect using the password you set during setup.
• Optimització del senyal: Position the router in a central location, away from obstructions and interference sources, for the best wireless signal.

2. Funcionalitat del port Ethernet

• Gigabit Ports (Eth1-Eth5): Use these ports for devices requiring high-speed connections, such as servers, network-attached storage (NAS), or high-performance workstations.
• Fast Ethernet Ports (Eth6-Eth10): Suitable for general network devices like printers, older computers, or devices that do not require Gigabit speeds.
• PoE Out (Eth10): Eth10 can provide power to another PoE-compatible device. Ensure the connected device supports passive PoE and the power requirements are met.
• Port SFP: The SFP port allows for fiber optic connections, providing high-speed and long-distance network links. Insert a compatible SFP module as needed.

Figure 3: A top-down perspective of the router, providing a clear view of the port numbering, LED indicators, and the overall layout of the device's front panel.

Manteniment

• Actualitzacions de firmware: Revisa regularment el MikroTik website for RouterOS updates. Keeping your firmware up-to-date ensures security and performance improvements. Follow the official update procedures carefully.
• Neteja: Keep the router clean and free from dust. Use a soft, dry cloth for cleaning. Do not use liquid cleaners or aerosols. Ensure ventilation slots are unobstructed.
• Condicions ambientals: Operate the router within its specified temperature and humidity ranges to prevent damage and ensure stable operation.

Resolució de problemes

• Sense energia: Check the power adapter connection and the power outlet. Ensure the power LED on the router is illuminated.
• Sense connexió a Internet: Verify that your modem is working correctly. Check the WAN port connection on the router. Ensure your internet service provider is not experiencing outages.
• Problemes sense fil: Confirm your wireless network is enabled and broadcasting. Check the wireless password. Try restarting the router. Ensure no strong interference sources are nearby.
• Velocitat de xarxa lenta: Check cable connections for damage. Ensure devices are connected to appropriate speed ports (Gigabit for high-speed). Monitor network traffic for congestion.
• Restabliment de fàbrica: If you encounter persistent issues or forget your password, you can perform a factory reset. Locate the reset button (usually a small pinhole) and press it for 5-10 seconds while the device is powered on. This will revert all settings to default.

Especificacions

Garantia i Suport

Per obtenir informació sobre la garantia i assistència tècnica, consulteu la pàgina oficial de MikroTik. weblloc web o poseu-vos en contacte amb el vostre distribuïdor autoritzat. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
