Introducció
This manual provides essential information for the safe and effective use of your Decathlon Newfeel 500 Body Digital Weight Scale. Please read it thoroughly before first use and retain it for future reference.
The Newfeel 500 Body Digital Weight Scale is designed to provide accurate weight measurements and a visual indication of body fat level. It features a sleek glass top, high-precision sensors, and a bright LCD display for easy readability.
Producte acabatview

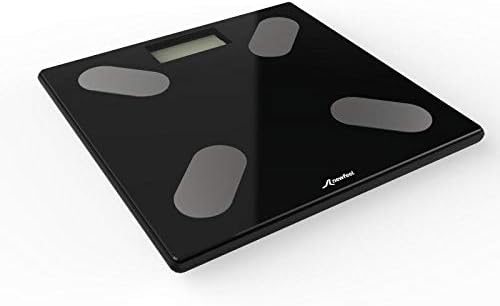

Figura 1: En angle view of the Decathlon Newfeel 500 Body Digital Weight Scale. It is black with a glass surface, featuring a digital display and four grey oval pads for foot placement.
Figura 2: De dalt a baix view of the scale displaying "62.5" kg. The scale is black with four white/grey oval pads.
The Newfeel 500 scale allows for the configuration of up to 8 user profiles, enabling multiple individuals to track their progress. Its compact size ensures it fits seamlessly into various home environments.
Configuració
1. Desembalatge
Carefully remove the scale from its packaging. Inspect the scale for any signs of damage. If damaged, do not use and contact customer support.
2. Instal·lació de la bateria
The scale requires batteries for operation. Locate the battery compartment on the underside of the scale.

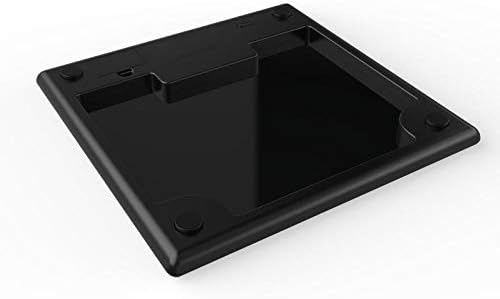

Figura 3: Underside of the scale, showing the battery compartment and non-slip feet.
- Obriu la tapa del compartiment de la bateria.
- Introduïu les piles necessàries, assegurant-vos de la polaritat correcta (+/-).
- Tanqueu bé la tapa del compartiment de la bateria.
3. Col·locació inicial
Place the scale on a hard, flat, and stable surface. Uneven surfaces or soft carpets may affect accuracy.
Instruccions de funcionament
1. Taking a Weight Measurement
- Gently tap the center of the scale with your foot to activate it. The display will show "0.0" or "CAL".
- Once "0.0" is displayed, step onto the scale with bare feet, standing still and centered on the pads.
- Your weight will be displayed and then flash, indicating the measurement is complete.
- The scale will automatically turn off after a few seconds of inactivity.
2. Usuari Profile Configuration (for Body Fat Indication)
L'escala admet fins a 8 usuaris professionalsfiles to provide a visual indicator of your body fat level compared to an ideal level. Refer to the full product manual (if available) or the manufacturer's website for detailed instructions on setting up user profiles.
Generally, this involves inputting personal data such as age, gender, and height, which the scale uses for its body fat estimation algorithm.
Manteniment
1. Neteja
- Clean the scale surface with a soft, damp tela.
- No utilitzeu productes de neteja abrasius ni submergiu la bàscula en aigua.
- Ensure the scale is dry before storage or next use.
2. Emmagatzematge
Guardeu la bàscula en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
3. Substitució de la bateria
If the display shows a low battery indicator or becomes dim, replace the batteries promptly. Use the same type and number of batteries as originally installed.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| L'escala no s'encén. | Piles gastades o instal·lades incorrectament. | Comproveu la polaritat de la bateria; substituïu les piles. |
| Lectures inexactes. | Scale on uneven surface; scale moved; calibration needed. | Place on a hard, flat surface. Recalibrate by stepping on and off the scale quickly. |
| Display shows "Lo" or "Err". | Low battery; overload; measurement error. | Replace batteries; ensure weight is within scale's capacity; re-attempt measurement. |
If you encounter issues not listed here, please contact Decathlon customer support.
Especificacions
- Model: 2537965
- Dimensions del producte: 33 x 32.8 x 3.5 cm
- Pes de l'article: 2.02 kg
- Tipus de material: Stainless Steel, Glass, Acrylonitrile Butadiene Styrene
- Tipus de visualització: LCD
- Bateries necessàries: Sí
- País d'origen: França
- Color: Negre
- Característica especial: Bodyweight measurement, 8 user profiles
Garantia i Suport
For warranty information and customer support, please refer to the official Decathlon weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el comprovant de compra per a reclamacions de garantia.
Decathlon Official Weblloc: www.decathlon.com.au
