1. Introducció
This document provides essential instructions for the proper installation, maintenance, and cleaning of your new Breville BR-9 Nutridisk Filter Basket. This component is a genuine replacement part designed to ensure optimal performance of your Breville Juice Fountain Cold XL juicer. Regular maintenance of the filter basket is crucial for efficient juicing and longevity of your appliance.
2. Compatibilitat
The Breville BR-9 Nutridisk Filter Basket (Part # SP0023036) is specifically designed for use with the Breville Juice Fountain Cold XL, Model: BJE830BSS. This filter basket is not compatible with other juicer models.
3. Contingut del paquet
- 1 x Breville BR-9 Nutridisk Filter Basket (Part # SP0023036)
Nota: This product includes the Nutridisk Filter Basket only. The Drive Coupling BR-9 is not included.
4. Instal·lació
Before installing the new filter basket, ensure your Breville Juice Fountain Cold XL is unplugged and all other components are clean and dry. Refer to your main juicer instruction manual for detailed disassembly steps if needed.
- Carefully place the new Nutridisk Filter Basket into the juicer's motor base, ensuring it sits securely. The mesh screen should face upwards.
- Align the filter basket with the drive shaft in the center of the motor base.
- Once seated, place the juicer cover on top, aligning it correctly with the base.
- Secure the locking arm into its upright position to firmly lock the juicer cover and filter basket in place. The juicer will not operate if the locking arm is not correctly engaged.

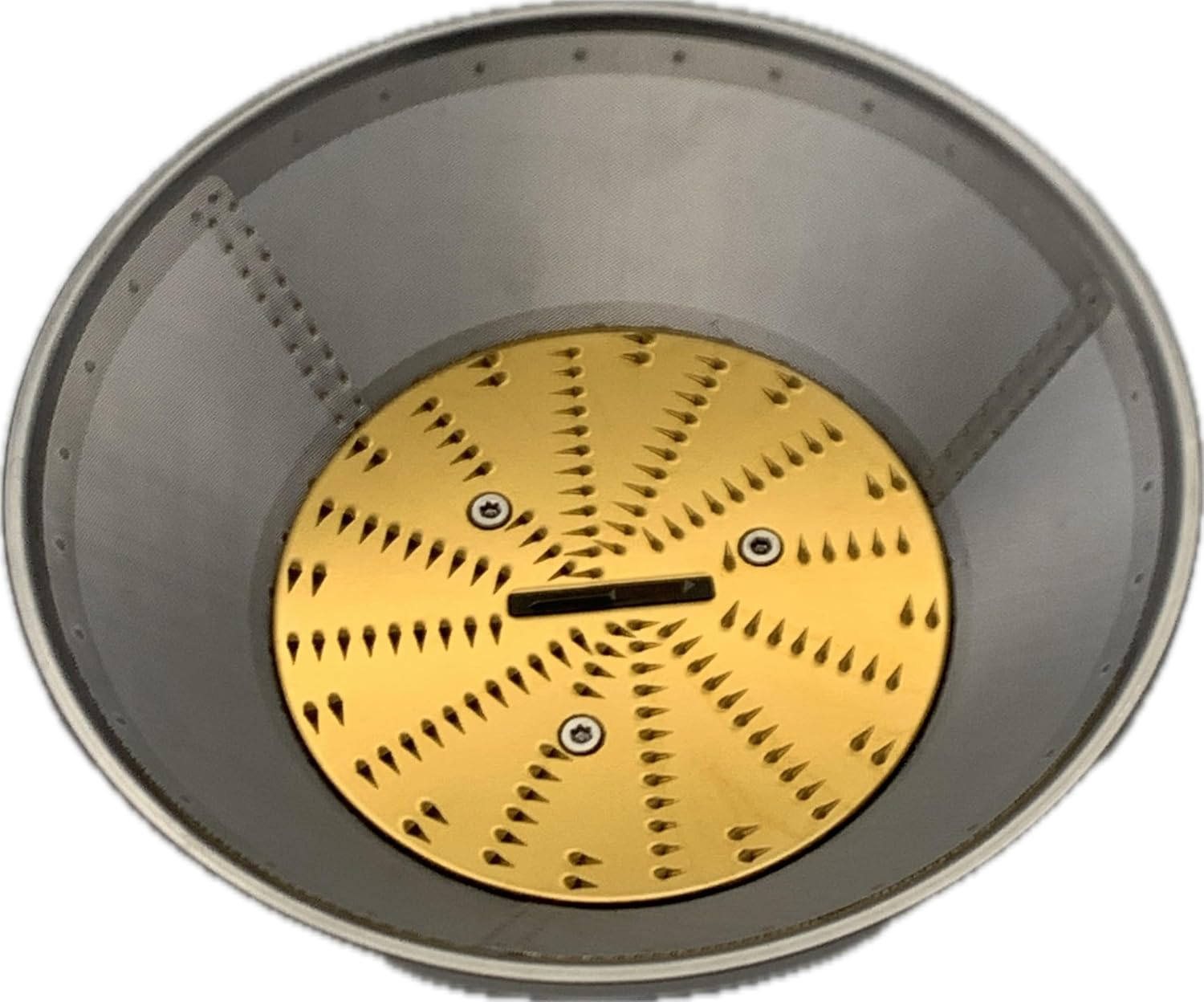

Figura 1: superior view of the Nutridisk Filter Basket, showing the central blade and surrounding mesh.
Figura 2: A baix view of the Nutridisk Filter Basket, indicating dishwasher safe marking.
5. Manteniment i Neteja
Proper cleaning of the Nutridisk Filter Basket is essential to maintain juicer efficiency and prevent residue buildup that can affect performance. It is recommended to clean the filter basket immediately after each use.
- Rentat de mans: The manufacturer recommends hand washing for this product. Use warm, soapy water and a soft brush to thoroughly clean the mesh screen and blade area. Pay special attention to removing any pulp or fiber caught in the fine mesh.
- Apte per a rentavaixelles: The filter basket is marked as dishwasher safe. If using a dishwasher, place it on the top rack. However, hand washing is generally preferred to prolong the life of the fine mesh.
- Assecat: Ensure all parts are completely dry before reassembling or storing to prevent mold or mildew.
6. Solució De Problemes
If your juicer's performance declines (e.g., less juice extraction, wet pulp), the most common cause is a clogged or dull filter basket. While this replacement part addresses a worn-out filter, ensure proper cleaning of the new basket to prevent similar issues.
- Reduced Juice Yield: Thoroughly clean the mesh of the filter basket. Even small amounts of dried pulp can significantly reduce efficiency.
- Wet Pulp: This indicates that juice is not being efficiently separated from the pulp. A clean, sharp filter basket is crucial for dry pulp.
- Juicer Not Starting: Ensure the filter basket and juicer cover are correctly installed and the safety locking arm is fully engaged.
7. Especificacions
- Nom de la part: Nutridisk Filter Basket
- Número de peça: SP0023036
- Compatibilitat: Breville Juice Fountain Cold XL (Model BJE830BSS)
- Material de la fulla: Acer inoxidable
- Cura del producte: Hand Wash Only (Dishwasher Safe, Top Rack)
8. Garantia i Suport
For warranty information regarding your Breville Juice Fountain Cold XL appliance or for further support, please refer to the original instruction manual provided with your juicer or contact Breville customer service directly. This replacement part is subject to Breville's standard accessory warranty terms.
