EVOLVEO EASYPHONE FM Mobile Phone User Manual

Introducció

The EVOLVEO EASYPHONE FM is a user-friendly mobile phone designed for straightforward communication. It features large, separated keys, a clear display, and essential functions to ensure ease of use. This manual provides instructions for setting up, operating, and maintaining your device.

1. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

• EVOLVEO EASYPHONE FM Mobile Phone
• Base de càrrega
• Adaptador de CA
• Li-ion 1000 mAh Battery
• Manual d'usuari

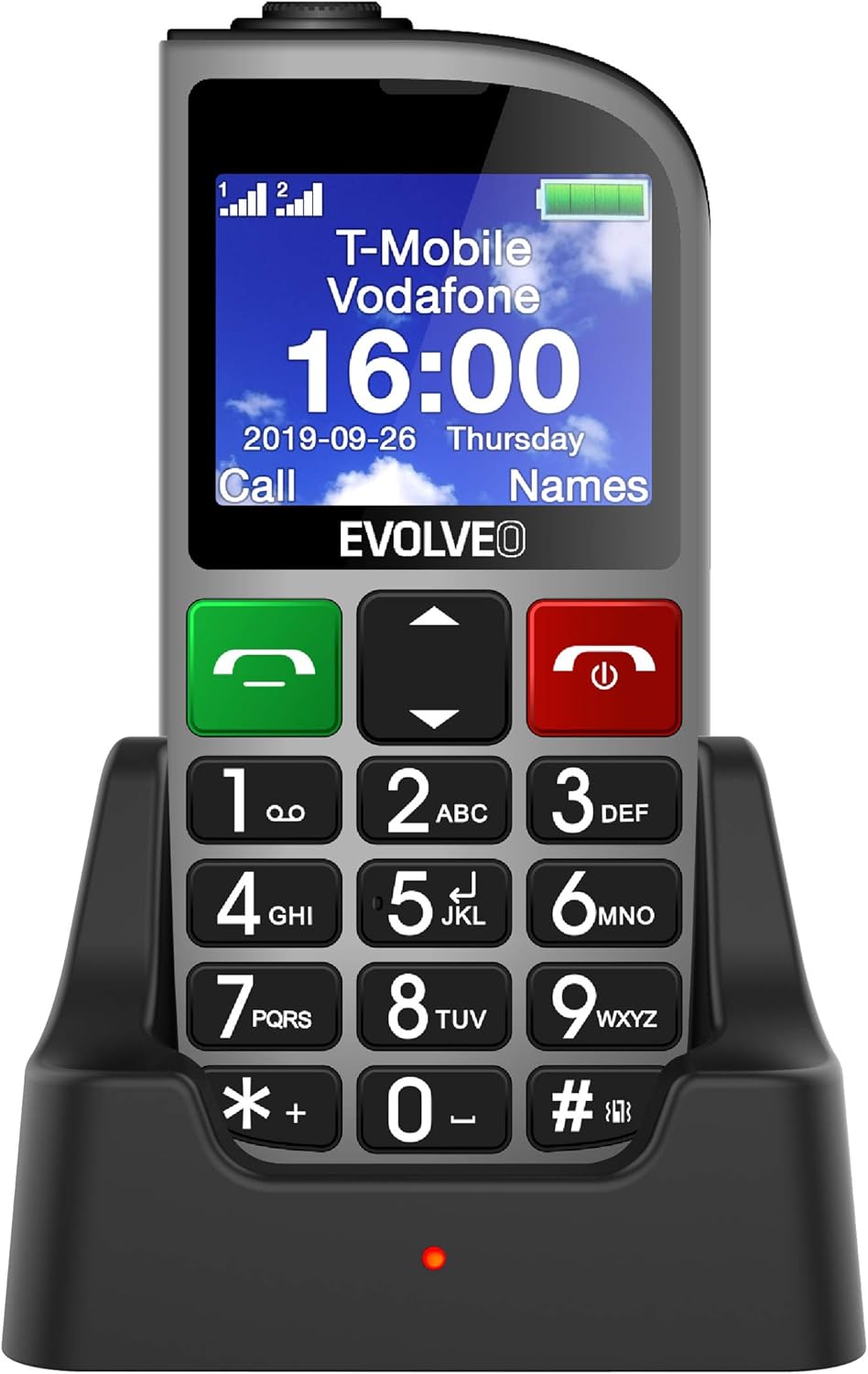

Figura 1.1: EVOLVEO EASYPHONE FM placed in its charging dock. The phone features a large display showing time and network information, with prominent green call and red end call buttons, and a numeric keypad below.

2. Configuració

2.1. Instal·lació i càrrega de la bateria

1. Traieu la coberta posterior del telèfon.
2. Insert the Li-ion 1000 mAh battery, ensuring the contacts align correctly.
3. Torneu a col·locar la tapa posterior.
4. Connect the AC adapter to the charging dock.
5. Place the phone into the charging dock. The charging indicator light will illuminate.
6. Deixeu que el telèfon es carregui completament abans del primer ús.

2.2. Inserció de la targeta SIM

The phone supports two SIM cards (Dual SIM) for GSM/GPRS 850/900/1800/1900 MHz networks.

1. Assegureu-vos que el telèfon estigui apagat.
2. Traieu la coberta posterior i la bateria.
3. Localitza les ranures de la targeta SIM.
4. Insert your SIM card(s) into the designated slots, ensuring correct orientation.
5. Torneu a inserir la bateria i la coberta posterior.

2.3. Inserting a MicroSDHC Card

You can expand the phone's storage for music, photos, and other files by inserting a MicroSDHC card.

1. Assegureu-vos que el telèfon estigui apagat.
2. Traieu la coberta posterior i la bateria.
3. Locate the MicroSDHC card slot.
4. Gently insert the MicroSDHC card until it clicks into place.
5. Torneu a inserir la bateria i la coberta posterior.

3. Instruccions de funcionament

3.1. Encendre/apagar

• Per engegar: premeu i manteniu premut el botó Vermell Finalitzar Trucada/Engegar botó fins que la pantalla s'il·lumini.
• Per apagar: premeu i manteniu premut el botó Vermell Finalitzar Trucada/Engegar button until the power off options appear, then confirm.

Figura 3.1: Davant view of the EVOLVEO EASYPHONE FM, highlighting the large display, call buttons, and numeric keypad for easy dialing.

3.2. Fer i rebre trucades

• Fer una trucada: Dial the number using the numeric keypad and press the Trucada verda botó.
• De marcatge ràpid: The phone supports quick access to 8 popular contacts. Assign numbers to keys 2-9 for speed dialing. Press and hold the assigned key to dial.
• Recepció d'una trucada: Premeu el botó Trucada verda botó per respondre una trucada entrant.
• Finalització d'una trucada: Premeu el botó Vermell Finalitzar Trucada/Engegar button to end an active call.

3.3. Sending and Receiving SMS Messages

The separated keyboard keys facilitate easy writing of SMS messages.

• Navigate to the Messaging menu.
• Select "Write Message" to compose a new SMS.
• Introduïu el número del destinatari o seleccioneu-lo dels contactes.
• Escriviu el vostre missatge amb el teclat.
• Premeu "Enviar" per transmetre el missatge.

3.4. Control de volum

Adjust the call and ringtone volume using the dedicated volume control button located on the left side of the phone.

Figura 3.2: Left side of the phone, showing the volume control buttons and the FM radio activation button.

3.5. Botó d'emergència SOS

The SOS button, located on the back of the device, allows for quick emergency calls and messages.

1. Before use, configure up to five emergency contact numbers in the phone settings.
2. En cas d'emergència, premeu i manteniu premut el botó SOS botó.
3. The phone will automatically dial the predefined emergency numbers sequentially and send an emergency message to these contacts.

Figura 3.3: posterior view of the EVOLVEO EASYPHONE FM, showing the prominent red SOS emergency button and the camera lens.

3.6. Ràdio FM

The phone includes an FM radio with a dedicated activation button.

• To turn on the FM radio, press the independent FM button on the side of the device.
• The radio can play in the background, allowing you to use other phone functions.
• During an incoming or outgoing call, the radio will automatically mute and resume playback after the call ends.

3.7. Llanterna

A powerful flashlight is integrated into the phone, activated by a dedicated button.

• Press the dedicated flashlight button on the side of the phone to turn the flashlight on or off.

Figura 3.4: Right side of the phone, showing the dedicated flashlight button.

3.8. Altres característiques

• Càmera: The phone includes a VGA camera for basic photo capture.
• Reproductor de música: Reprodueix música files stored on your MicroSDHC card.
• Digital Recorder (Dictaphone): Record voice notes.
• Calendari: Feu un seguiment de les dates i esdeveniments importants.
• Despertador: Estableix alarmes per als recordatoris.
• Calculadora: Realitzar càlculs bàsics.
• Lupa: Utilize the screen as a magnifying glass.

4. Manteniment

4.1. Neteja del dispositiu

• Use a soft, dry cloth to clean the phone's surface and screen.
• Avoid using liquid cleaners or abrasive materials, as they may damage the device.
• Assegureu-vos que no entri humitat al port de càrrega ni a altres obertures.

4.2. Cura de la bateria

• Per allargar la durada de la bateria, eviteu exposar el telèfon a temperatures extremes.
• Charge the battery regularly, but avoid overcharging or letting it completely drain for extended periods.
• If the phone will not be used for a long time, charge the battery to about 50% before storing it.

5. Solució De Problemes

If you encounter issues with your EVOLVEO EASYPHONE FM, refer to the following common problems and solutions:

5.1. Phone Does Not Turn On

• Assegureu-vos que la bateria estigui instal·lada i carregada correctament.
• Connect the phone to the charger and wait a few minutes before attempting to power it on again.
• Comproveu si els contactes de la bateria estan nets.

5.2. No puc fer ni rebre trucades

• Check if the SIM card(s) are correctly inserted and activated.
• Ensure you have network coverage.
• Verify that the phone is not in airplane mode (if applicable).
• Check your account balance or subscription status with your service provider.

5.3. FM Radio Not Working

• Ensure you are in an area with good FM signal reception.
• Check if the FM radio is properly activated using its dedicated button.

5.4. Problemes de visualització

• If the display is dim, check the brightness settings.
• If the screen is unresponsive, try restarting the phone.

6. Especificacions

Nota: les especificacions estan subjectes a canvis sense previ avís.

7. Garantia i Suport

For warranty information and technical support, please refer to the warranty card included in your package or visit the official Evolveo weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
