Introducció
The Ledlenser MH5 is a versatile and robust LED headlight designed for various outdoor activities, including mountain climbing. It features a powerful 400-lumen output, a magnetic charging system, and the flexibility of dual power sources. This manual provides essential information for the safe and effective use of your MH5 headlight.
Image: The Ledlenser MH5 Headlight, showcasing el seu disseny compacte i la corretja ajustable.
Característiques clau
- Innovative Mounting System: Allows for easy removal and attachment of the lamp head, providing maximum flexibility for various uses.
- Font d'alimentació dual: Compatible with both the included rechargeable battery and standard AA alkaline batteries.
- Magnetic Charge System: Facilitates convenient and secure charging via a USB port.
- Additional Red-Light LED: Integrated red light on the front side helps preserve night vision.
- Clip de butxaca: Offers numerous mounting options for enhanced portability and versatility.
- Disseny impermeable: Garanteix un rendiment fiable en condicions humides.
Configuració i ús inicial
1. Instal·lació de la bateria
- Open the battery compartment located on the back of the lamp cap.
- Insert the included rechargeable battery, ensuring correct polarity (+/-).
- Alternatively, insert one AA alkaline battery if the rechargeable battery is not available or depleted.
- Tanqueu el compartiment de la bateria de manera segura.
Imatge: Una explosió view of the Ledlenser MH5, showing internal components including the battery compartment.
2. Ajust de la diadema
- Place the headlight on your head.
- Adjust the elastic headband using the buckles on both sides to achieve a comfortable and secure fit.
- Assegureu-vos que lamp head is positioned centrally on your forehead.
Imatge: Superior view of the Ledlenser MH5 Headlight, highlighting the adjustable headband.
Instruccions de funcionament
Modes d'encesa/apagada i de llum
- Per activar: Press the power button once. The headlight will activate in its last used white light mode.
- To cycle white light modes: Press the power button repeatedly to switch between high and low brightness settings.
- To activate red light: From the off position, press and hold the power button for approximately 2 seconds.
- Per apagar: Press the power button once while the light is on.
Ajust del focus
The MH5 features an Advanced Focus System. To adjust the beam from a broad floodlight to a focused spot beam, rotate the bezel around the lens. This allows for precise illumination depending on your activity.
Carregant la bateria recarregable
- Locate the magnetic charging port on the lamp cap.
- Connect the magnetic charging cable to the port.
- Plug the USB end of the cable into a compatible USB power source (e.g., wall adapter, power bank, computer).
- An indicator light will show the charging status.
- Un cop estigui completament carregat, desconnecteu el cable.

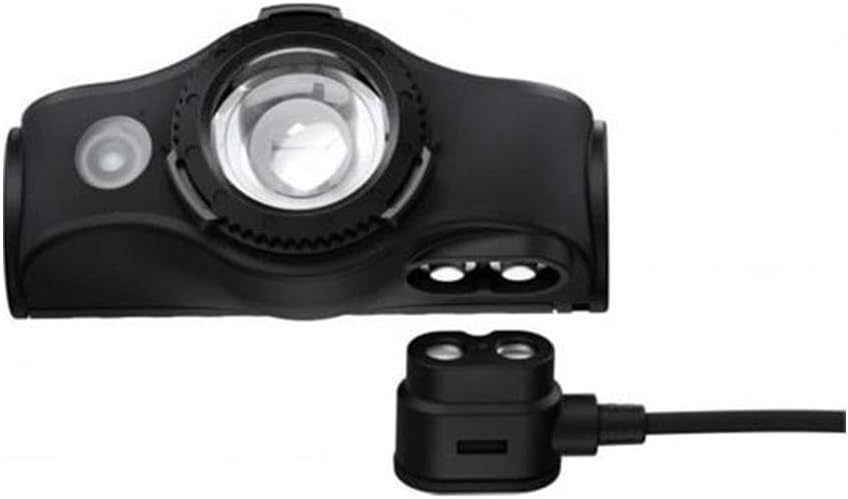

Image: The Ledlenser MH5 lamp head detached from the headband, shown with its magnetic charging cable.
Manteniment
- Neteja: Netegeu el far amb un suau, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Cura de la bateria: If storing the headlight for an extended period, remove the battery to prevent leakage. Recharge the battery periodically to maintain its lifespan.
- Resistència a l'aigua: Ensure all caps and covers are securely closed to maintain the waterproof rating.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El far no s'encén. | La bateria està esgotada o instal·lada incorrectament. | Charge the rechargeable battery or replace AA batteries. Check battery polarity. |
| La sortida de llum és tènue. | Baixa càrrega de la bateria. | Recarregueu o substituïu les bateries. |
| Magnetic charging not working. | Charging cable not properly connected or USB power source issue. | Ensure magnetic connector is clean and fully seated. Try a different USB port or power adapter. |
Especificacions tècniques
| Característica | Detall |
|---|---|
| Model | MH5 |
| Font de llum | LED (blanc i vermell) |
| Brillantor (blanc) | Fins a 400 lúmens |
| Font d'alimentació | Rechargeable Lithium-Ion Battery (included) or 1x AA Alkaline Battery |
| Carregant | Magnetic USB Charging System |
| Resistència a l'aigua | Impermeable |
| Material | Plàstic |
| Dimensions (aprox.) | 2.99 "P x 1.38" W x 1.81" H |
| Pes | 92 grams (3.25 unces) |
Garantia i Suport
The Ledlenser MH5 Headlight comes with a 5 any de garantia from the date of purchase. You can extend this warranty to 7 anys by registering your product online using the registration card included in the package.
For technical support, warranty claims, or further assistance, please refer to the official Ledlenser weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el comprovant de compra per a la garantia.
