Oris Divers Sixty-Five Automatic Watch User Manual

1. Introducció

Thank you for choosing the Oris Divers Sixty-Five Automatic Stainless Steel Blue Dial Date Men's Watch. This manual provides essential information for the proper setup, operation, and maintenance of your timepiece. Please read it carefully to ensure optimal performance and longevity of your watch.

Imatge 1.1: Frontal view of the Oris Divers Sixty-Five Automatic watch, showcasing its blue dial, luminous markers, and stainless steel bracelet.

2. Configuració

2.1. Unboxing i Inspecció Inicial

Your Oris watch comes in its original packaging. Carefully remove the watch and inspect it for any visible damage. Ensure all protective films are removed before use.

Image 2.1: The Oris watch presented within its dedicated packaging box.

2.2. Donar corda al rellotge

This watch features an automatic mechanical movement. It is powered by the motion of your wrist. If the watch has stopped or its power reserve is low, it can be manually wound:

1. Unscrew the crown (if it is a screw-down crown) by turning it counter-clockwise.
2. In position 1 (normal position, unscrewed), turn the crown clockwise approximately 20-30 times. This will provide sufficient power reserve to start the watch.
3. The watch will then continue to wind itself through normal wrist movement.

2.3. Configuració de l'hora i la data

Per definir l'hora i la data:

1. Descargoleu la corona (si escau) i estireu-la fins a la posició 2.
2. Turn the crown clockwise or counter-clockwise to set the date. Avoid setting the date between 9 PM and 3 AM, as this can damage the movement.
3. Pull the crown out to position 3. The seconds hand will stop (hacking feature).
4. Turn the crown to set the hour and minute hands. Ensure the AM/PM is correctly set by observing if the date changes when passing midnight.
5. Once the time is set, push the crown back into position 1 and screw it down tightly (if applicable) to ensure water resistance.

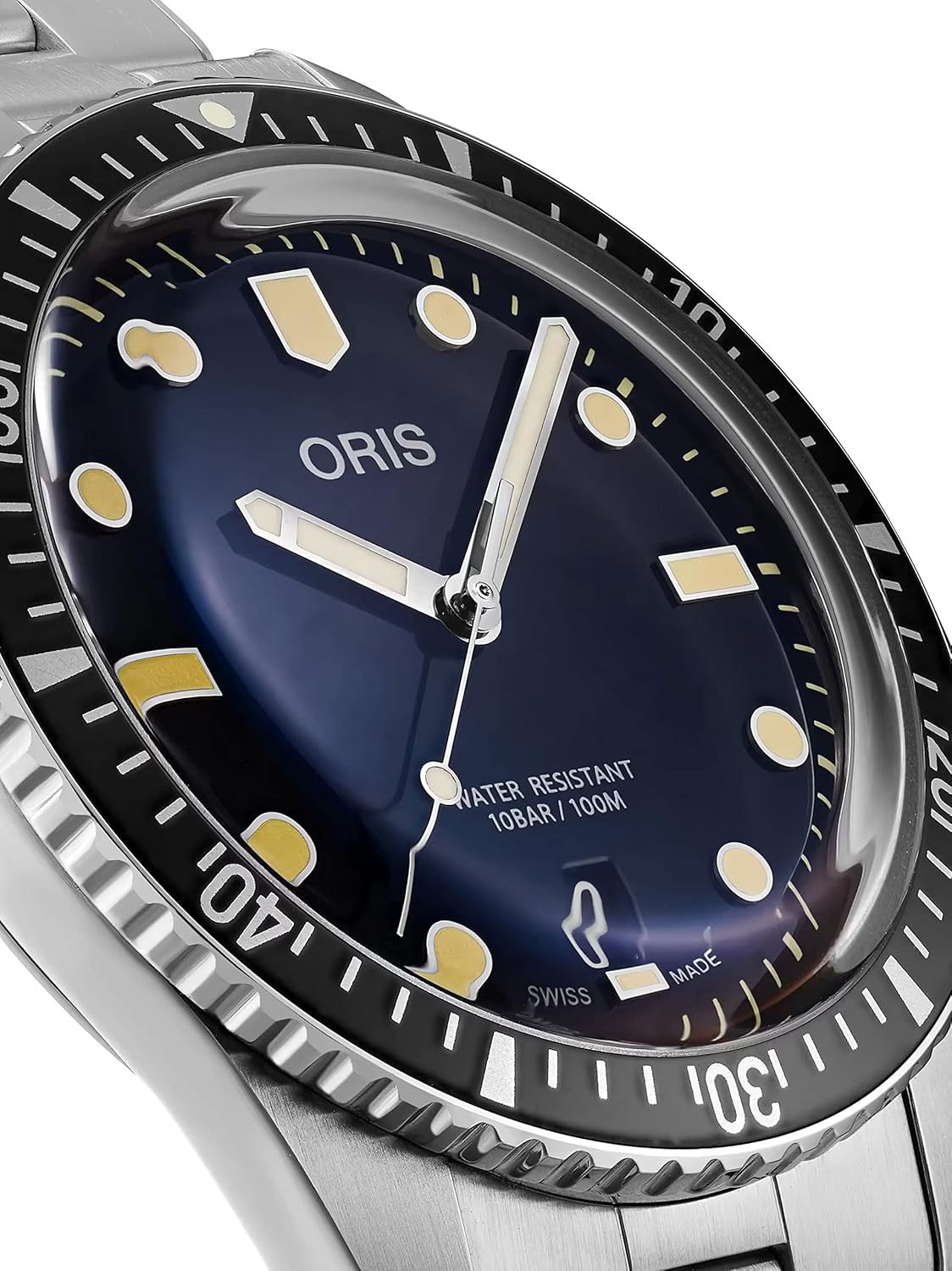

Imatge 2.2: Detallada view of the watch dial and crown, illustrating the components used for time and date adjustment.

3. Funcionament del rellotge

3.1. Uni-directional Rotating Bezel

Your Oris Divers Sixty-Five features a uni-directional rotating bezel, designed for dive timing. It rotates only counter-clockwise to prevent accidental extension of dive time.

1. Before a dive, align the triangle marker on the bezel with the minute hand.
2. The minute hand will then indicate the elapsed time on the bezel's minute scale.

Image 3.1: Angled perspective of the Oris Divers Sixty-Five, highlighting the uni-directional rotating bezel and the screw-down crown.

3.2. Resistència a l'aigua

The watch is water-resistant up to 100 meters (330 feet) or 10 BAR. This makes it suitable for swimming and snorkeling. However, it is not recommended for scuba diving unless explicitly stated for higher depths.

• Assegureu-vos sempre que la corona estigui completament cargolada abans d'exposar el rellotge a l'aigua.
• Do not operate the crown or pushers while the watch is submerged in water.
• Avoid exposing the watch to extreme temperature changes, which can affect water resistance.

4. Manteniment

4.1. Neteja

Per mantenir l'aspecte del rellotge:

• Netegeu la caixa i el braçalet amb un drap suau i sec regularment.
• For stainless steel, a soft brush and mild soapy water can be used, followed by thorough rinsing with fresh water and drying. Ensure the crown is screwed down before cleaning with water.
• Eviteu utilitzar productes químics o materials abrasius.

4.2. Regular Servicing

Like any precision instrument, your Oris watch requires periodic professional servicing to ensure its accuracy and longevity. It is recommended to have your watch serviced by an authorized Oris service center every 3-5 years.

4.3. Emmagatzematge

Quan no porteu el rellotge durant un període prolongat, guardeu-lo en un lloc fresc i sec, allunyat de la llum solar directa i de camps magnètics forts. La caixa original del rellotge és ideal per emmagatzemar-lo.

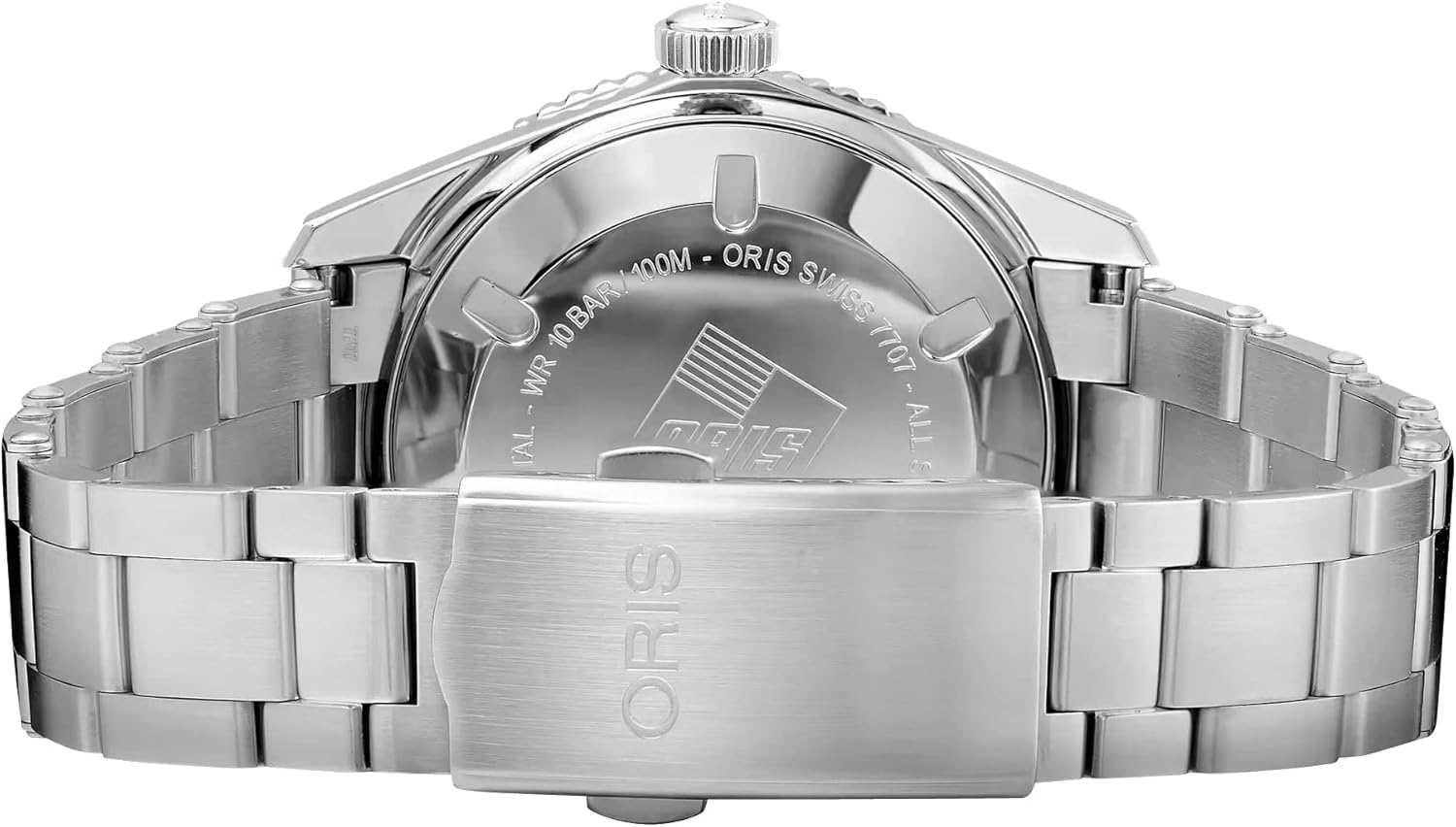

Imatge 4.1: posterior view of the Oris Divers Sixty-Five, displaying the engraved case back and the folding clasp of the stainless steel bracelet.

5. Solució De Problemes

• Mira No Corrent: If your automatic watch has stopped, it likely needs to be wound. Manually wind it by turning the crown clockwise 20-30 times in position 1 (unscrewed). If it still does not run after winding and wearing, it may require professional inspection.
• Data sense canvis: Ensure the time is set correctly, passing through 12 AM for the date to advance. Avoid setting the date manually between 9 PM and 3 AM. If the issue persists, consult an authorized service center.
• Condensació sota el cristall: A small amount of condensation that dissipates quickly is usually not a concern. However, if persistent or significant, it indicates a loss of water resistance and requires immediate professional attention to prevent damage to the movement.

6. Especificacions

7. Informació de la garantia

Oris watches are manufactured to the highest standards and come with a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of your warranty are detailed in the warranty card provided with your watch. Please retain your proof of purchase and warranty card for any claims.

For detailed warranty terms and conditions, please refer to the official Oris website or contact an authorized Oris dealer.

8. Suport i Servei

For any questions, service requests, or technical support regarding your Oris watch, please contact an authorized Oris service center or your original point of purchase. Authorized service centers are equipped with genuine Oris parts and trained technicians to ensure proper care for your timepiece.

You can find a list of authorized service centers on the official Oris weblloc: www.oris.ch/en/service
