Introducció
This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new X-PRO 50cc Moped Scooter. Please read this manual thoroughly before operating the scooter to ensure proper use and to maximize its lifespan. Retain this manual for future reference.
The X-PRO 50cc Moped Scooter is a fully automatic, gas-powered street scooter designed for convenient urban commuting. It features a 4-stroke, air-cooled 50cc engine, electric start with kickstart backup, and a robust frame.
Informació de seguretat
Operating a moped requires adherence to strict safety guidelines. Failure to follow these instructions may result in serious injury or death.
- Always wear an approved helmet, eye protection, and protective clothing (gloves, long pants, sturdy shoes) when operating the scooter.
- No feu servir el patinet sota els efectes de l'alcohol o les drogues.
- Familiarize yourself with all local traffic laws and regulations regarding moped operation.
- Perform pre-ride inspections before each use, checking tires, brakes, lights, and fluid levels.
- Maintain a safe distance from other vehicles and be aware of your surroundings.
- The maximum weight capacity for this scooter is 225 lliuresNo supereu aquest límit.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 Warning).
Muntatge i muntatge
Your X-PRO 50cc Moped Scooter comes approximately 70% assembled in a metal crate. Final assembly is required before operation. It is recommended that assembly be performed by an experienced mechanic or with assistance from someone knowledgeable in vehicle assembly.
Required Assembly Steps:
- Desembalatge: Carefully remove the scooter from its metal shipping crate. Retain all packing materials until assembly is complete and the scooter is confirmed to be in working order.
- Instal·lació de la roda davantera: Attach the front wheel. Ensure the brake caliper is correctly positioned over the disc and all fasteners are tightened to specification.
- Instal·lació del manillar: Securely attach the handlebars. Ensure all control cables (throttle, brakes) are routed correctly and are not pinched.
- posterior View Miralls: Install both left and right rear view mirrors. Adjust for optimal visibility.
- Connexió de la bateria: Connect the battery terminals. Ensure positive (+) and negative (-) connections are correct and secure.
- Controls de fluids: Verify engine oil level and add fuel (unleaded gasoline) to the fuel tank. The fuel capacity is approximately 1.32 gallons.
- Inflat de pneumàtics: Inflate tires to the recommended pressure. Front and Rear Tires: 100/60 - 10 inches.
- Inspecció prèvia a la marxa: Before the first ride, perform a thorough inspection of all assembled components, ensuring all bolts are tightened and all systems (brakes, lights, horn) are functional.

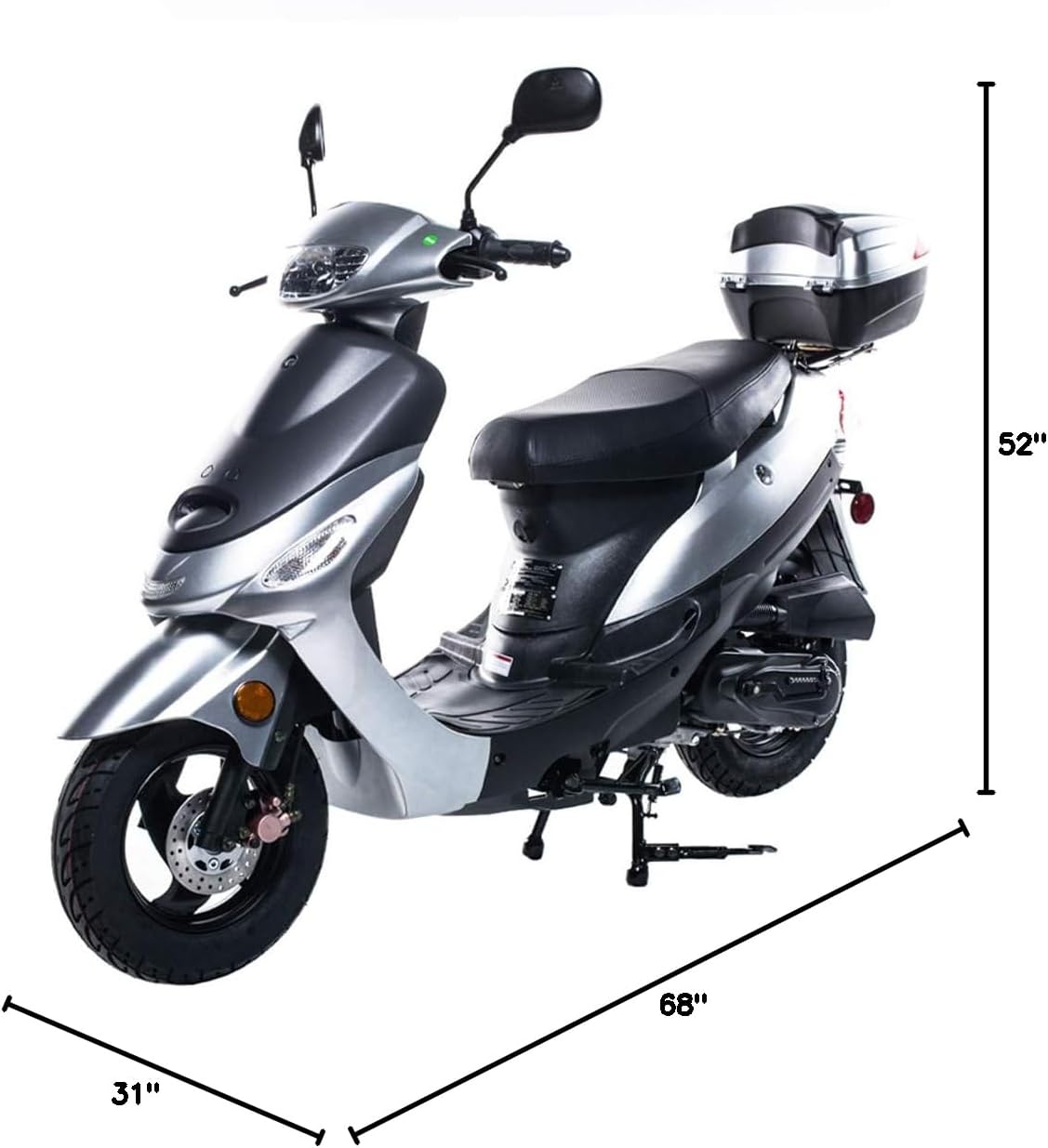

Image: Silver X-PRO 50cc Moped Scooter with overall dimensions (Length: 68", Width: 31", Height: 52"). This image illustrates the scooter's physical size.
Instruccions de funcionament
Engegar el scooter:
- Ensure the scooter is on its center stand or side stand on a level surface.
- Insert the key into the ignition and turn it to the "ON" position.
- Squeeze either the front or rear brake lever.
- Press the electric start button located on the right handlebar. If the electric start does not work, use the kickstart lever.
- Allow the engine to warm up for a few moments before riding, especially in colder weather.
Anant amb el patinet:
- Once the engine is running, disengage the stand.
- Gently twist the throttle grip on the right handlebar to accelerate. The scooter features a fully automatic CVT (Continuously Variable Transmission).
- To slow down or stop, gradually apply the brake levers. The front brake is a hydraulic disc, and the rear brake is a mechanical drum.
- Use turn signals to indicate your intentions when turning or changing lanes.
- The top speed is approximately 31-35 mph, depending on rider weight and road conditions.
Imatge: Anvers view of the X-PRO 50cc Moped Scooter in burgundy/red, showcasing its design and features like headlights and mirrors.
Manteniment
Regular maintenance is crucial for the longevity and safe operation of your scooter.
Manteniment programat:
- Oli de motor: Check engine oil level regularly (e.g., every 500 miles or monthly) and change according to the manufacturer's recommendations (typically every 1000-1500 miles or annually). Use recommended 4-stroke scooter engine oil.
- Pneumàtics: Inspect tire pressure and tread wear before each ride. Maintain proper inflation (refer to tire sidewall or scooter manual for specific PSI).
- Frens: Check brake fluid levels (for hydraulic disc brake) and inspect brake pads/shoes for wear. Adjust brake cables as needed for drum brakes.
- Lights and Signals: Verify all lights (headlight, tail light, turn signals) and the horn are functioning correctly.
- Bateria: Check battery terminals for corrosion and ensure connections are secure. If applicable, check electrolyte levels for lead-acid batteries.
- Filtre d'aire: Clean or replace the air filter periodically, especially if riding in dusty conditions.
- Bujía: Inspect and clean or replace the spark plug as part of routine maintenance.
Imatge: Lateral view of the X-PRO 50cc Moped Scooter in red, highlighting the exhaust and rear wheel assembly.
Resolució de problemes
Aquesta secció tracta problemes comuns que podeu trobar amb el vostre escúter.
| Problema | Causa possible | Solució |
|---|---|---|
| Engine won't start (Electric Start) |
|
|
| El motor funciona de manera irregular o s'atura |
|
|
| Els frens semblen esponjosos o ineficaços |
|
|
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact customer support or a qualified mechanic.
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | 49cc gas scooter (PONY50) |
| Motor | 50cc, 4-Stroke, Air Cooled |
| Potència màxima | 1.8 hp (approx. 2.1 horsepower) |
| Transmissió | Fully Automatic CVT, Belt Drive |
| Sistema d'inici | Electric Start with Kickstart Backup |
| Encesa | CDI |
| Velocitat màxima | 31-35 mph (depending on rider weight & conditions) |
| Capacitat de combustible | 1.32 galons |
| Economia de combustible | 100+ miles per gallon |
| Suspensió davantera | Hydraulic forks |
| Suspensió posterior | Hydraulic Spring |
| Fre davanter | Disc hidràulic |
| Fre posterior | Mechanical Drum |
| Tires (Front/Rear) | 100/60 - 10 inches Steel Rims |
| Capacitat de pes | 225 lliures |
| Pes net | 220 lliures |
| Longitud total | 67.32 inches (approx. 68") |
| Amplada total | 30.7 inches (approx. 31") |
| Alçada total | 51.57 inches (approx. 52") |
| Components inclosos | Title and registration documents, Headlights, Tail lights, Matching trunk, Underseat storage |
Informació de la garantia
X-PRO provides a 30-day warranty for replacement parts from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. It does not cover damage resulting from misuse, neglect, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
Atenció al client
For technical assistance, parts inquiries, or warranty claims, please contact the seller, SMART DEALS NOW, or X-PRO customer service. Refer to your purchase documentation for specific contact details.
You can also visit the official X-PRO store on Amazon for more information and products: X-PRO Amazon Store
