Introducció
Thank you for choosing the Xiaomi Mi Handheld Vacuum Cleaner 1C. This manual provides important instructions for the safe operation, maintenance, and troubleshooting of your vacuum cleaner. Please read this manual thoroughly before using the product and retain it for future reference.
The Xiaomi Mi Handheld Vacuum Cleaner 1C is a powerful and versatile cordless vacuum designed for efficient cleaning of various surfaces. It features a brushless motor, multi-cyclone filtration system, and a long-lasting battery for extended cleaning sessions.
Continguts i components del paquet
Before assembly, ensure all components listed below are present and in good condition.
- 1 x Handheld Vacuum Cleaner Unit
- 1 x font d'alimentació
- 1 x Estació d'acoblament
- 1 x Floor Nozzle (Motorized Brush)
- 1 x Mite Removal Brush (Tip for beds)
- 1 broquet de raspall 2 en 1
- 1 x eina per esquerdes
- 1 x vareta d'extensió
- 1 x manual d'instruccions
Image: The Xiaomi Mi Handheld Vacuum Cleaner 1C unit, along with its wall-mounted docking station, power adapter, extension wand, and various cleaning attachments including the floor brush, crevice tool, and brush nozzle.
Muntatge i muntatge
The Xiaomi Mi Handheld Vacuum Cleaner 1C requires some assembly before first use. Follow these steps to set up your vacuum cleaner.
- Càrrega de la bateria:
Before first use, fully charge the vacuum cleaner. Connect the power supply to the docking station and plug it into a wall outlet. Place the vacuum cleaner onto the docking station. The indicator lights will show the charging status. A full charge typically takes several hours.
- Muntatge de la unitat principal:
Attach the desired cleaning attachment (e.g., floor nozzle, crevice tool, or brush nozzle) directly to the main handheld vacuum unit for compact cleaning, or connect the extension rod first for extended reach.
Image: A user demonstrating how to attach the crevice tool directly to the main handheld vacuum unit, highlighting the easy assembly process.
- Attaching the Extension Rod and Floor Nozzle:
For floor cleaning, connect the extension rod to the main vacuum unit until it clicks into place. Then, attach the floor nozzle to the other end of the extension rod, ensuring it is securely fastened.

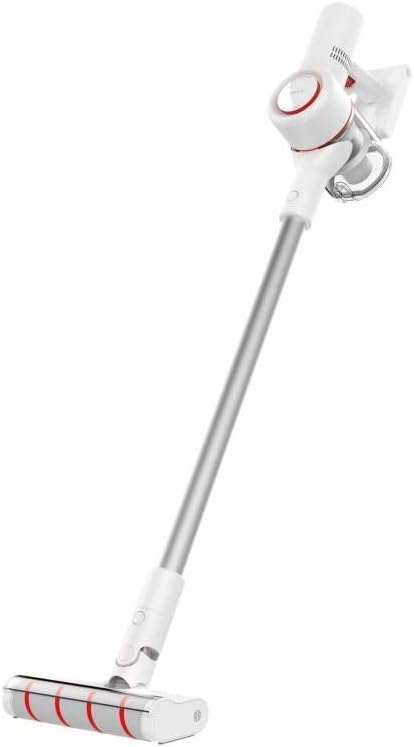

Image: The Xiaomi Mi Handheld Vacuum Cleaner 1C fully assembled with the extension rod and floor brush attached, ready for use.
Instruccions de funcionament
Learn how to effectively use your Xiaomi Mi Handheld Vacuum Cleaner 1C for optimal cleaning performance.
- Encès/apagat:
Premeu el botó d'engegada situat al mànec per engegar l'aspiradora. Torneu-lo a prémer per apagar-la.
- Selecció del mode de succió:
The vacuum cleaner offers multiple suction modes: MAX mode for intensive cleaning (up to 8 minutes), Standard mode (up to 27 minutes), and Energy-saving mode (up to 60 minutes). Use the mode selection button to cycle through these options based on your cleaning needs and desired battery life.
- Ús d'arxius adjunts:
- Broquet de pis: Ideal for hard floors and carpets. Its independent motor helps remove dust from fine cracks.
- Eina per esquerdes: Perfect for narrow gaps, corners, and hard-to-reach areas.
- Broquet de raspall 2 en 1: Suitable for cleaning delicate surfaces, upholstery, and keyboards.
- Mite Removal Brush: Designed for deep cleaning mattresses, sofas, and other fabric surfaces to remove dust mites.
- Disseny ergonòmic:
The ergonomic design allows for comfortable handling and effective cleaning of various surfaces, including deep crevices and elevated areas.
Manteniment i Neteja
Un manteniment regular garanteix la longevitat i el rendiment òptim del vostre aspirador.
- Buidant la paperera:
The transparent dustbin should be emptied regularly, especially when the MAX indicator line is reached. Press the release button to detach the dustbin and dispose of the collected debris.

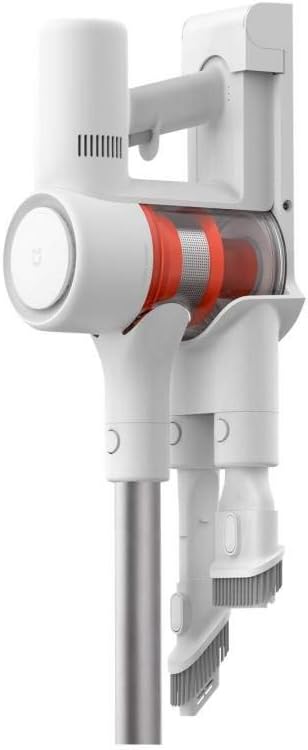

Imatge: Un primer pla view of the main vacuum unit, showing the transparent dustbin and the internal multi-cyclone filtration system, indicating where dust collects.
- Cleaning the Filter System:
The multi-cyclone filtration system and cartridge filter should be cleaned periodically. Refer to the detailed instructions in the included manual for proper disassembly and cleaning of the filter components. Ensure all parts are completely dry before reassembling.
- Neteja del rotlle de raspall:
Periodically inspect the brush roll in the floor nozzle for tangled hair or debris. Remove any obstructions to maintain effective cleaning performance.
- Neteja general:
Netegeu l'exterior de l'aspiradora amb un drap suau iamp drap. No utilitzeu detergents ni dissolvents forts.
Resolució de problemes
If you encounter any issues with your Xiaomi Mi Handheld Vacuum Cleaner 1C, refer to the table below for common problems and their solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| L'aspiradora no s'encén. | La bateria està esgotada. | Carregueu la bateria completament. |
| Potència d'aspiració reduïda. | Dustbin is full; Filter is clogged; Brush roll is obstructed. | Empty dustbin; Clean or replace filter; Remove obstructions from brush roll. |
| El buit s'atura durant el funcionament. | Battery is low; Overheating protection activated. | Recharge battery; Allow vacuum to cool down before resuming use. |
| Soroll inusual durant el funcionament. | Obstruction in air path or brush roll. | Check for and remove any obstructions in the nozzle, extension rod, or brush roll. |
Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
Especificacions
| Característica | Detall |
|---|---|
| Model | 1C |
| Marca | XIAOMI |
| Potència nominal | 400 watts |
| Potència d'aspiració | Up to 20 kPa (MAX mode) |
| Tipus de bateria | Ió de liti |
| Durada de la bateria | Up to 8 minutes (MAX mode), 27 minutes (Standard mode), 60 minutes (Energy-saving mode) |
| Tipus de filtre | Cartridge, Multi-cyclone system (removes up to 97% of microorganisms down to 0.3um) |
| Pes de l'article | 3.3 quilos |
| Dimensions del producte | 20.4 x 25.6 x 120.8 cm (muntat) |
| Factor de forma | Mà d'oficina, sense fil |
| Muntatge obligatori | Sí |
| Components inclosos | Handheld vacuum unit, Power supply, Docking station, Floor nozzle, Mite removal brush, 2-in-1 brush nozzle, Crevice tool, Extension rod, Instruction manual |
Informació de la garantia
This product comes with a limited warranty. Please review the terms and conditions below.
Període de garantia: 90 dies des de la data de compra.
Cobertura: This warranty covers manufacturing defects only. It does not cover damage resulting from misuse, accident, unauthorized modification, or normal wear and tear.
Condicions: To claim warranty service, the product must be returned with its original packaging and all complete accessories.
For warranty claims or service, please contact your point of purchase or Xiaomi customer support.
Atenció al client
For further assistance, technical support, or inquiries regarding your Xiaomi Mi Handheld Vacuum Cleaner 1C, please visit the official Xiaomi weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
Recursos en línia: Suport oficial de Xiaomi
Please have your product model (1C) and purchase information ready when contacting support.
