Introducció
This manual provides essential information for the safe and effective operation, setup, and maintenance of your New Bright 1:16 Scale Remote Control Ravager Buggy 1640C-NB. Please read all instructions carefully before use to ensure proper function and to prevent damage.
Producte acabatview
The New Bright 1:16 Scale Remote Control Ravager Buggy 1640C-NB is designed for off-road play. It features knobby tires and spring suspension for navigating varied terrains. The vehicle operates with full-function radio control and 2.4GHz technology, allowing for forward, reverse, left, and right steering.

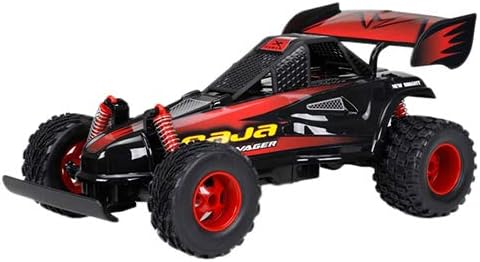

An image of the New Bright 1:16 Scale Remote Control Ravager Buggy 1640C-NB, showcasing its black and red body, knobby tires, and rear spoiler.
Configuració
Instal·lació de la bateria
Proper battery installation is crucial for vehicle operation. Always use fresh batteries and ensure correct polarity.
- Bateria del vehicle: Locate the battery compartment on the underside of the buggy. Open the compartment cover. Insert the required battery pack (not included, typically a rechargeable NiMH or Li-ion pack) according to the polarity indicators. Securely close the compartment cover.
- Transmitter (Controller) Batteries: Locate the battery compartment on the back of the transmitter. Open the cover. Insert 2 AA batteries (not included) ensuring correct polarity (+/-). Close the compartment cover.
Pairing the Transmitter and Vehicle
The 2.4GHz technology allows for automatic pairing. Follow these steps:
- Ensure fresh batteries are installed in both the vehicle and the transmitter.
- Turn on the vehicle using the ON/OFF switch, usually located on the chassis.
- Turn on the transmitter using its ON/OFF switch.
- The transmitter and vehicle should automatically link. A light on the transmitter may indicate a successful connection. If not, turn both off and repeat the process.
Instruccions de funcionament
Controls
- Endavant/marrere: Use the trigger on the transmitter. Pull the trigger towards you to move forward. Push the trigger away from you to move in reverse.
- Direcció esquerra/dreta: Use the steering wheel on the transmitter. Turn the wheel left to steer the vehicle left, and right to steer the vehicle right.
Consells de conducció
- Operate the vehicle on flat, open surfaces free of obstacles.
- Avoid driving in wet conditions, sand, or tall grass, as this can damage the vehicle's electronics and motor.
- Maintain a clear line of sight between the transmitter and the vehicle for optimal control range.
- Practice gentle steering and throttle inputs to gain control before attempting higher speeds.
Manteniment
Neteja
- After each use, gently wipe the vehicle with a clean, dry cloth to remove dirt and debris.
- No utilitzeu aigua ni productes de neteja químics, ja que poden danyar els components electrònics.
- Use a soft brush to remove dirt from hard-to-reach areas, such as around the wheels and suspension.
Emmagatzematge
- Always remove batteries from both the vehicle and the transmitter when not in use for extended periods to prevent leakage and corrosion.
- Store the vehicle and transmitter in a cool, dry place, away from direct sunlight and extreme temperatures.
- Mantingueu el producte en el seu embalatge original o en un recipient protector per evitar l'acumulació de pols i danys físics.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El vehicle no respon a l'emissor. | Batteries are low or incorrectly installed. Not paired. | Replace batteries in both vehicle and transmitter. Ensure correct polarity. Re-pair the vehicle and transmitter. |
| Short control range or erratic behavior. | Low batteries. Interference from other 2.4GHz devices. Obstacles blocking signal. | Replace batteries. Move to an area with less interference. Ensure clear line of sight. |
| El vehicle es mou lentament o li falta potència. | Bateria baixa del vehicle. | Recharge or replace the vehicle battery. |
Especificacions
- Marca: Nou brillant
- Número de model: 1640C-NB
- Escala: 1:16
- Tipus de control: Radiocontrol de funció completa
- Freqüència: 2.4 GHz
- Funcions: Forward, Reverse, Left Steering, Right Steering
- Dimensions del producte (L x A x A): 41.91 cm x 22.86 cm x 22.23 cm
- Pes del producte: 1.1 kg
- Edat recomanada: 6 - 9 Years
- UPC-A: 050211164046
Informació de seguretat
- Edat recomanada: This product is suitable for ages 6-9 years. Adult supervision is recommended during operation.
- Seguretat de la bateria: Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. Remove batteries when not in use.
- Entorn de funcionament: Do not operate near people, pets, or obstacles. Avoid driving in streets, near water, or in hazardous areas.
- Evitar l'impacte: Do not intentionally crash the vehicle into objects or people.
- Perill d'asfixia: Aquest producte conté peces petites i no és adequat per a nens menors de 3 anys.
Garantia i Suport
For warranty information or technical support regarding your New Bright 1:16 Scale Remote Control Ravager Buggy 1640C-NB, please refer to the contact information provided on the product packaging or visit the official New Bright weblloc web. Conserveu el rebut de compra com a comprovant de compra.
